DORMER G1426.3 Countersinks / Bors

Product Code: G1426.3

$55.18$50.16 Ex. GST

Product Code: G1426.3 SKU G1426.3 Categories , ,
DORMER G1426.3 Countersinks / Bors

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

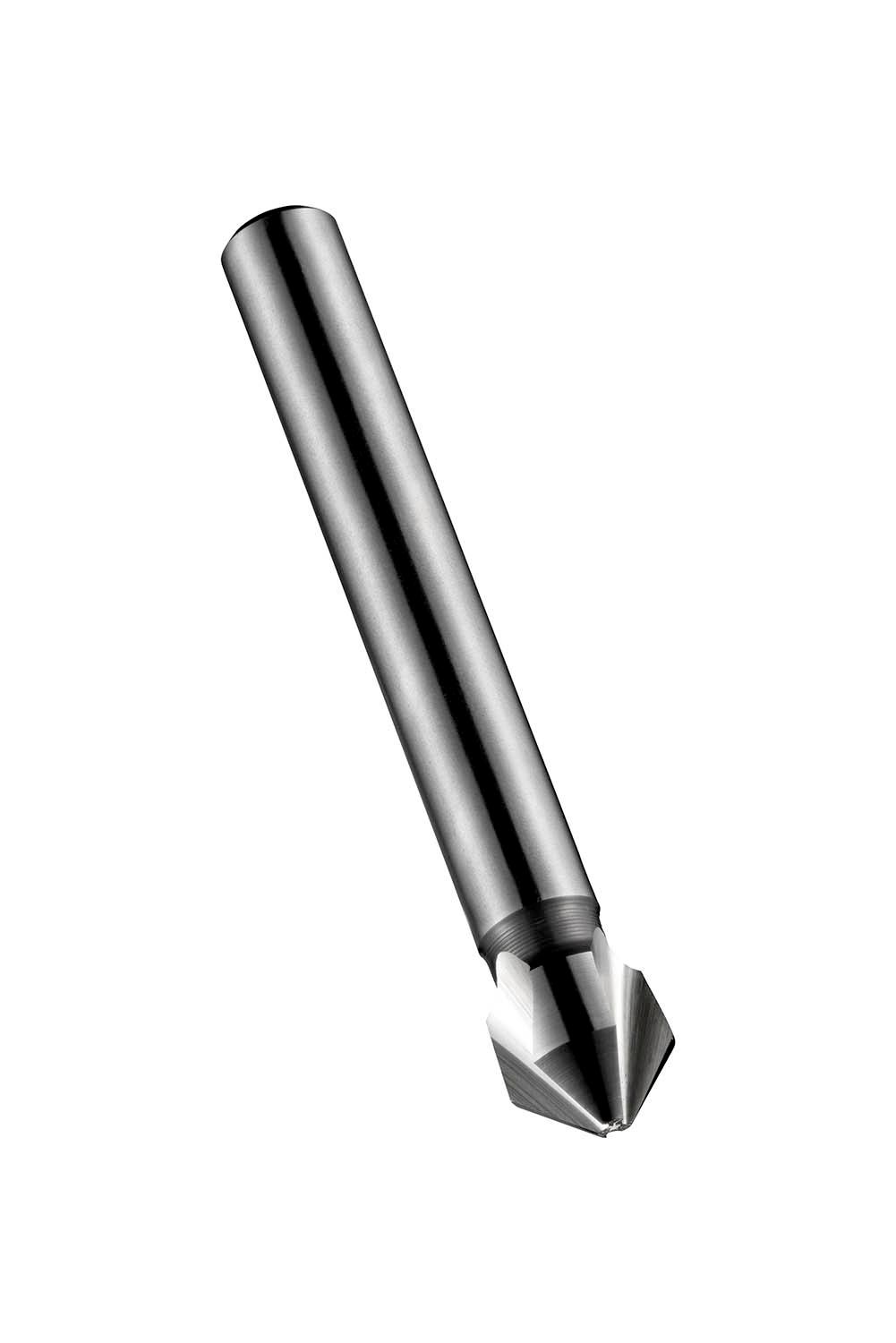

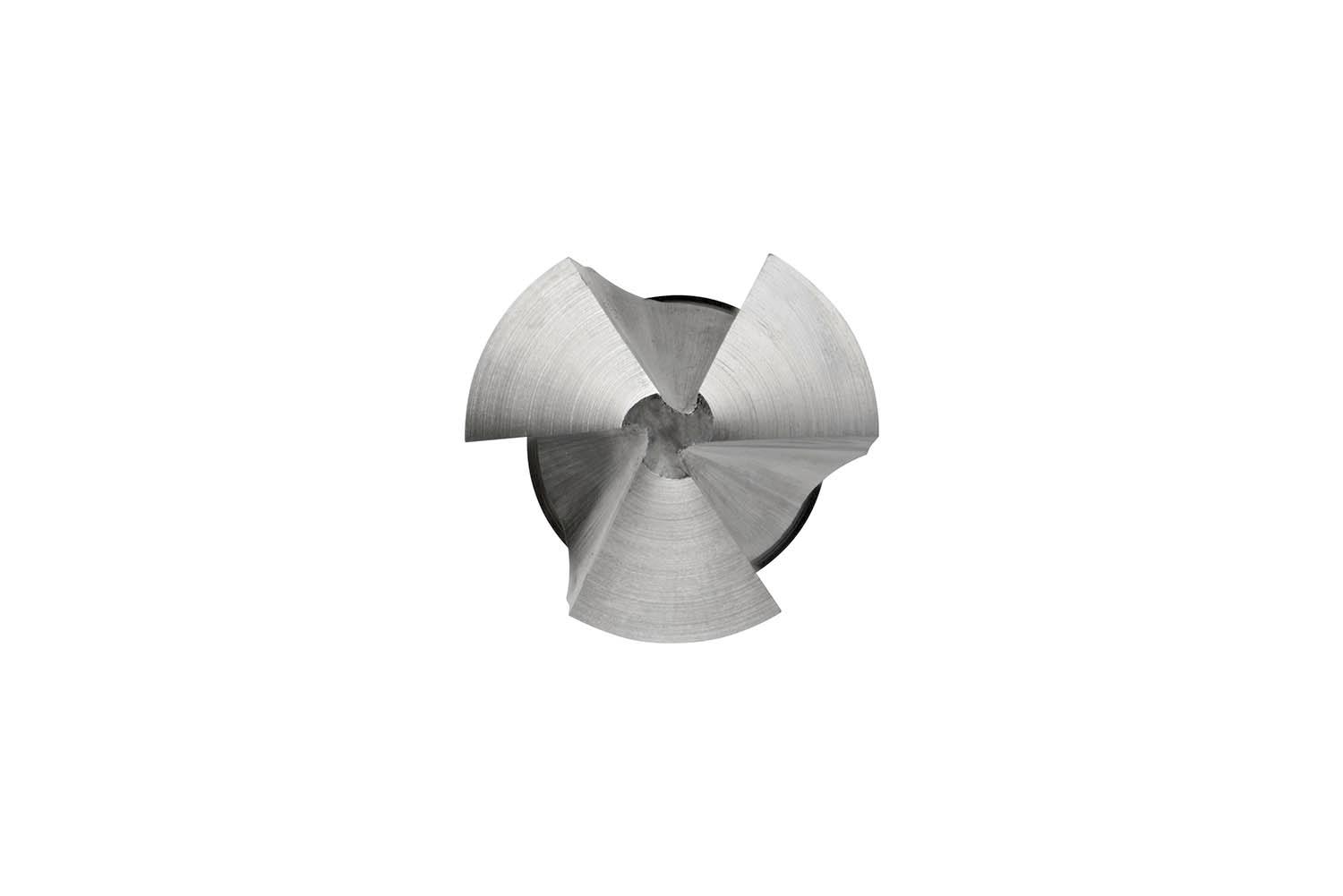

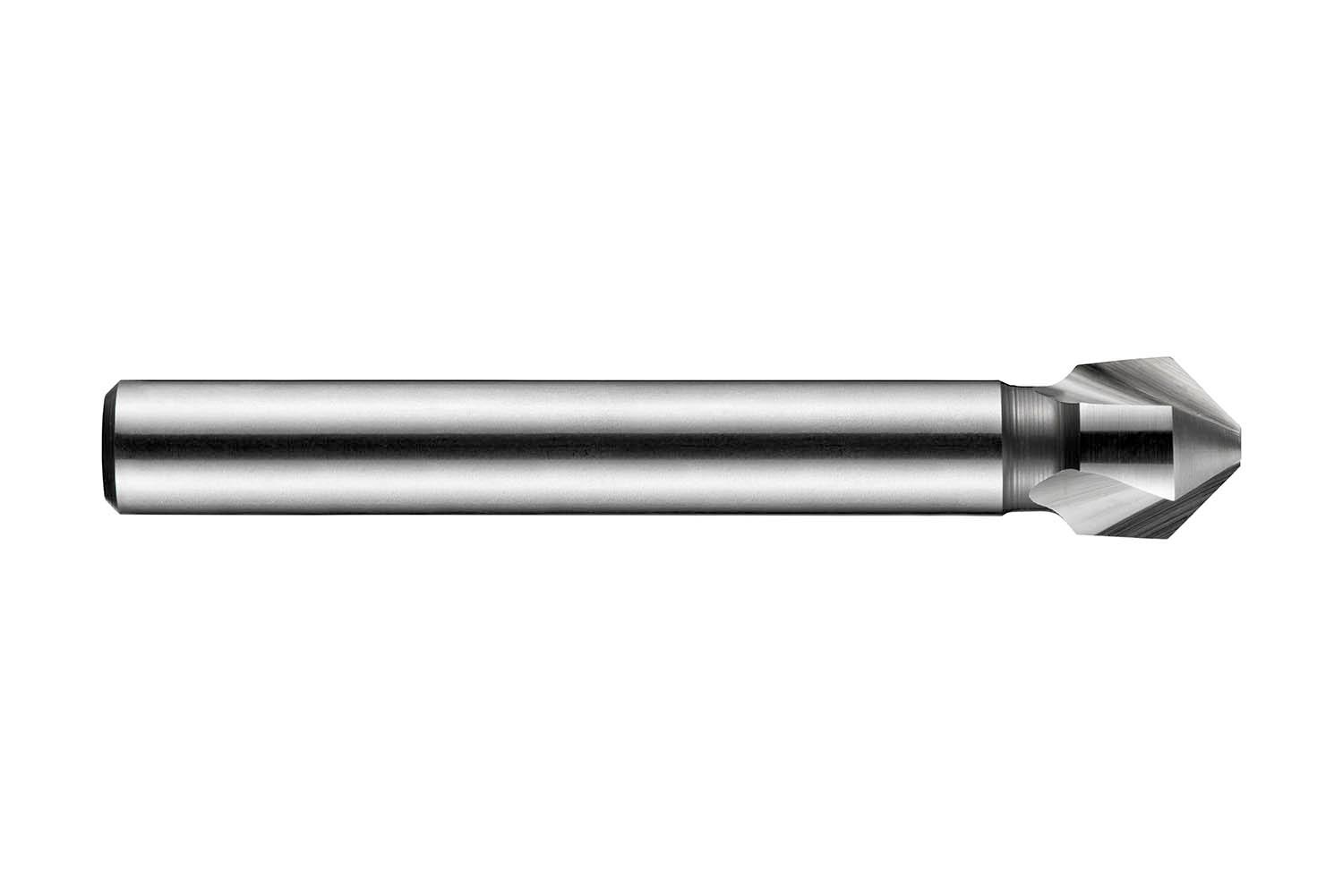

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 6.30mm with an overall length of 45mm and a head length of 5.5mm and 5mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 1.50mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers

Additional information

Weight 0.0536 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760149270
Product number (SAP): 86018223
Ordering code ANSI: G1426.3
Gross weight – grams: 9.5
Cutting diameter second cutting step – millimeters (DC_2): 6.3 mm
Cutting diameter step – millimeter: 1.5 mm
Length chip flute – millimeter (LCF): 5.5 mm
Overall length – millimeter (OAL): 45 mm
Connection diameter – millimeter (DCON MS): 5 mm
Flute count (NOF): 3
ISO: G1426.3

Brand

DORMER
