DORMER G14915 Countersinks / Bors

Product Code: G14915

$94.04$85.49 Ex. GST

Product Code: G14915 SKU G14915 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

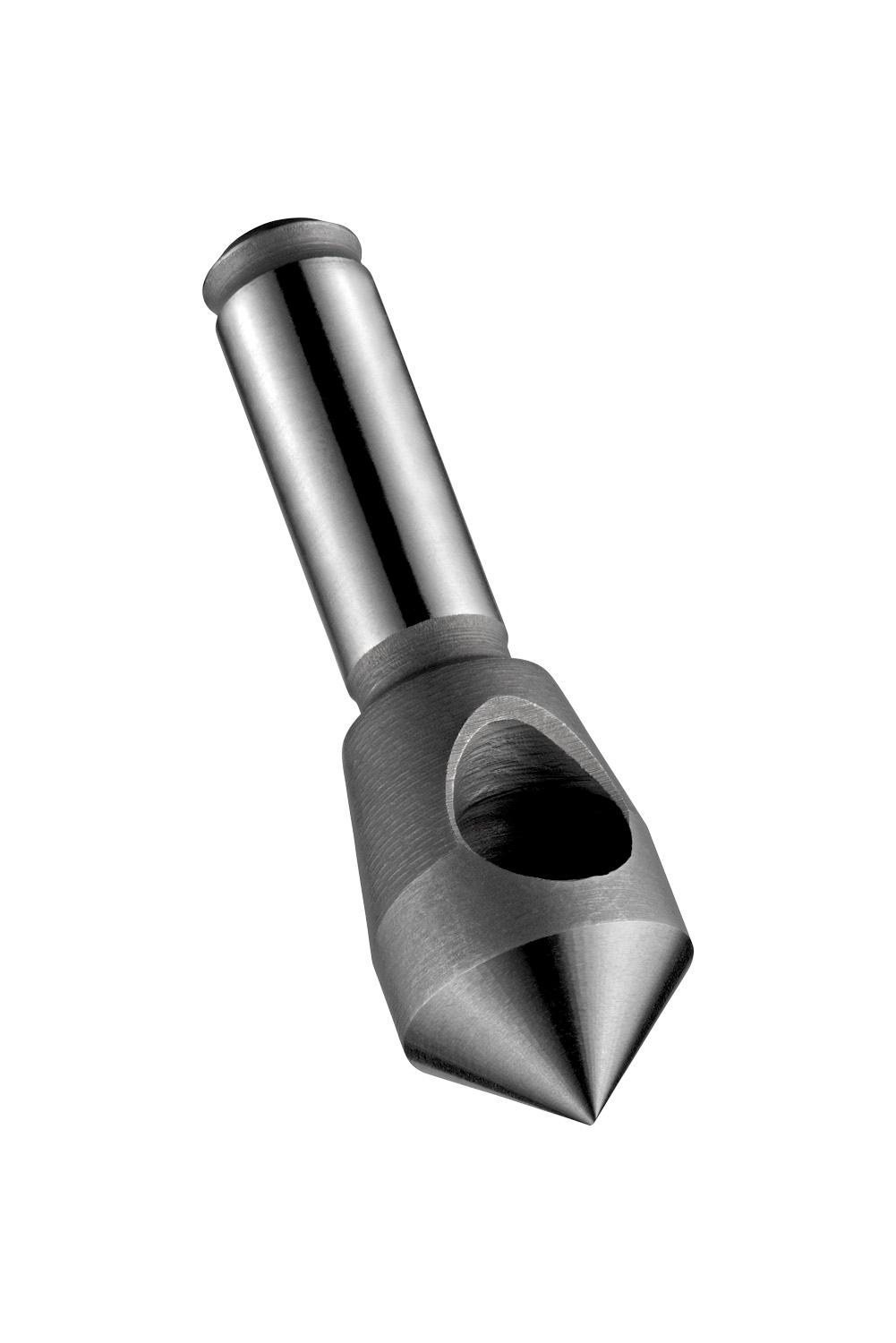

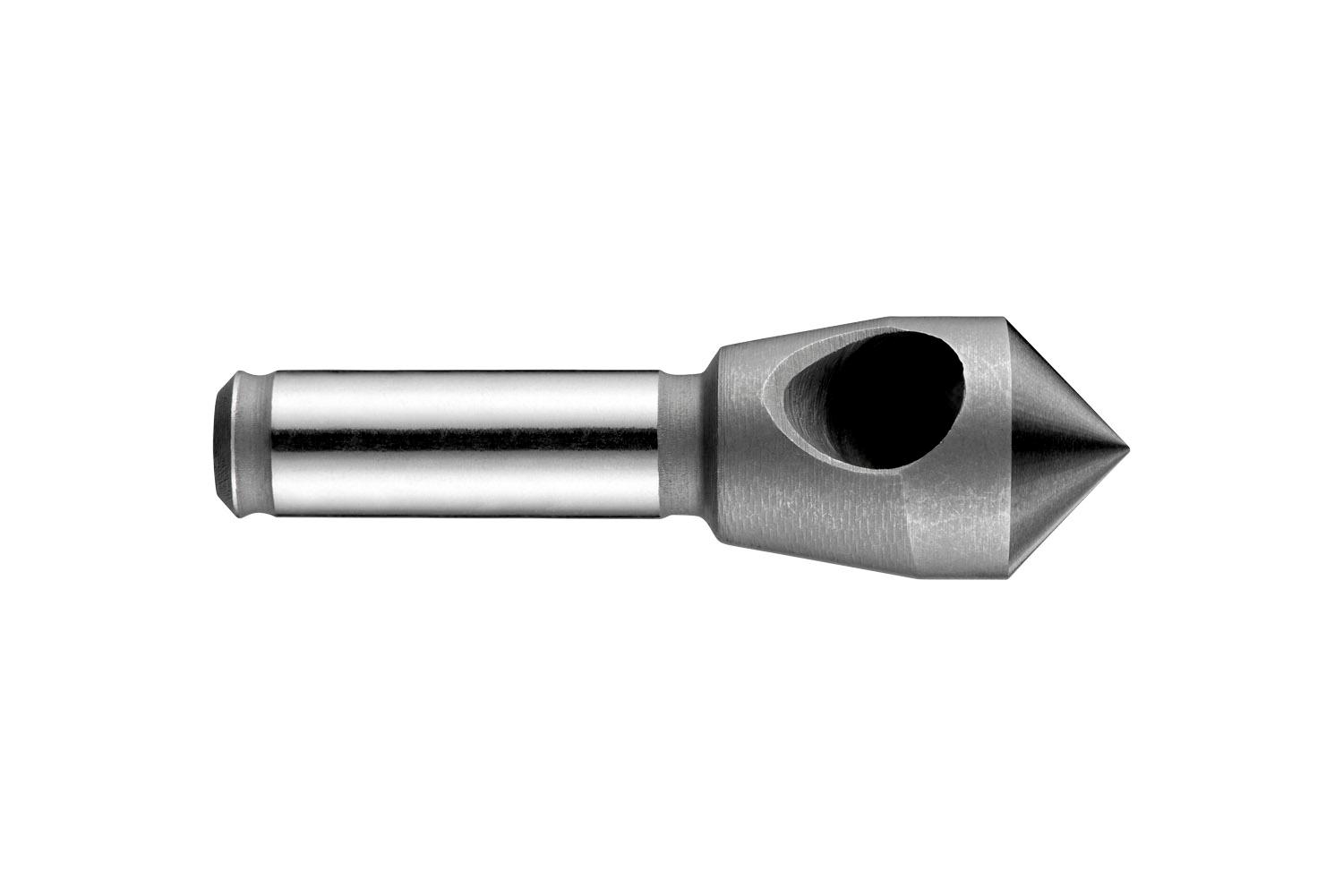

Zero flute countersink, through hole style, with 1-cutting edge, 90° chamfering angle, maximum diameter 15.00mm with an overall length of 65mm and a head length of 34mm and 10mm straight shank, according to DORMER standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 10.00mm, cobalt based HSS-E with standard bright finish for machining free machining, plain carbon and alloy steel, wrought and copper or copper alloys

Additional information

Weight 0.0913 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760109045
Product number (SAP): 86018229
Ordering code ANSI: G14915
Gross weight – grams: 66.7

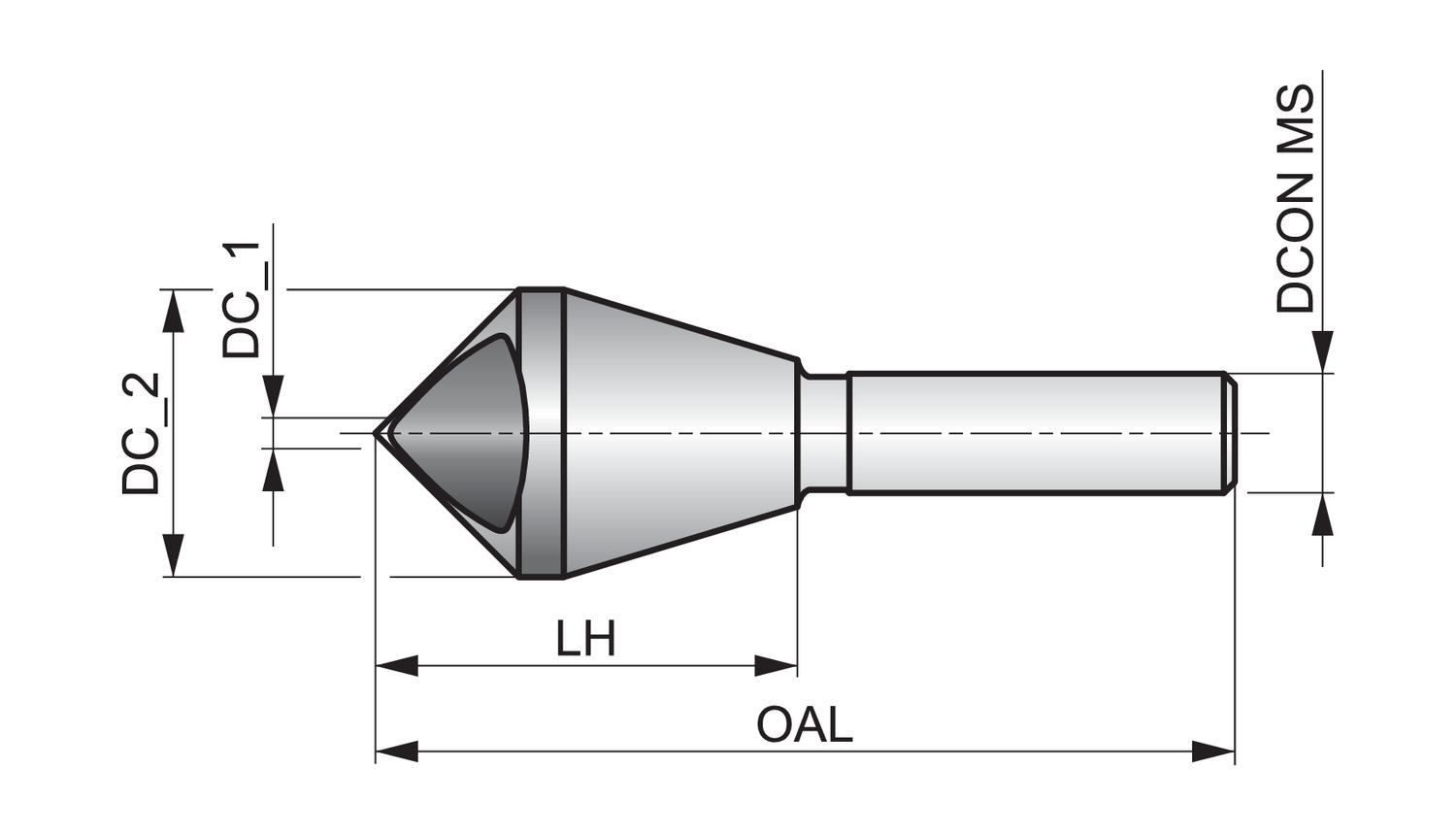

Cutting diameter second cutting step – millimeters (DC_2): 15 mm
Cutting diameter step – millimeter: 10 mm
Head length – millimeter (LH): 34 mm
Overall length – millimeter (OAL): 65 mm
Connection diameter – millimeter (DCON MS): 10 mm
Cutting diameter – millimeter (DC): 21 mm
Flute count (NOF): 1
ISO: G14915

Brand

DORMER
