DORMER G14925 Countersinks / Bors

Product Code: G14925

$207.34$188.49 Ex. GST

Product Code: G14925 SKU G14925 Categories , ,
DORMER G14925 Countersinks / Bors

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

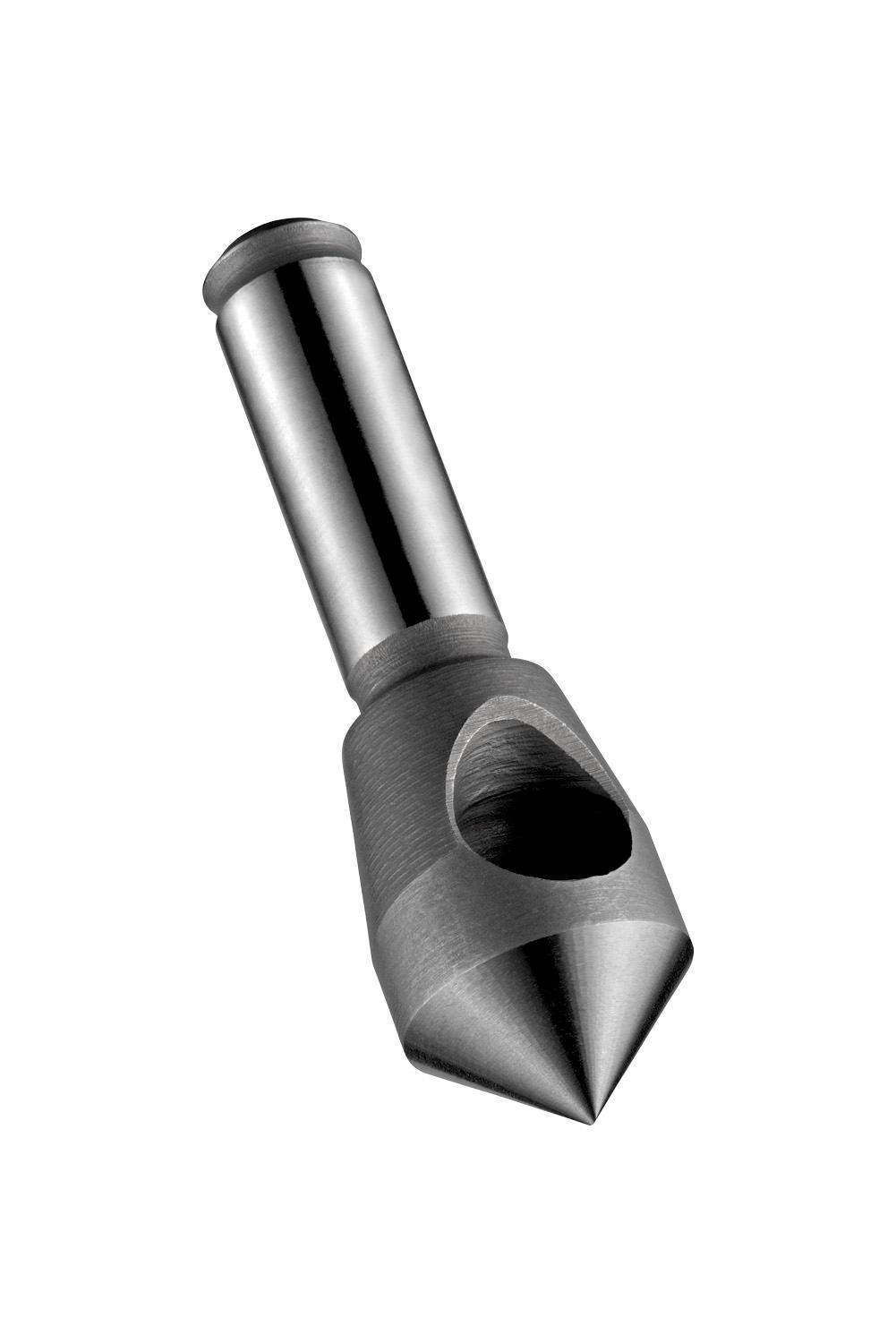

Zero flute countersink, through hole style, with 1-cutting edge, 90° chamfering angle, maximum diameter 25.00mm with an overall length of 102mm and a head length of 48mm and 15mm straight shank, according to DORMER standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 20.00mm, cobalt based HSS-E with standard bright finish for machining free machining, plain carbon and alloy steel, wrought and copper or copper alloys

Additional information

Weight 0.2013 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760109069
Product number (SAP): 86018231
Ordering code ANSI: G14925
Gross weight – grams: 187.2

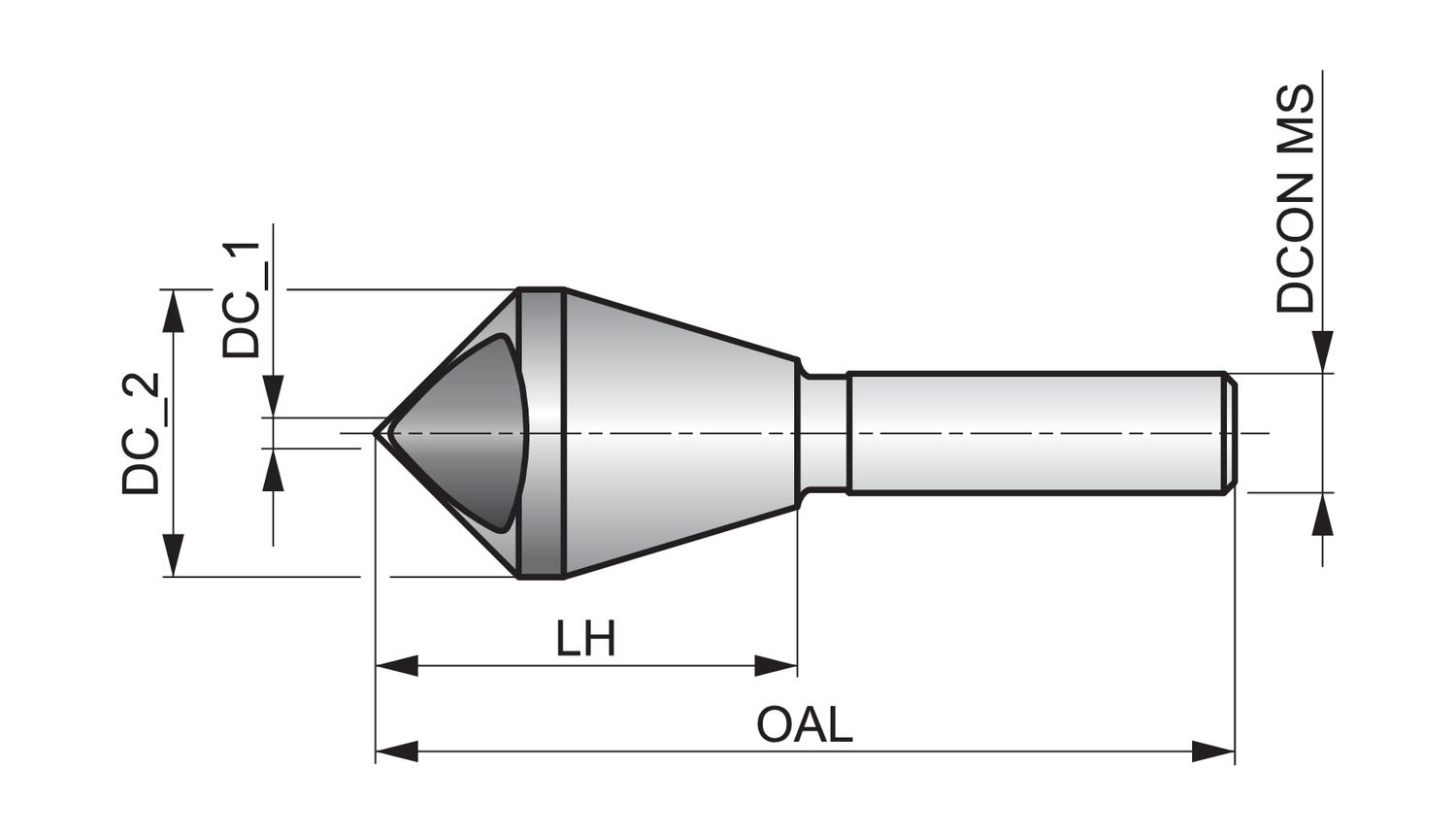

Cutting diameter second cutting step – millimeters (DC_2): 25 mm
Cutting diameter step – millimeter: 20 mm
Head length – millimeter (LH): 48 mm
Overall length – millimeter (OAL): 102 mm
Connection diameter – millimeter (DCON MS): 15 mm
Cutting diameter – millimeter (DC): 35 mm
Flute count (NOF): 1
ISO: G14925

Brand

DORMER
