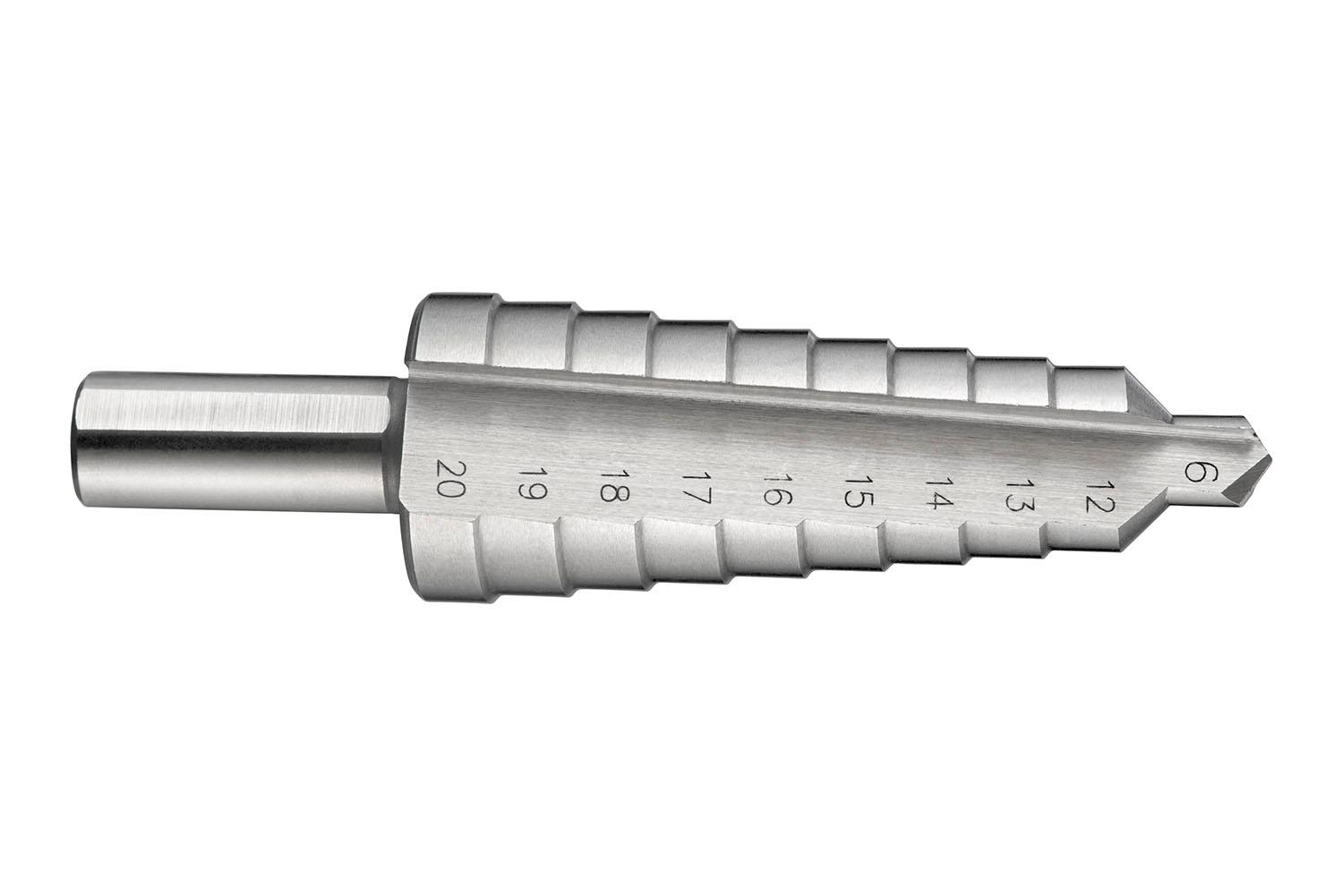

DORMER G3141220 Countersinks / Bors

Description: Value
EAN number: 7320760149423
Product number (SAP): 86018254
Ordering code ANSI: G3141220
Gross weight – grams: 76.5
Internal designation number: 1220

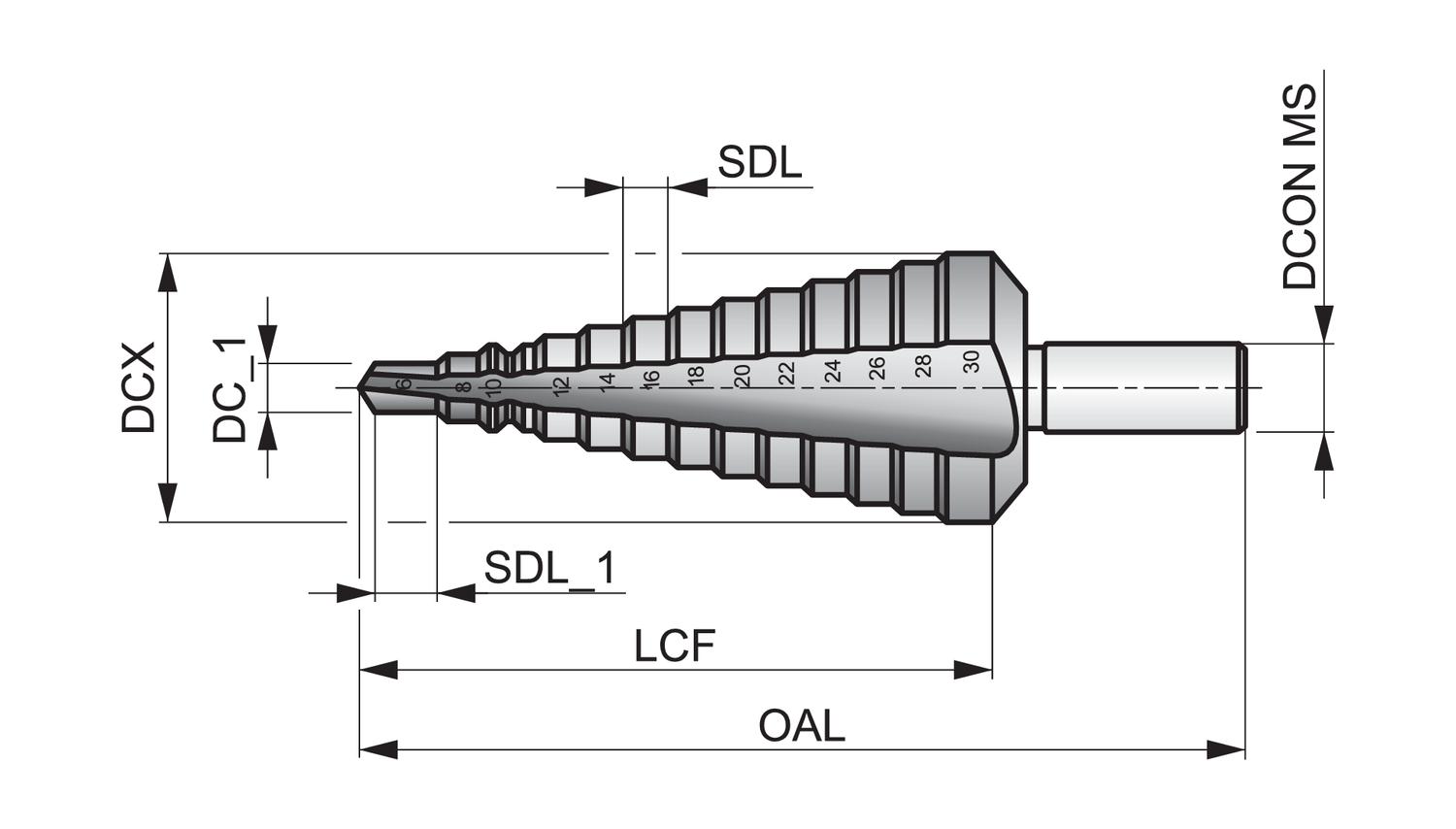

Cutting diameter step – millimeter: 12 mm
Cutting diameter maximum – millimeter (DCX): 20 mm
Step diameter length – millimeter (SDL): 4 mm
Step Diameter Increments – millimeters (SDI): 12 – 13 – 14 – 15 – 16 – 17 – 18 – 19 – 20
Step diameter length first cutting step – millimeters (SDL_1): 4 mm
Length chip flute – millimeter (LCF): 55 mm
Overall length – millimeter (OAL): 76 mm
Connection diameter – millimeter (DCON MS): 9 mm
ISO: G3141220
