DORMER G3142030 Countersinks / Bors

Description: Value
EAN number: 7320760149430
Product number (SAP): 86018255
Ordering code ANSI: G3142030
Gross weight – grams: 201
Internal designation number: 2030

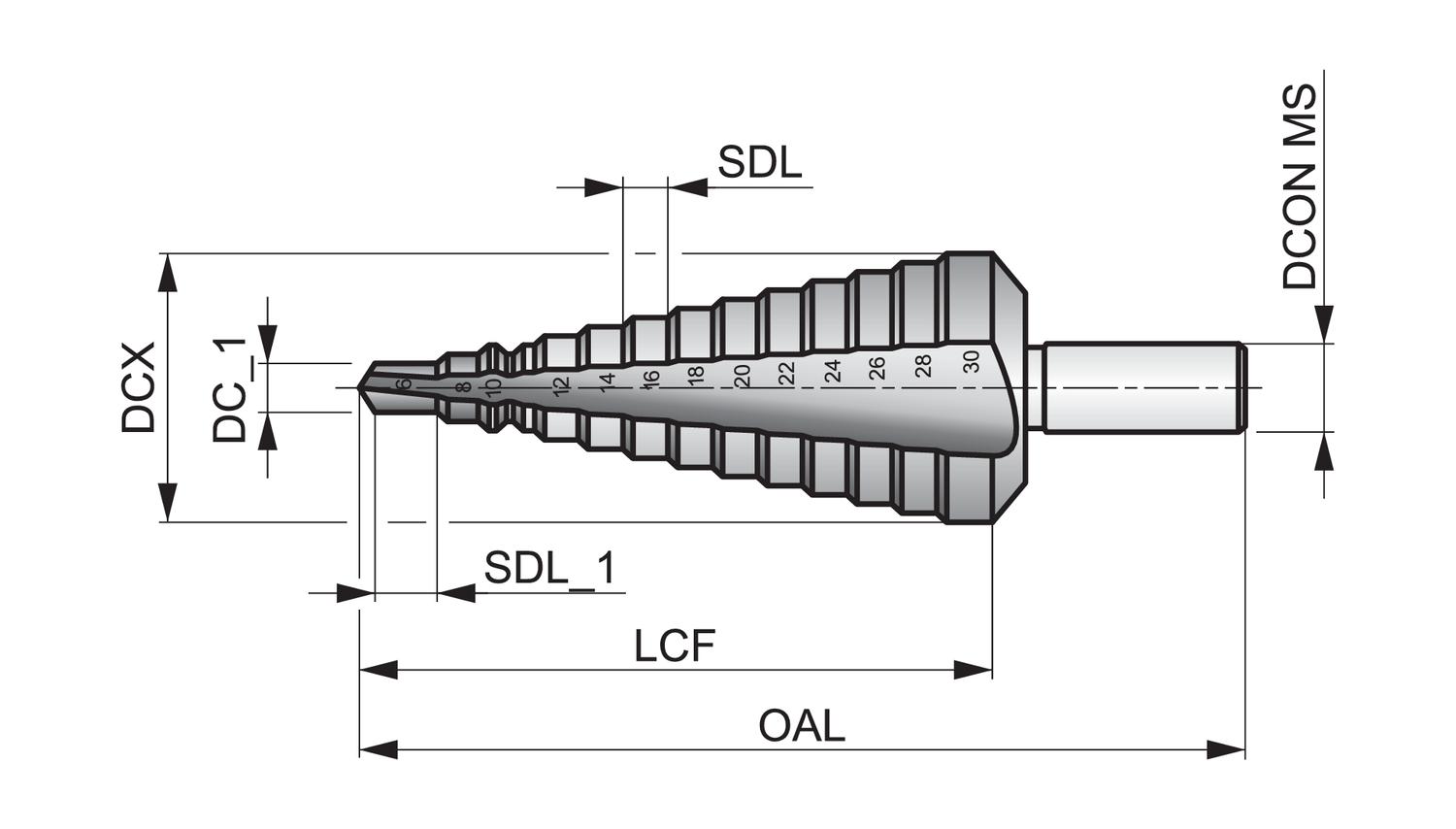

Cutting diameter step – millimeter: 20 mm
Cutting diameter maximum – millimeter (DCX): 30 mm
Step diameter length – millimeter (SDL): 4 mm
Step Diameter Increments – millimeters (SDI): 20 – 21 – 22 – 23 – 24 – 25 – 26 – 27 – 28 – 29 – 30
Step diameter length first cutting step – millimeters (SDL_1): 4 mm
Length chip flute – millimeter (LCF): 67 mm
Overall length – millimeter (OAL): 88 mm
Connection diameter – millimeter (DCON MS): 12 mm
ISO: G3142030
