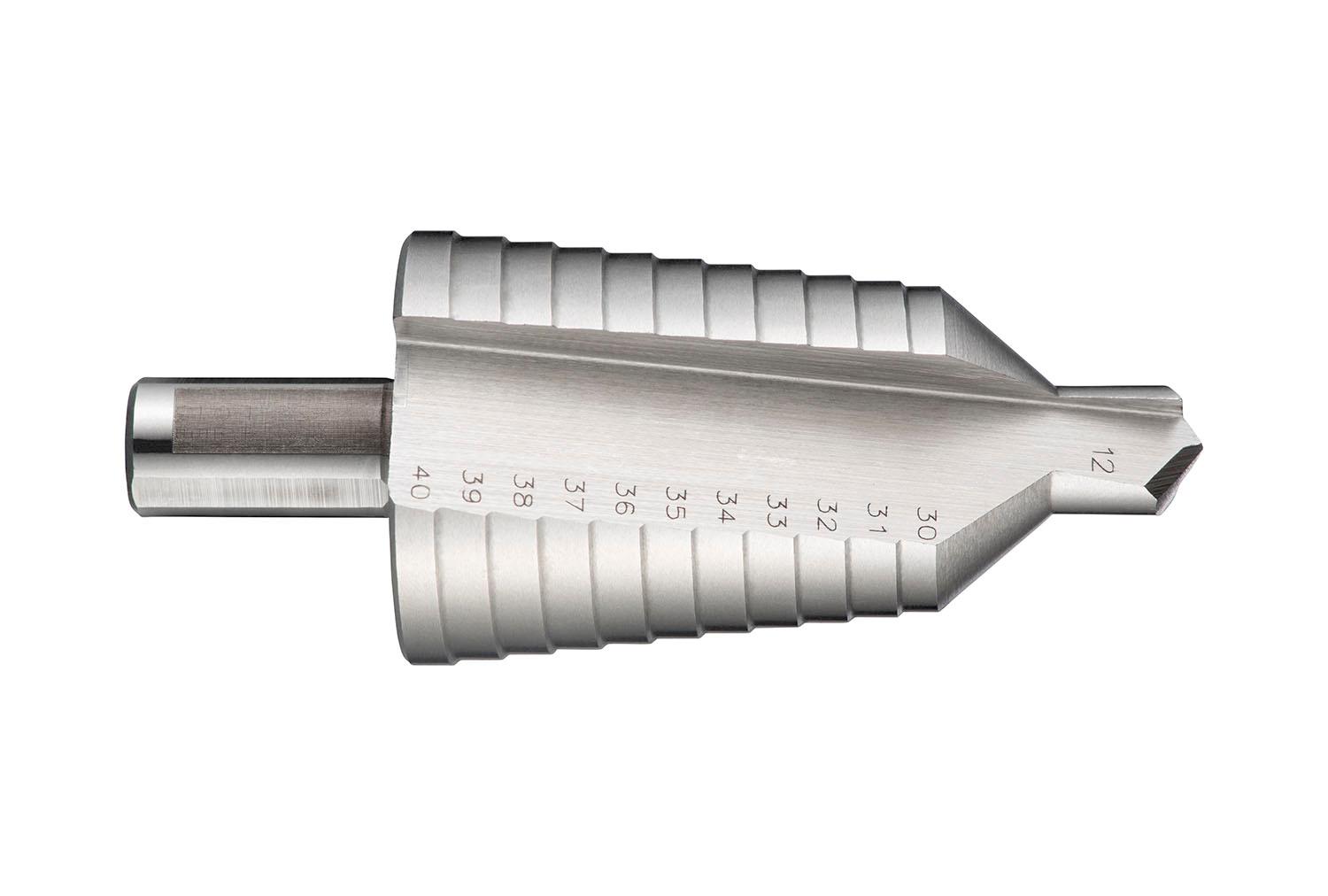

DORMER G3143040 Countersinks / Bors

Description: Value
EAN number: 7320760149447
Product number (SAP): 86018256
Ordering code ANSI: G3143040
Gross weight – grams: 373.3
Internal designation number: 3040
Cutting diameter step – millimeter: 30 mm
Cutting diameter maximum – millimeter (DCX): 40 mm
Step diameter length – millimeter (SDL): 4 mm
Step Diameter Increments – millimeters (SDI): 30 – 31 – 32 – 33 – 34 – 35 – 36 – 37 – 38 – 39 – 40
Step diameter length first cutting step – millimeters (SDL_1): 4 mm
Length chip flute – millimeter (LCF): 74 mm
Overall length – millimeter (OAL): 98 mm
Connection diameter – millimeter (DCON MS): 13 mm
ISO: G3143040
