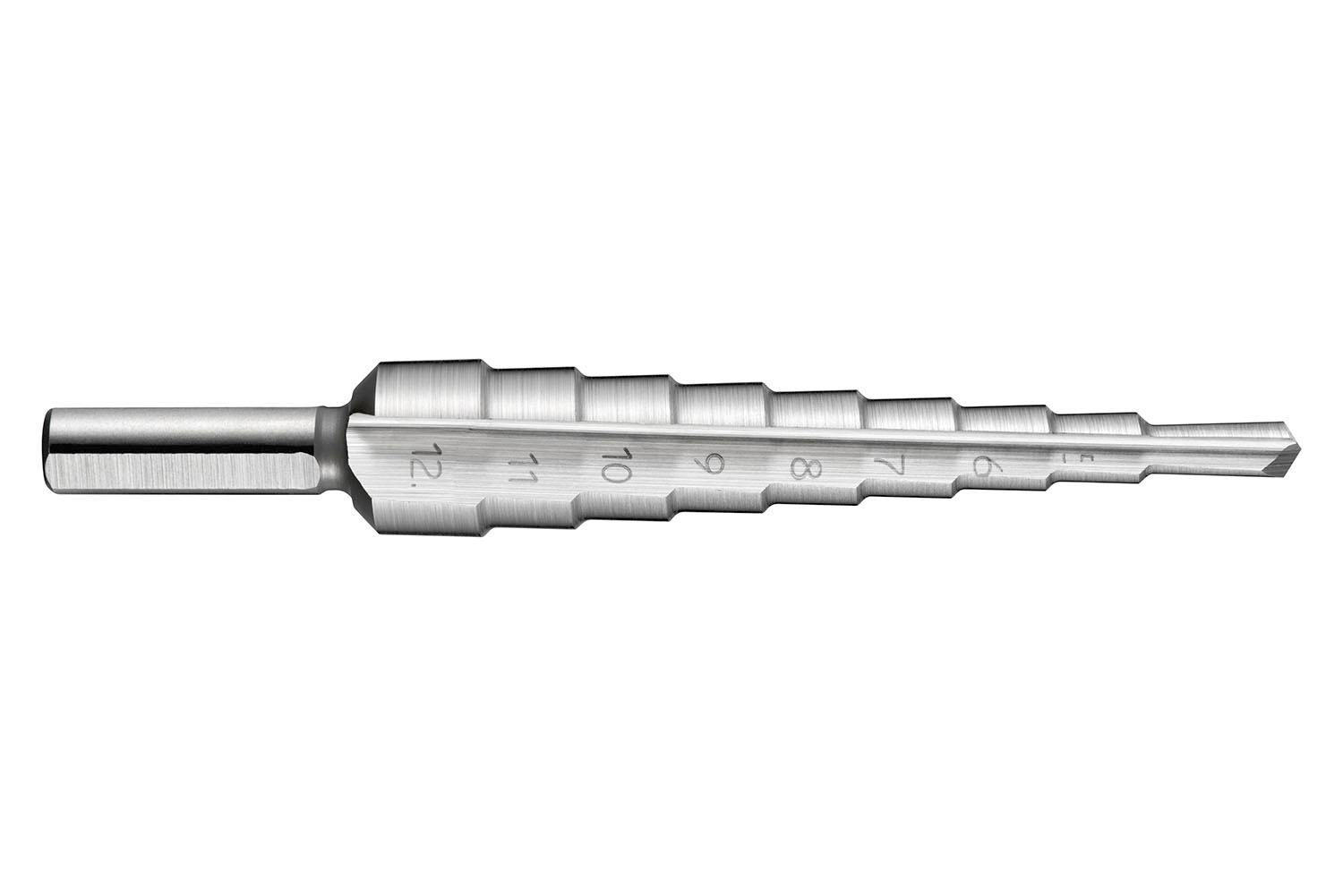

DORMER G314412 Countersinks / Bors

Description: Value
EAN number: 7320760149416
Product number (SAP): 86018257
Ordering code ANSI: G314412
Gross weight – grams: 32
Internal designation number: 412

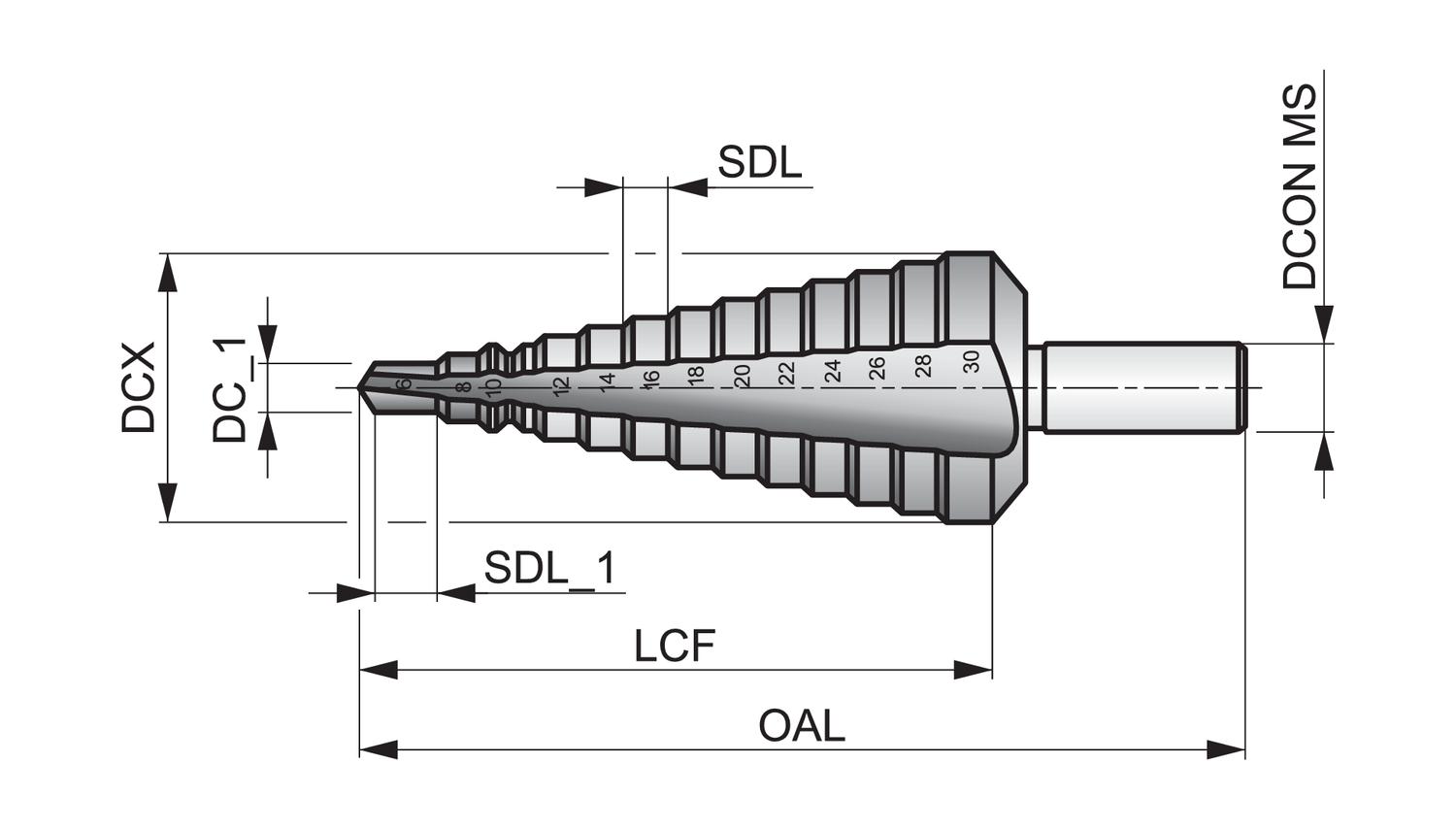

Cutting diameter step – millimeter: 4 mm
Cutting diameter maximum – millimeter (DCX): 12 mm
Step diameter length – millimeter (SDL): 5 mm
Step Diameter Increments – millimeters (SDI): 4 – 5 – 6 – 7 – 8 – 9 – 10 – 11 – 12
Step diameter length first cutting step – millimeters (SDL_1): 5 mm
Length chip flute – millimeter (LCF): 61 mm
Overall length – millimeter (OAL): 80 mm
Connection diameter – millimeter (DCON MS): 6 mm
ISO: G314412
