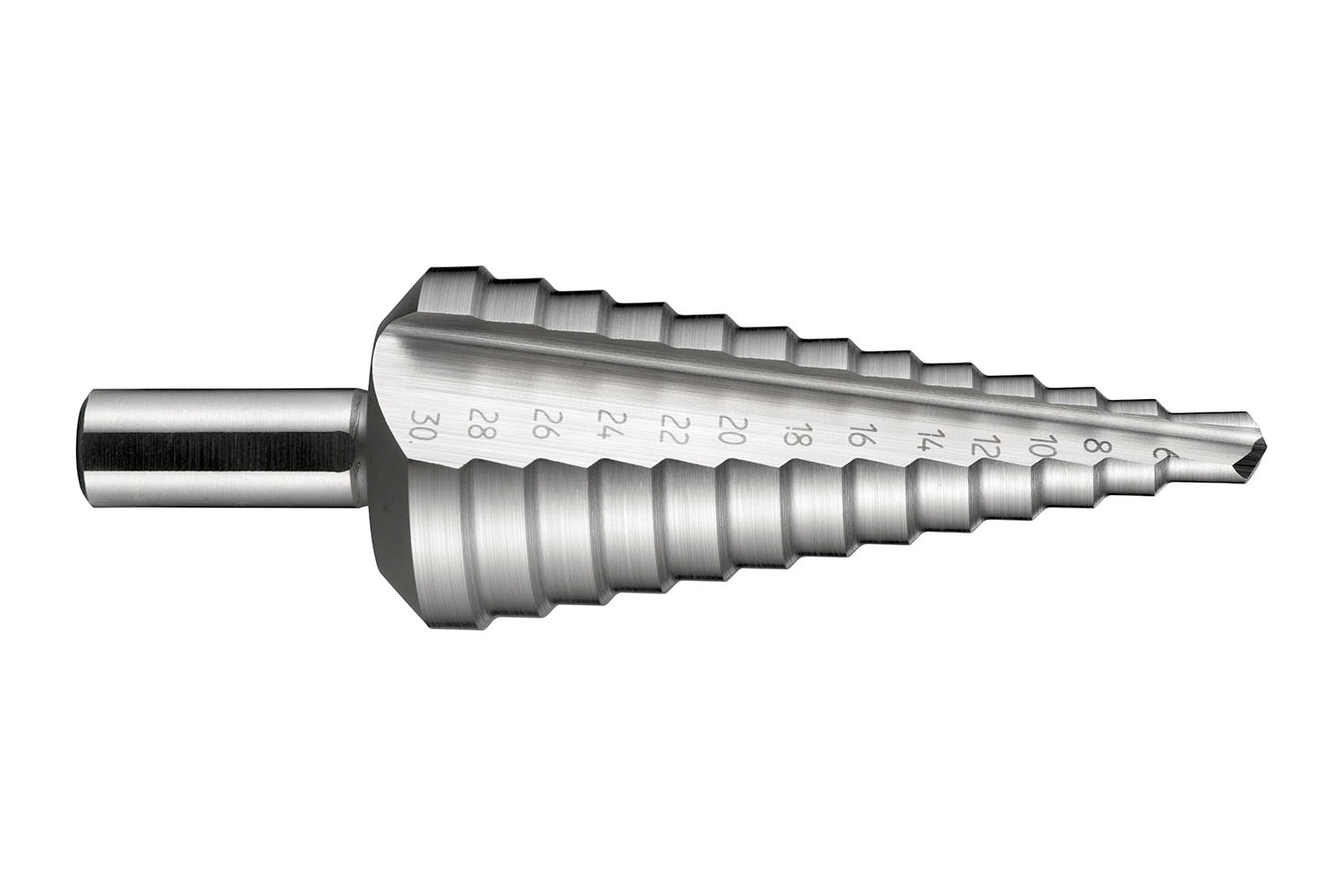

DORMER G314630 Countersinks / Bors

Description: Value
EAN number: 7320760149478
Product number (SAP): 86018259
Ordering code ANSI: G314630
Gross weight – grams: 170.5
Internal designation number: 630
Cutting diameter step – millimeter: 6 mm

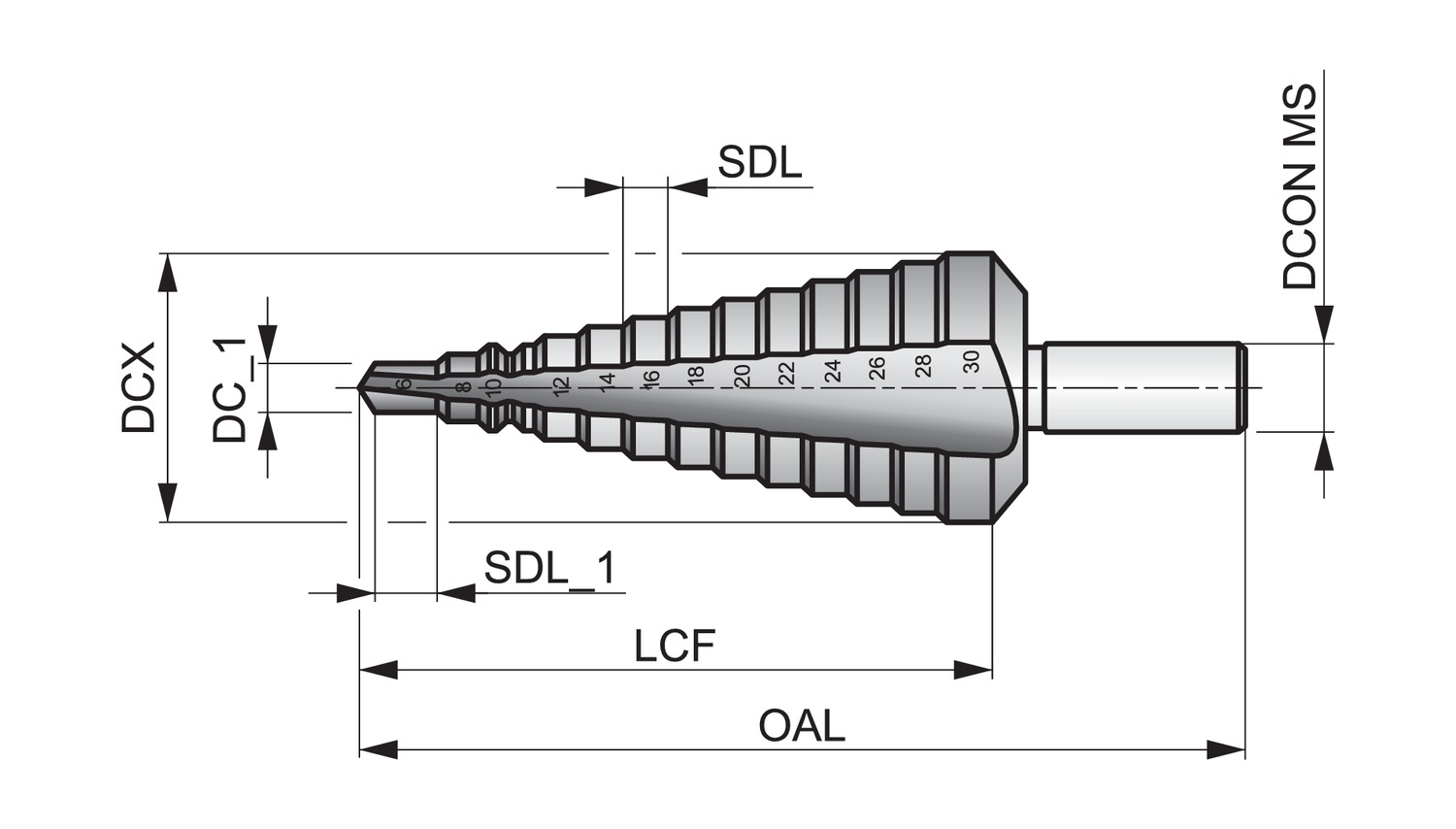

Cutting diameter maximum – millimeter (DCX): 30 mm
Step diameter length – millimeter (SDL): 4 mm
Step Diameter Increments – millimeters (SDI): 6 – 8 – 10 – 12 – 14 – 16 – 18 – 20 – 22 – 24 – 26 – 28 – 30
Step diameter length first cutting step – millimeters (SDL_1): 4 mm
Length chip flute – millimeter (LCF): 73 mm
Overall length – millimeter (OAL): 98 mm
Connection diameter – millimeter (DCON MS): 10 mm
ISO: G314630
