DORMER G33512.5 Countersinks / Bors

Product Code: G33512.5

$83.84$76.22 Ex. GST

Product Code: G33512.5 SKU G33512.5 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

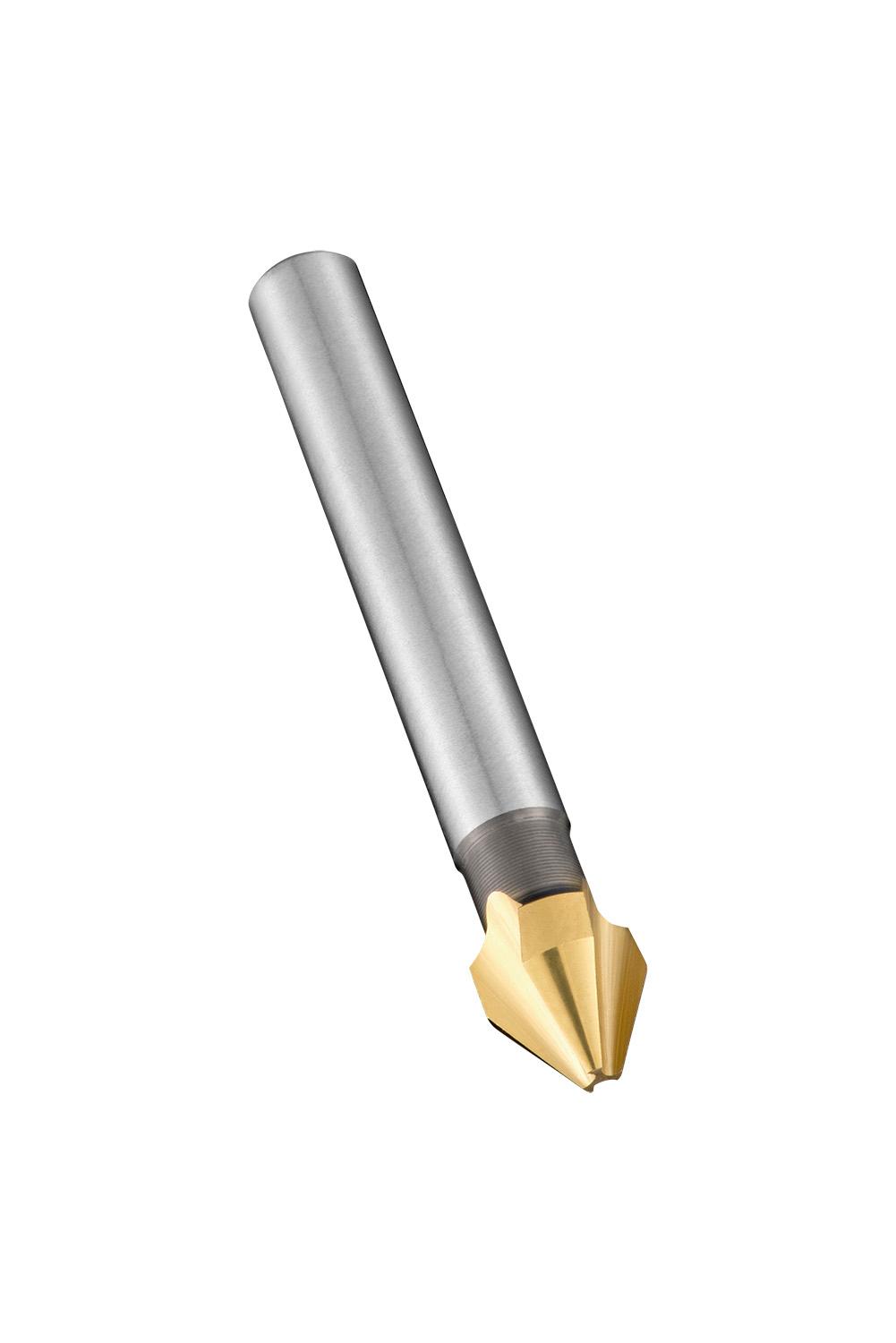

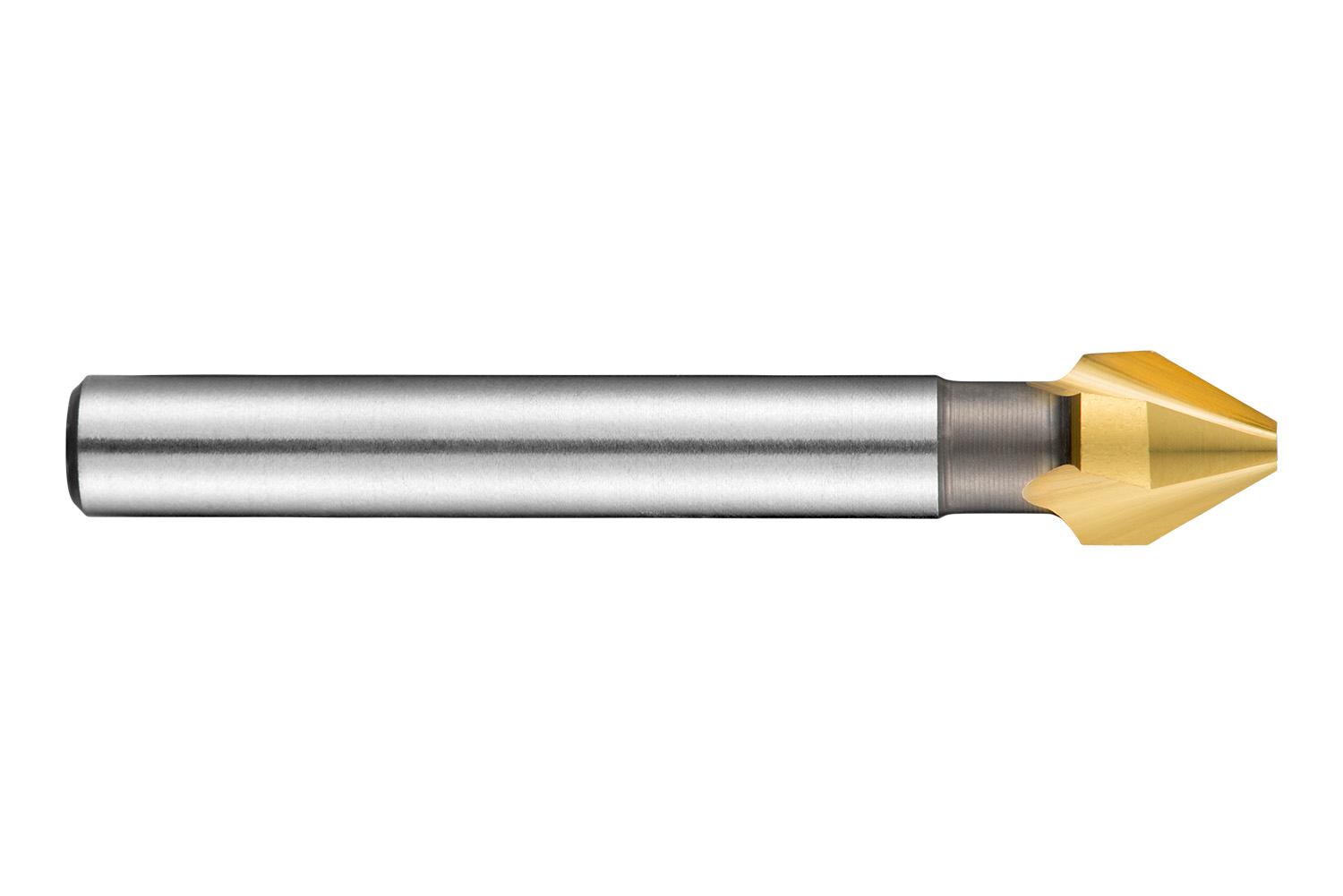

Countersink with 3-flutes, 60° chamfering angle, maximum diameter 12.50mm with an overall length of 56mm and a head length of 11.7mm and 8mm straight shank, according to DIN 334 C standard for deburring and chamfering holes with a minium hole diameter of 3.20mm, HSS with standard TiN coating for machining steel and cast steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.0814 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760149577
Product number (SAP): 86018262
Ordering code ANSI: G33512.5
Gross weight – grams: 30.2

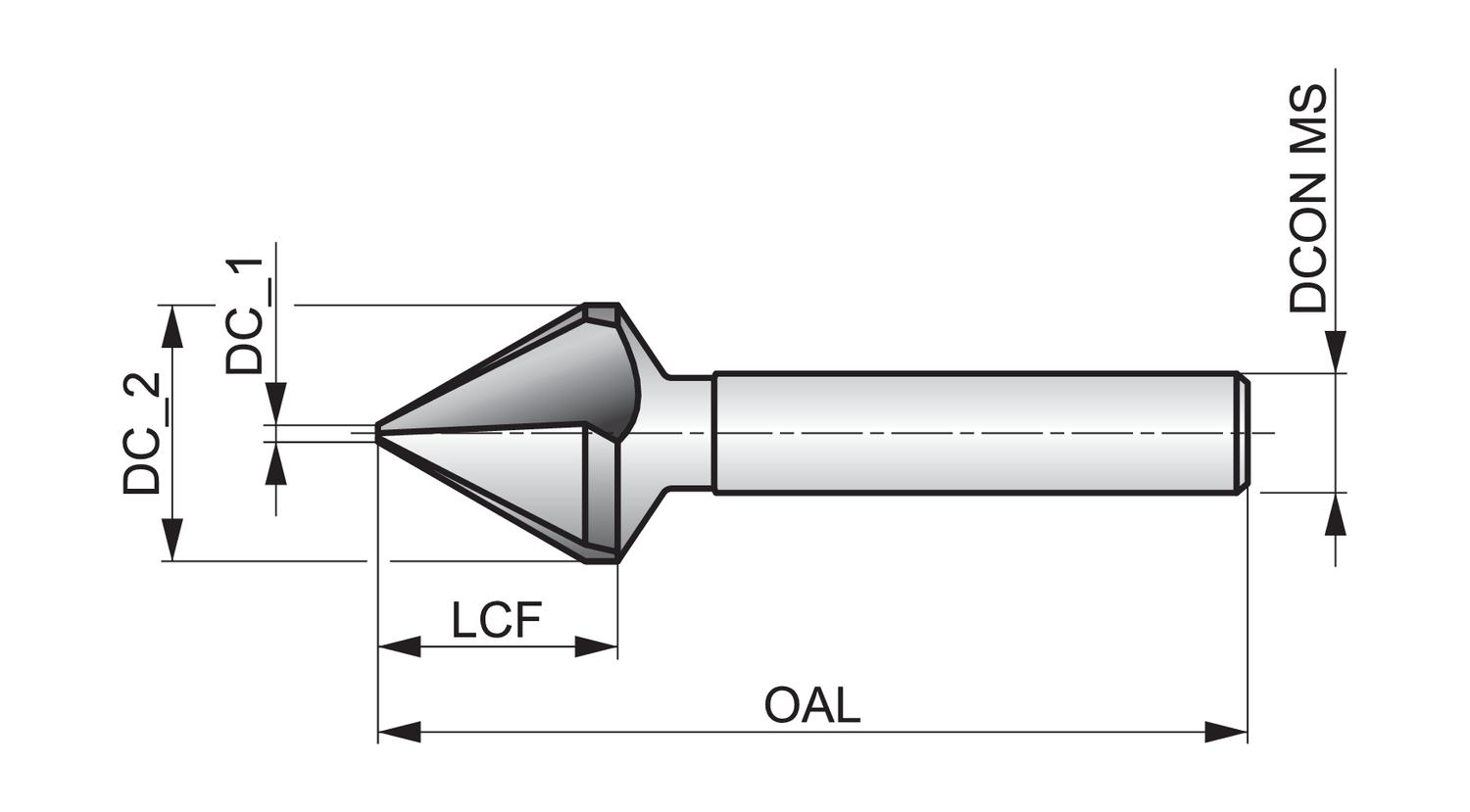

Cutting diameter second cutting step – millimeters (DC_2): 12.5 mm
Cutting diameter step – millimeter: 3.2 mm
Length chip flute – millimeter (LCF): 11.7 mm
Overall length – millimeter (OAL): 56 mm
Connection diameter – millimeter (DCON MS): 8 mm

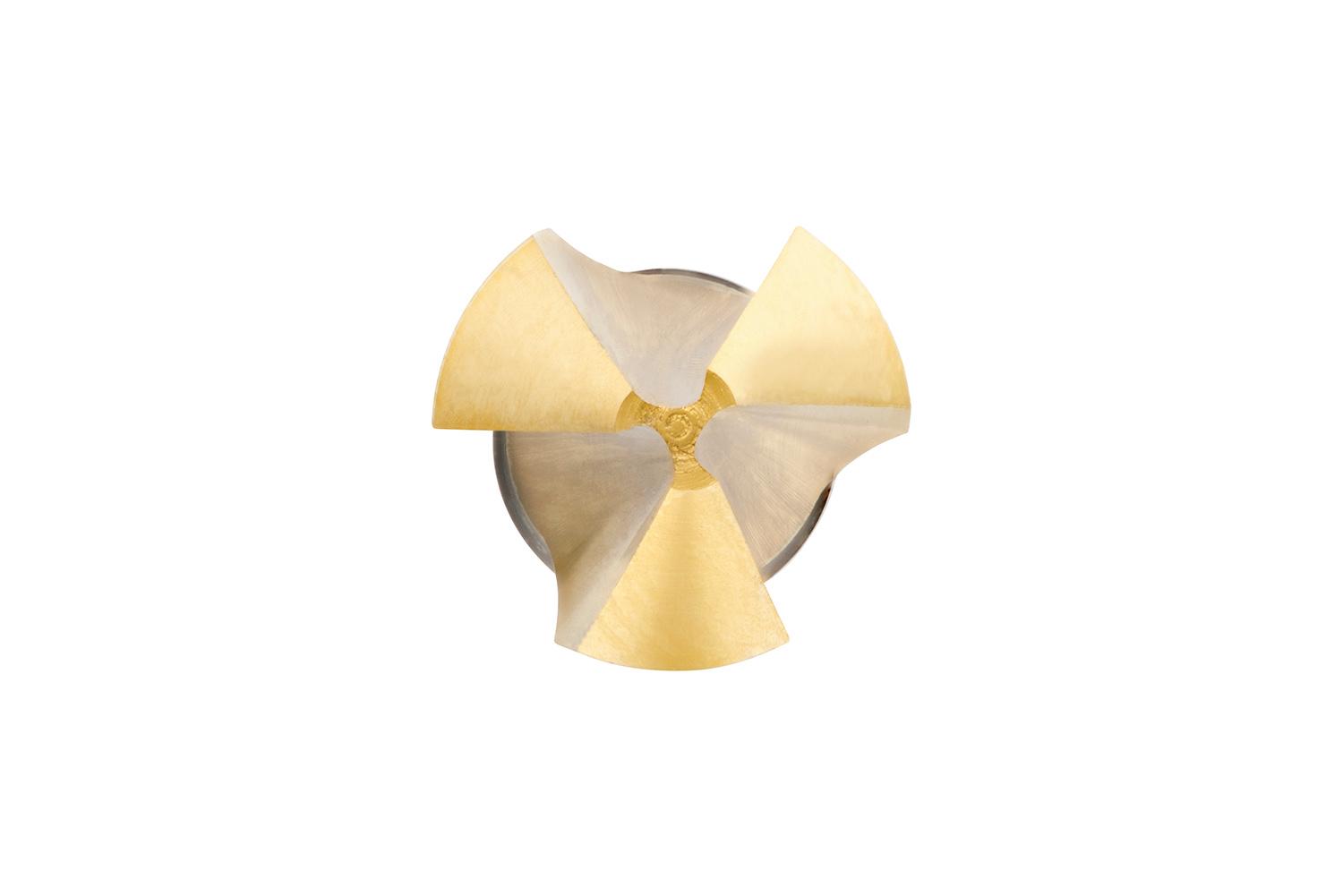

Flute count (NOF): 3
ISO: G33512.5

Brand

DORMER
