DORMER G33520.0 Countersinks / Bors

Product Code: G33520.0

$142.76$129.78 Ex. GST

Product Code: G33520.0 SKU G33520.0 Categories , ,
DORMER G33520.0 Countersinks / Bors

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

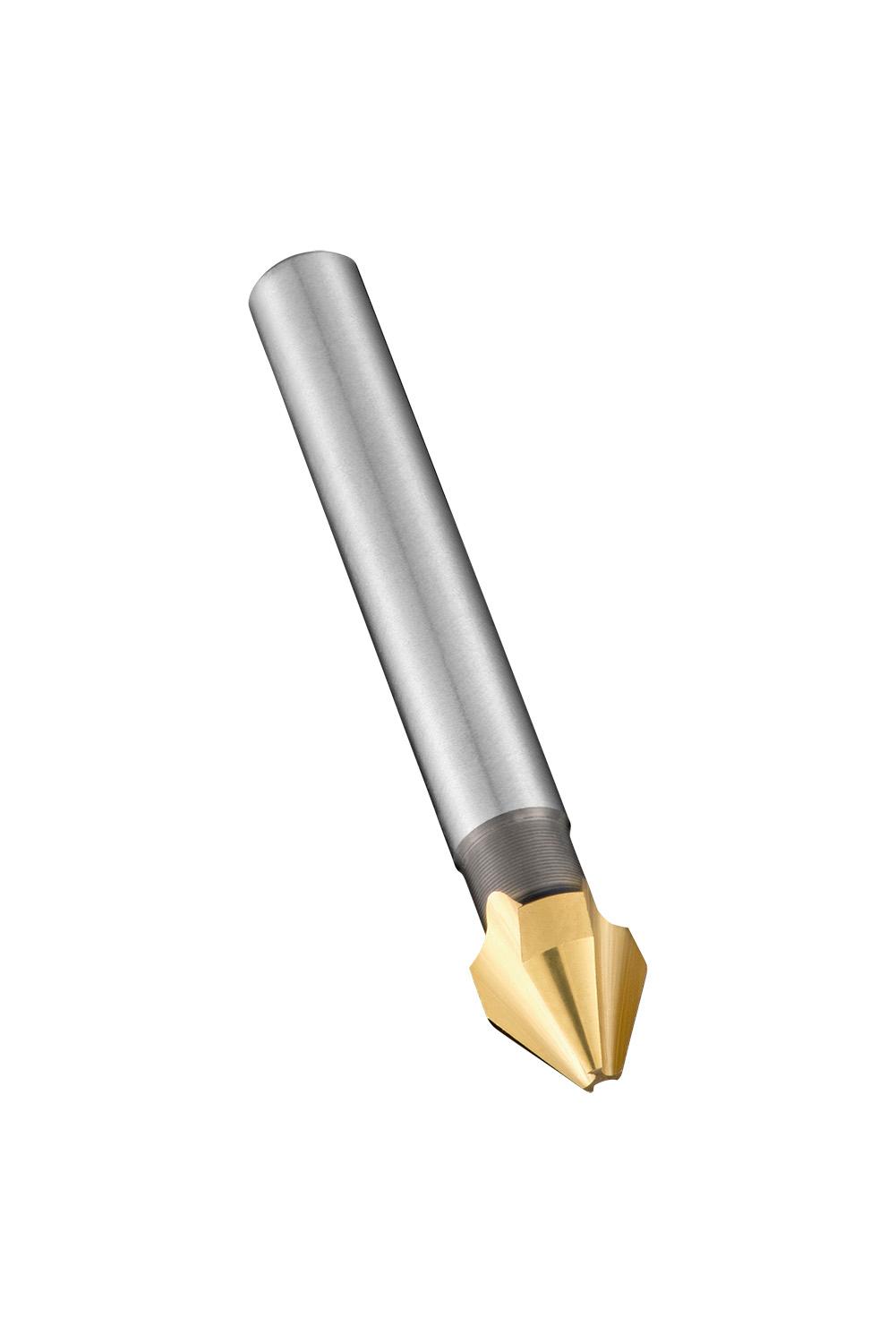

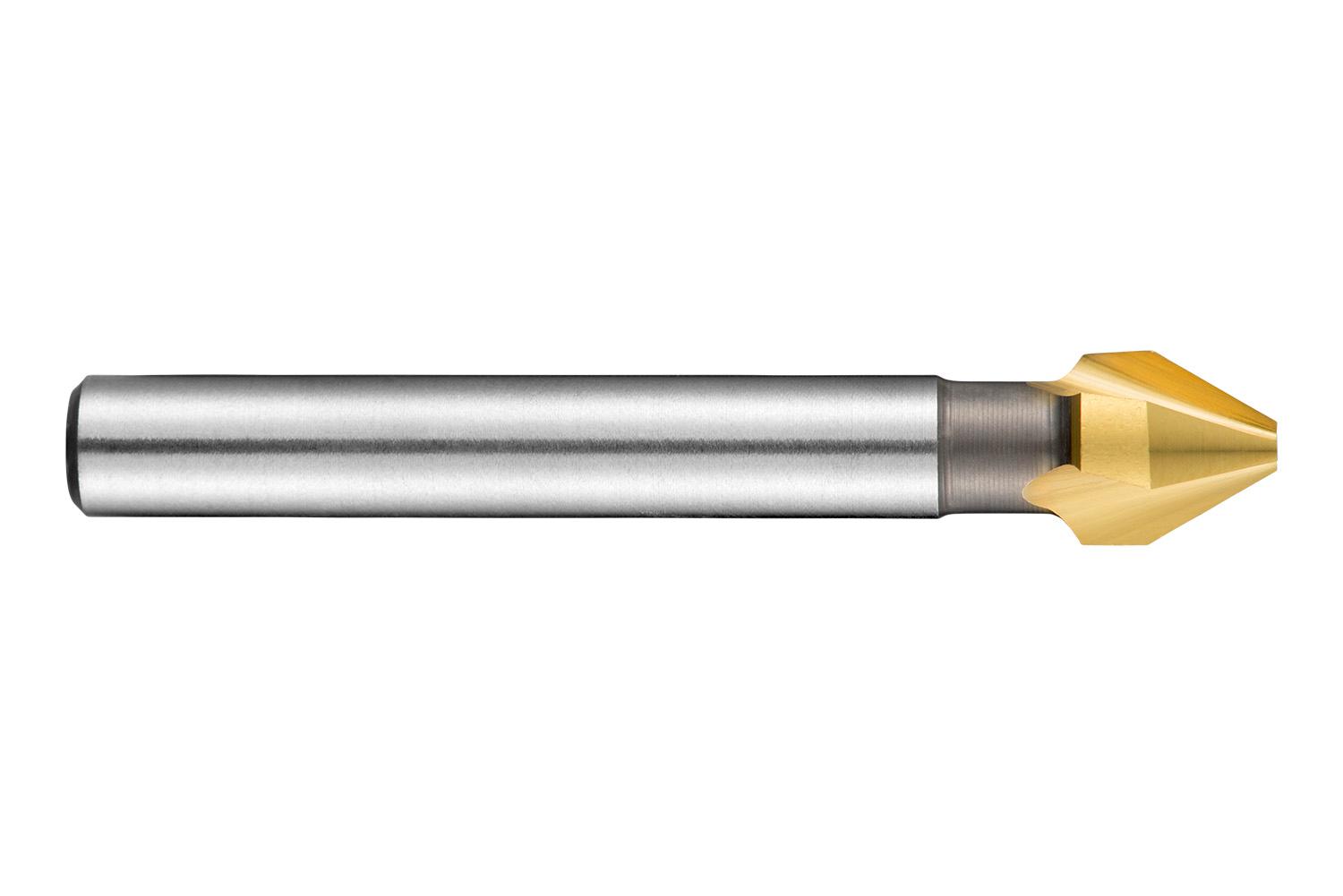

Countersink with 3-flutes, 60° chamfering angle, maximum diameter 20.00mm with an overall length of 67mm and a head length of 17.5mm and 10mm straight shank, according to DIN 334 C standard for deburring and chamfering holes with a minium hole diameter of 5.00mm, HSS with standard TiN coating for machining steel and cast steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.1386 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760149591
Product number (SAP): 86018264
Ordering code ANSI: G33520.0
Gross weight – grams: 57.4

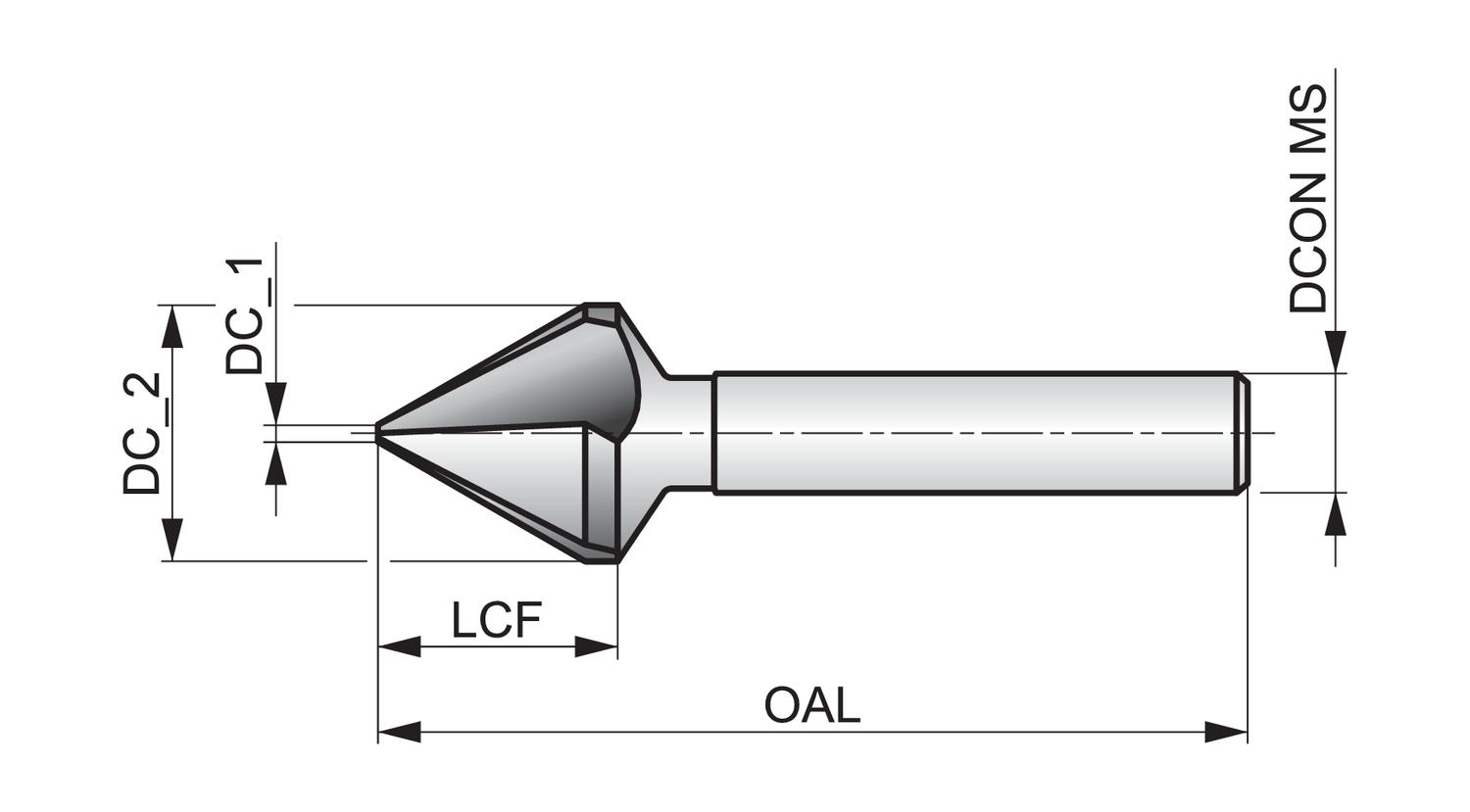

Cutting diameter second cutting step – millimeters (DC_2): 20 mm
Cutting diameter step – millimeter: 5 mm
Length chip flute – millimeter (LCF): 17.5 mm
Overall length – millimeter (OAL): 67 mm
Connection diameter – millimeter (DCON MS): 10 mm

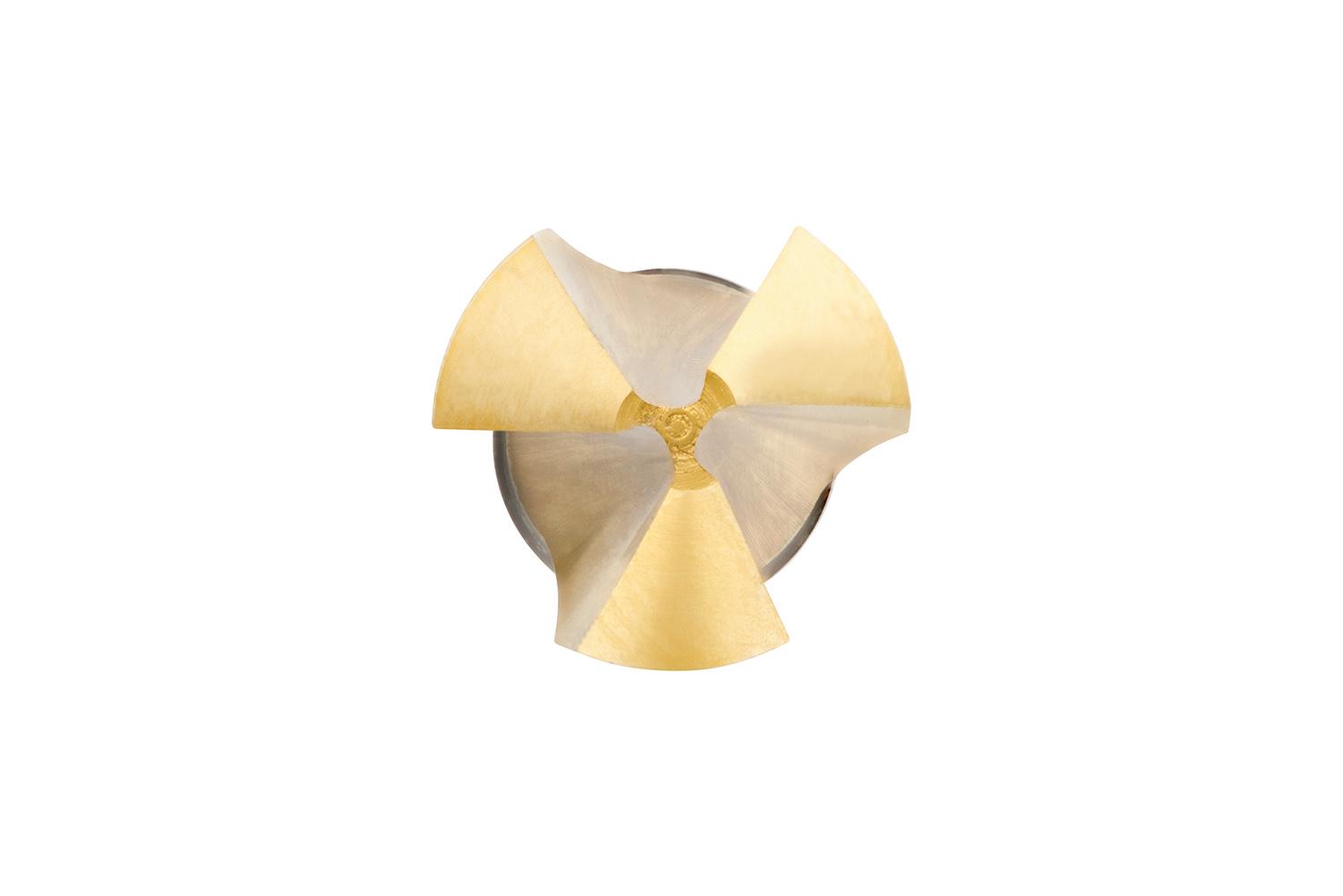

Flute count (NOF): 3
ISO: G33520.0

Brand

DORMER
