DORMER G33837.0 Countersinks / Bors

Product Code: G33837.0

$364.83$331.66 Ex. GST

Product Code: G33837.0 SKU G33837.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

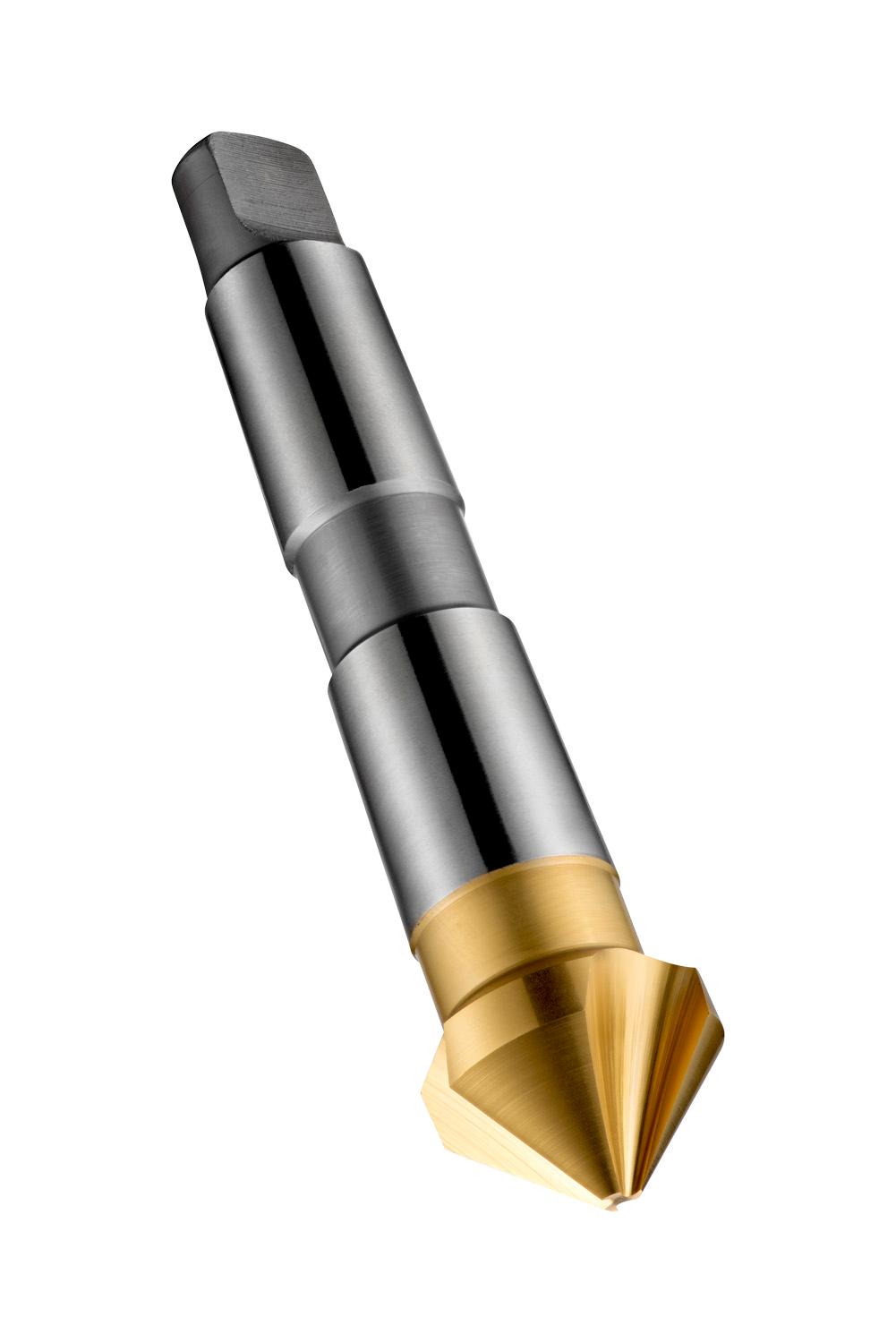

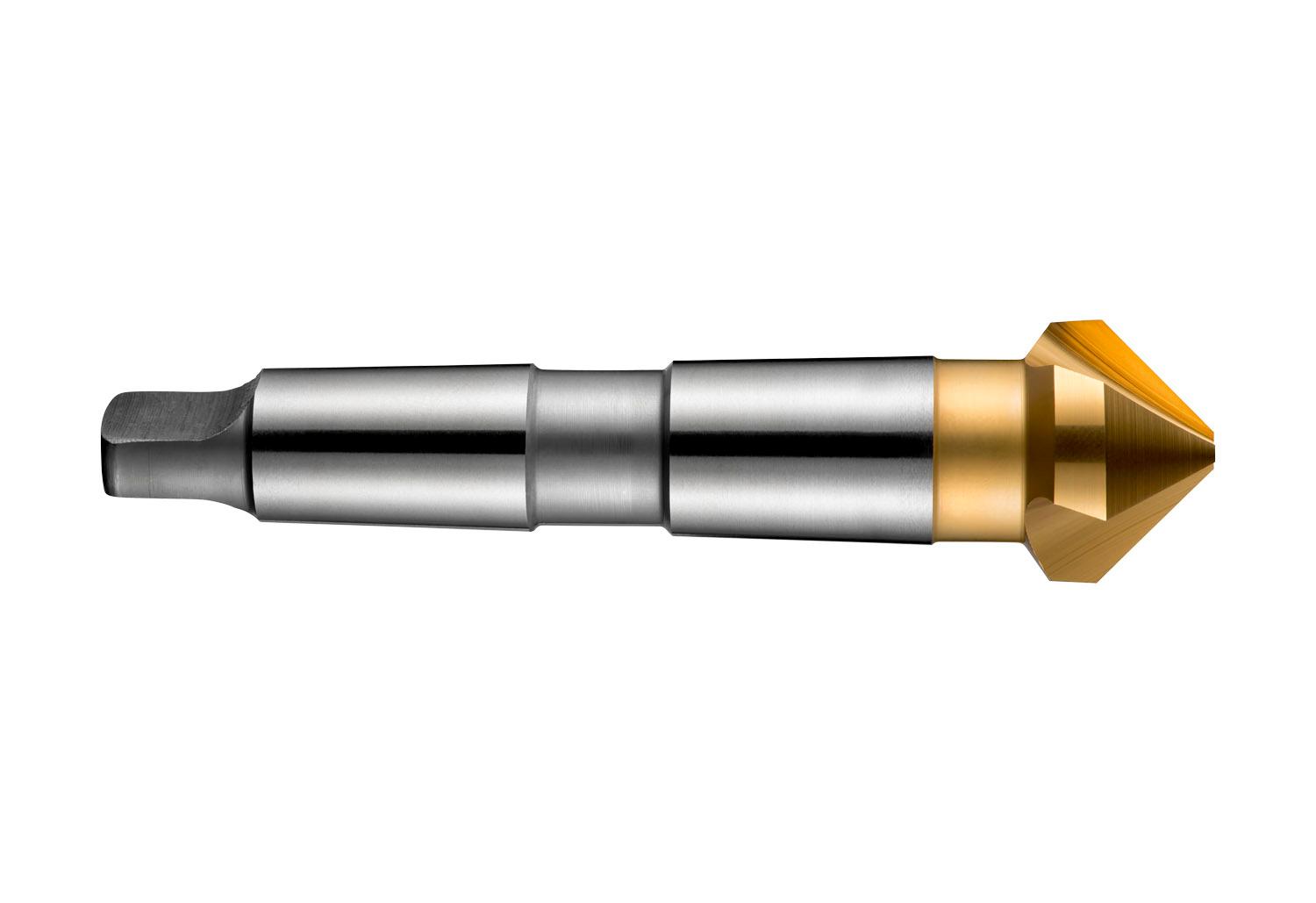

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 37.00mm with an overall length of 118mm and a head length of 21.7mm and MT 2 Morse-taper shank, according to DIN 335 D standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 4.80mm, HSS with standard TiN coating for machining steel and cast steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.3542 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760109526
Product number (SAP): 86018270
Ordering code ANSI: G33837.0
Gross weight – grams: 262

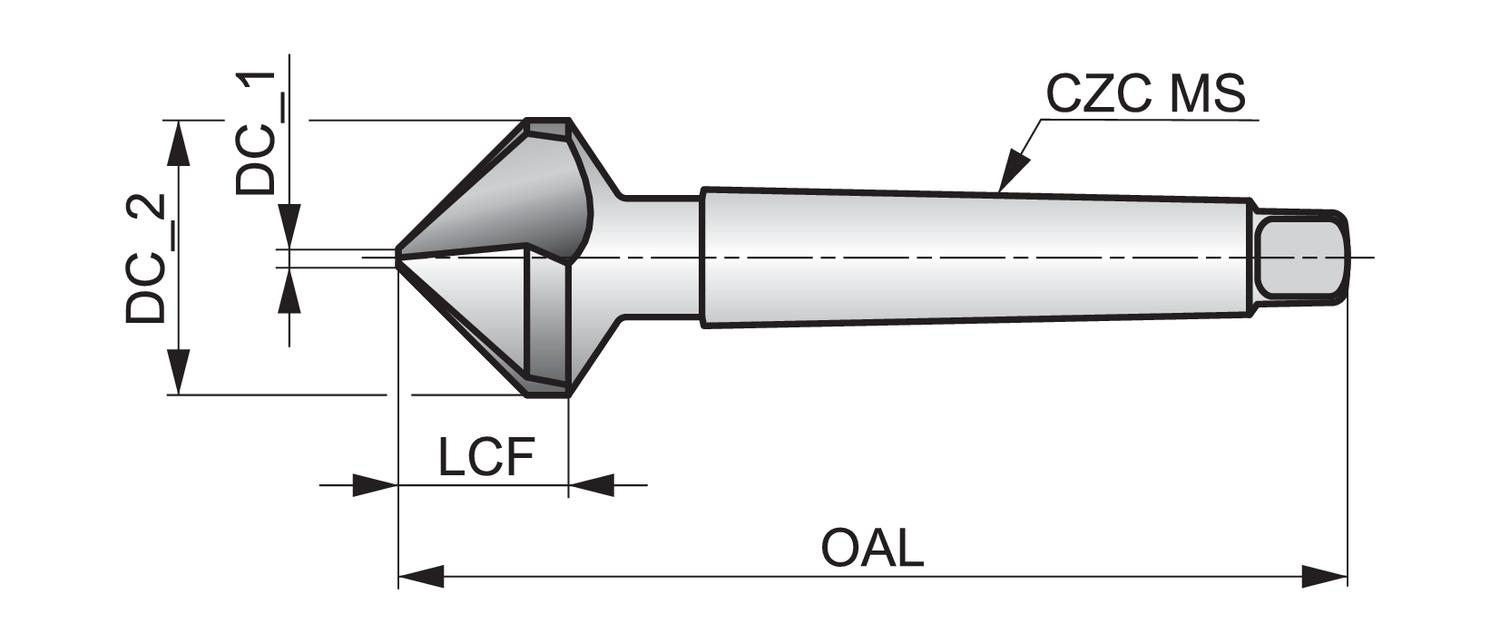

Cutting diameter second cutting step – millimeters (DC_2): 37 mm
Cutting diameter step – millimeter: 4.8 mm
Length chip flute – millimeter (LCF): 21.7 mm
Overall length – millimeter (OAL): 118 mm
Connection size code machine side (CZC MS): MK 2

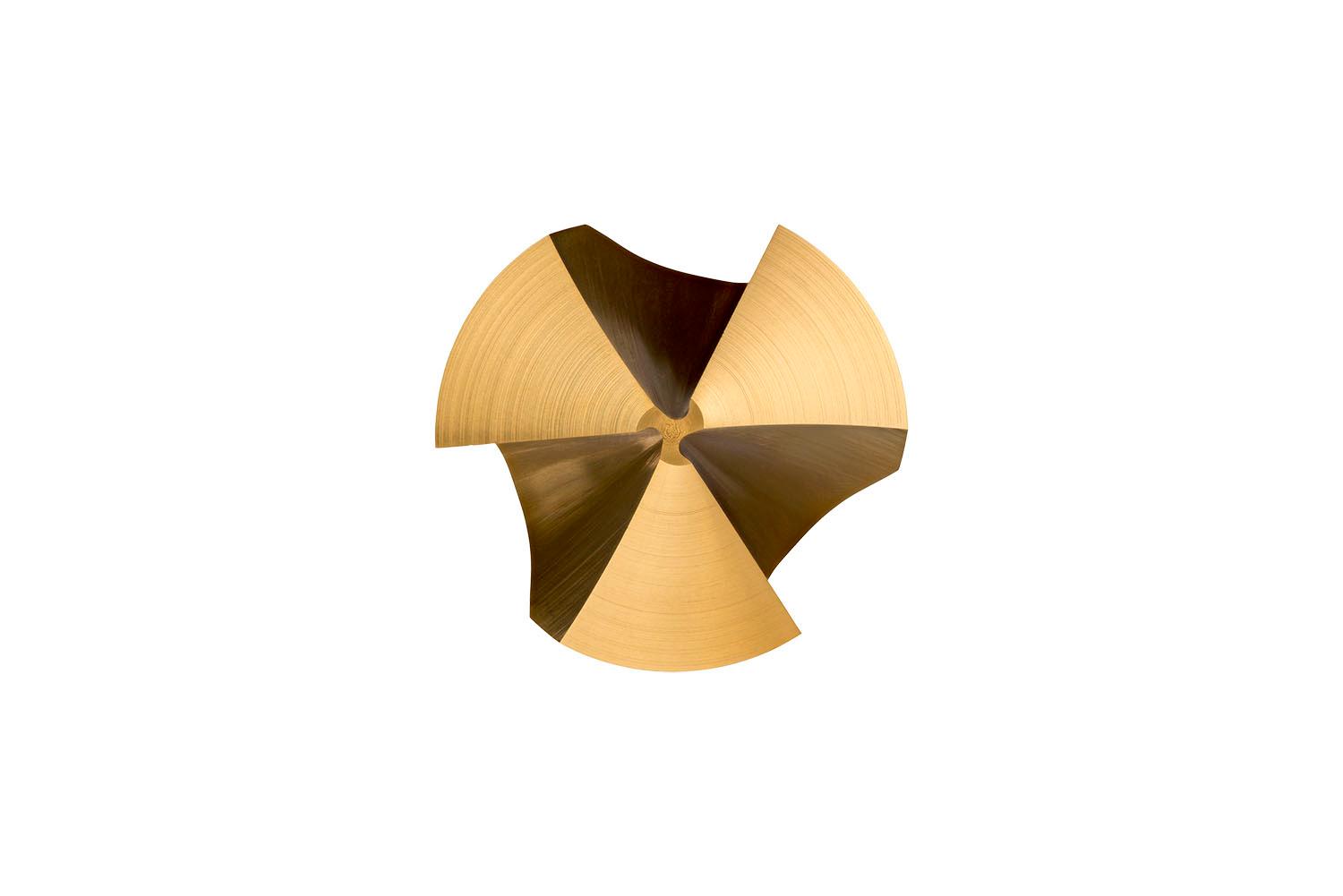

Flute count (NOF): 3
ISO: G33837.0

Brand

DORMER
