DORMER G33850.0 Countersinks / Bors

Product Code: G33850.0

$576.70$524.27 Ex. GST

Product Code: G33850.0 SKU G33850.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

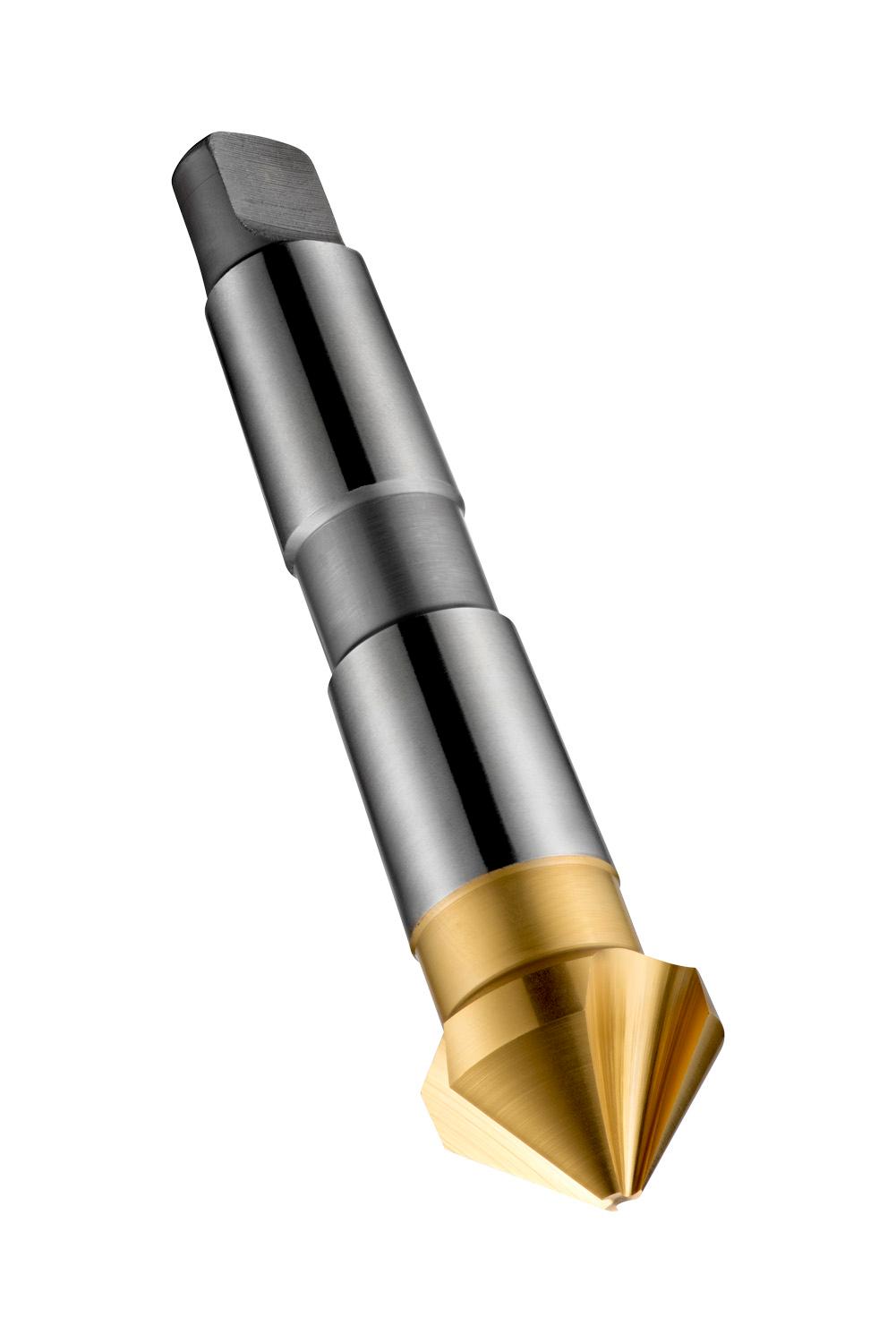

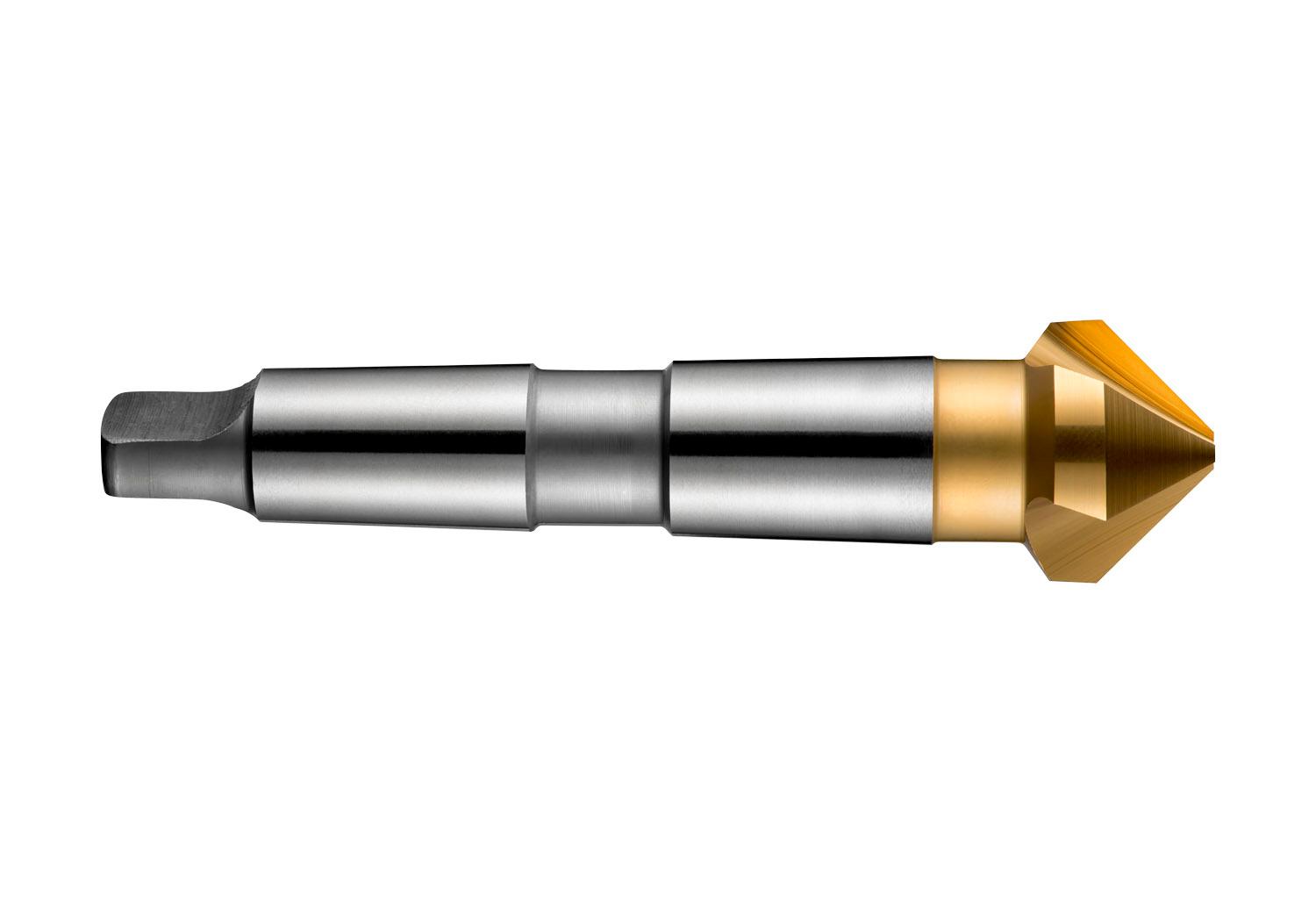

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 50.00mm with an overall length of 150mm and a head length of 24.1mm and MT 3 Morse-taper shank, according to DIN 335 D standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 14.00mm, HSS with standard TiN coating for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.5599 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760109540
Product number (SAP): 86018272
Ordering code ANSI: G33850.0
Gross weight – grams: 585

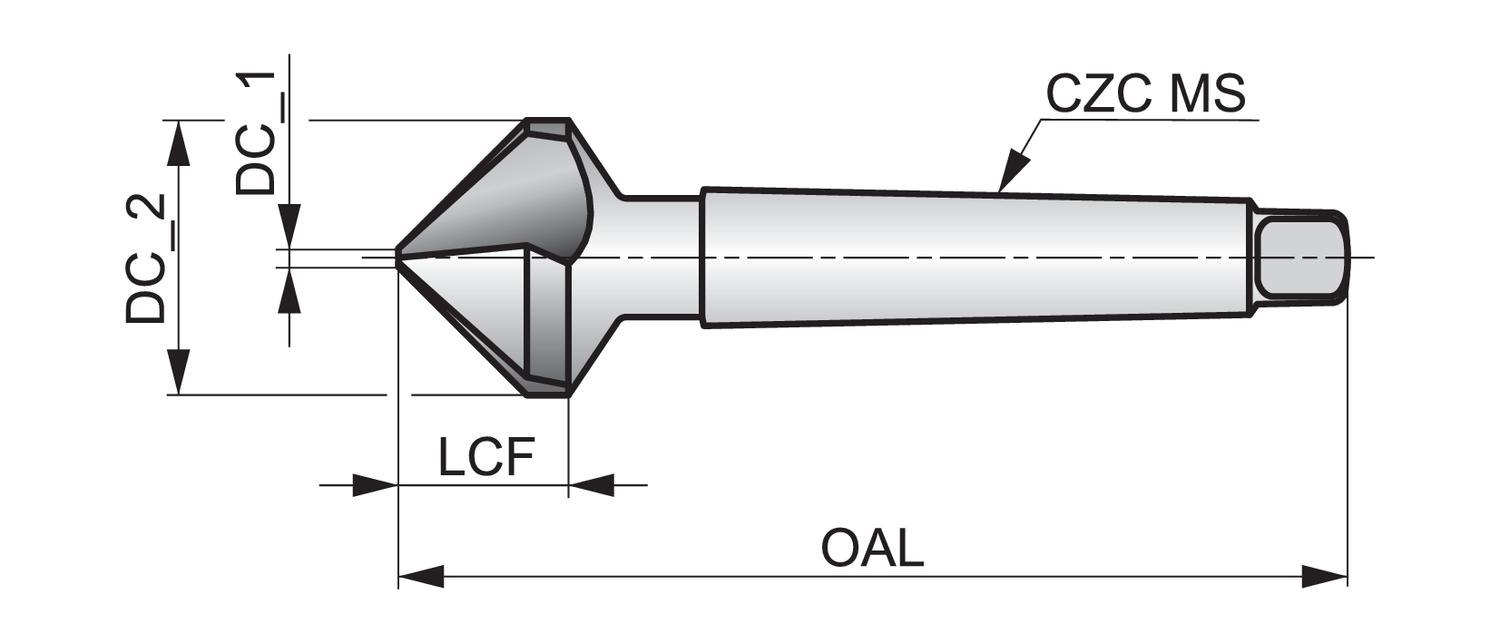

Cutting diameter second cutting step – millimeters (DC_2): 50 mm
Cutting diameter step – millimeter: 14 mm
Length chip flute – millimeter (LCF): 24.1 mm
Overall length – millimeter (OAL): 150 mm
Connection size code machine side (CZC MS): MK 3

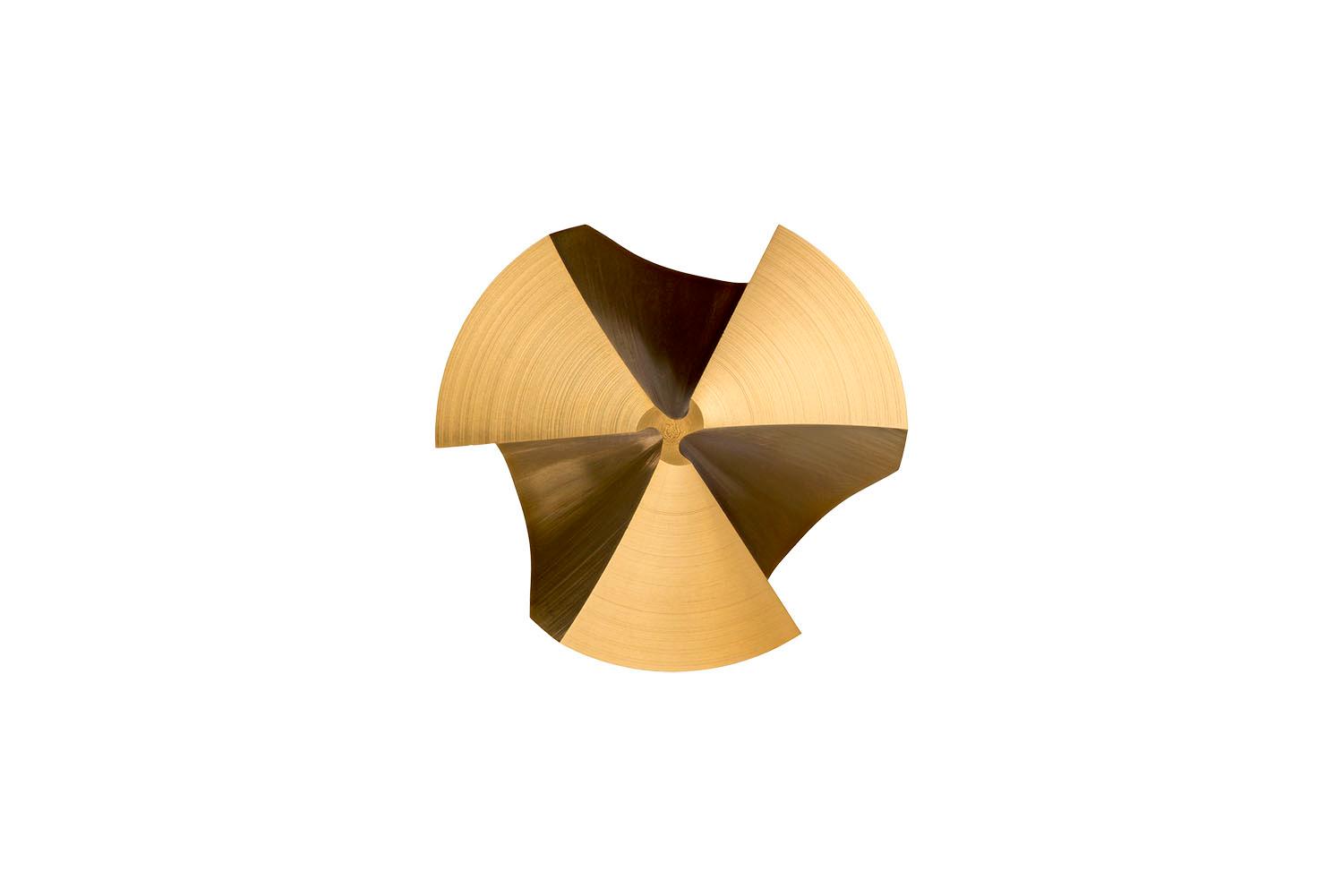

Flute count (NOF): 3
ISO: G33850.0

Brand

DORMER
