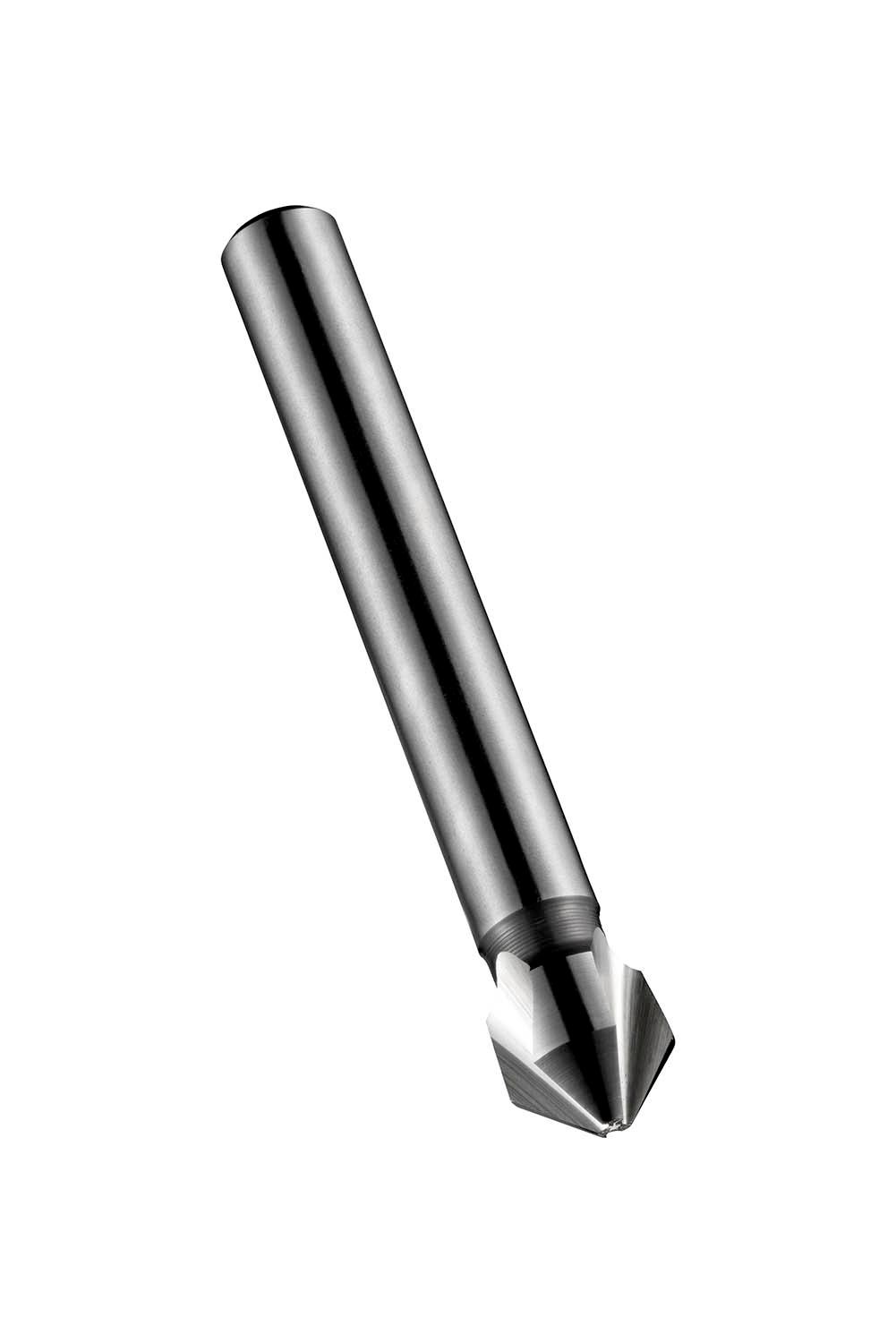

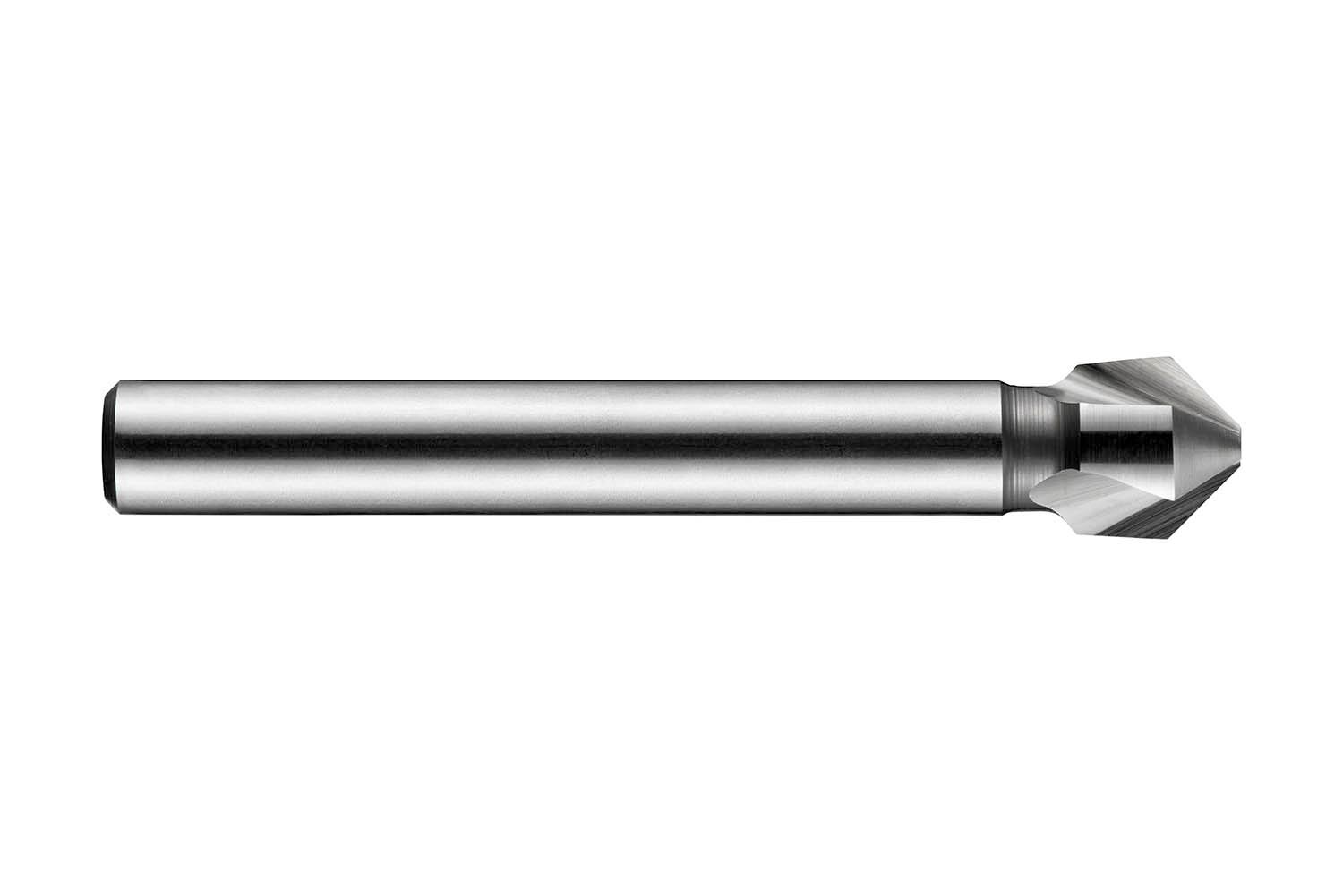

DORMER G40012.4 Carbide Countersinks

Product Code: G40012.4

$232.27$211.15 Ex. GST

Product Code: G40012.4 SKU G40012.4 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 12.40mm with an overall length of 56mm and a head length of 8mm and 8mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.80mm, solid carbide with standard bright finish for machining free machining, plain carbon, alloy and tool steel, ferritic stainless steel, grey, malleable, ductile, austenitic or austempered ductile and compacted graphite cast-iron, wrought and cast aluminium, copper or copper alloys and polymers, titanium or titanium alloys, chilled, hardened cast-iron

Additional information

Weight 0.2255 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760128732
Product number (SAP): 86018275
Ordering code ANSI: G40012.4
Gross weight – grams: 45.2

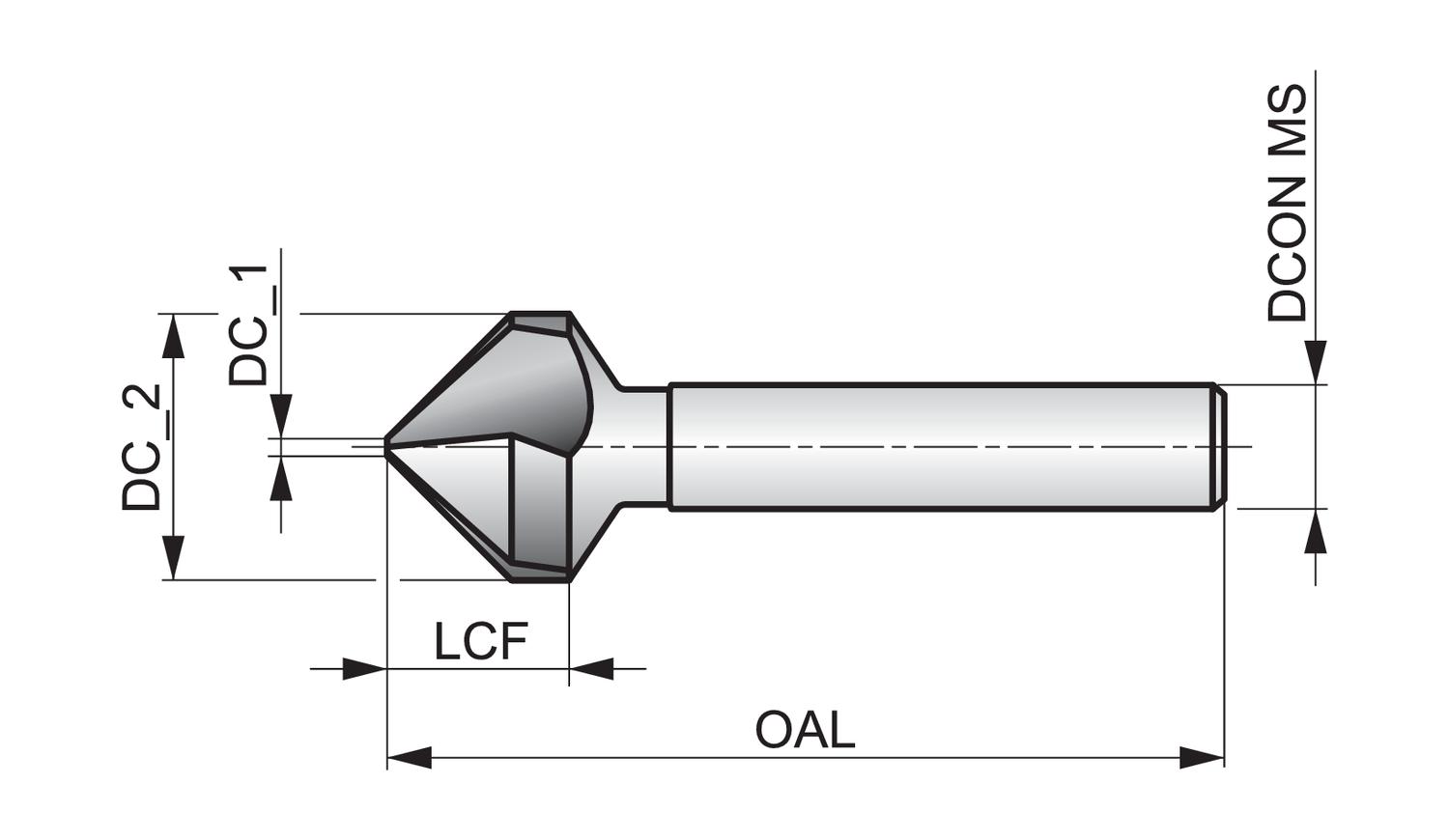

Cutting diameter second cutting step – millimeters (DC_2): 12.4 mm
Cutting diameter step – millimeter: 2.8 mm
Length chip flute – millimeter (LCF): 8 mm
Overall length – millimeter (OAL): 56 mm
Connection diameter – millimeter (DCON MS): 8 mm

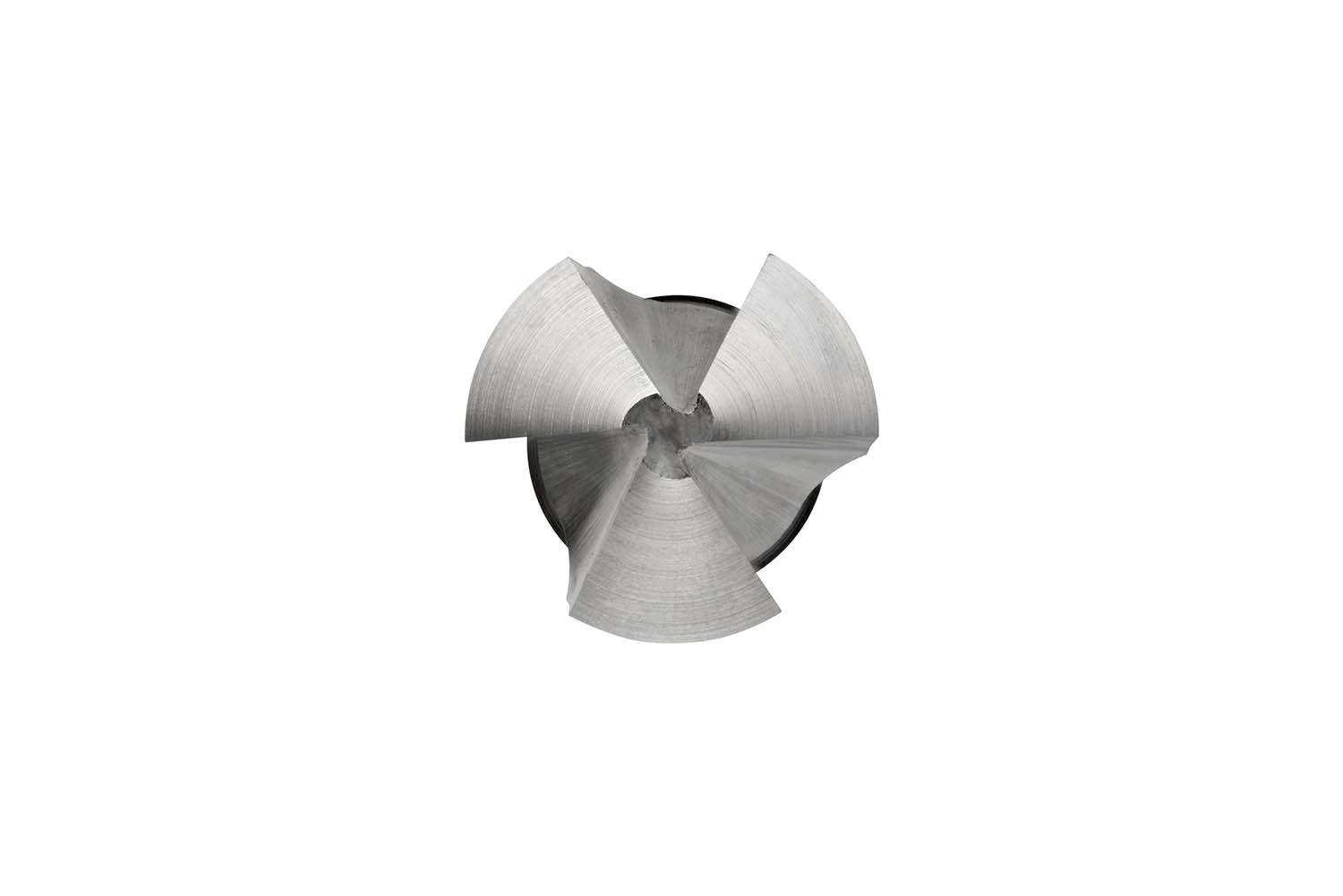

Flute count (NOF): 3
ISO: G40012.4

Brand

DORMER
