DORMER G50620.5 Countersinks / Bors

Product Code: G50620.5

$157.49$143.17 Ex. GST

Product Code: G50620.5 SKU G50620.5 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

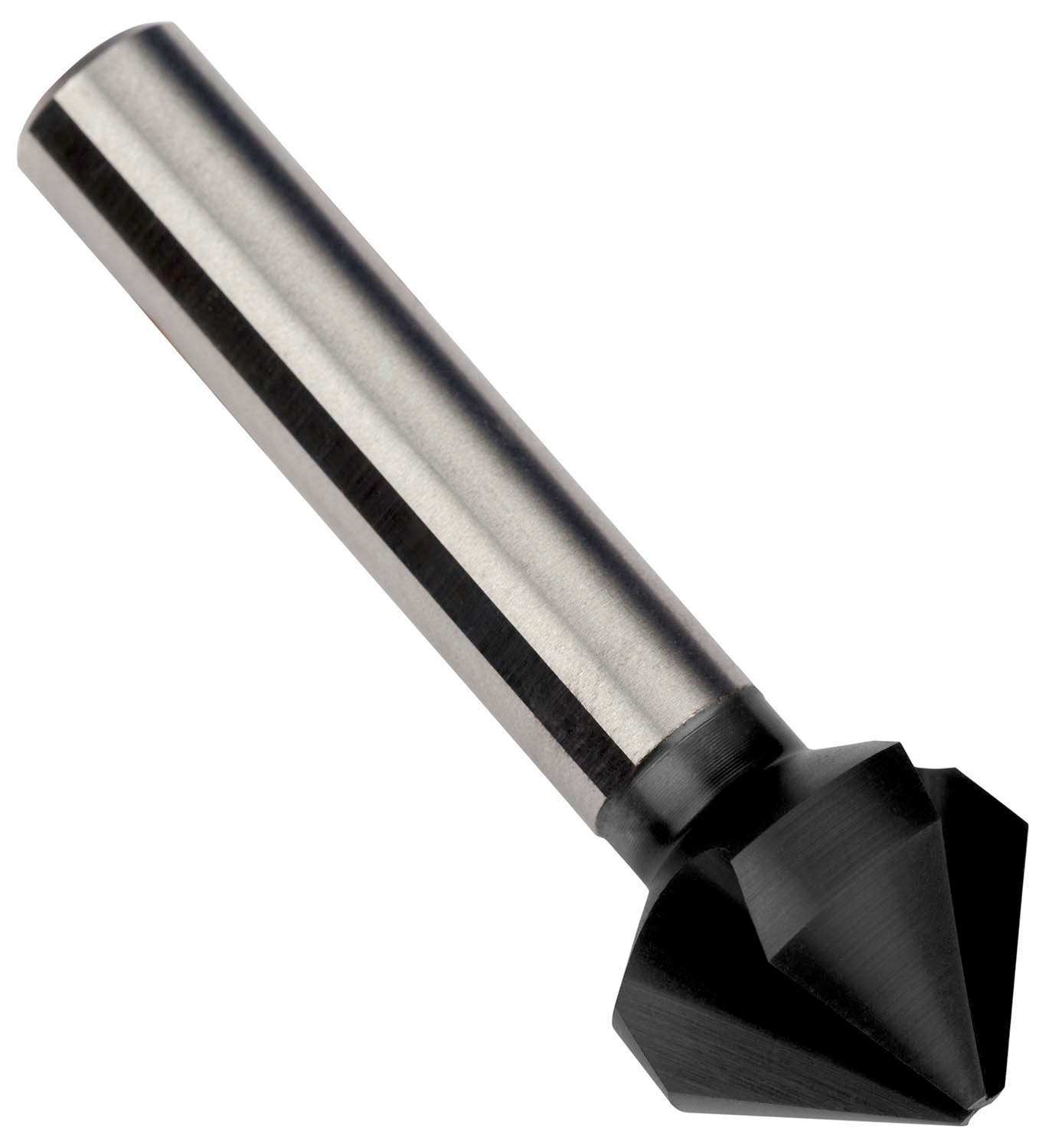

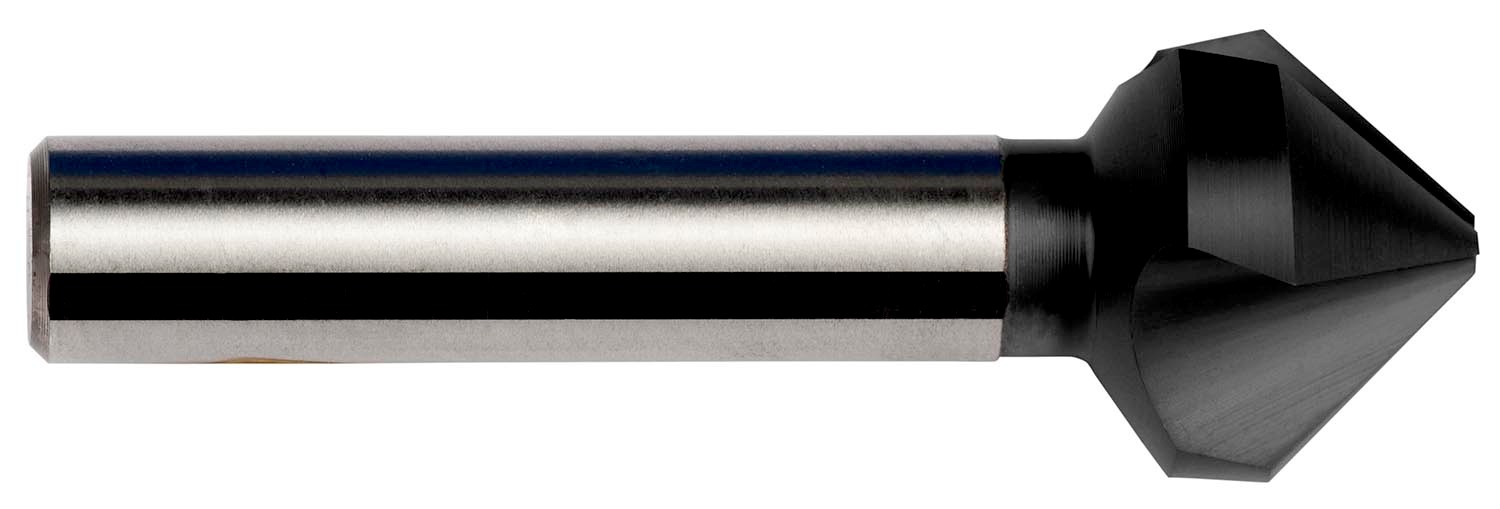

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 20.50mm with an overall length of 63mm and a head length of 12.9mm and 10mm tri-flat shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.50mm, HSS with standard TiAlN coating for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, cast aluminium and copper or copper alloys

Additional information

Weight 0.1529 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760702758
Product number (SAP): 86031012
Ordering code ANSI: G50620.5
Gross weight – grams: 56.1

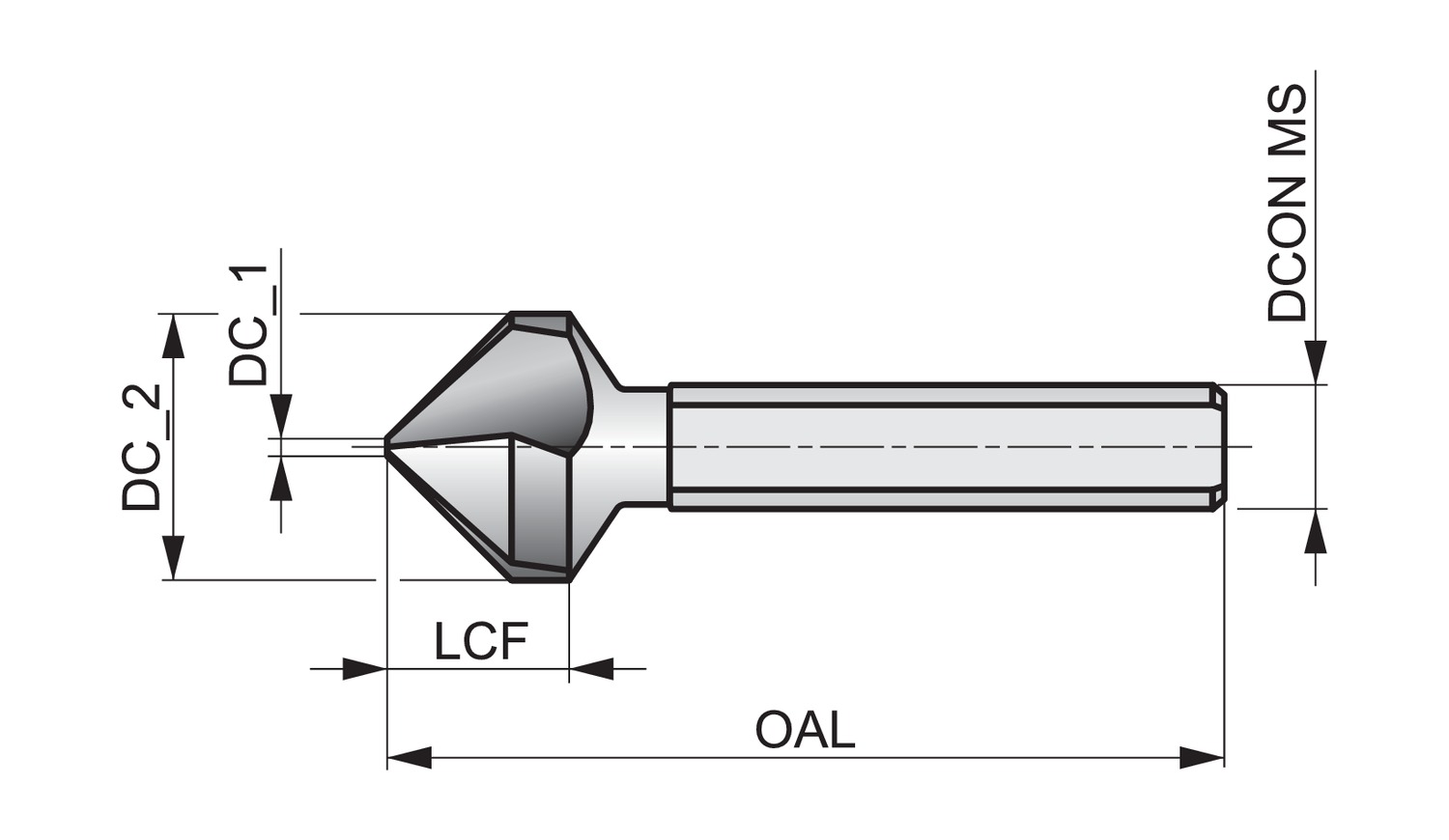

Cutting diameter second cutting step – millimeters (DC_2): 20.5 mm
Cutting diameter step – millimeter: 3.5 mm
Length chip flute – millimeter (LCF): 12.9 mm
Overall length – millimeter (OAL): 63 mm
Connection diameter – millimeter (DCON MS): 10 mm

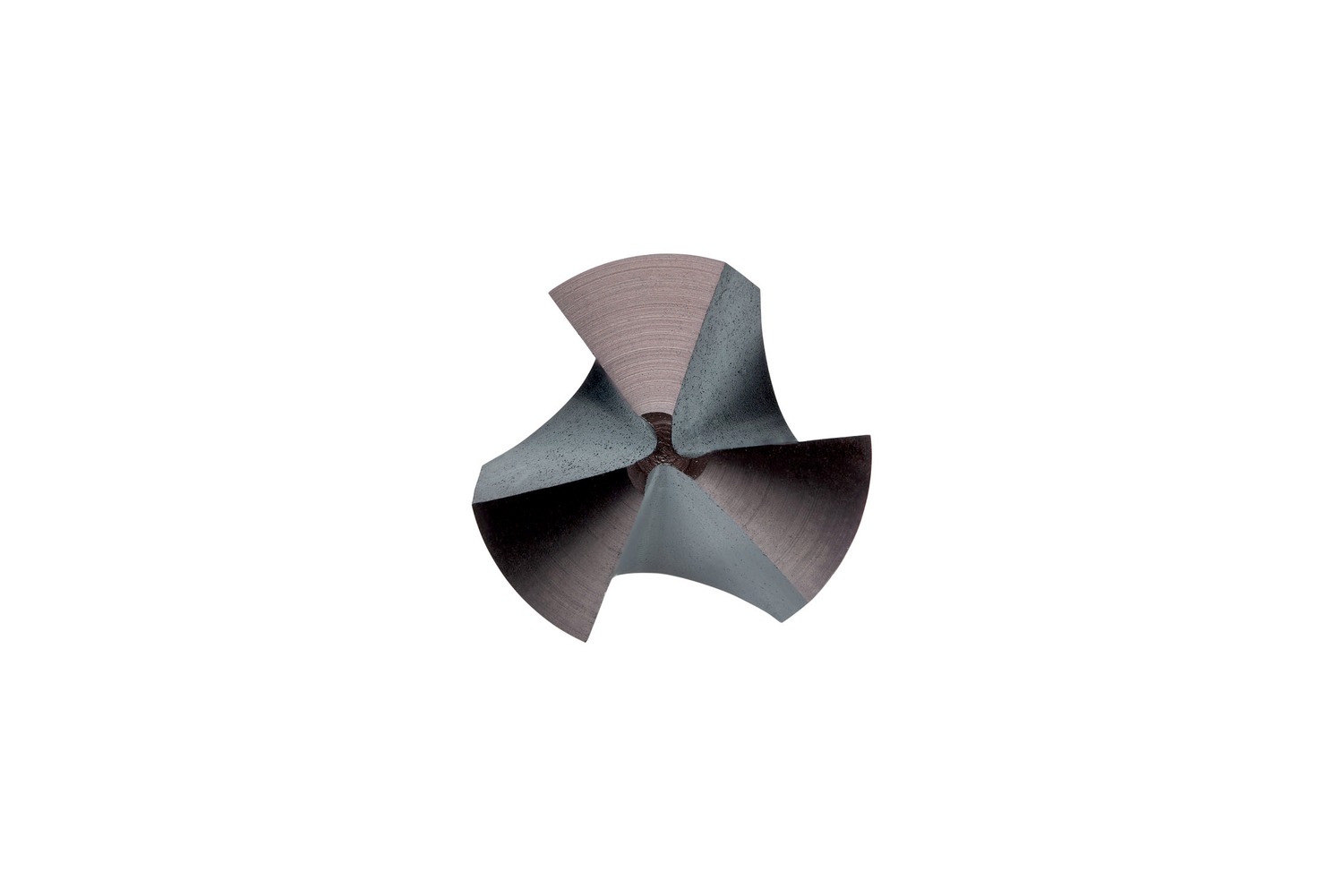

Flute count (NOF): 3
ISO: G50620.5

Brand

DORMER
