DORMER G56010.0 Countersinks / Bors

Product Code: G56010.0

$78.75$71.59 Ex. GST

Product Code: G56010.0 SKU G56010.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

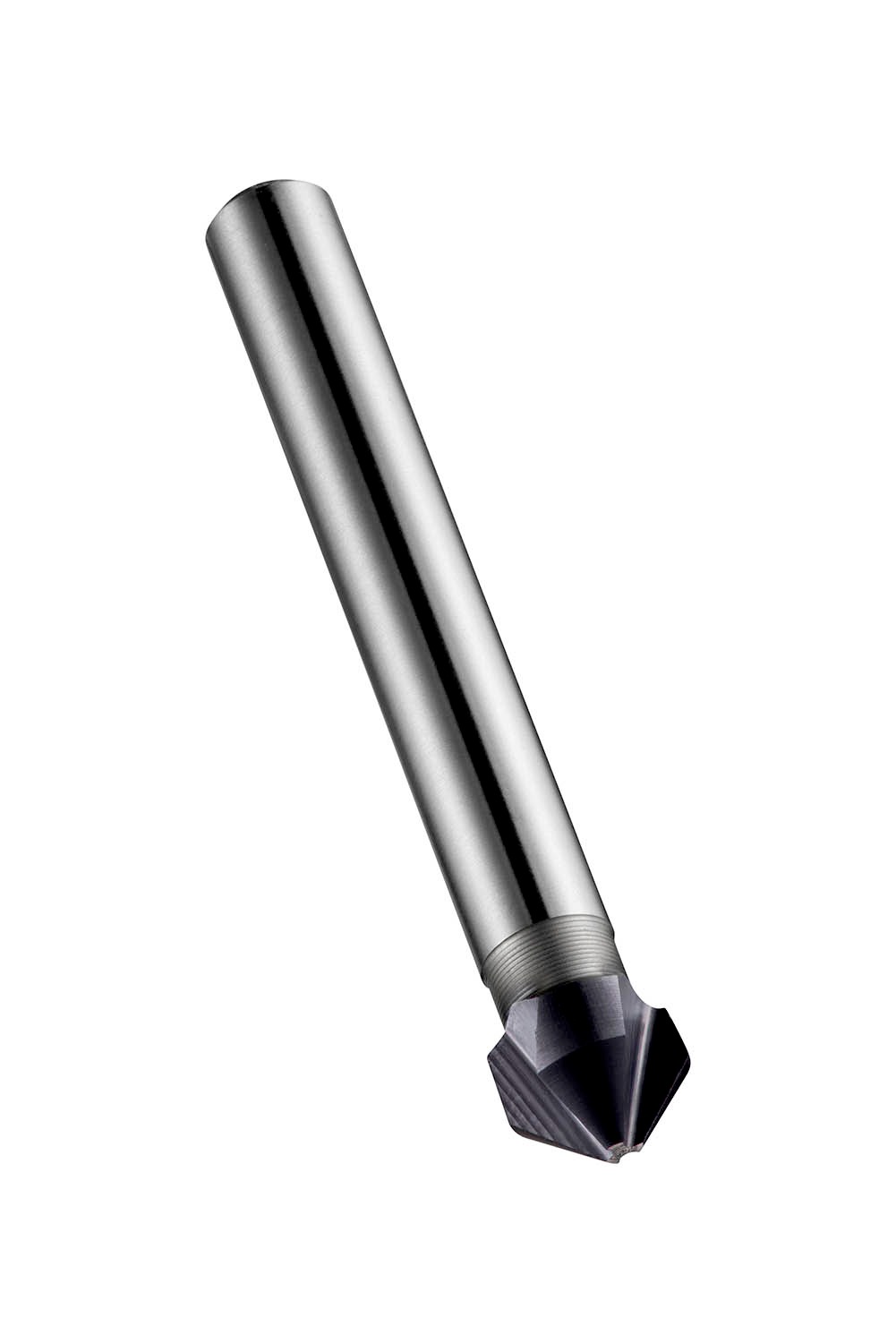

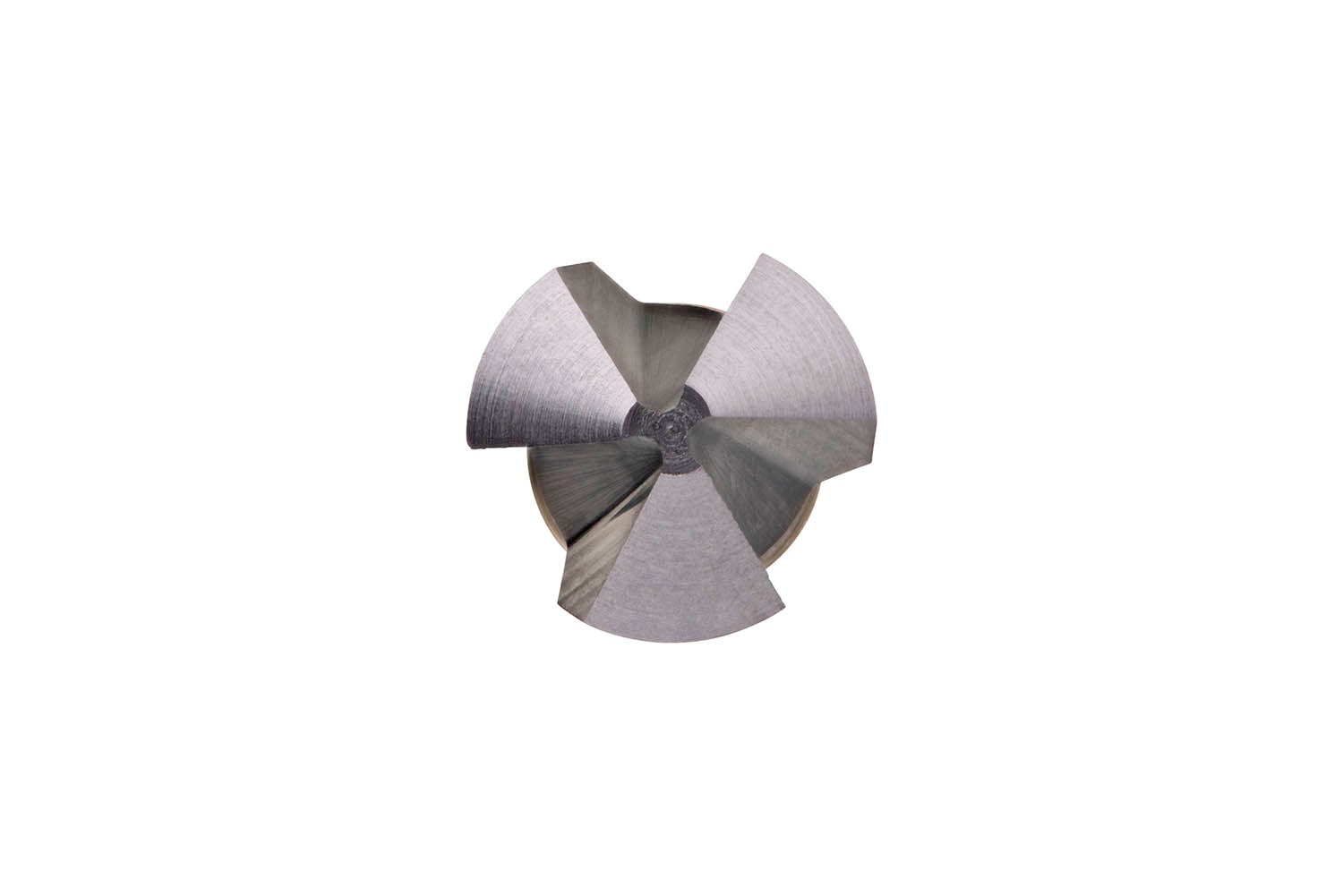

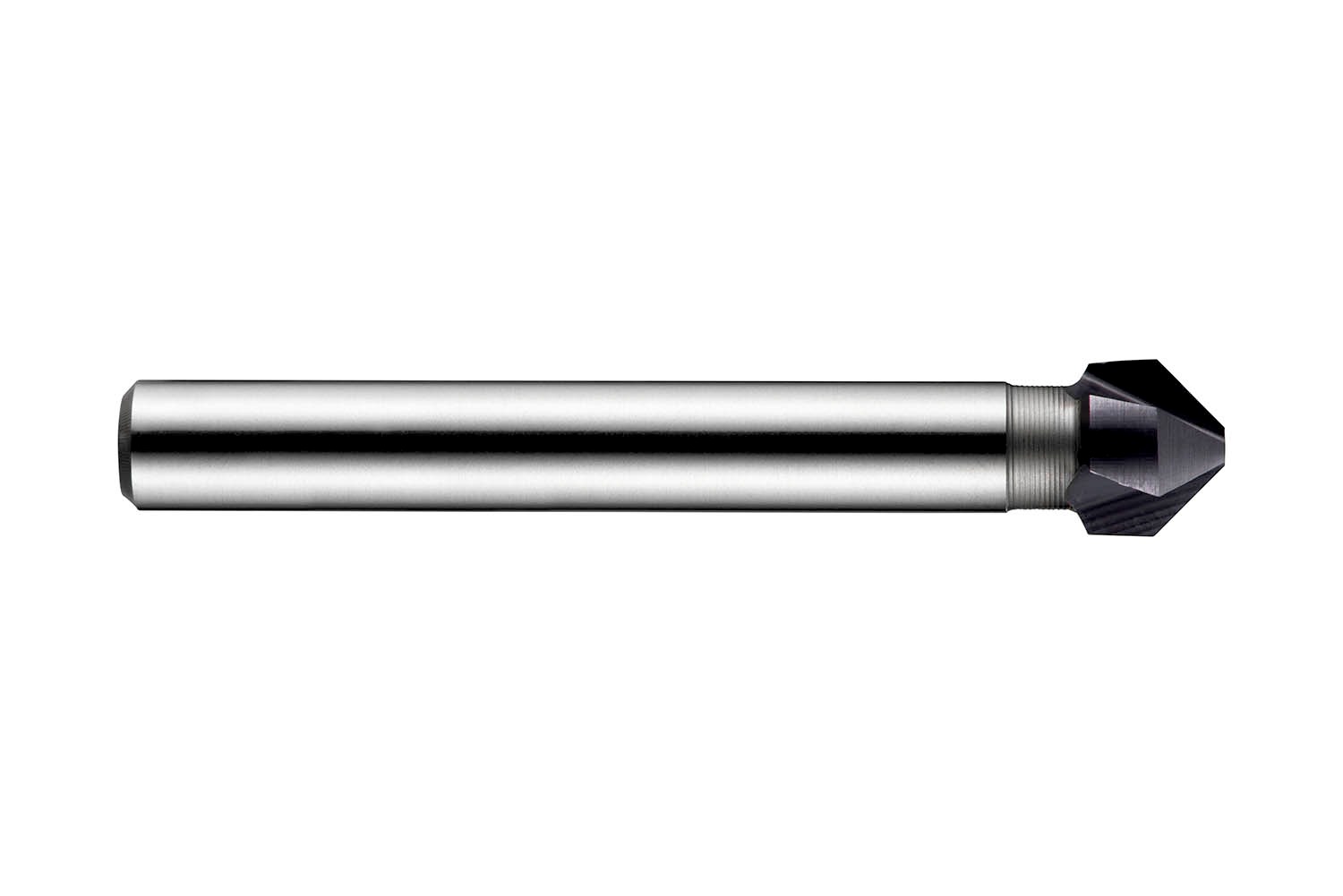

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 10.00mm with an overall length of 50mm and a head length of 7.6mm and 6mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.50mm, HSS with standard TiAlN coating for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, cast aluminium and copper or copper alloys

Additional information

Weight 0.0765 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760109632
Product number (SAP): 86018285
Ordering code ANSI: G56010.0
Gross weight – grams: 16.6
Cutting diameter second cutting step – millimeters (DC_2): 10 mm
Cutting diameter step – millimeter: 2.5 mm
Length chip flute – millimeter (LCF): 7.6 mm
Overall length – millimeter (OAL): 50 mm
Connection diameter – millimeter (DCON MS): 6 mm
Flute count (NOF): 3
ISO: G56010.0

Brand

DORMER
