DORMER G56016.5 Countersinks / Bors

Product Code: G56016.5

$105.37$95.79 Ex. GST

Product Code: G56016.5 SKU G56016.5 Categories , ,
DORMER G56016.5 Countersinks / Bors

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

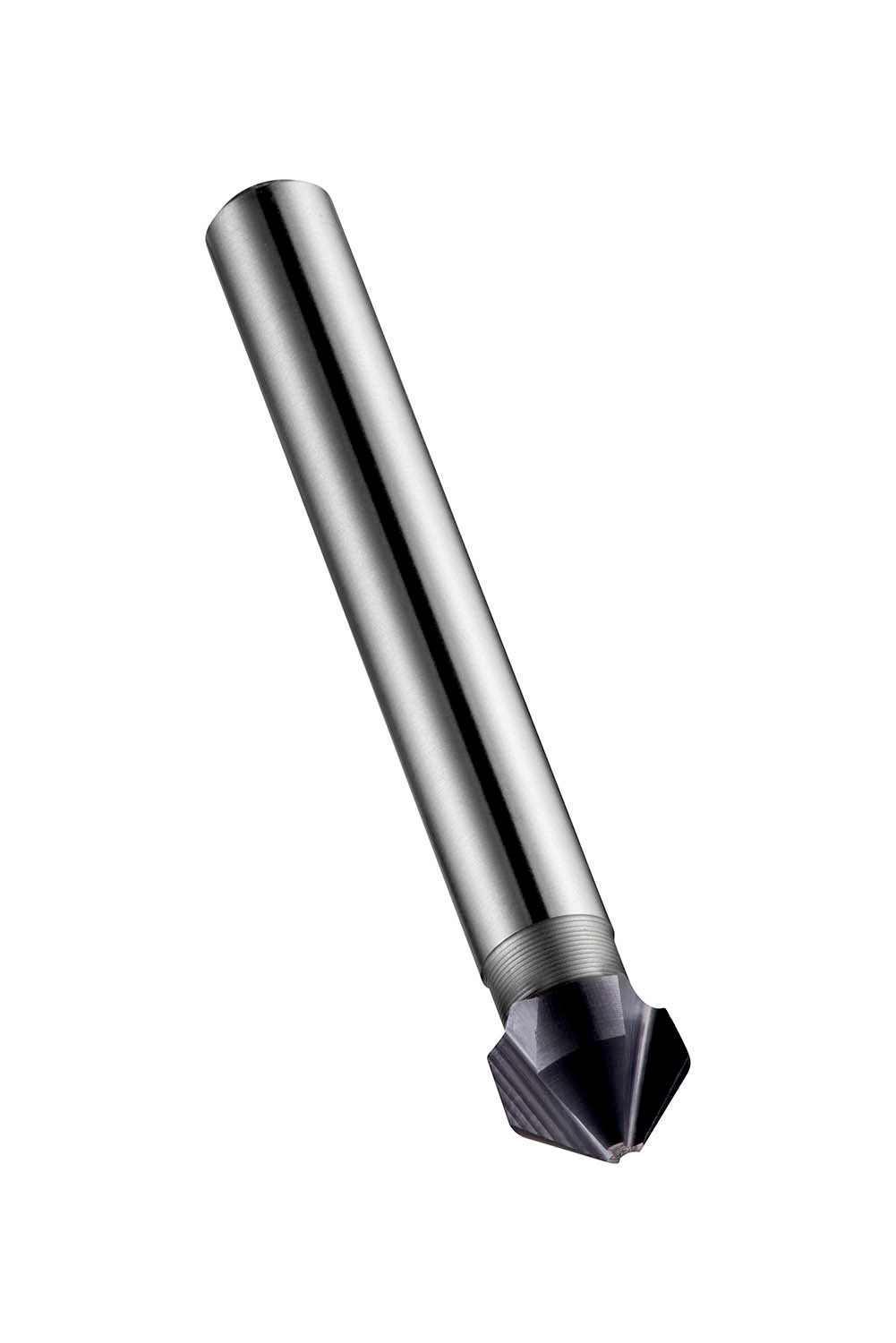

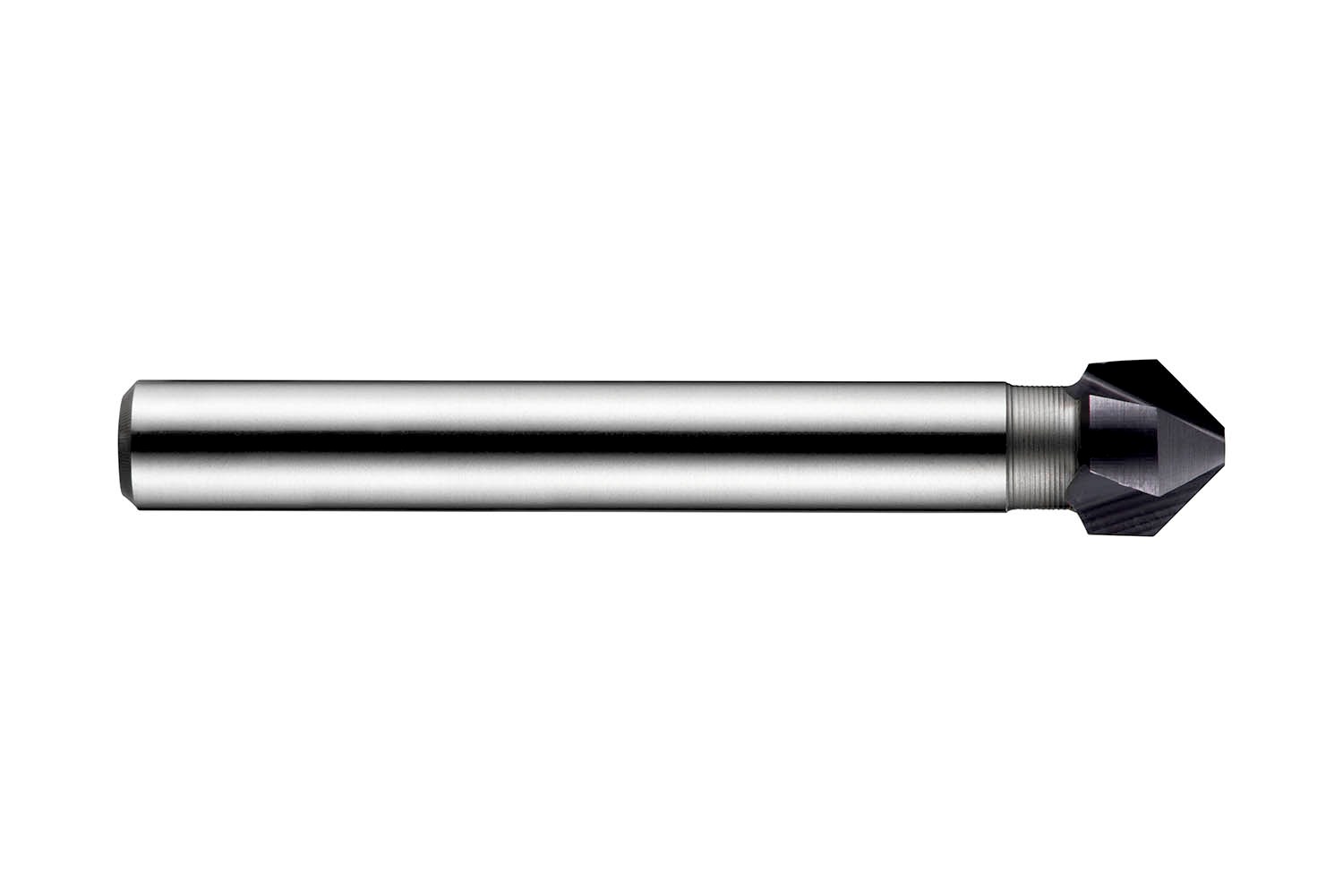

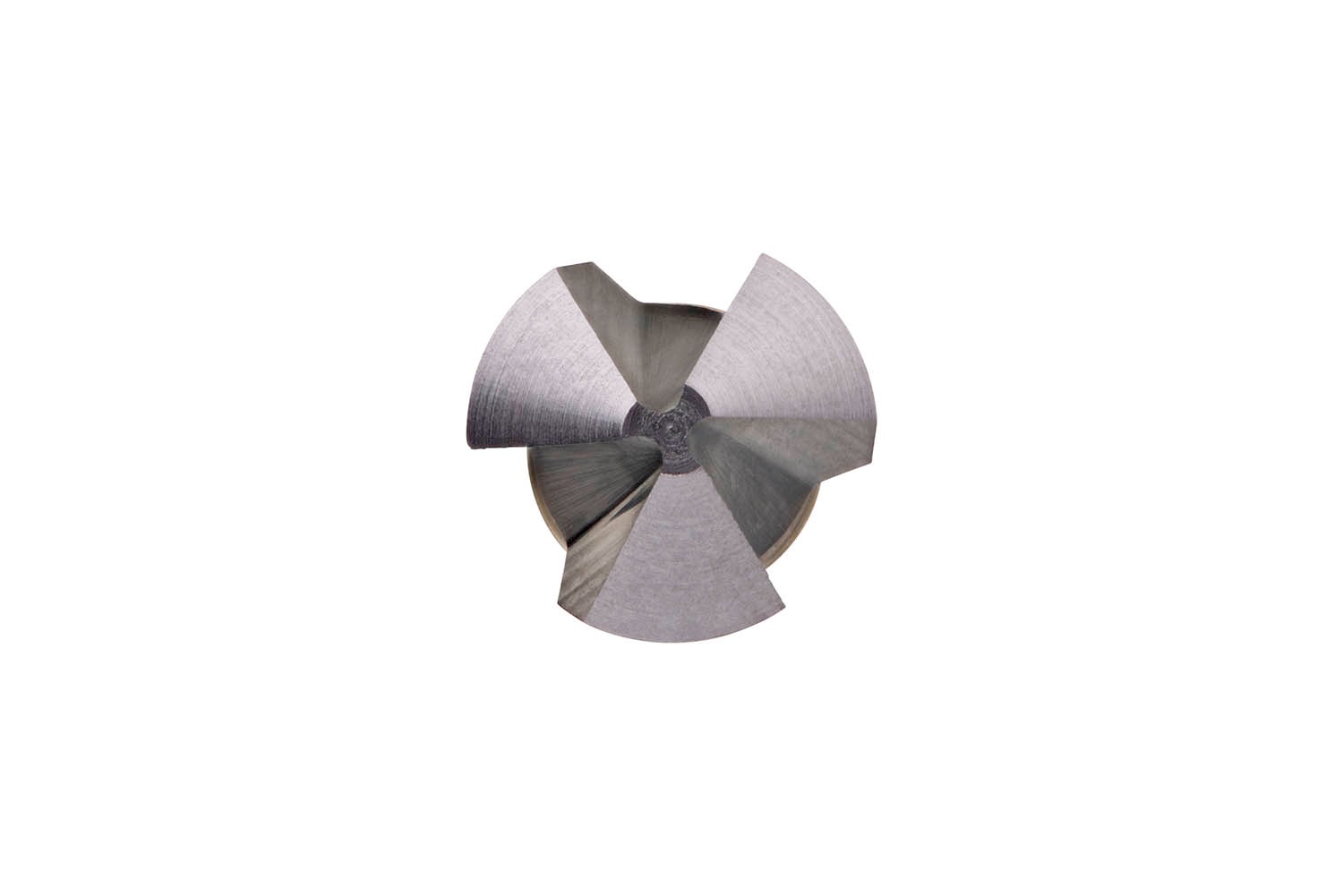

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 16.50mm with an overall length of 60mm and a head length of 10.5mm and 10mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.20mm, HSS with standard TiAlN coating for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, cast aluminium and copper or copper alloys

Additional information

Weight 0.1023 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760109663
Product number (SAP): 86018288
Ordering code ANSI: G56016.5
Gross weight – grams: 46.7
Cutting diameter second cutting step – millimeters (DC_2): 16.5 mm
Cutting diameter step – millimeter: 3.2 mm
Length chip flute – millimeter (LCF): 10.5 mm
Overall length – millimeter (OAL): 60 mm
Connection diameter – millimeter (DCON MS): 10 mm
Flute count (NOF): 3
ISO: G56016.5

Brand

DORMER
