DORMER G5606.3 Countersinks / Bors

Product Code: G5606.3

$61.75$56.14 Ex. GST

Product Code: G5606.3 SKU G5606.3 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

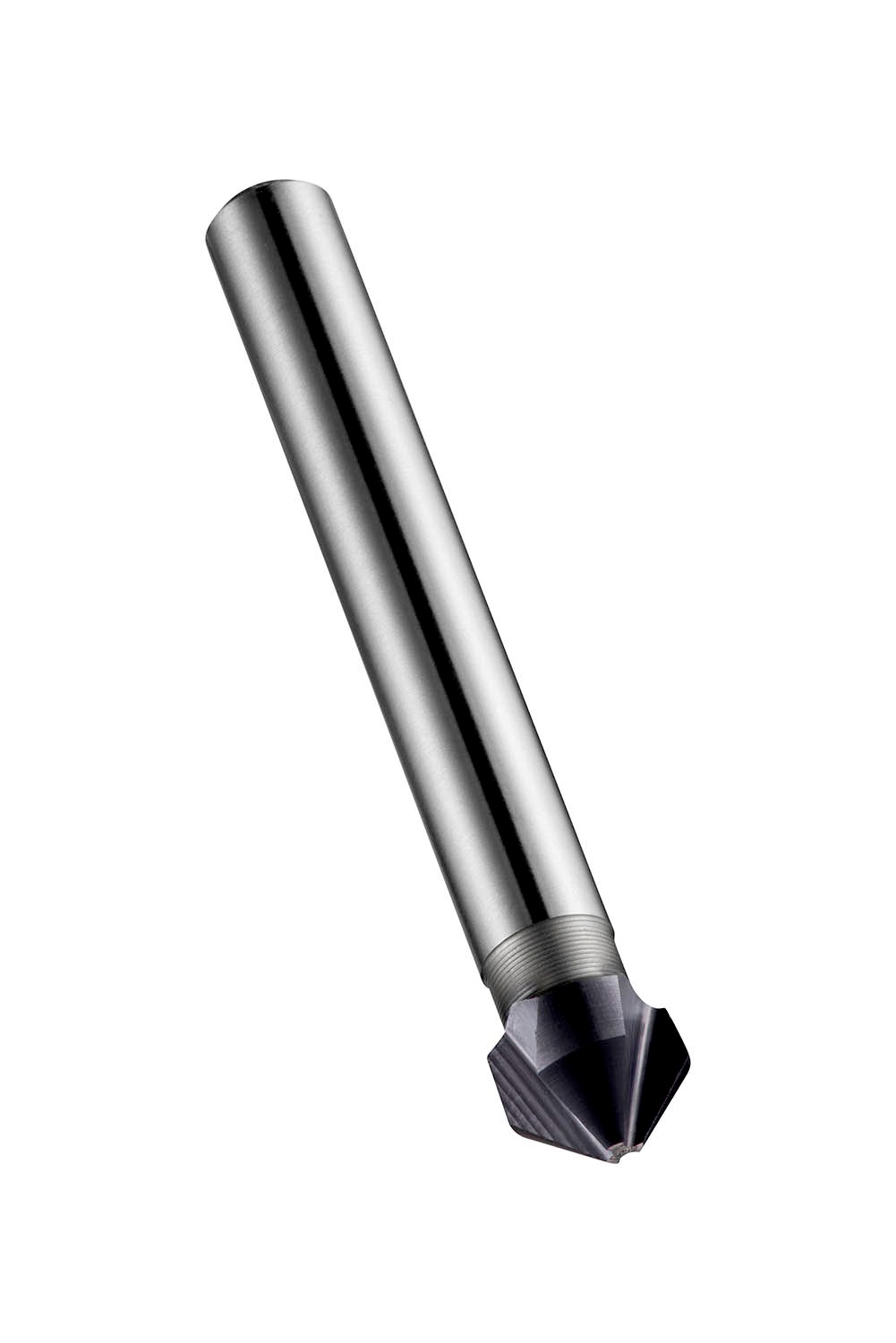

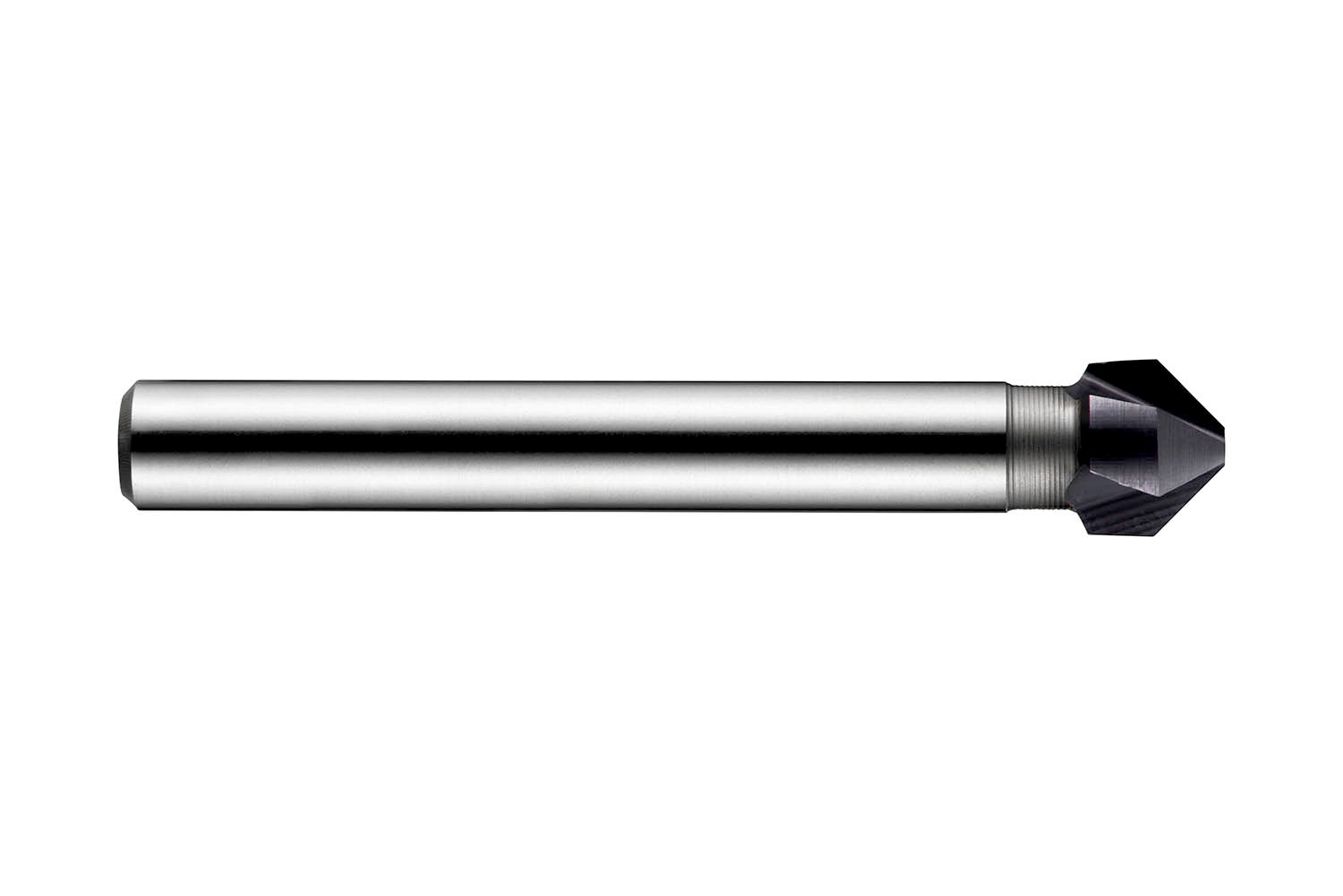

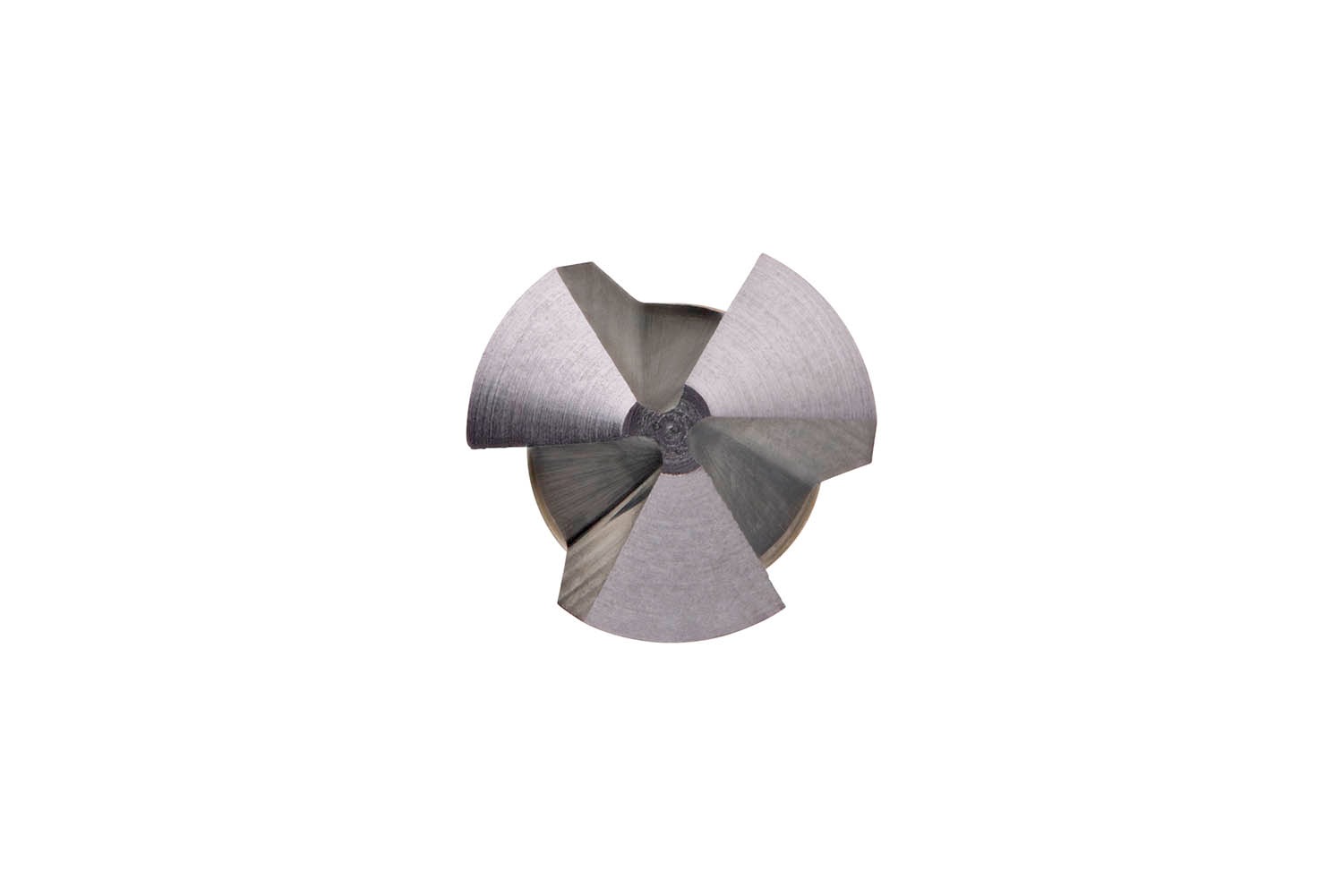

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 6.30mm with an overall length of 45mm and a head length of 5.5mm and 5mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 1.50mm, HSS with standard TiAlN coating for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, cast aluminium and copper or copper alloys

Additional information

Weight 0.0600 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760109694
Product number (SAP): 86018292
Ordering code ANSI: G5606.3
Gross weight – grams: 9
Cutting diameter second cutting step – millimeters (DC_2): 6.3 mm
Cutting diameter step – millimeter: 1.5 mm
Length chip flute – millimeter (LCF): 5.5 mm
Overall length – millimeter (OAL): 45 mm
Connection diameter – millimeter (DCON MS): 5 mm
Flute count (NOF): 3
ISO: G5606.3

Brand

DORMER
