DORMER G57010.4 Countersinks / Bors

Product Code: G57010.4

$77.04$70.04 Ex. GST

Product Code: G57010.4 SKU G57010.4 Categories , ,
DORMER G57010.4 Countersinks / Bors

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

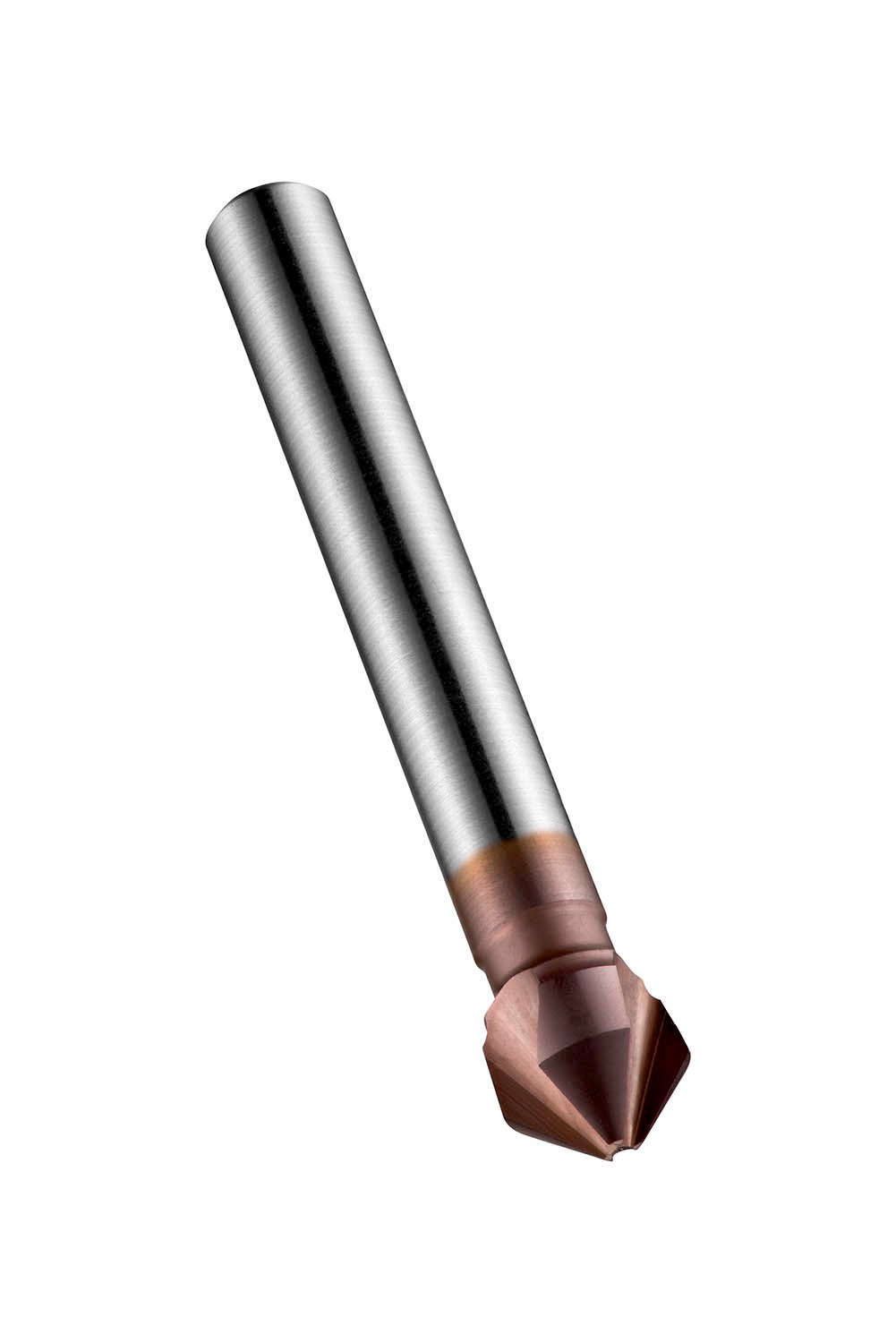

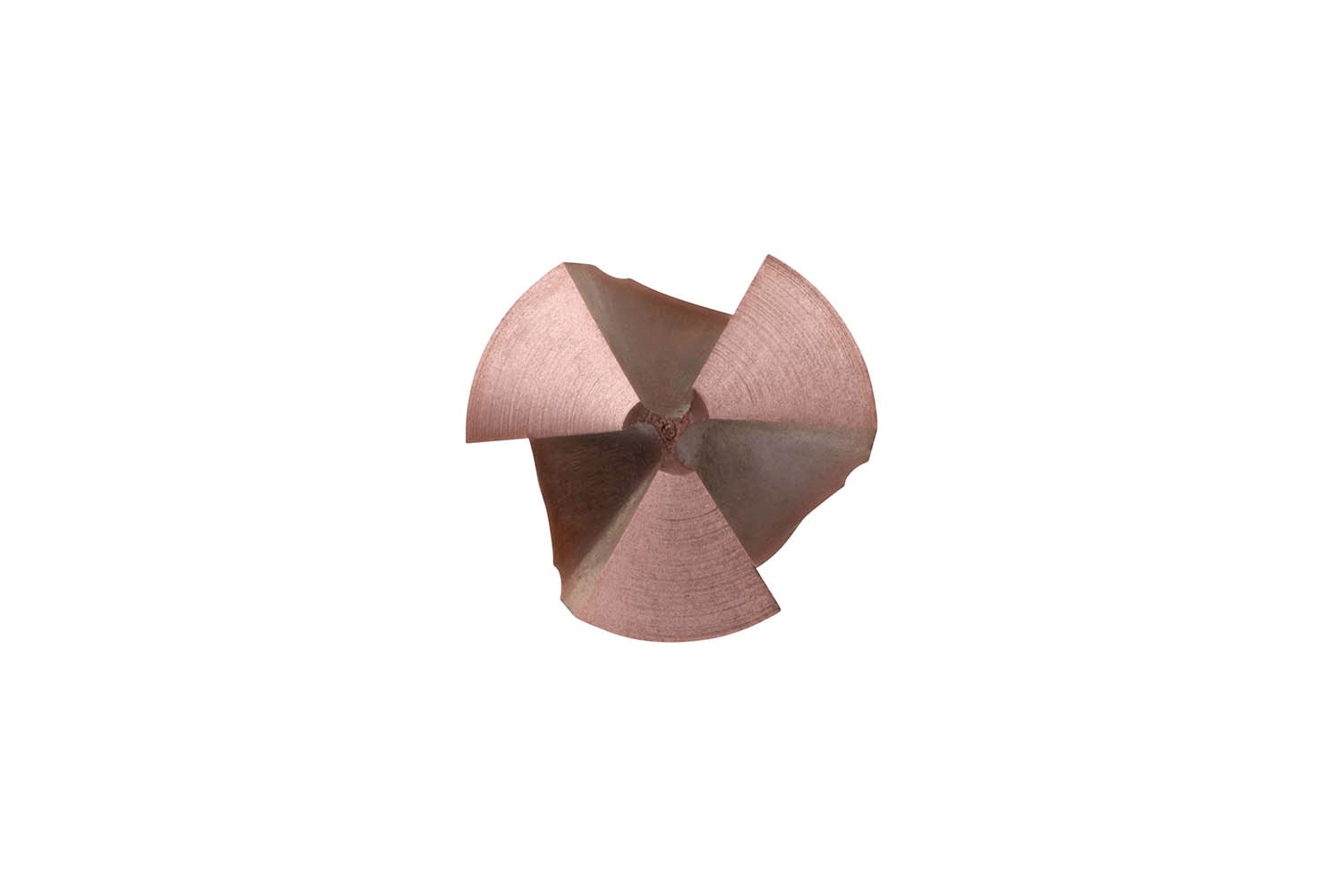

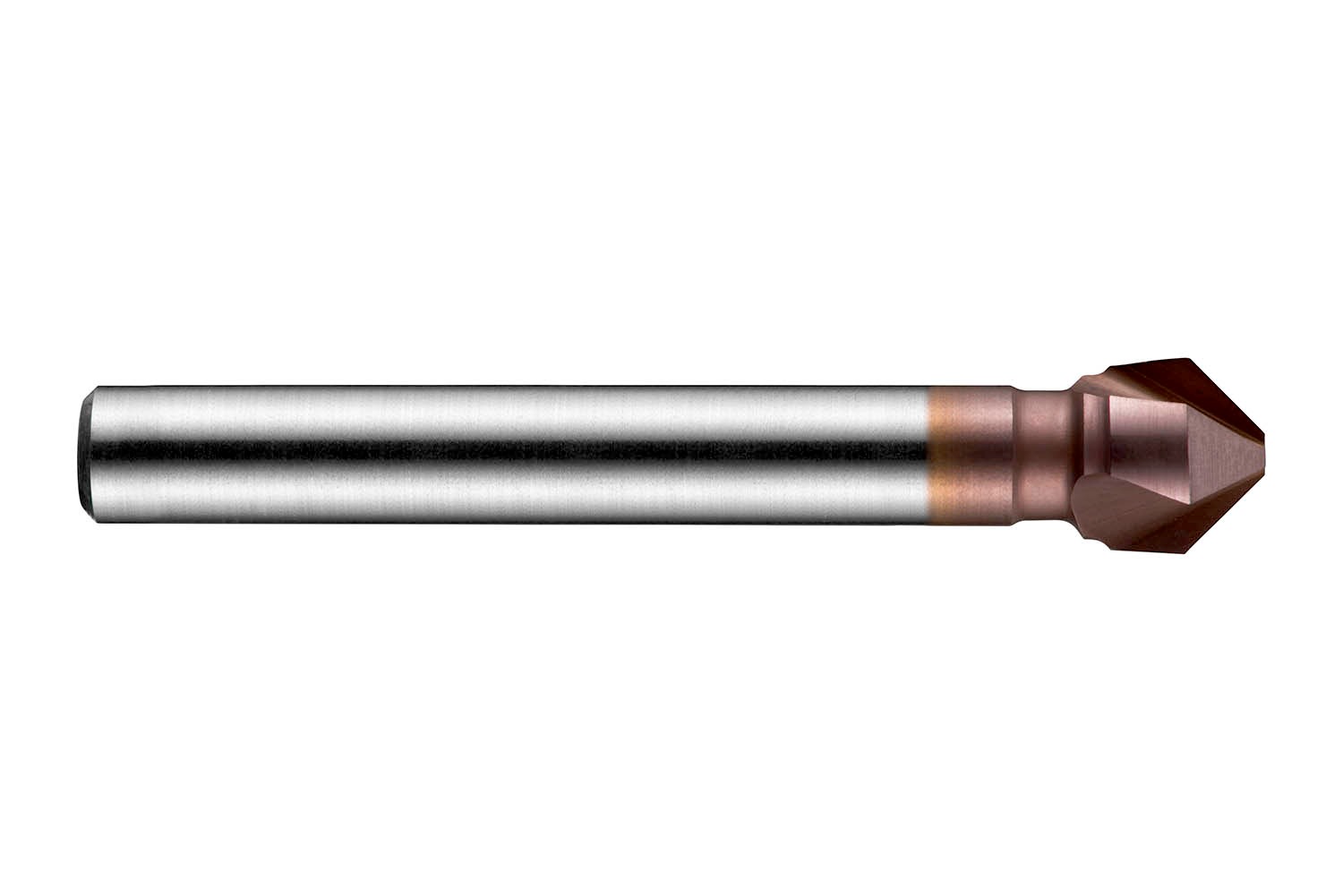

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 10.40mm with an overall length of 50mm and a head length of 9.7mm and 6mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.50mm, cobalt based HSS-E with standard AlTiCN coating for machining alloy and tool steel, ferritic, martensitic and austenitic stainless steel and grey, malleable, ductile and compacted graphite cast-iron

Additional information

Weight 0.0748 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760669013
Product number (SAP): 86018295
Ordering code ANSI: G57010.4
Gross weight – grams: 17

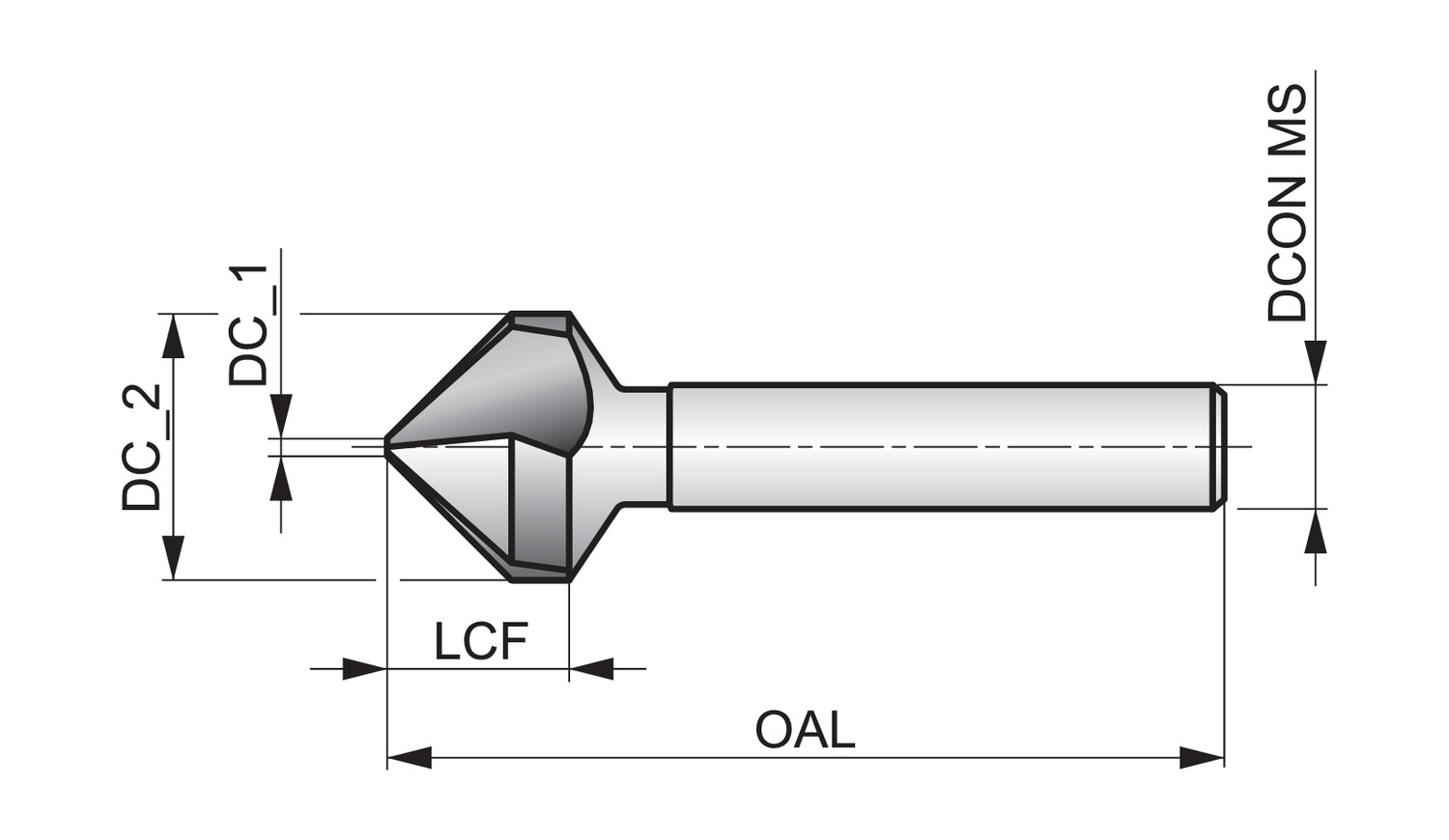

Cutting diameter second cutting step – millimeters (DC_2): 10.4 mm
Cutting diameter step – millimeter: 2.5 mm
Length chip flute – millimeter (LCF): 9.7 mm
Overall length – millimeter (OAL): 50 mm
Connection diameter – millimeter (DCON MS): 6 mm
Flute count (NOF): 3
ISO: G57010.4

Brand

DORMER
