DORMER G57031.0 Countersinks / Bors

Product Code: G57031.0

$313.84$285.31 Ex. GST

Product Code: G57031.0 SKU G57031.0 Categories , ,

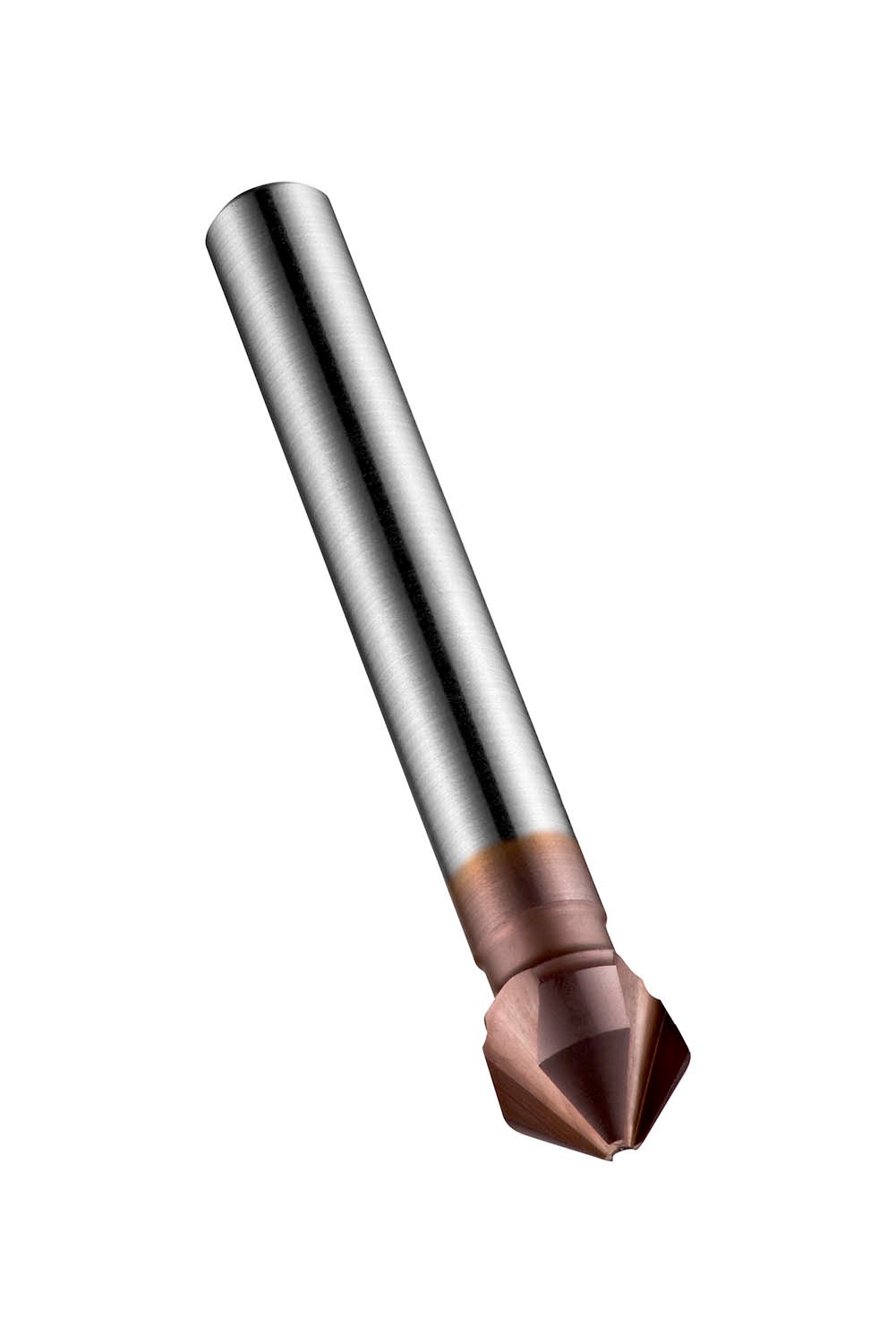

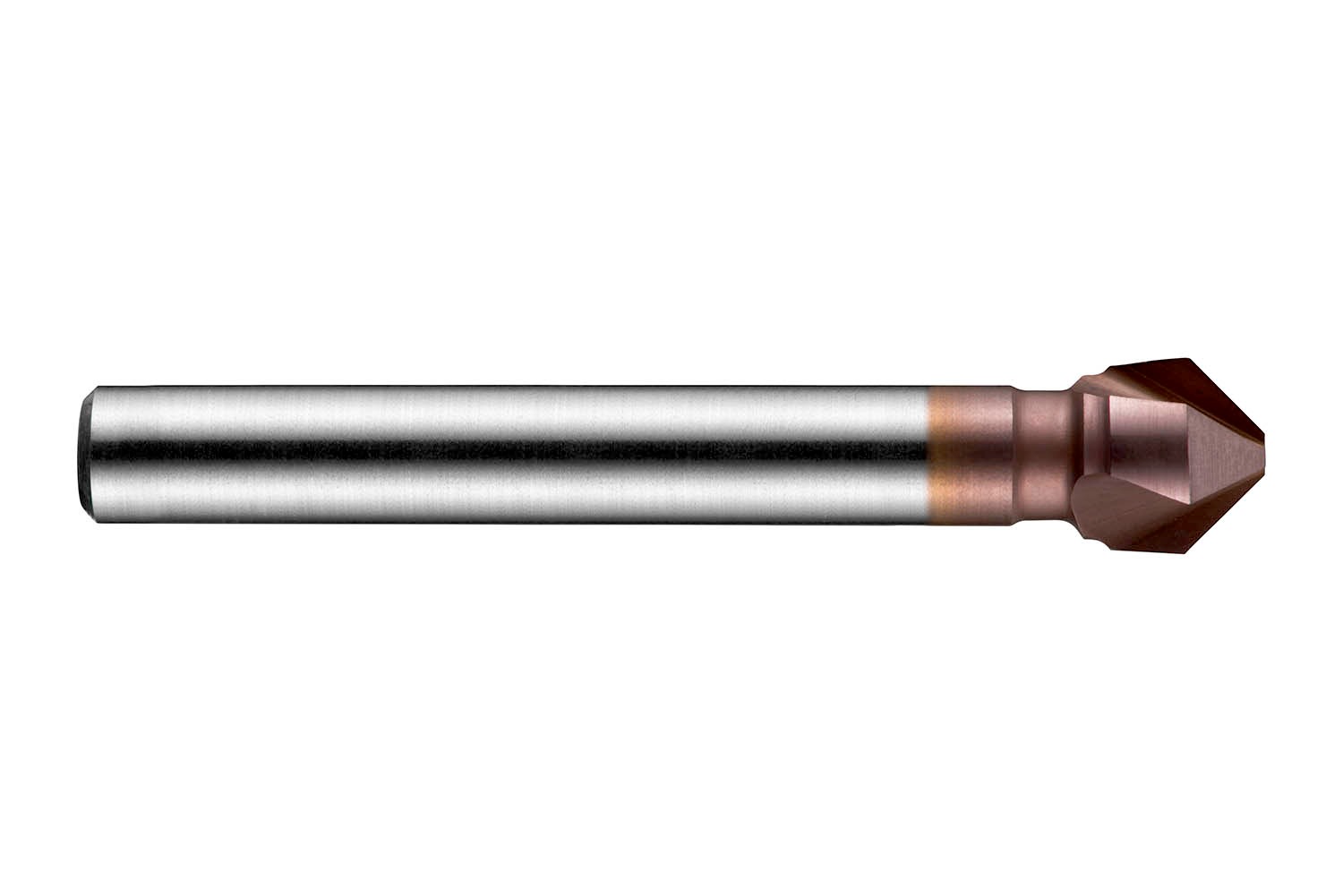

DORMER G57031.0 Countersinks / Bors

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 31.00mm with an overall length of 71mm and a head length of 24.4mm and 12mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 4.20mm, cobalt based HSS-E with standard AlTiCN coating for machining alloy and tool steel, ferritic, martensitic and austenitic stainless steel and grey, malleable, ductile and compacted graphite cast-iron

Additional information

Weight 0.3047 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760669068
Product number (SAP): 86018300
Ordering code ANSI: G57031.0
Gross weight – grams: 113.5

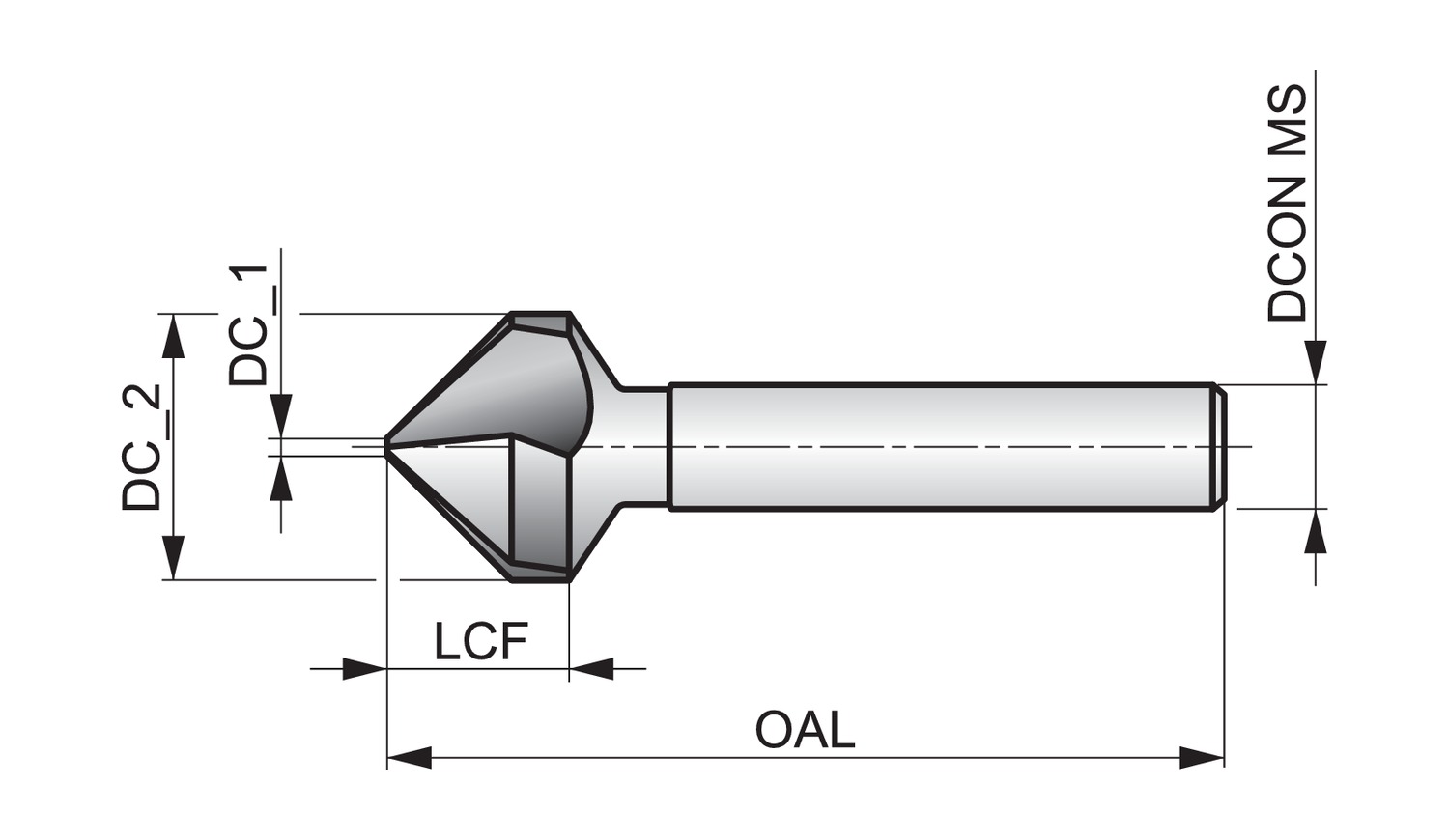

Cutting diameter second cutting step – millimeters (DC_2): 31 mm
Cutting diameter step – millimeter: 4.2 mm
Length chip flute – millimeter (LCF): 24.4 mm
Overall length – millimeter (OAL): 71 mm
Connection diameter – millimeter (DCON MS): 12 mm

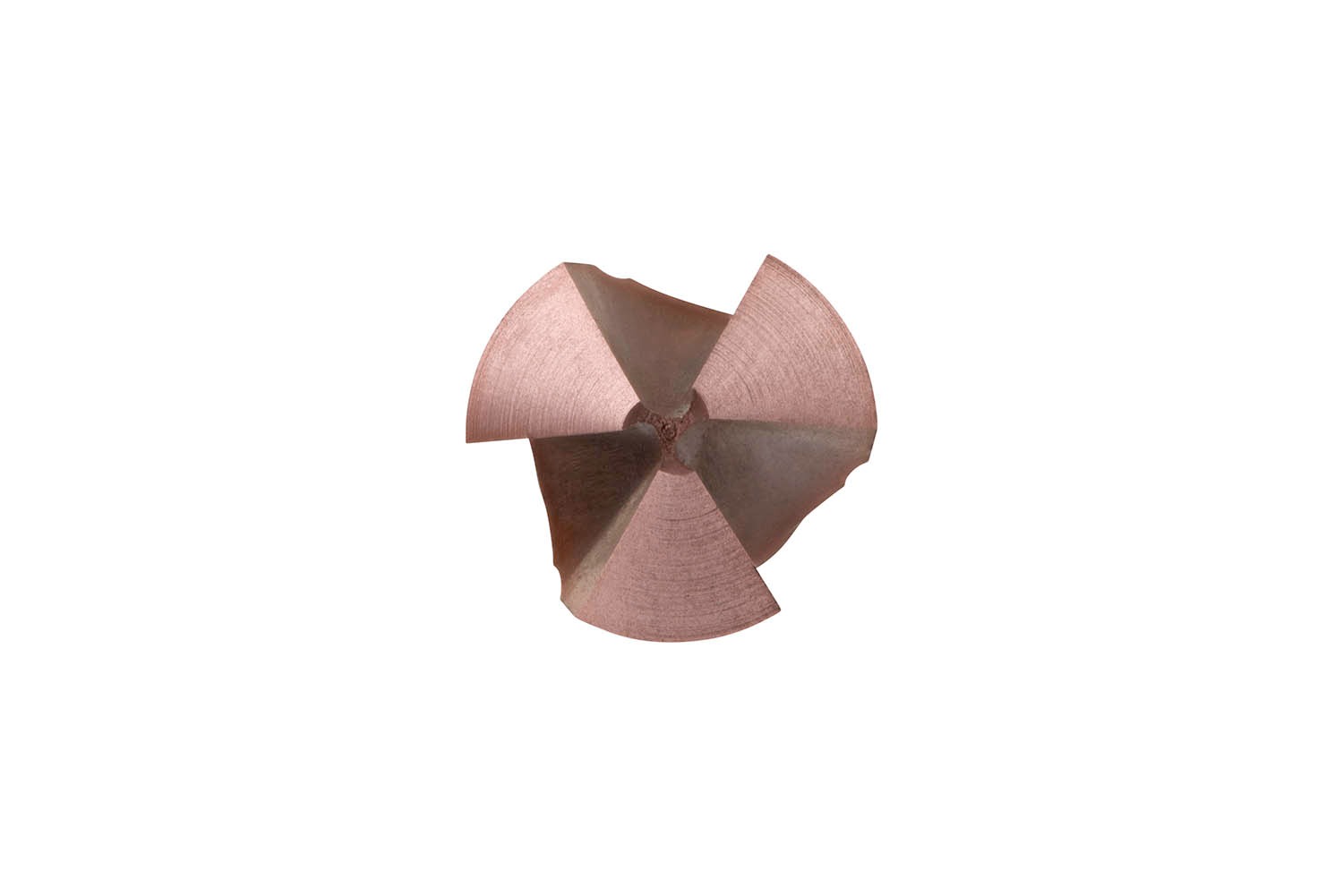

Flute count (NOF): 3
ISO: G57031.0

Brand

DORMER
