DORMER G5708.3 Countersinks / Bors

Product Code: G5708.3

$66.85$60.77 Ex. GST

Product Code: G5708.3 SKU G5708.3 Categories , ,
DORMER G5708.3 Countersinks / Bors

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 8.30mm with an overall length of 50mm and a head length of 8.2mm and 6mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.00mm, cobalt based HSS-E with standard AlTiCN coating for machining alloy and tool steel, ferritic, martensitic and austenitic stainless steel and grey, malleable, ductile and compacted graphite cast-iron

Additional information

Weight 0.0649 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760669006
Product number (SAP): 86018302
Ordering code ANSI: G5708.3
Gross weight – grams: 15.7

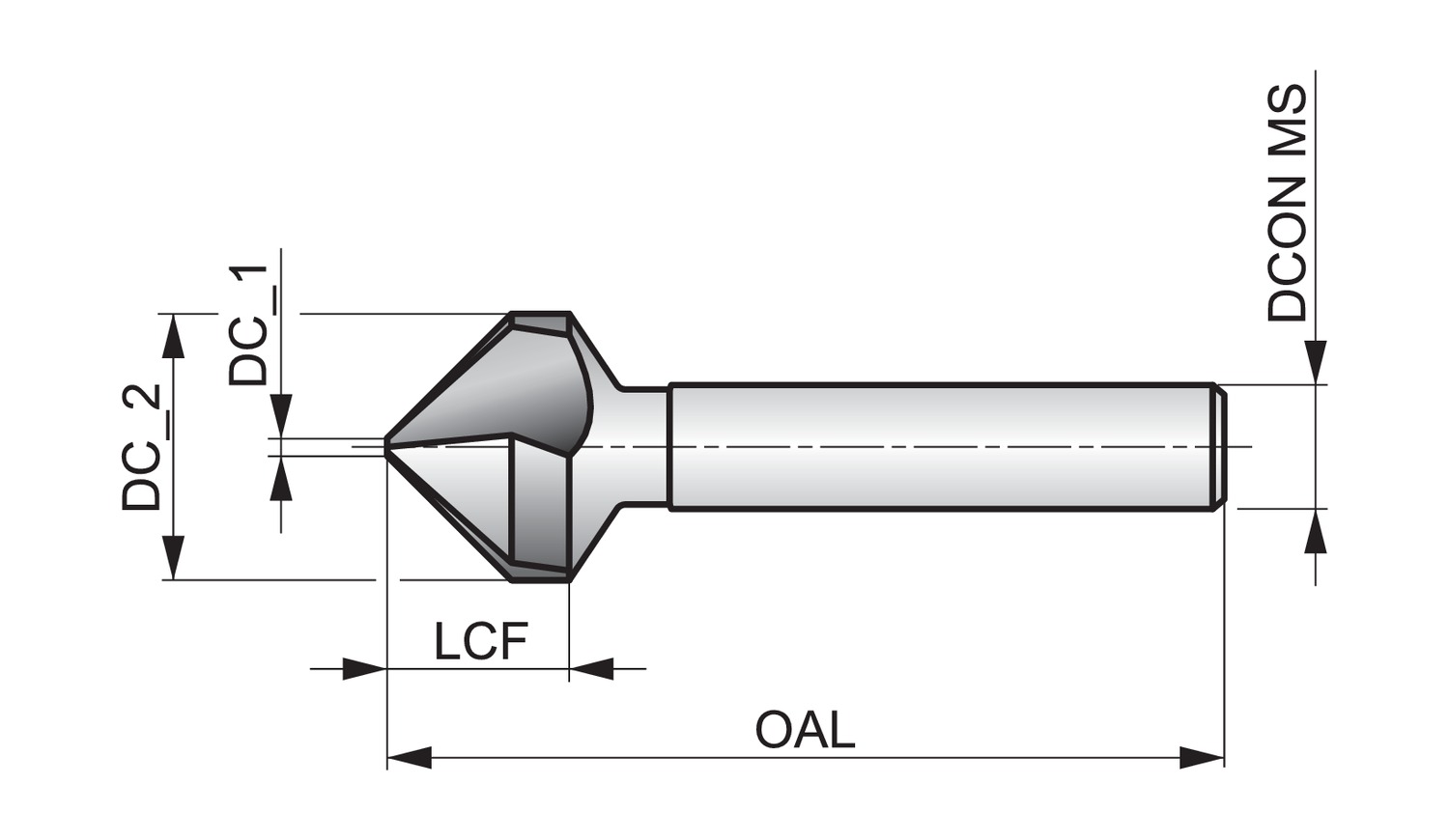

Cutting diameter second cutting step – millimeters (DC_2): 8.3 mm
Cutting diameter step – millimeter: 2 mm
Length chip flute – millimeter (LCF): 8.2 mm
Overall length – millimeter (OAL): 50 mm
Connection diameter – millimeter (DCON MS): 6 mm
Flute count (NOF): 3
ISO: G5708.3

Brand

DORMER
