DORMER G60012.4 Countersinks / Bors

Product Code: G60012.4

$131.43$119.48 Ex. GST

Product Code: G60012.4 SKU G60012.4 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

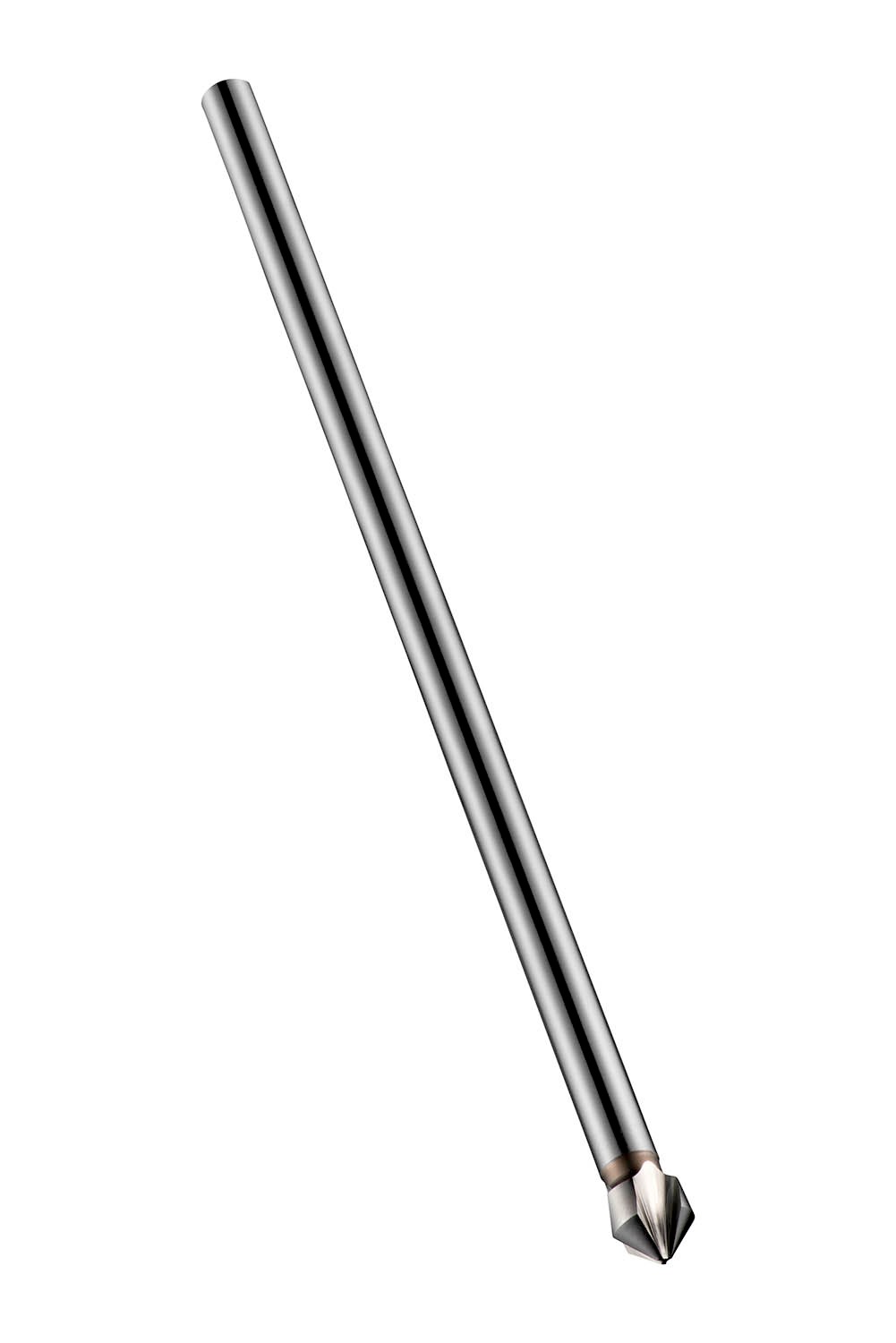

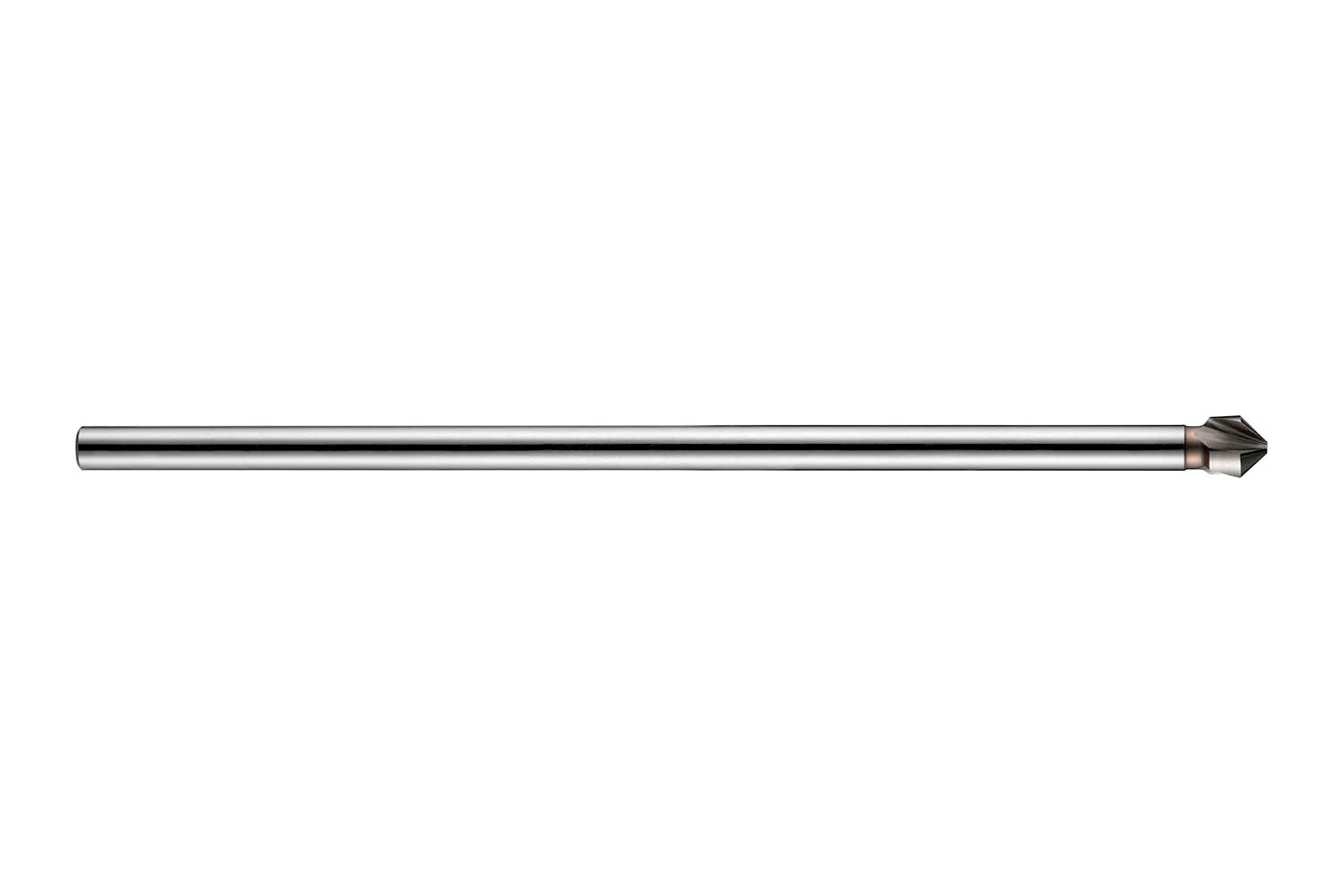

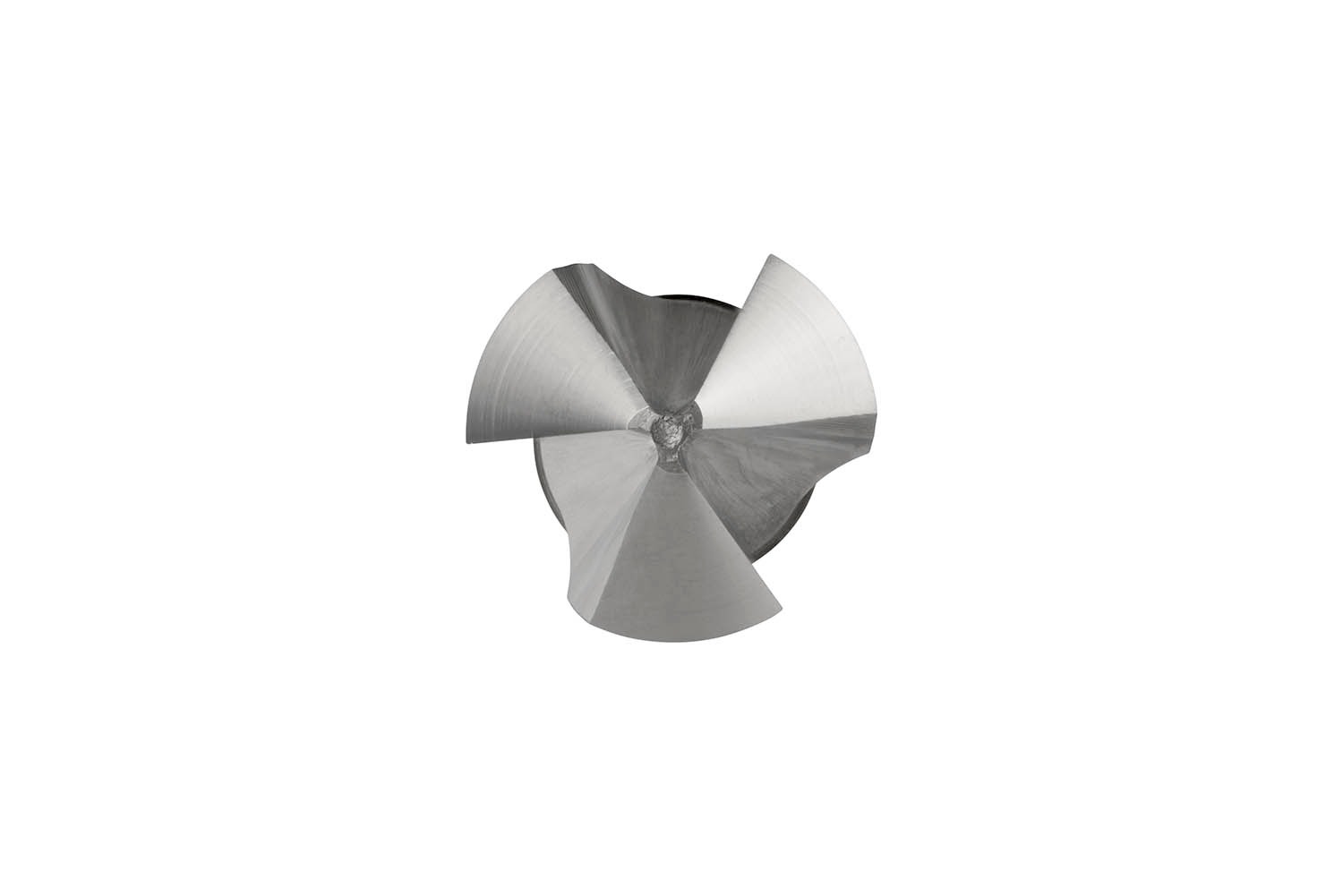

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 12.40mm with an overall length of 158mm and a head length of 8.6mm and 8mm straight extended shank, according to DORMER standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.50mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel

Additional information

Weight 0.1276 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760669105
Product number (SAP): 86018304
Ordering code ANSI: G60012.4
Gross weight – grams: 70.9

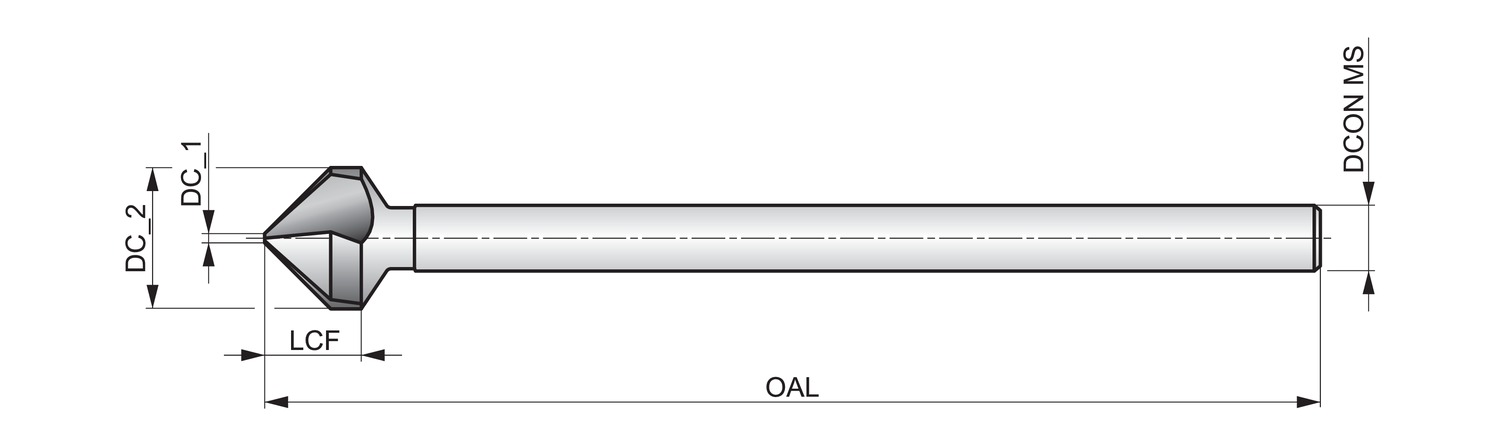

Cutting diameter second cutting step – millimeters (DC_2): 12.4 mm
Cutting diameter step – millimeter: 2.5 mm
Length chip flute – millimeter (LCF): 8.6 mm
Overall length – millimeter (OAL): 158 mm
Connection diameter – millimeter (DCON MS): 8 mm
Flute count (NOF): 3
ISO: G60012.4

Brand

DORMER
