DORMER G60016.5 Countersinks / Bors

Product Code: G60016.5

$165.42$150.38 Ex. GST

Product Code: G60016.5 SKU G60016.5 Categories , ,

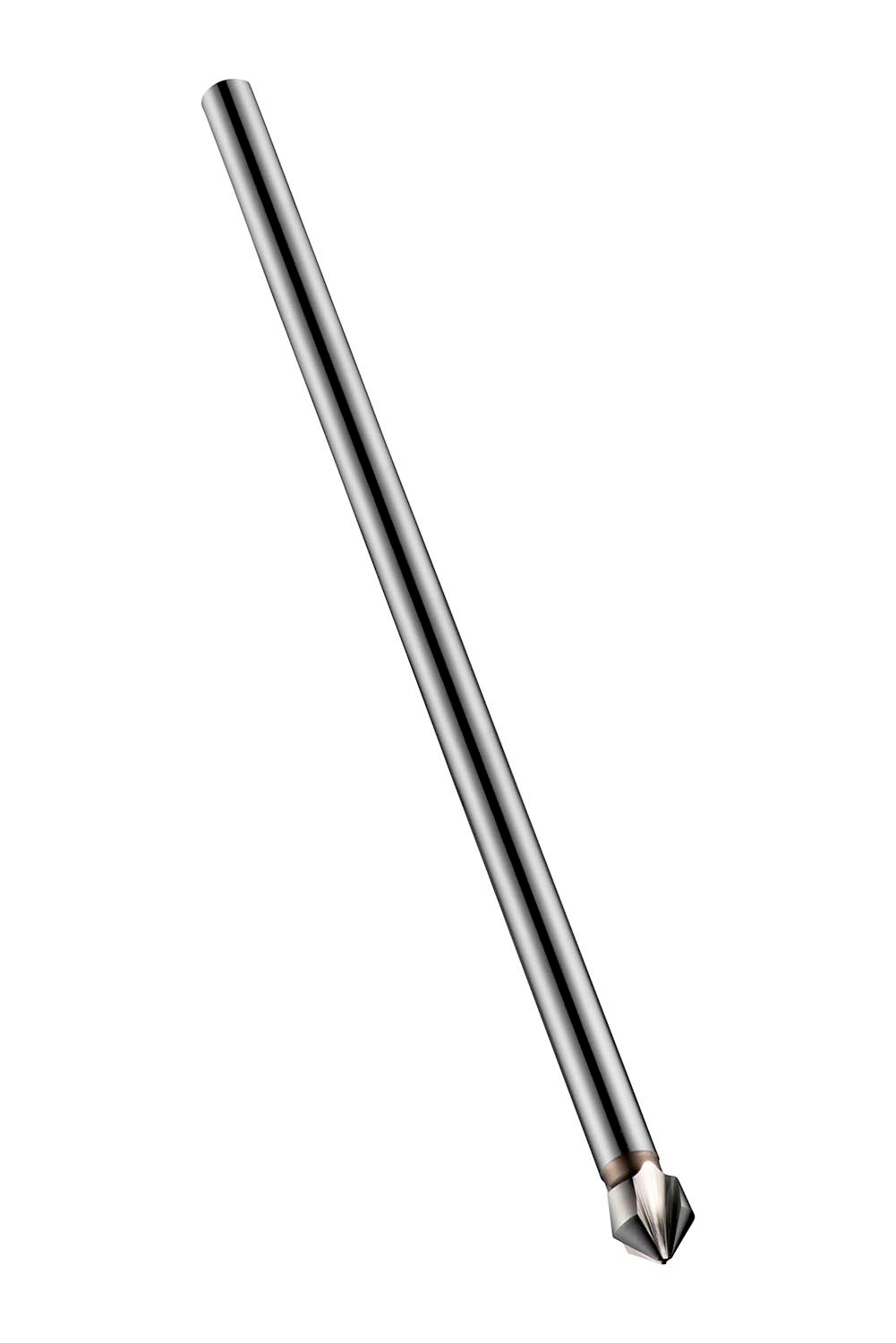

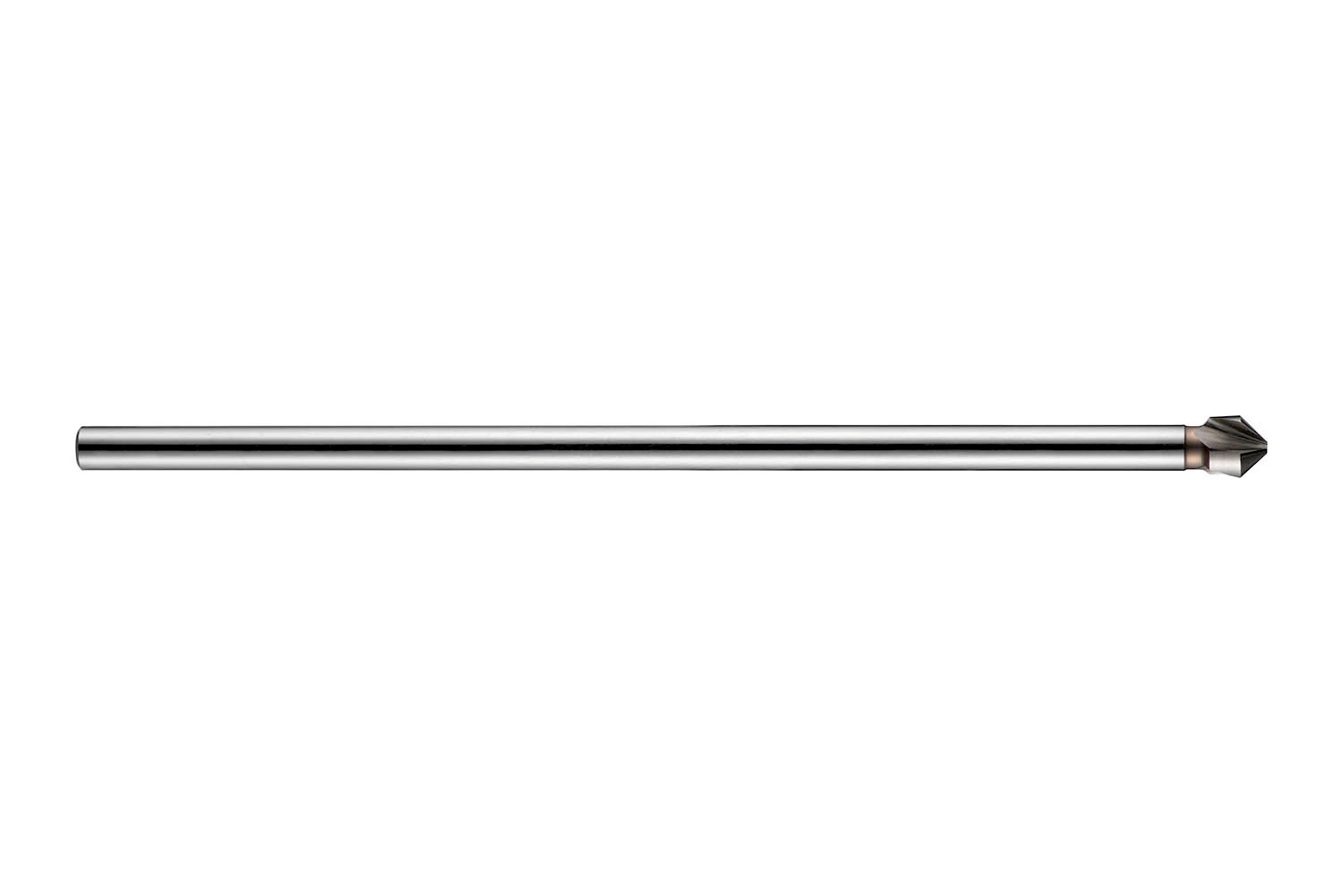

DORMER G60016.5 Countersinks / Bors

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

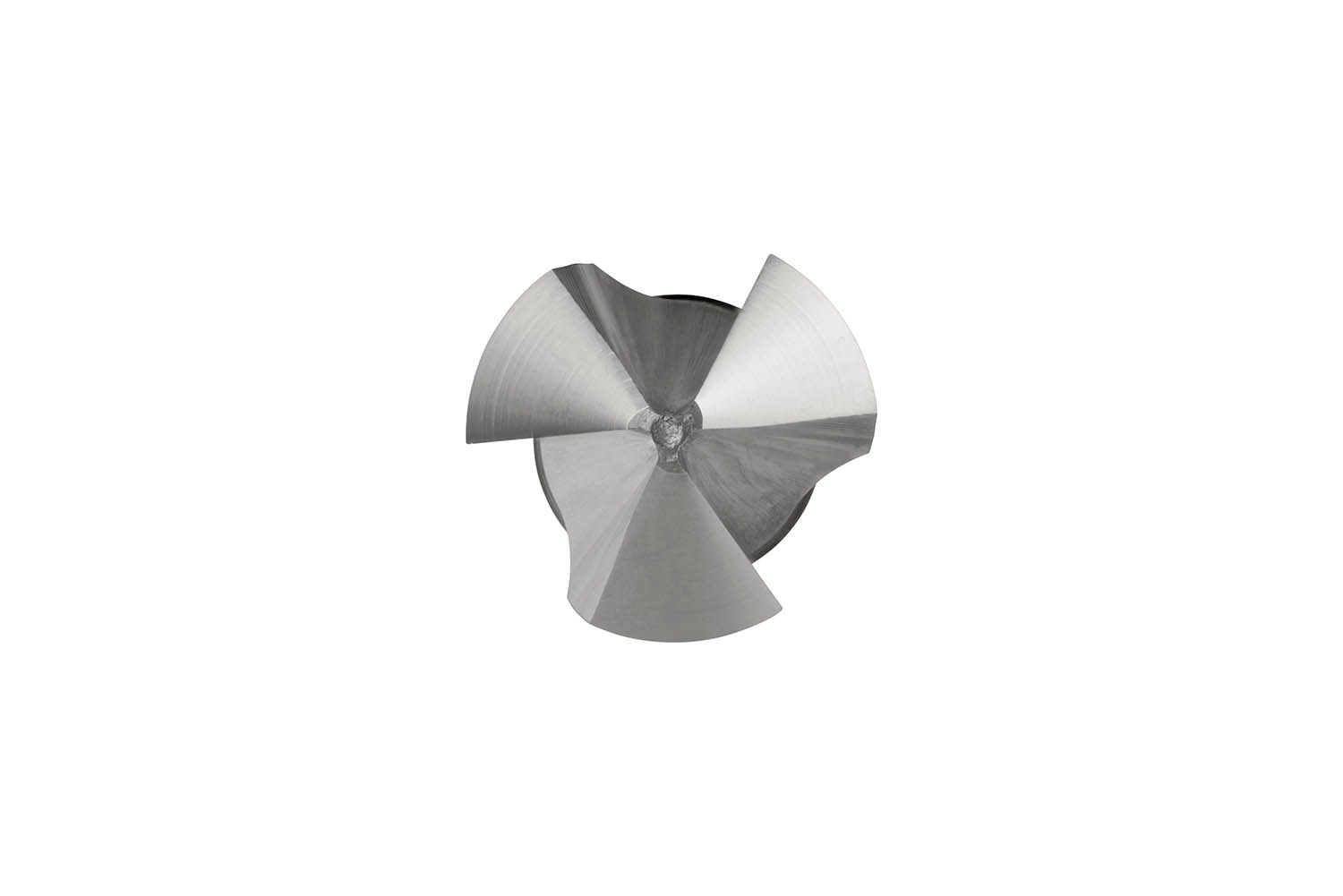

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 16.50mm with an overall length of 161mm and a head length of 11.1mm and 10mm straight extended shank, according to DORMER standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.80mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel

Additional information

Weight 0.1606 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760669129
Product number (SAP): 86018306
Ordering code ANSI: G60016.5
Gross weight – grams: 111

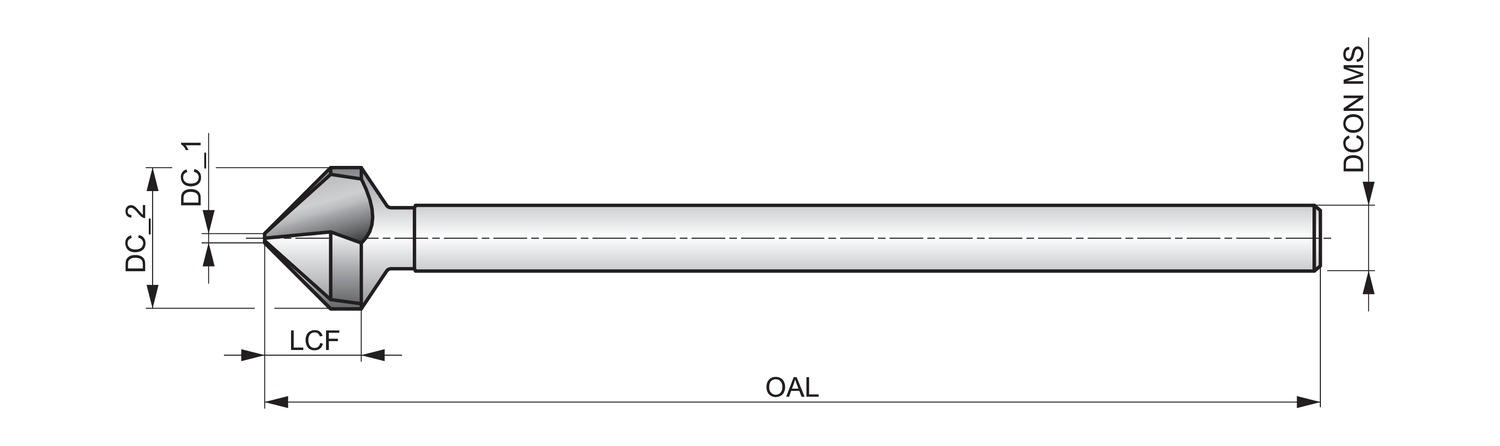

Cutting diameter second cutting step – millimeters (DC_2): 16.5 mm
Cutting diameter step – millimeter: 2.8 mm
Length chip flute – millimeter (LCF): 11.1 mm
Overall length – millimeter (OAL): 161 mm
Connection diameter – millimeter (DCON MS): 10 mm
Flute count (NOF): 3
ISO: G60016.5

Brand

DORMER
