DORMER G6008.3 Countersinks / Bors

Product Code: G6008.3

$101.41$92.19 Ex. GST

Product Code: G6008.3 SKU G6008.3 Categories , ,
DORMER G6008.3 Countersinks / Bors

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

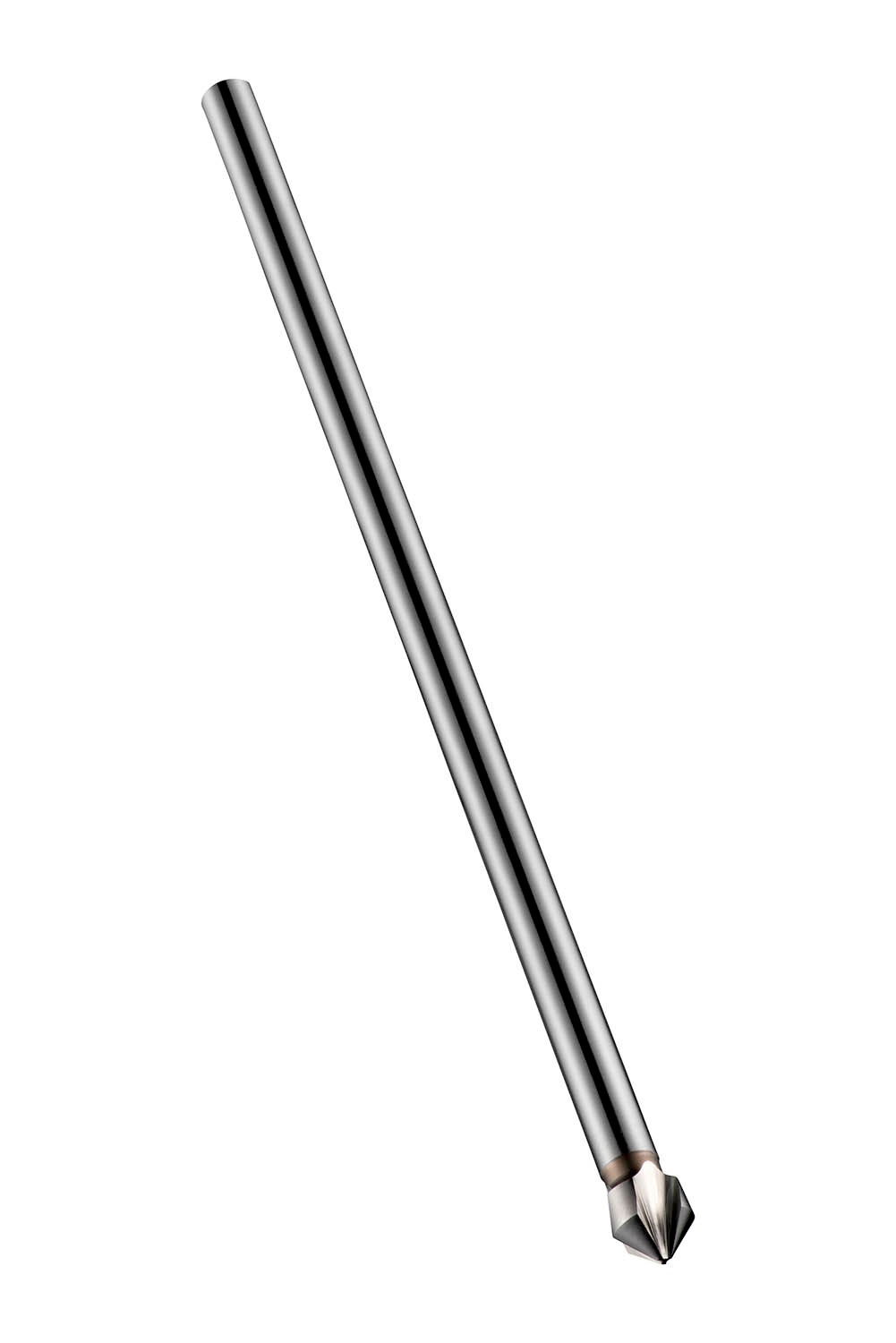

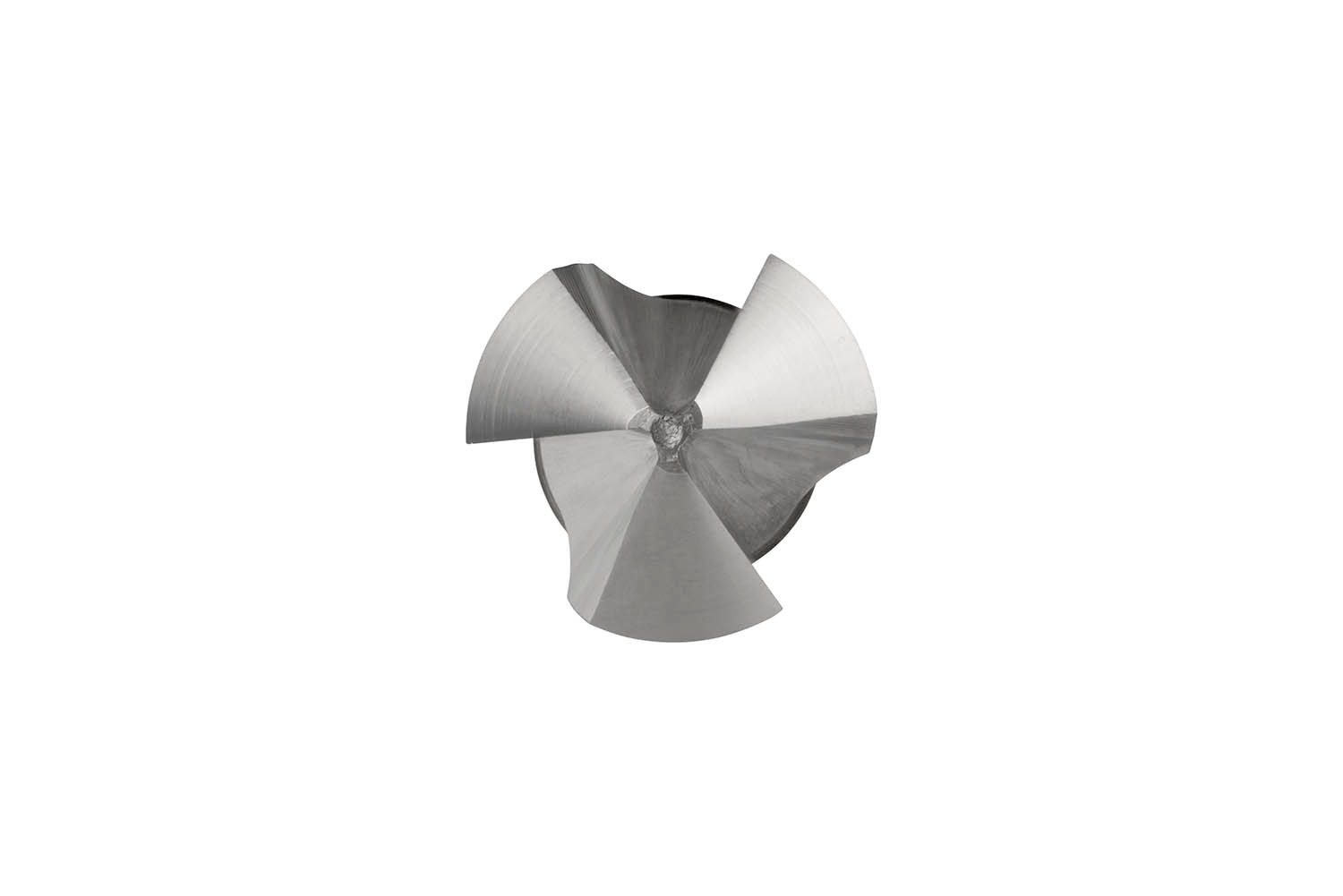

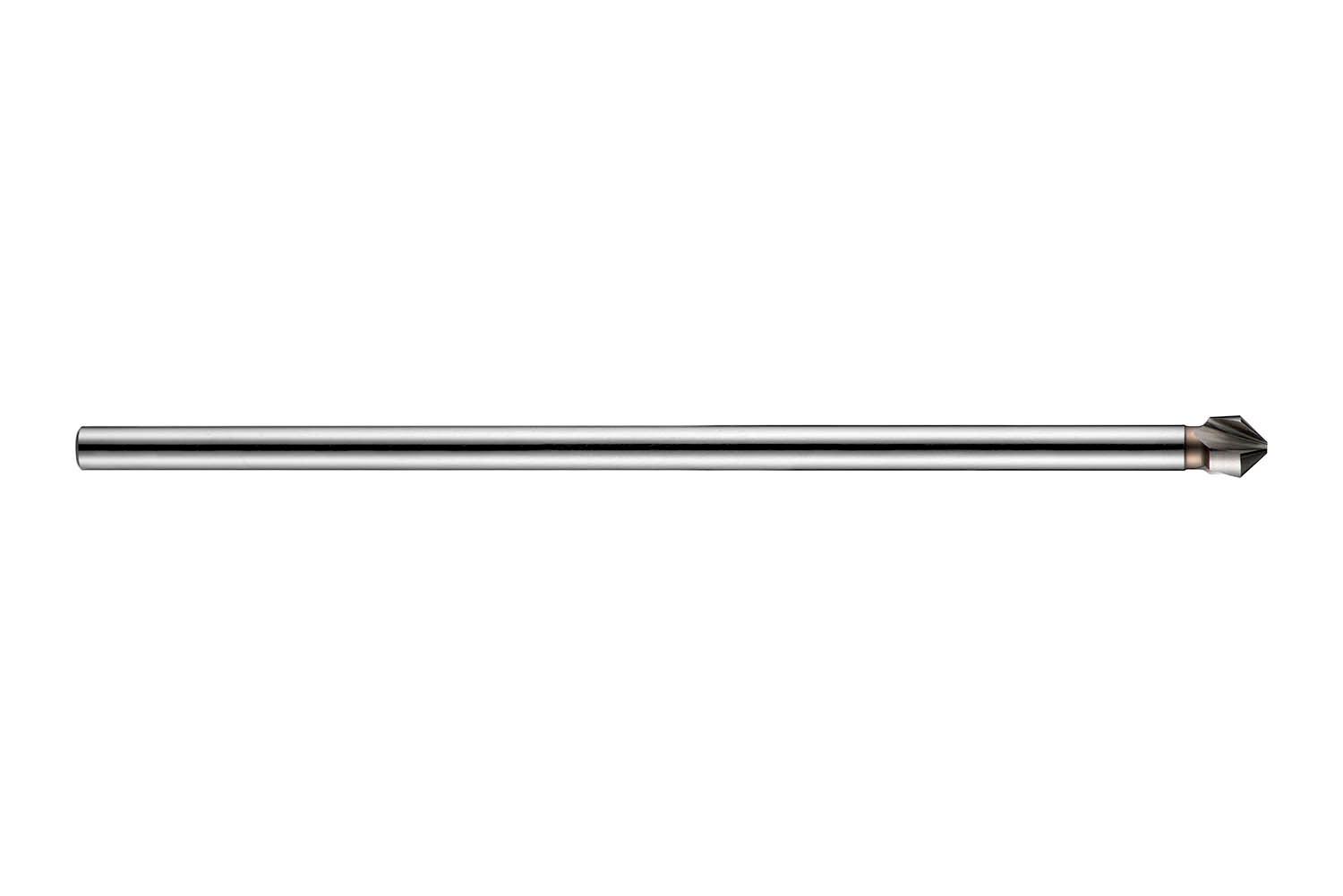

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 8.30mm with an overall length of 155mm and a head length of 6.9mm and 6mm straight extended shank, according to DORMER standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 1.80mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel

Additional information

Weight 0.0985 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760669082
Product number (SAP): 86018310
Ordering code ANSI: G6008.3
Gross weight – grams: 41.8

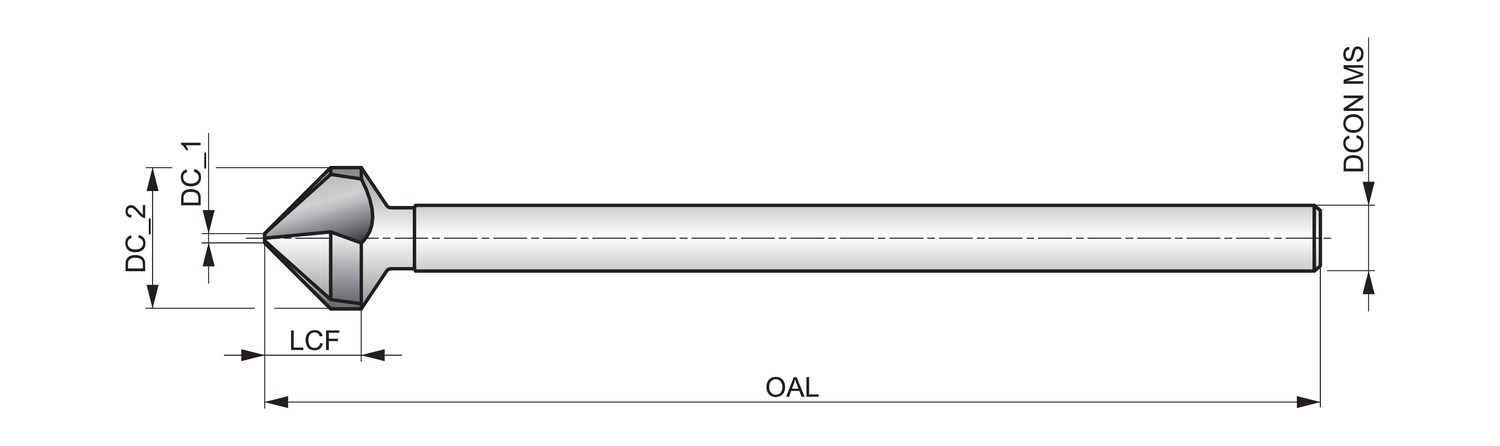

Cutting diameter second cutting step – millimeters (DC_2): 8.3 mm
Cutting diameter step – millimeter: 1.8 mm
Length chip flute – millimeter (LCF): 6.9 mm
Overall length – millimeter (OAL): 155 mm
Connection diameter – millimeter (DCON MS): 6 mm
Flute count (NOF): 3
ISO: G6008.3

Brand

DORMER
