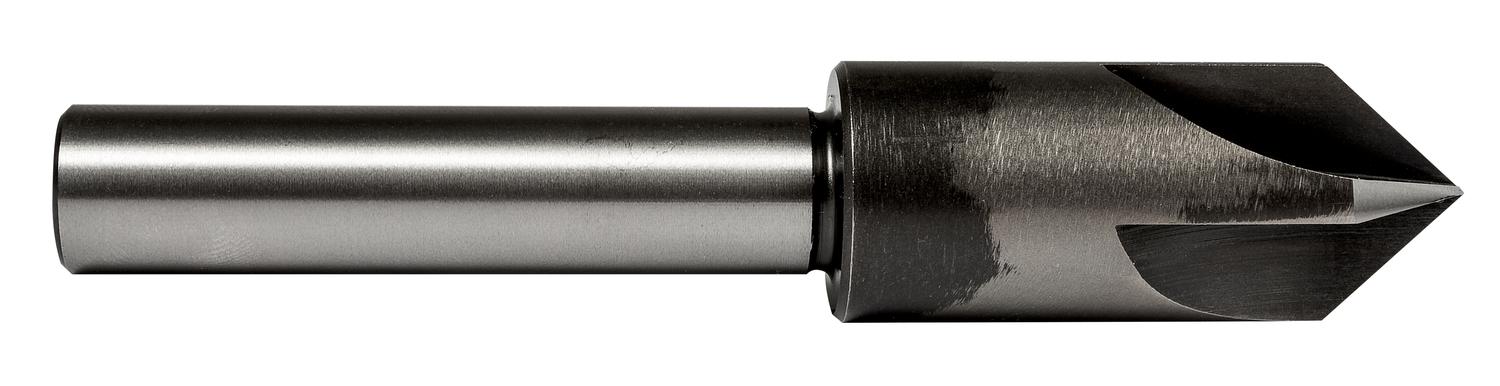

DORMER G6021/2X82 Countersinks / Bors

Product Code: G6021/2X82

$139.36$126.69 Ex. GST

Product Code: G6021/2X82 SKU G6021/2X82 Categories ,
DORMER G6021/2X82 Countersinks / Bors

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Countersink with 4-flutes, 82° chamfering angle, maximum diameter 1/2″ with an overall length of 3.7/8″ and a head length of 1.5/8″ and 1/2″ straight shank, according to ANSI standard to produce a conical seat for US standard countersunk-head screws, HSS with standard bright finish for machining free machining, plain carbon and tool steel, wrought and copper or copper alloys

Additional information

Weight 0.0990 kg
Dimensions
barcode

3603607162460
Additional Information

Description: Value
Product name: G6021/2X82
Cutting diameter – fractional inch (DC): 1/2
Connection diameter – fractional inch (DCON MS): 1/2
Functional length – fractional inch (LF): 1.5/8
Overall length – fractional inch (OAL): 3.7/8
Flute count (NOF): 4
Connection diameter – millimeter (DCON MS): 12.7 mm
Cutting diameter – millimeter (DC): 12.7 mm
Overall length – millimeter (OAL): 98.43 mm
