DORMER G6031/2X90 Countersinks / Bors

Product Code: G6031/2X90

$70.82$64.38 Ex. GST

Product Code: G6031/2X90 SKU G6031/2X90 Categories ,
DORMER G6031/2X90 Countersinks / Bors

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

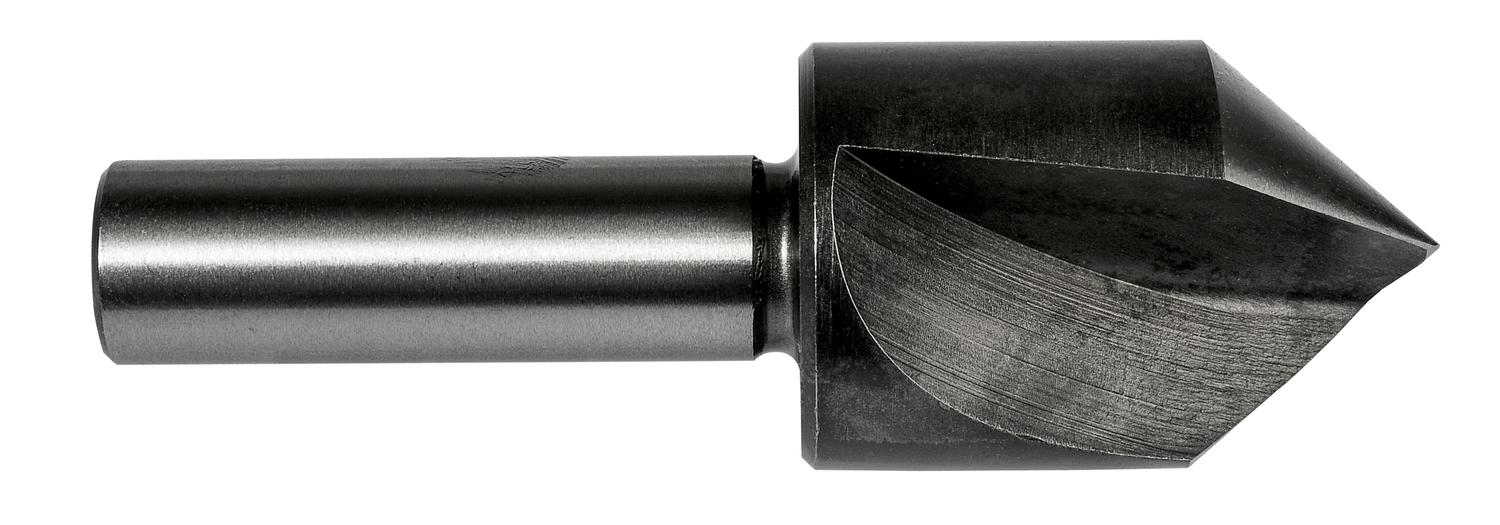

Countersink with 1-flute, 90° chamfering angle, maximum diameter 1/2″ with an overall length of 1.13/16″ and a head length of 13/32″ and 1/4″ straight shank, according to ANSI standard to produce a conical seat for ISO Metric countersunk-head screws, HSS with standard bright finish for machining free machining, plain carbon and tool steel, wrought and copper or copper alloys

Additional information

Weight 0.0320 kg
Dimensions
barcode

3603607162545
Additional Information

Description: Value
Product name: G6031/2X90
Cutting diameter – fractional inch (DC): 1/2
Connection diameter – fractional inch (DCON MS): 1/4
Functional length – fractional inch (LF): 13/32
Overall length – fractional inch (OAL): 1.13/16
Flute count (NOF): 1
Connection diameter – millimeter (DCON MS): 6.35 mm
Cutting diameter – millimeter (DC): 12.7 mm
Overall length – millimeter (OAL): 46.04 mm
