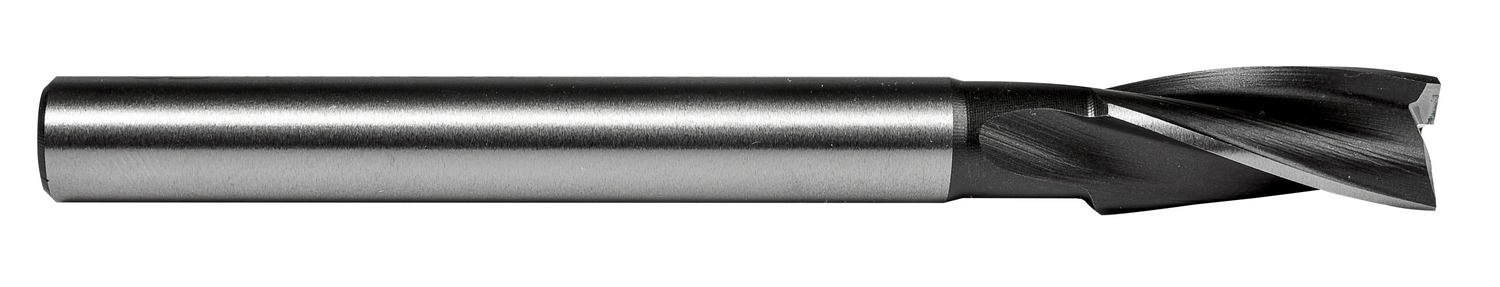

DORMER G7021 Countersinks / Bors

Description: Value
EAN number: 3603607031537
Product number (SAP): 86040979
Ordering code ANSI: G7021
Product name: G7021
Gross weight – grams: 375.6
Connection diameter – fractional inch (DCON MS): 3/4
Connection diameter – millimeter (DCON MS): 19.05 mm
Cutting diameter – fractional inch (DC): 1"
Cutting diameter – inch (DC): 1 inch
Cutting diameter – millimeter (DC): 25.4 mm
Guide Pilot Diameter – fractional inch (GPD): 5/16
Guide Pilot Diameter maximum – fractional inch (GPDX): 15/16
Minimal Guide Pilot Diameter – fractional inch (GPDN): 3/8
Flute count (NOF): 3
Overall length – fractional inch (OAL): 6.3/8
Overall length – millimeter (OAL): 161.93 mm
Usable Length – fractional inch (LU): 1.3/4
Usable Length – inch (LU): 1.75 inch
ISO: G7021
Connection bore diameter – fractional inch (DCB): 5/16
Functional length – fractional inch (LF): 1.3/4
