DORMER G70213/16 Countersinks / Bors

Description

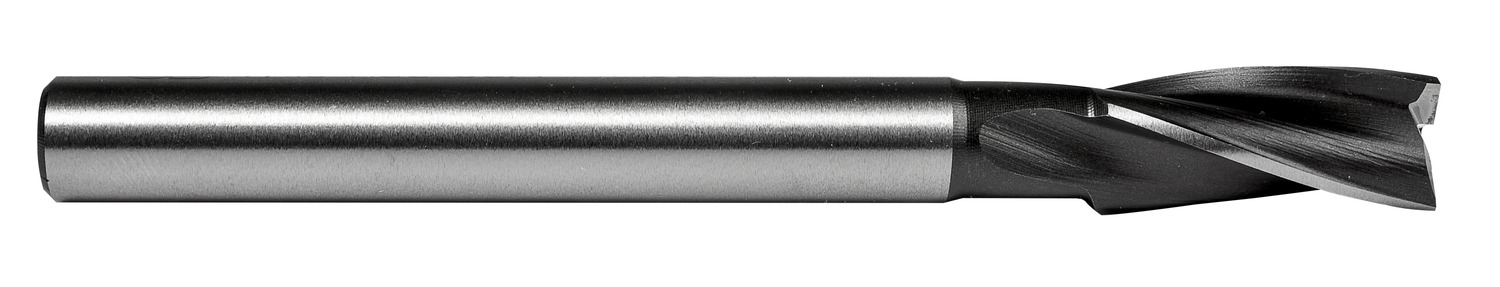

Interchangeable pilot type counterbore body with 3-flutes, diameter 11/32″ with an overall length of 3.13/16″ and a flute length of 3/4″ and 5/16″ straight shank, according to ANSI standard to produce a flat bottom seat for socket-head cap screws with the aid of a detachable pilot with a mounting diameter of 3/32″ and a maximum pilot guide diameter of 9/32″, HSS with standard bright finish for machining free machining and plain carbon steel, wrought and copper or copper alloys

Additional information

Weight	0.3289 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 3603607031506 Product number (SAP): 86040976 Ordering code ANSI: G70213/16 Product name: G70213/16 Gross weight – grams: 194 Connection diameter – fractional inch (DCON MS): 5/8 Connection diameter – millimeter (DCON MS): 15.88 mm Cutting diameter – fractional inch (DC): 13/16 Cutting diameter – inch (DC): 0.8125 inch Cutting diameter – millimeter (DC): 20.64 mm Guide Pilot Diameter – fractional inch (GPD): 1/4 Guide Pilot Diameter maximum – fractional inch (GPDX): 3/4 Minimal Guide Pilot Diameter – fractional inch (GPDN): 5/16 Flute count (NOF): 3 Overall length – fractional inch (OAL): 5.3/8 Overall length – millimeter (OAL): 136.53 mm Usable Length – fractional inch (LU): 1.1/2 Usable Length – inch (LU): 1.5 inch ISO: G70213/16 Connection bore diameter – fractional inch (DCB): 1/4 Functional length – fractional inch (LF): 1.1/2
