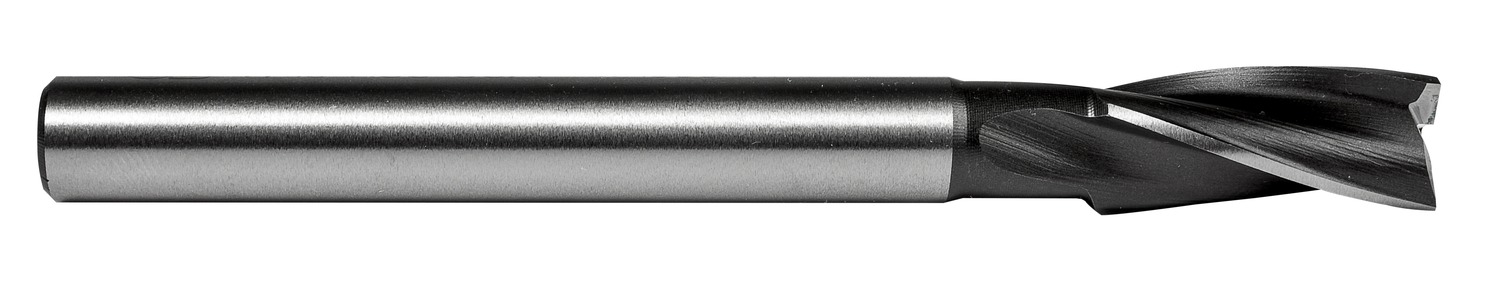

DORMER G70215/32 Countersinks / Bors

Description: Value
EAN number: 3603607031421
Product number (SAP): 86040968
Ordering code ANSI: G70215/32
Product name: G70215/32
Gross weight – grams: 75
Connection diameter – fractional inch (DCON MS): 7/16
Connection diameter – millimeter (DCON MS): 11.11 mm
Cutting diameter – fractional inch (DC): 15/32
Cutting diameter – inch (DC): 0.4688 inch
Cutting diameter – millimeter (DC): 11.91 mm
Guide Pilot Diameter – fractional inch (GPD): 3/16
Guide Pilot Diameter maximum – fractional inch (GPDX): 13/32
Minimal Guide Pilot Diameter – fractional inch (GPDN): 3/16
Flute count (NOF): 3
Overall length – fractional inch (OAL): 4.5/16
Overall length – millimeter (OAL): 109.54 mm
Usable Length – fractional inch (LU): 1.1/4
Usable Length – inch (LU): 1.25 inch
ISO: G70215/32
Connection bore diameter – fractional inch (DCB): 3/16
Functional length – fractional inch (LF): 1.1/4
