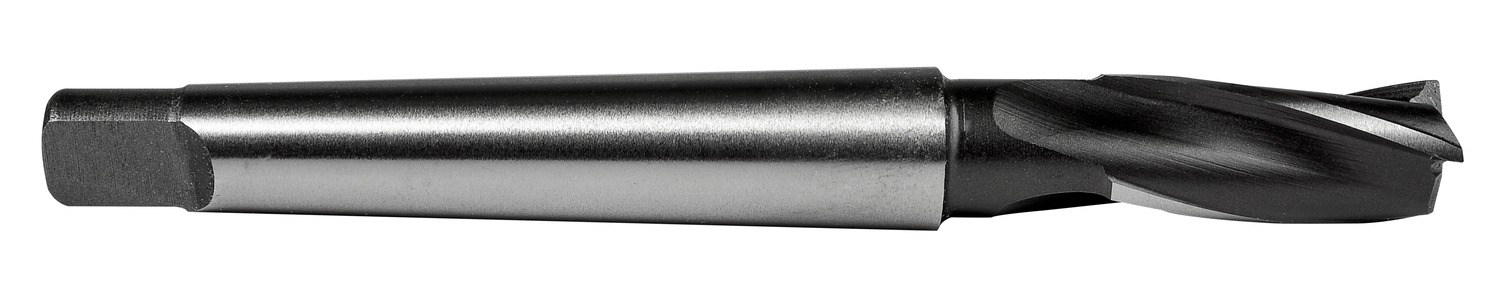

DORMER G7031.1/16 Countersinks / Bors

Description: Value
EAN number: 3603607031605
Product number (SAP): 86040986
Ordering code ANSI: G70315/16
Product name: G70315/16
Gross weight – grams: 416.8
Body diameter – fractional inch (BD): 7/8
Body diameter – millimeter (BD): 22.23 mm
Connection diameter – millimeter (DCON MS): 22.23 mm
Connection size code machine side (CZC MS): 3
Cutting diameter – fractional inch (DC): 15/16
Cutting diameter – inch (DC): 0.9375 inch
Cutting diameter – millimeter (DC): 23.81 mm
Guide Pilot Diameter – fractional inch (GPD): 1/4
Guide Pilot Diameter maximum – fractional inch (GPDX): 7/8
Minimal Guide Pilot Diameter – fractional inch (GPDN): 5/16
Flute count (NOF): 3
Overall length – fractional inch (OAL): 6.1/8
Overall length – millimeter (OAL): 155.58 mm
Shank length – fractional inch (LS): 3.7/8
Usable Length – fractional inch (LU): 1.1/2
Usable Length – inch (LU): 1.5 inch
ISO: G70315/16
Connection bore diameter – fractional inch (DCB): 1/4
Depth of cut maximum – fractional inch (APMX): 1.1/2
Connection diameter – fractional inch (DCON MS): 7/8
