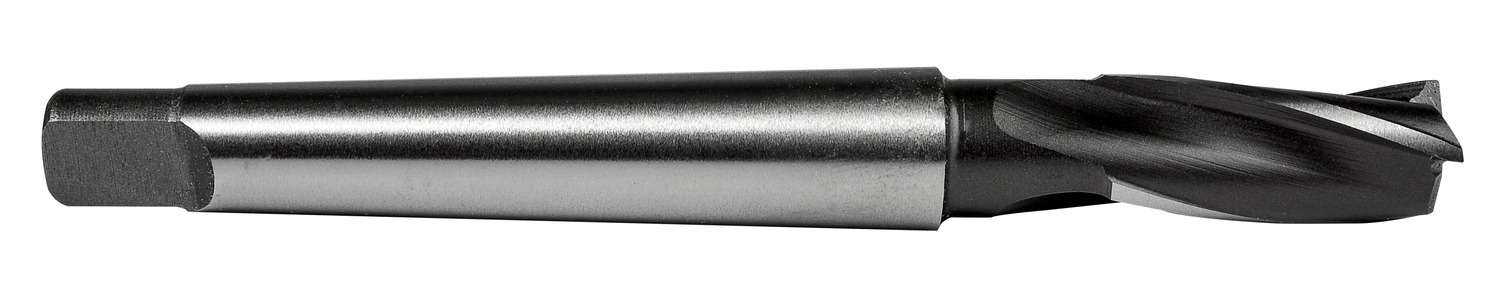

DORMER G7031/2 Countersinks / Bors

Description: Value
EAN number: 3603607031551
Product number (SAP): 86040981
Ordering code ANSI: G7031/2
Product name: G7031/2
Gross weight – grams: 66.2
Body diameter – fractional inch (BD): 29/64
Body diameter – millimeter (BD): 11.51 mm
Connection diameter – millimeter (DCON MS): 11.51 mm
Connection size code machine side (CZC MS): 1
Cutting diameter – fractional inch (DC): 1/2
Cutting diameter – inch (DC): 0.5 inch
Cutting diameter – millimeter (DC): 12.7 mm
Guide Pilot Diameter – fractional inch (GPD): 3/16
Guide Pilot Diameter maximum – fractional inch (GPDX): 7/16
Minimal Guide Pilot Diameter – fractional inch (GPDN): 1/4
Flute count (NOF): 3
Overall length – fractional inch (OAL): 4.5/16
Overall length – millimeter (OAL): 109.54 mm
Shank length – fractional inch (LS): 2.9/16
Usable Length – fractional inch (LU): 1.1/4
Usable Length – inch (LU): 1.25 inch
ISO: G7031/2
Connection bore diameter – fractional inch (DCB): 3/16
Depth of cut maximum – fractional inch (APMX): 1.1/4
Connection diameter – fractional inch (DCON MS): 29/64
