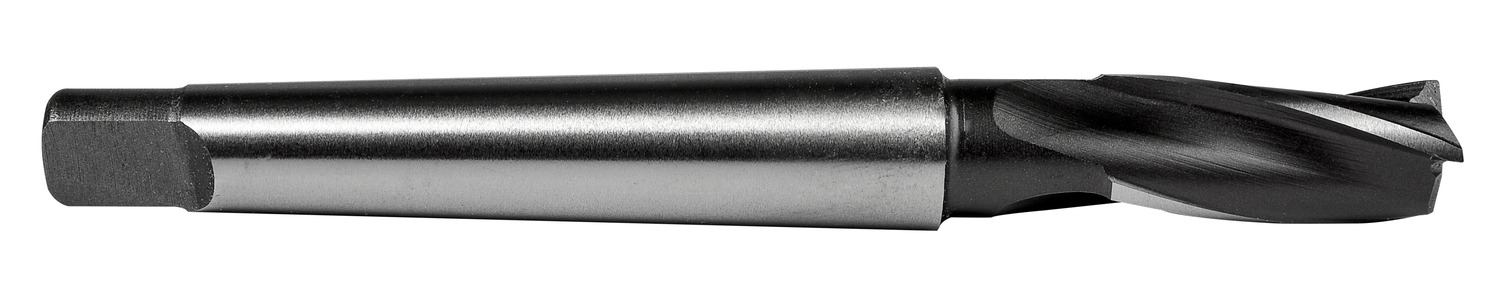

DORMER G70315/16 Countersinks / Bors

Description: Value
EAN number: 3603607031599
Product number (SAP): 86040985
Ordering code ANSI: G7037/8
Product name: G7037/8
Gross weight – grams: 222.9
Body diameter – fractional inch (BD): 21/32
Body diameter – millimeter (BD): 16.67 mm
Connection diameter – millimeter (DCON MS): 16.67 mm
Connection size code machine side (CZC MS): 2
Cutting diameter – fractional inch (DC): 7/8
Cutting diameter – inch (DC): 0.875 inch
Cutting diameter – millimeter (DC): 22.23 mm
Guide Pilot Diameter – fractional inch (GPD): 1/4
Guide Pilot Diameter maximum – fractional inch (GPDX): 13/16
Minimal Guide Pilot Diameter – fractional inch (GPDN): 5/16
Flute count (NOF): 3
Overall length – fractional inch (OAL): 5.3/8
Overall length – millimeter (OAL): 136.53 mm
Shank length – fractional inch (LS): 3.1/8
Usable Length – fractional inch (LU): 1.1/2
Usable Length – inch (LU): 1.5 inch
ISO: G7037/8
Connection bore diameter – fractional inch (DCB): 1/4
Depth of cut maximum – fractional inch (APMX): 1.1/2
Connection diameter – fractional inch (DCON MS): 21/32
