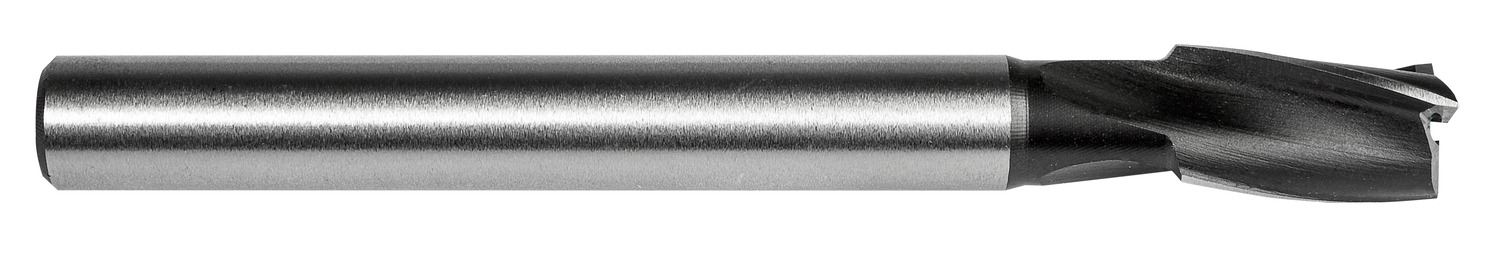

DORMER G7051/2 Countersinks / Bors

Description: Value
EAN number: 3603607032534
Product number (SAP): 86041079
Ordering code ANSI: G7051/2
Product name: G7051/2
Gross weight – grams: 62
Body diameter – fractional inch (BD): 7/16
Body diameter – millimeter (BD): 11.11 mm
Connection diameter – fractional inch (DCON MS): 7/16
Connection diameter – millimeter (DCON MS): 11.11 mm
Cutting diameter – fractional inch (DC): 1/2
Cutting diameter – inch (DC): 0.5 inch
Cutting diameter – millimeter (DC): 12.7 mm
Guide Pilot Diameter – fractional inch (GPD): 1/8
Guide Pilot Diameter maximum – fractional inch (GPDX): 7/16
Minimal Guide Pilot Diameter – fractional inch (GPDN): 1/8
Flute count (NOF): 4
Overall length – fractional inch (OAL): 4.1/4
Overall length – millimeter (OAL): 107.95 mm
Shank length – fractional inch (LS): 7/16
Usable Length – fractional inch (LU): 5/8
Usable Length – inch (LU): 0.625 inch
ISO: G7051/2
Connection bore diameter – fractional inch (DCB): 1/8
Functional length – fractional inch (LF): 3/4
