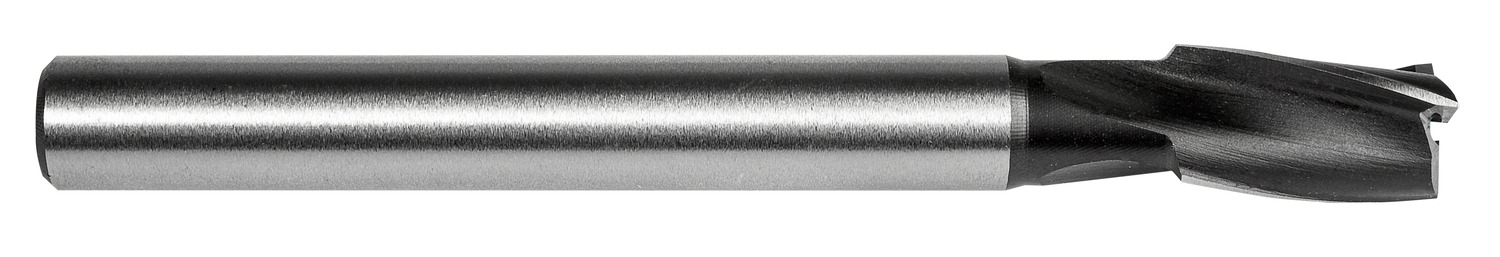

DORMER G70525/32 Countersinks / Bors

Description: Value
EAN number: 3603607032619
Product number (SAP): 86041087
Ordering code ANSI: G70525/32
Product name: G70525/32
Gross weight – grams: 0.175
Body diameter – fractional inch (BD): 11/16
Body diameter – millimeter (BD): 17.46 mm
Connection diameter – fractional inch (DCON MS): 1/2
Connection diameter – millimeter (DCON MS): 12.7 mm
Cutting diameter – fractional inch (DC): 25/32
Cutting diameter – inch (DC): 0.7813 inch
Cutting diameter – millimeter (DC): 19.84 mm
Guide Pilot Diameter – fractional inch (GPD): 3/16
Guide Pilot Diameter maximum – fractional inch (GPDX): 5/8
Minimal Guide Pilot Diameter – fractional inch (GPDN): 3/16
Flute count (NOF): 4
Overall length – fractional inch (OAL): 5.3/8
Overall length – millimeter (OAL): 136.53 mm
Shank length – fractional inch (LS): 11/16
Usable Length – fractional inch (LU): 3/4
Usable Length – inch (LU): 0.75 inch
ISO: G70525/32
Connection bore diameter – fractional inch (DCB): 3/16
Functional length – fractional inch (LF): 1.1/4
