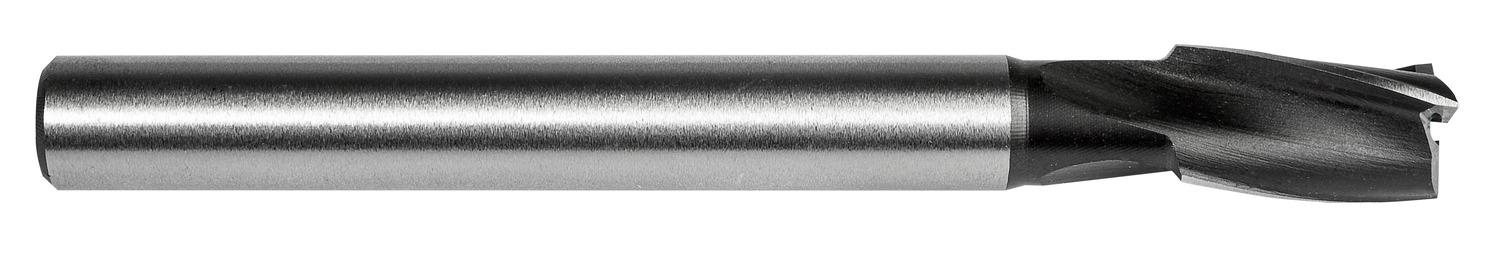

DORMER G7053/8 Countersinks / Bors

Description: Value
EAN number: 3603607032510
Product number (SAP): 86041077
Ordering code ANSI: G7053/8
Product name: G7053/8
Gross weight – grams: 35.6
Body diameter – fractional inch (BD): 5/16
Body diameter – millimeter (BD): 7.94 mm
Connection diameter – fractional inch (DCON MS): 5/16
Connection diameter – millimeter (DCON MS): 7.94 mm
Cutting diameter – fractional inch (DC): 3/8
Cutting diameter – inch (DC): 0.375 inch
Cutting diameter – millimeter (DC): 9.53 mm
Guide Pilot Diameter – fractional inch (GPD): 3/32
Guide Pilot Diameter maximum – fractional inch (GPDX): 5/16
Minimal Guide Pilot Diameter – fractional inch (GPDN): 1/8
Flute count (NOF): 4
Overall length – fractional inch (OAL): 4
Overall length – millimeter (OAL): 101.6 mm
Shank length – fractional inch (LS): 5/16
Usable Length – fractional inch (LU): 5/8
Usable Length – inch (LU): 0.625 inch
ISO: G7053/8
Connection bore diameter – fractional inch (DCB): 3/32
Functional length – fractional inch (LF): 3/4
