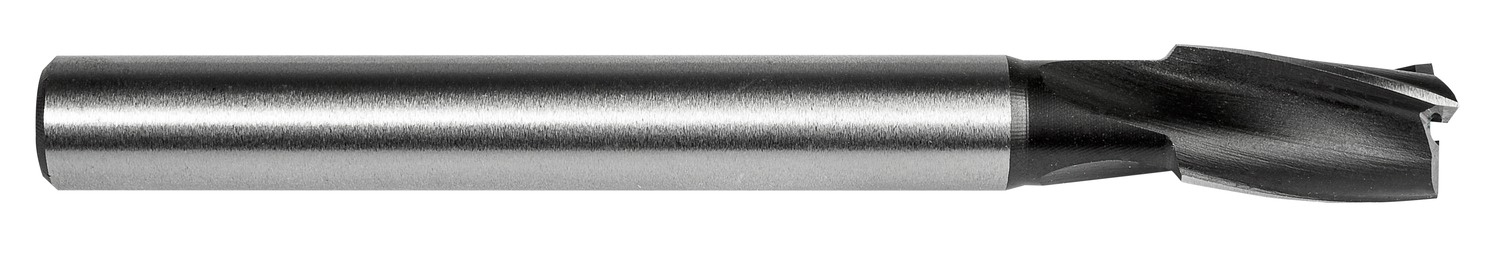

DORMER G7055/16 Countersinks / Bors

Description: Value
EAN number: 3603607032503
Product number (SAP): 86041076
Ordering code ANSI: G7055/16
Product name: G7055/16
Gross weight – grams: 36.9
Body diameter – fractional inch (BD): 19/64
Body diameter – millimeter (BD): 7.54 mm
Connection diameter – fractional inch (DCON MS): 19/64
Connection diameter – millimeter (DCON MS): 7.54 mm
Cutting diameter – fractional inch (DC): 5/16
Cutting diameter – inch (DC): 0.3125 inch
Cutting diameter – millimeter (DC): 7.94 mm
Guide Pilot Diameter – fractional inch (GPD): 3/32
Guide Pilot Diameter maximum – fractional inch (GPDX): 1/4
Minimal Guide Pilot Diameter – fractional inch (GPDN): 1/8
Flute count (NOF): 4
Overall length – fractional inch (OAL): 4
Overall length – millimeter (OAL): 101.6 mm
Shank length – fractional inch (LS): 19/64
Usable Length – fractional inch (LU): 1/2
Usable Length – inch (LU): 0.5 inch
ISO: G7055/16
Connection bore diameter – fractional inch (DCB): 3/32
Functional length – fractional inch (LF): 3/4
