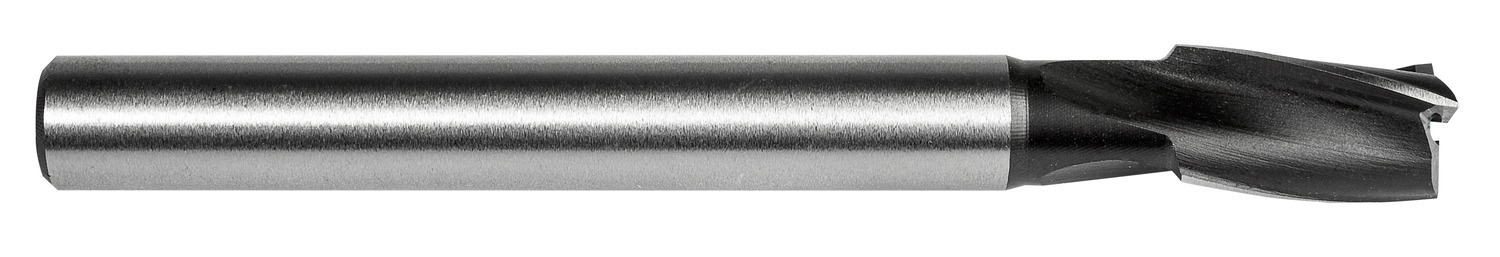

DORMER G7057/16 Countersinks / Bors

Description: Value
EAN number: 3603607032527
Product number (SAP): 86041078
Ordering code ANSI: G7057/16
Product name: G7057/16
Gross weight – grams: 56
Body diameter – fractional inch (BD): 3/8
Body diameter – millimeter (BD): 9.53 mm
Connection diameter – fractional inch (DCON MS): 3/8
Connection diameter – millimeter (DCON MS): 9.53 mm
Cutting diameter – fractional inch (DC): 7/16
Cutting diameter – inch (DC): 0.4375 inch
Cutting diameter – millimeter (DC): 11.11 mm
Guide Pilot Diameter – fractional inch (GPD): 1/8
Guide Pilot Diameter maximum – fractional inch (GPDX): 3/8
Minimal Guide Pilot Diameter – fractional inch (GPDN): 3/16
Flute count (NOF): 4
Overall length – fractional inch (OAL): 4
Overall length – millimeter (OAL): 101.6 mm
Shank length – fractional inch (LS): 3/8
Usable Length – fractional inch (LU): 5/8
Usable Length – inch (LU): 0.625 inch
ISO: G7057/16
Connection bore diameter – fractional inch (DCB): 1/8
Functional length – fractional inch (LF): 3/4
