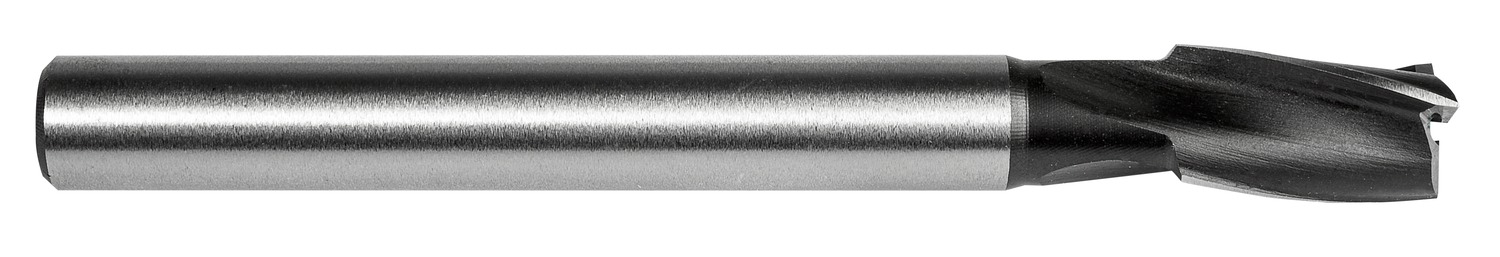

DORMER G7057/8 Countersinks / Bors

Description: Value
EAN number: 3603607032633
Product number (SAP): 86041089
Ordering code ANSI: G7057/8
Product name: G7057/8
Gross weight – grams: 185
Body diameter – fractional inch (BD): 3/4
Body diameter – millimeter (BD): 19.05 mm
Connection diameter – fractional inch (DCON MS): 1/2
Connection diameter – millimeter (DCON MS): 12.7 mm
Cutting diameter – fractional inch (DC): 7/8
Cutting diameter – inch (DC): 0.875 inch
Cutting diameter – millimeter (DC): 22.23 mm
Guide Pilot Diameter – fractional inch (GPD): 3/16
Guide Pilot Diameter maximum – fractional inch (GPDX): 13/16
Minimal Guide Pilot Diameter – fractional inch (GPDN): 3/16
Flute count (NOF): 4
Overall length – fractional inch (OAL): 5.3/8
Overall length – millimeter (OAL): 136.53 mm
Shank length – fractional inch (LS): 3/4
Usable Length – fractional inch (LU): 15/16
Usable Length – inch (LU): 0.9375 inch
ISO: G7057/8
Connection bore diameter – fractional inch (DCB): 3/16
Functional length – fractional inch (LF): 1.1/4
