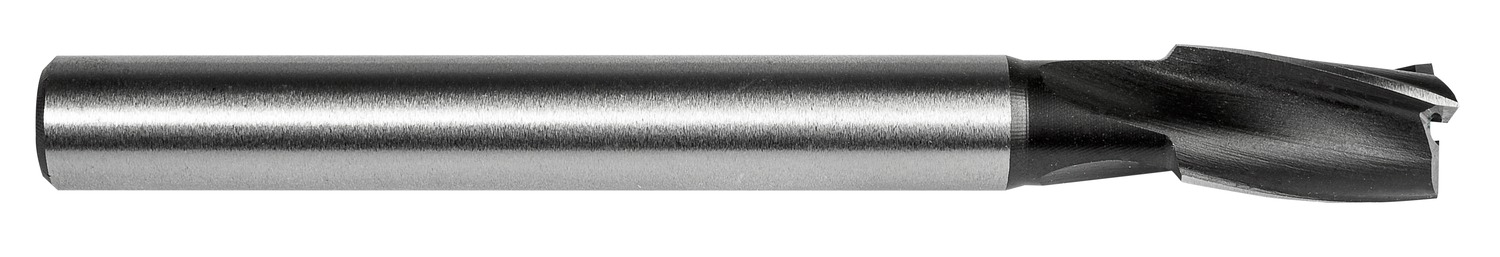

DORMER G7059/16 Countersinks / Bors

Description: Value
EAN number: 3603607032558
Product number (SAP): 86041081
Ordering code ANSI: G7059/16
Product name: G7059/16
Gross weight – grams: 115.7
Body diameter – fractional inch (BD): 1/2
Body diameter – millimeter (BD): 12.7 mm
Connection diameter – fractional inch (DCON MS): 1/2
Connection diameter – millimeter (DCON MS): 12.7 mm
Cutting diameter – fractional inch (DC): 9/16
Cutting diameter – inch (DC): 0.5625 inch
Cutting diameter – millimeter (DC): 14.29 mm
Guide Pilot Diameter – fractional inch (GPD): 1/8
Guide Pilot Diameter maximum – fractional inch (GPDX): 1/2
Minimal Guide Pilot Diameter – fractional inch (GPDN): 1/8
Flute count (NOF): 4
Overall length – fractional inch (OAL): 4.1/4
Overall length – millimeter (OAL): 107.95 mm
Shank length – fractional inch (LS): 1/2
Usable Length – fractional inch (LU): 5/8
Usable Length – inch (LU): 0.625 inch
ISO: G7059/16
Connection bore diameter – fractional inch (DCB): 1/8
Functional length – fractional inch (LF): 3/4
