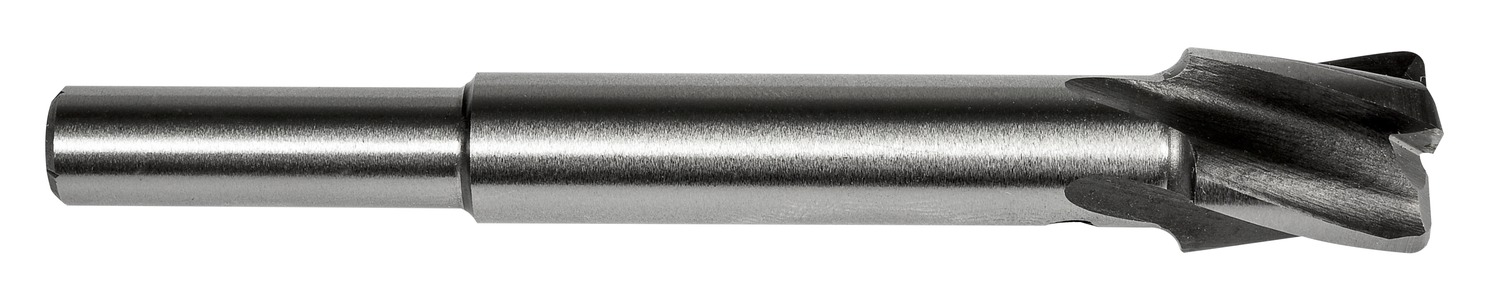

DORMER G70613/16 Countersinks / Bors

Description: Value
EAN number: 3603607032770
Product number (SAP): 86041103
Ordering code ANSI: G70613/16
Product name: G70613/16
Gross weight – grams: 71.6
Body diameter – fractional inch (BD): 1/2
Body diameter – millimeter (BD): 12.7 mm
Connection diameter – fractional inch (DCON MS): 1/4
Connection diameter – millimeter (DCON MS): 6.35 mm
Cutting diameter – fractional inch (DC): 13/16
Cutting diameter – inch (DC): 0.8125 inch
Cutting diameter – millimeter (DC): 20.64 mm
Guide Pilot Diameter – fractional inch (GPD): 3/16
Guide Pilot Diameter maximum – fractional inch (GPDX): 3/4
Minimal Guide Pilot Diameter – fractional inch (GPDN): 5/16
Flute count (NOF): 4
Overall length – fractional inch (OAL): 2.13/16
Overall length – millimeter (OAL): 71.44 mm
Shank length – fractional inch (LS): 7/8
Usable Length – fractional inch (LU): 1/2
Usable Length – inch (LU): 0.5 inch
ISO: G70613/16
Connection bore diameter – fractional inch (DCB): 3/16
Cutting edge length – fractional inch (L): 1.1/2
Functional length – fractional inch (LF): 1/2
