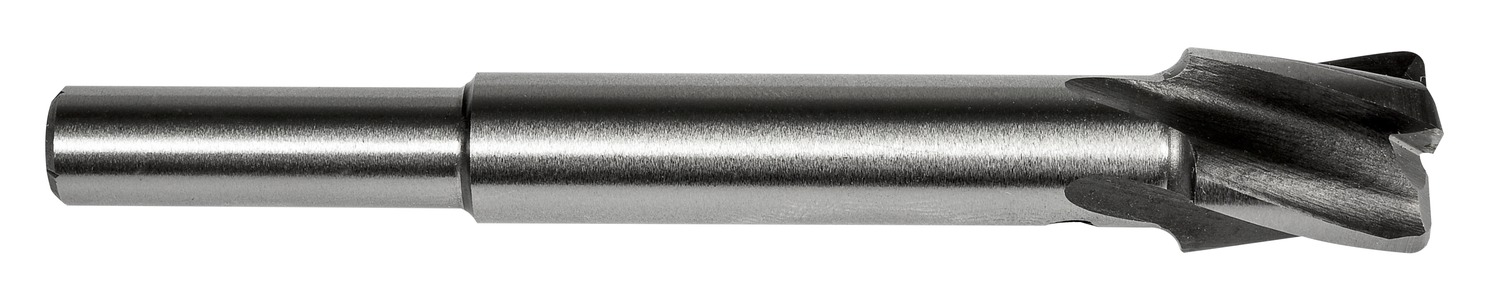

DORMER G7063/8 Countersinks / Bors

Description: Value
EAN number: 3603607032688
Product number (SAP): 86041094
Ordering code ANSI: G7063/8
Product name: G7063/8
Gross weight – grams: 23.4
Body diameter – fractional inch (BD): 5/16
Body diameter – millimeter (BD): 7.94 mm
Connection diameter – fractional inch (DCON MS): 1/4
Connection diameter – millimeter (DCON MS): 6.35 mm
Cutting diameter – fractional inch (DC): 3/8
Cutting diameter – inch (DC): 0.375 inch
Cutting diameter – millimeter (DC): 9.53 mm
Guide Pilot Diameter – fractional inch (GPD): 3/32
Guide Pilot Diameter maximum – fractional inch (GPDX): 5/16
Minimal Guide Pilot Diameter – fractional inch (GPDN): 3/16
Flute count (NOF): 4
Overall length – fractional inch (OAL): 2.3/8
Overall length – millimeter (OAL): 60.33 mm
Shank length – fractional inch (LS): 7/8
Usable Length – fractional inch (LU): 1/2
Usable Length – inch (LU): 0.5 inch
ISO: G7063/8
Connection bore diameter – fractional inch (DCB): 3/32
Functional length – fractional inch (LF): 1/2
