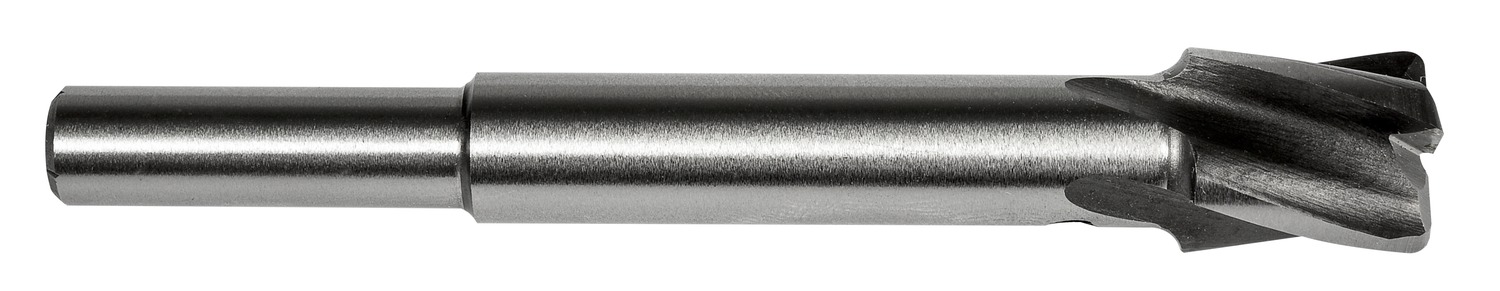

DORMER G7065/16 Countersinks / Bors

Description: Value
EAN number: 3603607032664
Product number (SAP): 86041092
Ordering code ANSI: G7065/16
Product name: G7065/16
Gross weight – grams: 15.9
Body diameter – fractional inch (BD): 17/64
Body diameter – millimeter (BD): 6.75 mm
Connection diameter – fractional inch (DCON MS): 1/4
Connection diameter – millimeter (DCON MS): 6.35 mm
Cutting diameter – fractional inch (DC): 5/16
Cutting diameter – inch (DC): 0.3125 inch
Cutting diameter – millimeter (DC): 7.94 mm
Guide Pilot Diameter – fractional inch (GPD): 3/32
Guide Pilot Diameter maximum – fractional inch (GPDX): 1/4
Minimal Guide Pilot Diameter – fractional inch (GPDN): 1/8
Flute count (NOF): 4
Overall length – fractional inch (OAL): 2.3/8
Overall length – millimeter (OAL): 60.33 mm
Shank length – fractional inch (LS): 7/8
Usable Length – fractional inch (LU): 1/2
Usable Length – inch (LU): 0.5 inch
ISO: G7065/16
Connection bore diameter – fractional inch (DCB): 3/32
Functional length – fractional inch (LF): 1/2
