DORMER H8511.1/64 Hydra Body

Product Code: H8511.1/64

$668.47$607.70 Ex. GST

Product Code: H8511.1/64 SKU H8511.1/64 Categories , ,
DORMER H8511.1/64 Hydra Body

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

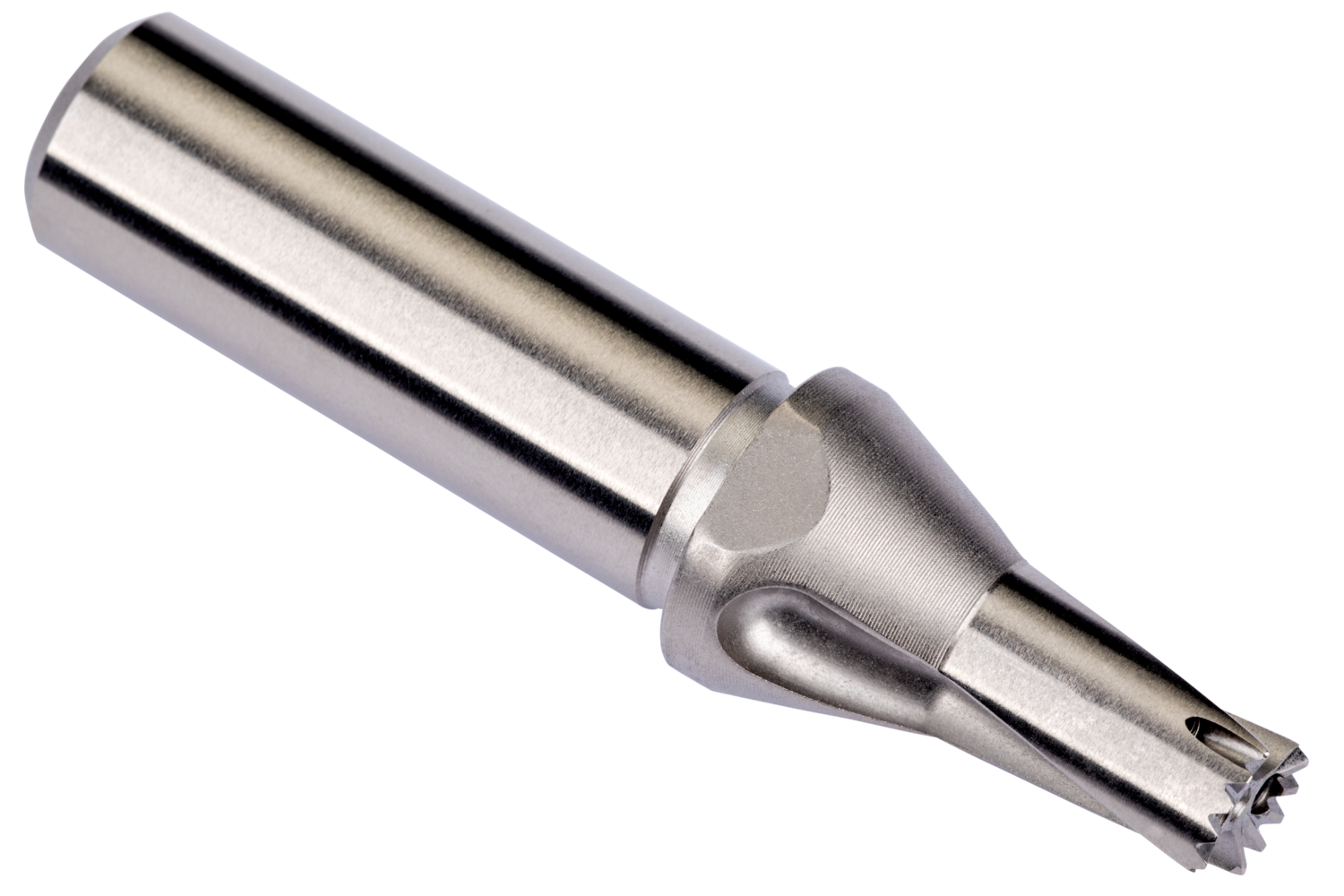

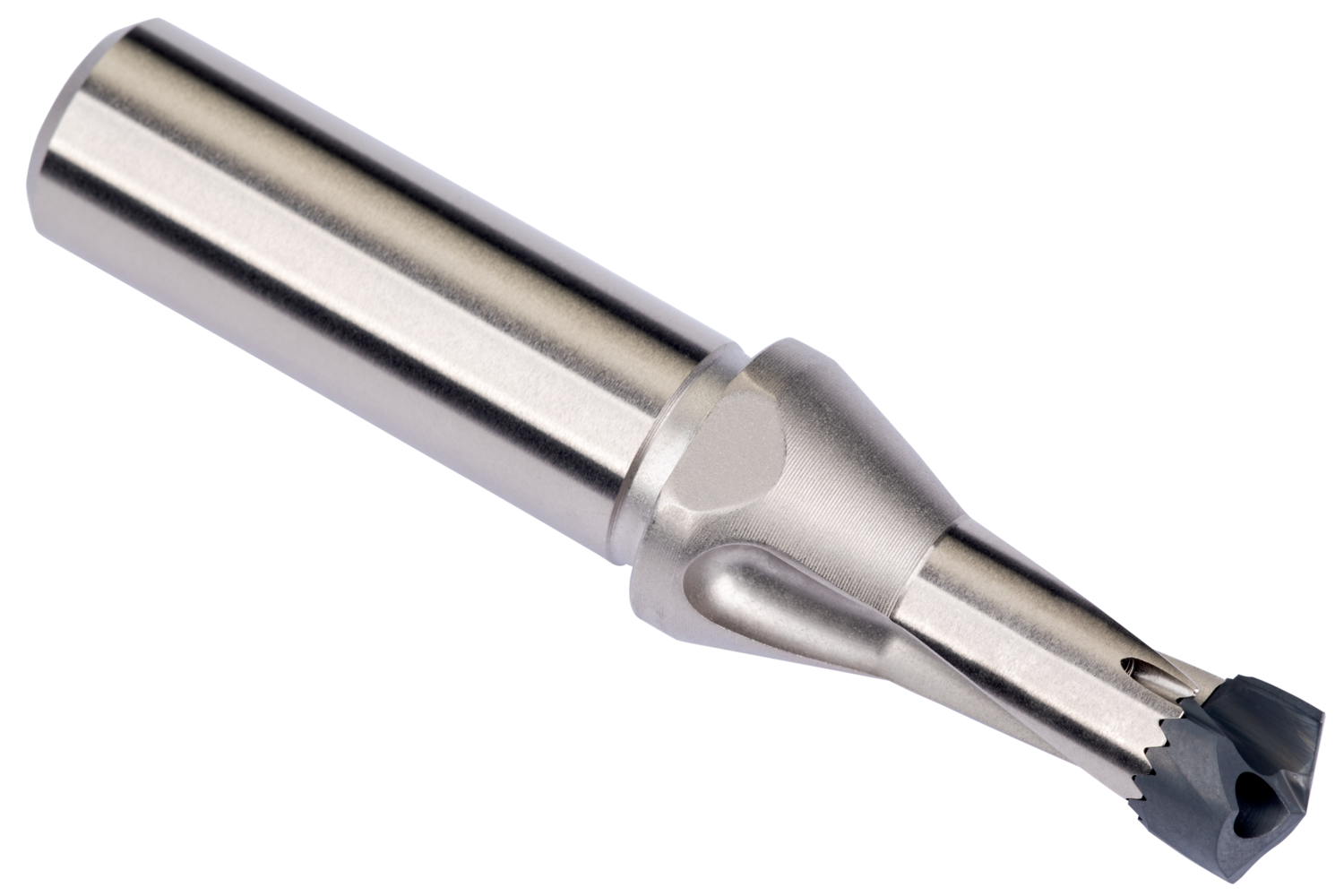

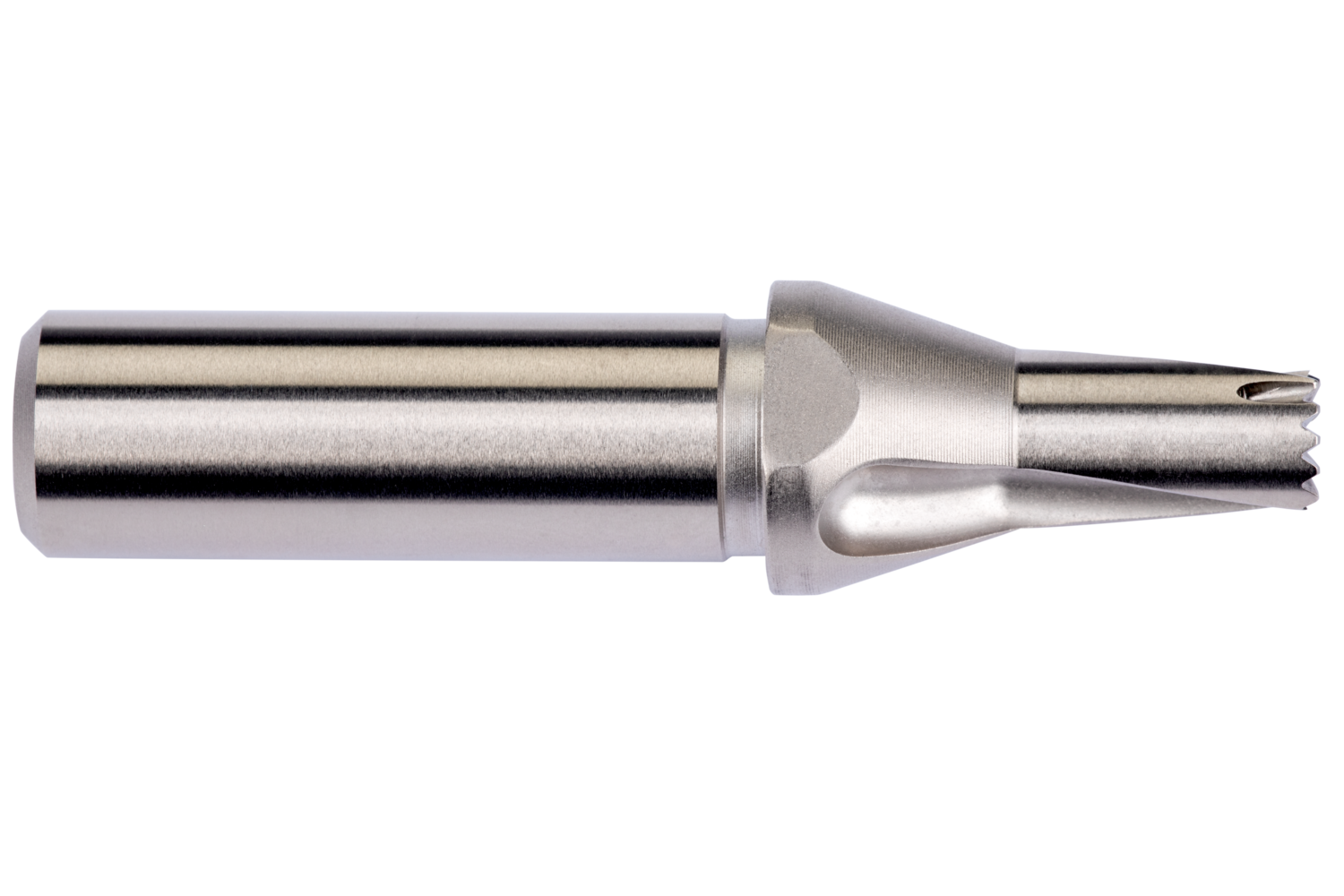

DOR Replaceable head drill body HYDRA with ISO 9766 shank with flange and flat, size 1.1/64″ with an overall length of 124.7mm and flute length of 49.7mm according to DORMER standard for 1.5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 0.9843 up to 1.0156″ (1.1/64)

Additional information

Weight 0.6490 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760894811
Product number (SAP): 86036569
Ordering code ANSI: H8511.1/64
Product Line: HYDRA
Gross weight – grams: 719

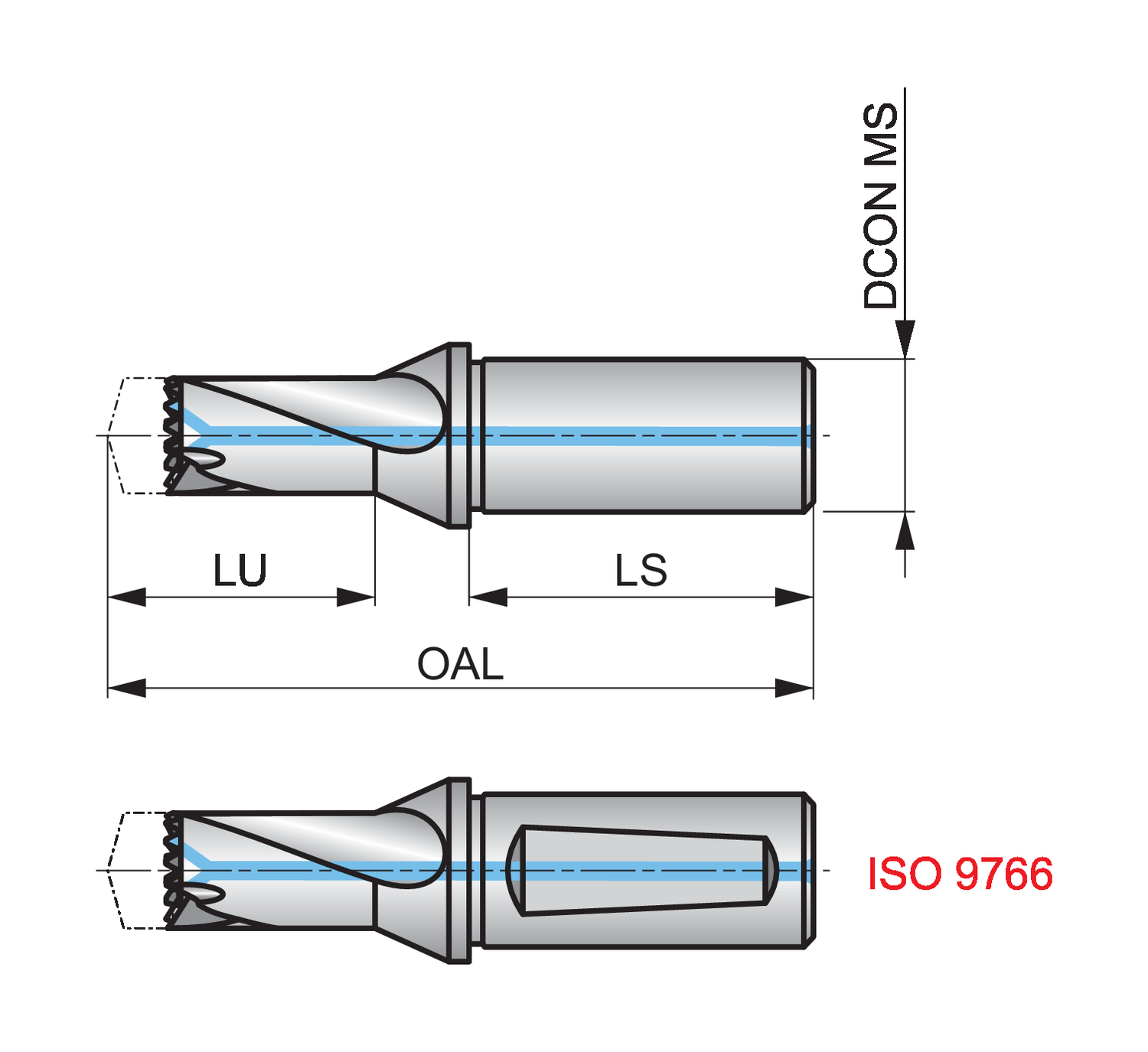

Connection diameter – fractional inch (DCON MS): 1.1/4
Connection diameter – millimeter (DCON MS): 31.75 mm
Usable Length – millimeter (LU): 49.7 mm
Overall length – millimeter (OAL): 124.7 mm
Shank length – millimeter (LS): 60.33 mm
Connection norm (ADINTMS): Cylindrical
ISO: H8511.1/64

Brand

DORMER
