DORMER H85112.5 Hydra Body

Product Code: H85112.5

$501.92$456.29 Ex. GST

Product Code: H85112.5 SKU H85112.5 Categories , ,
DORMER H85112.5 Hydra Body

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

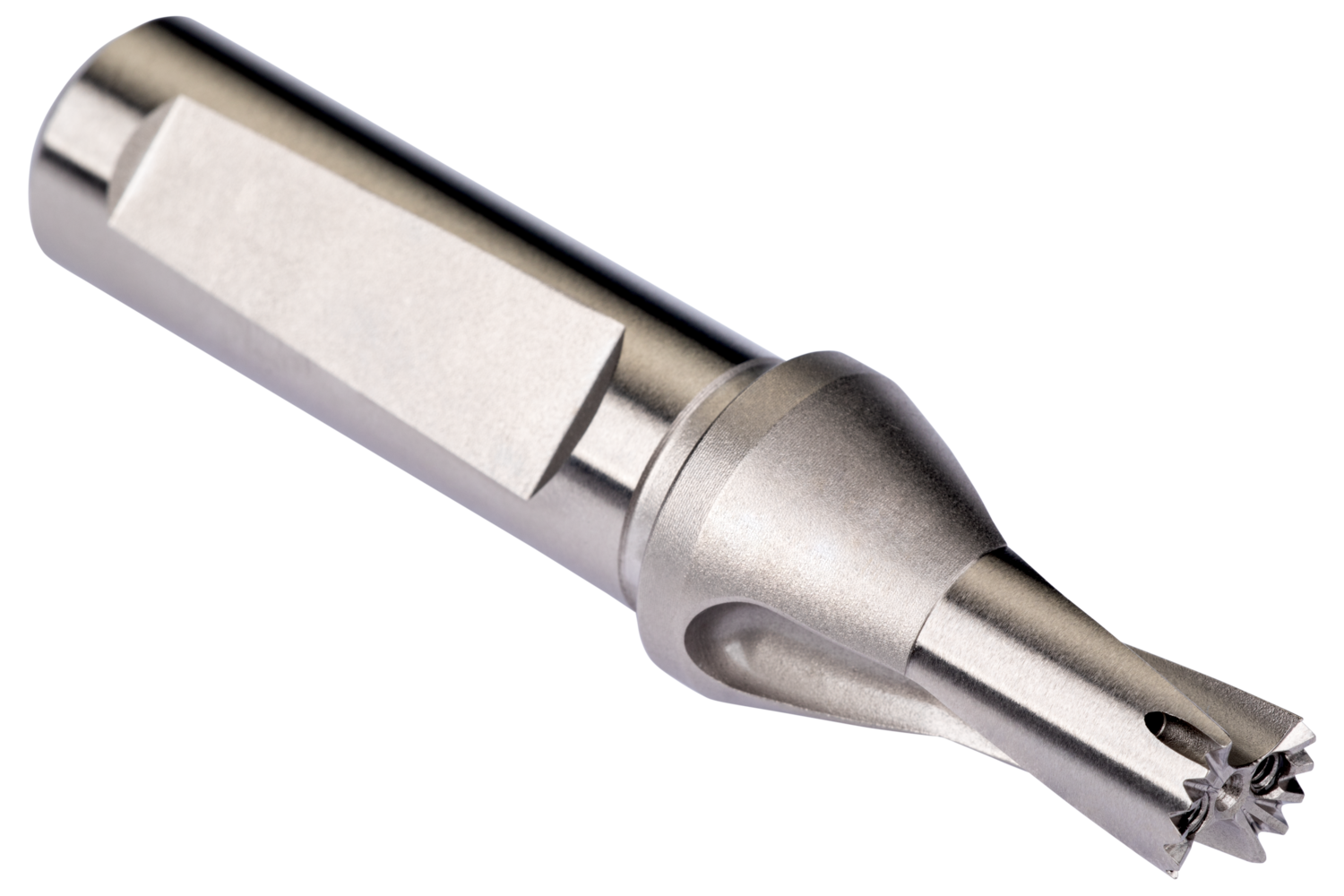

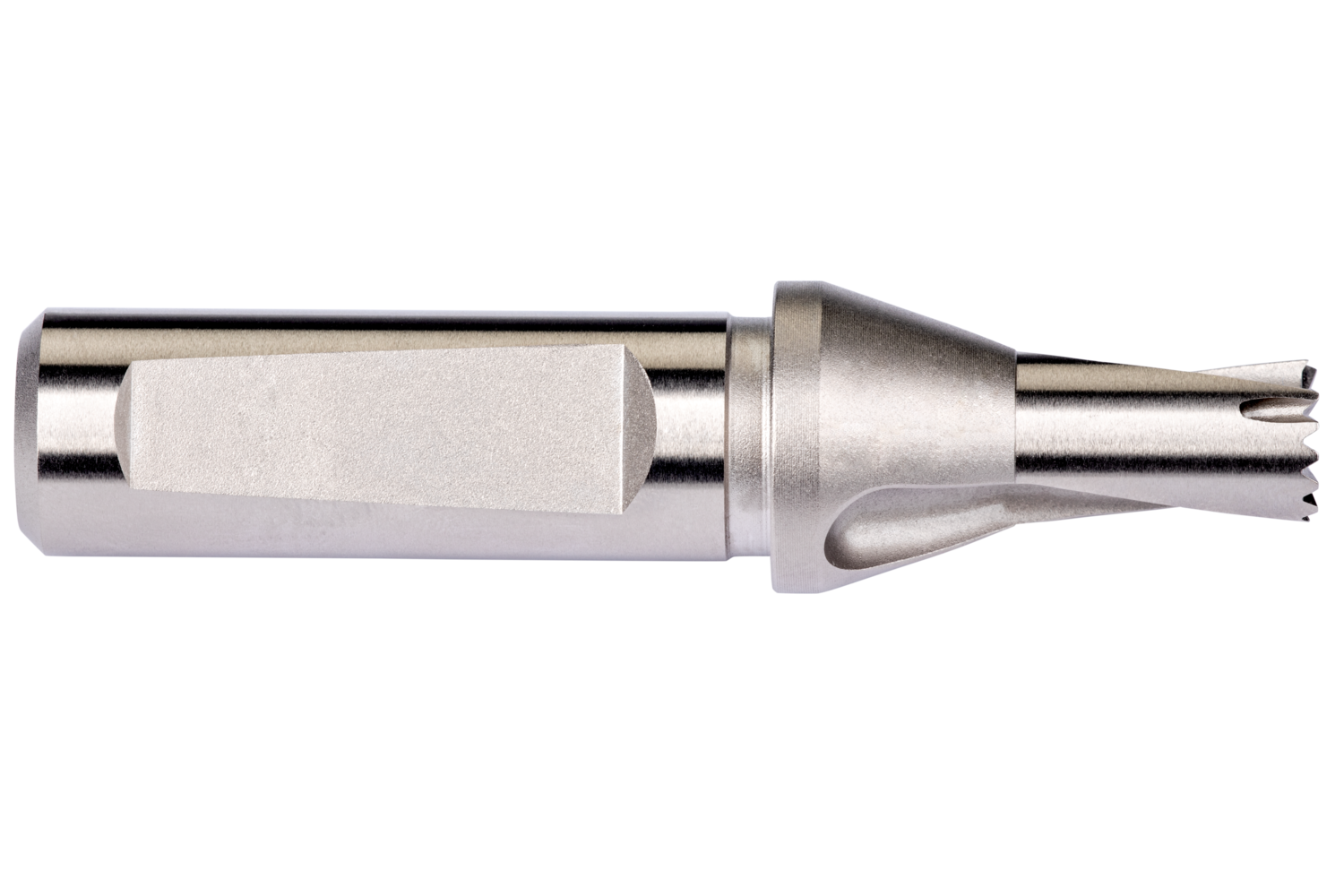

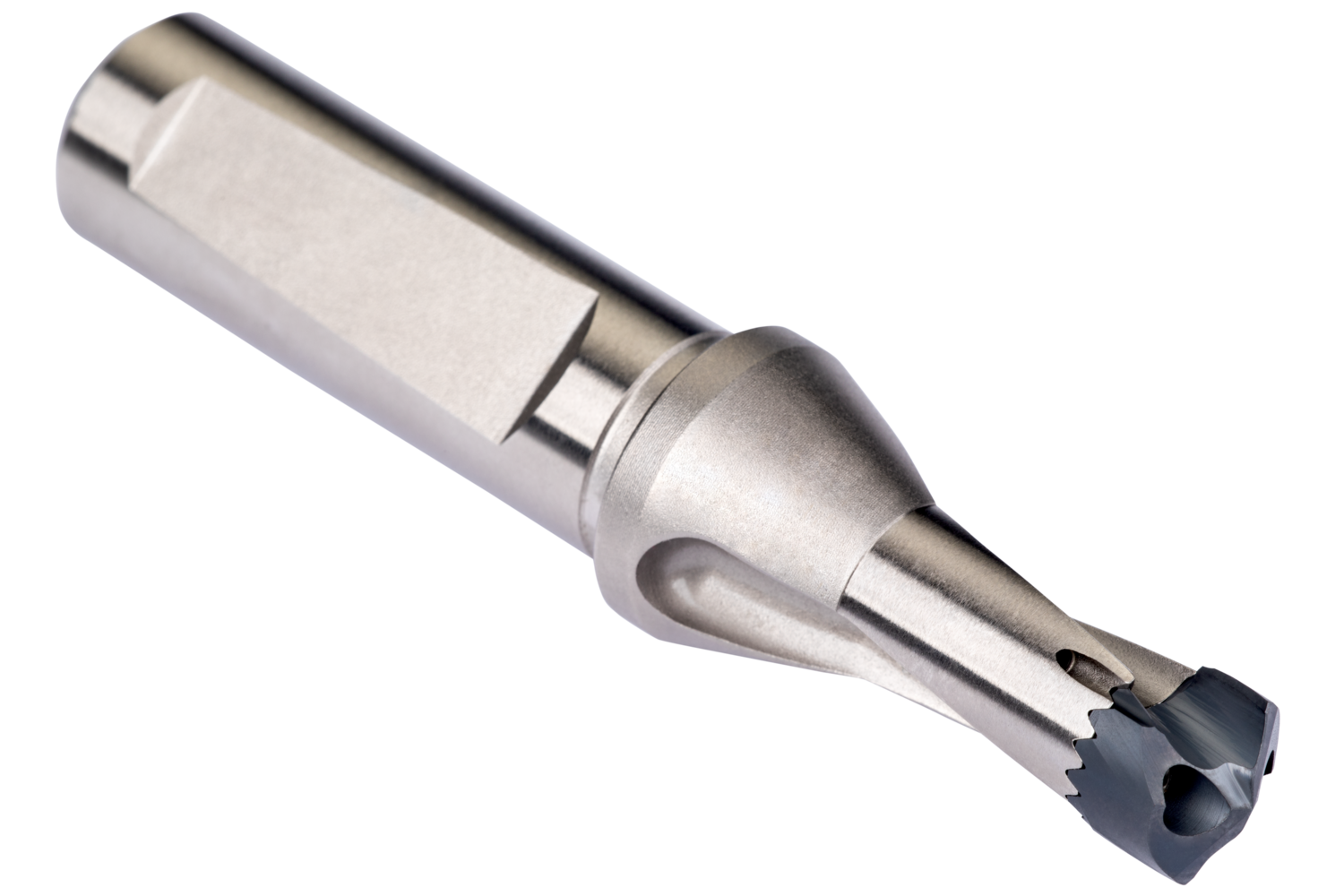

DOR Replaceable head drill body HYDRA with ISO 9766 shank with flange and flat, size 12.5mm with an overall length of 88.8mm and flute length of 25.8mm according to DORMER standard for 1.5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 12.5 up to 12.9mm

Additional information

Weight 0.4873 kg
Dimensions Length 8.88cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760894583
Product number (SAP): 86036546
Ordering code ANSI: H85112.5
Product Line: HYDRA
Gross weight – grams: 199

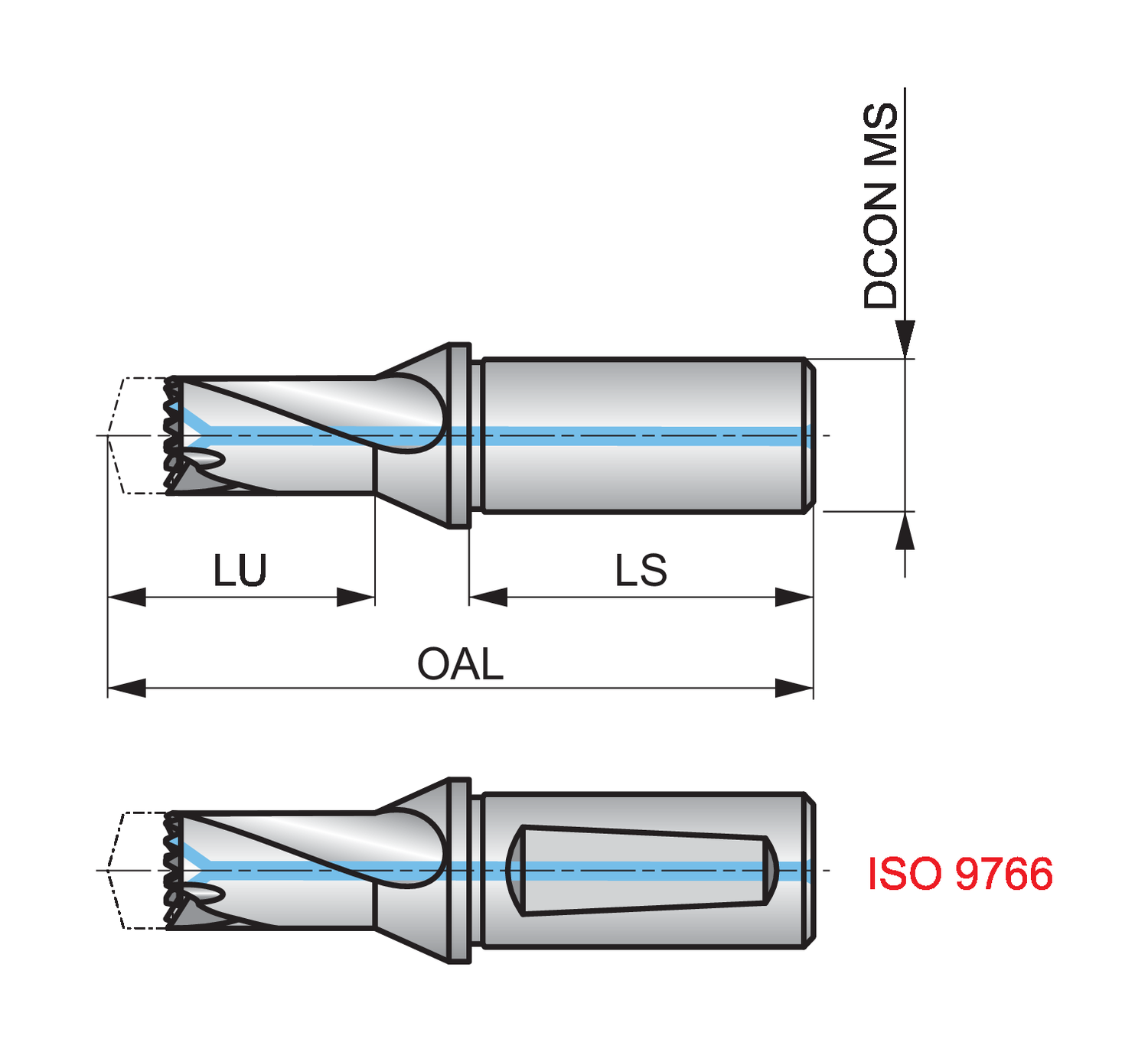

Connection diameter – millimeter (DCON MS): 16 mm
Usable Length – millimeter (LU): 25.8 mm
Overall length – millimeter (OAL): 88.8 mm
Shank length – millimeter (LS): 48 mm
Connection norm (ADINTMS): ISO 9766
ISO: H85112.5

Brand

DORMER
