DORMER H85114.0 Hydra Body

Product Code: H85114.0

$509.85$463.50 Ex. GST

Product Code: H85114.0 SKU H85114.0 Categories , ,

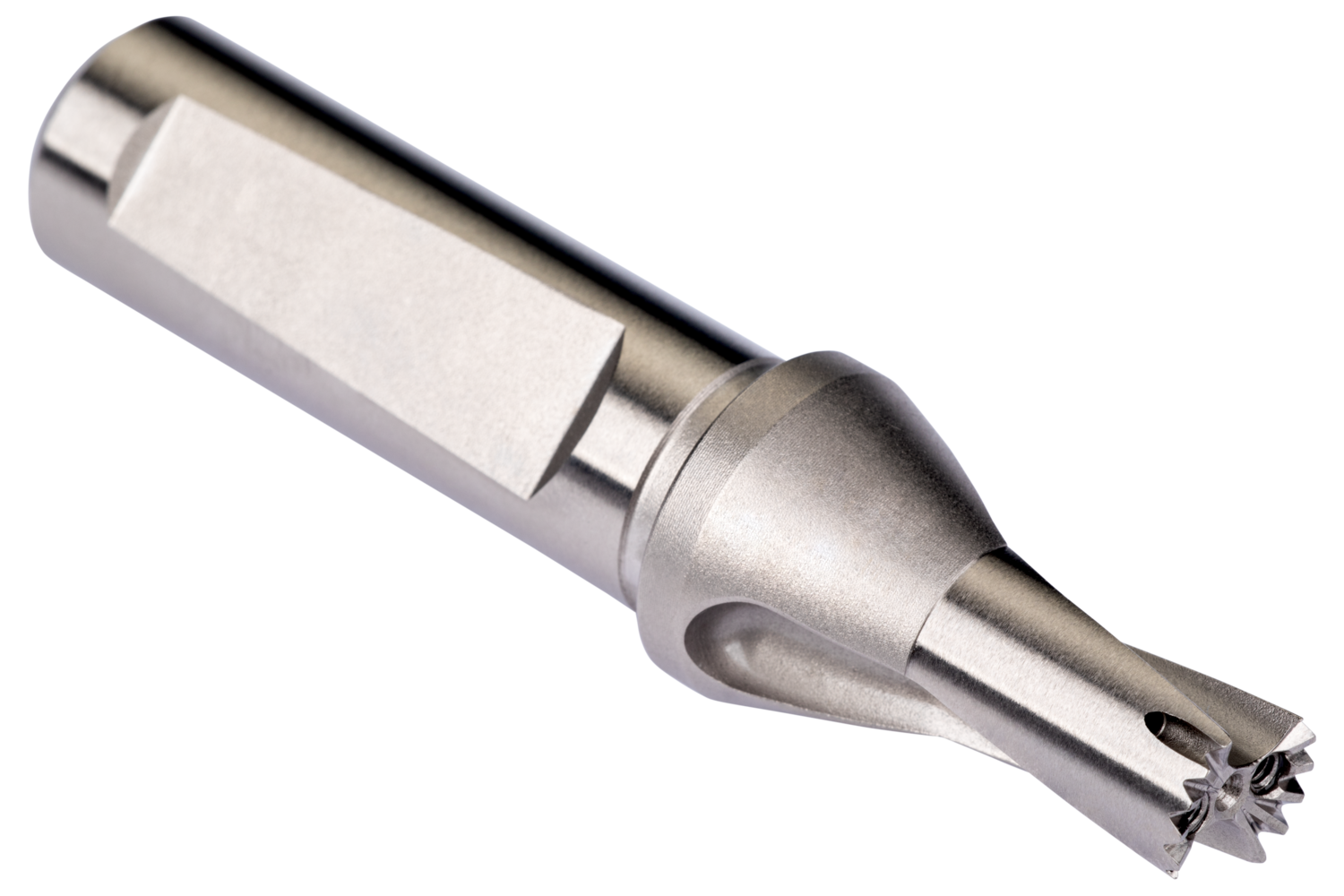

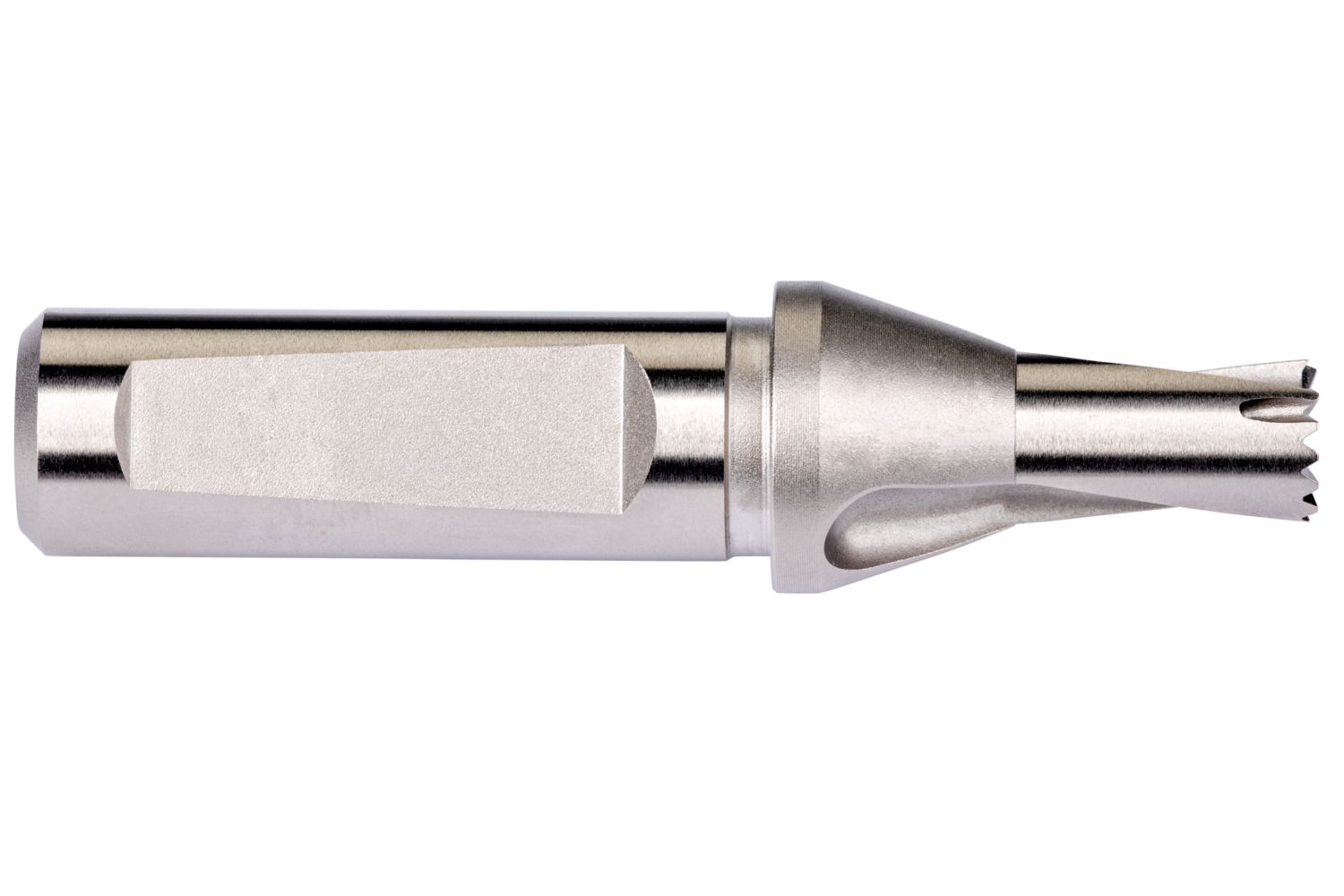

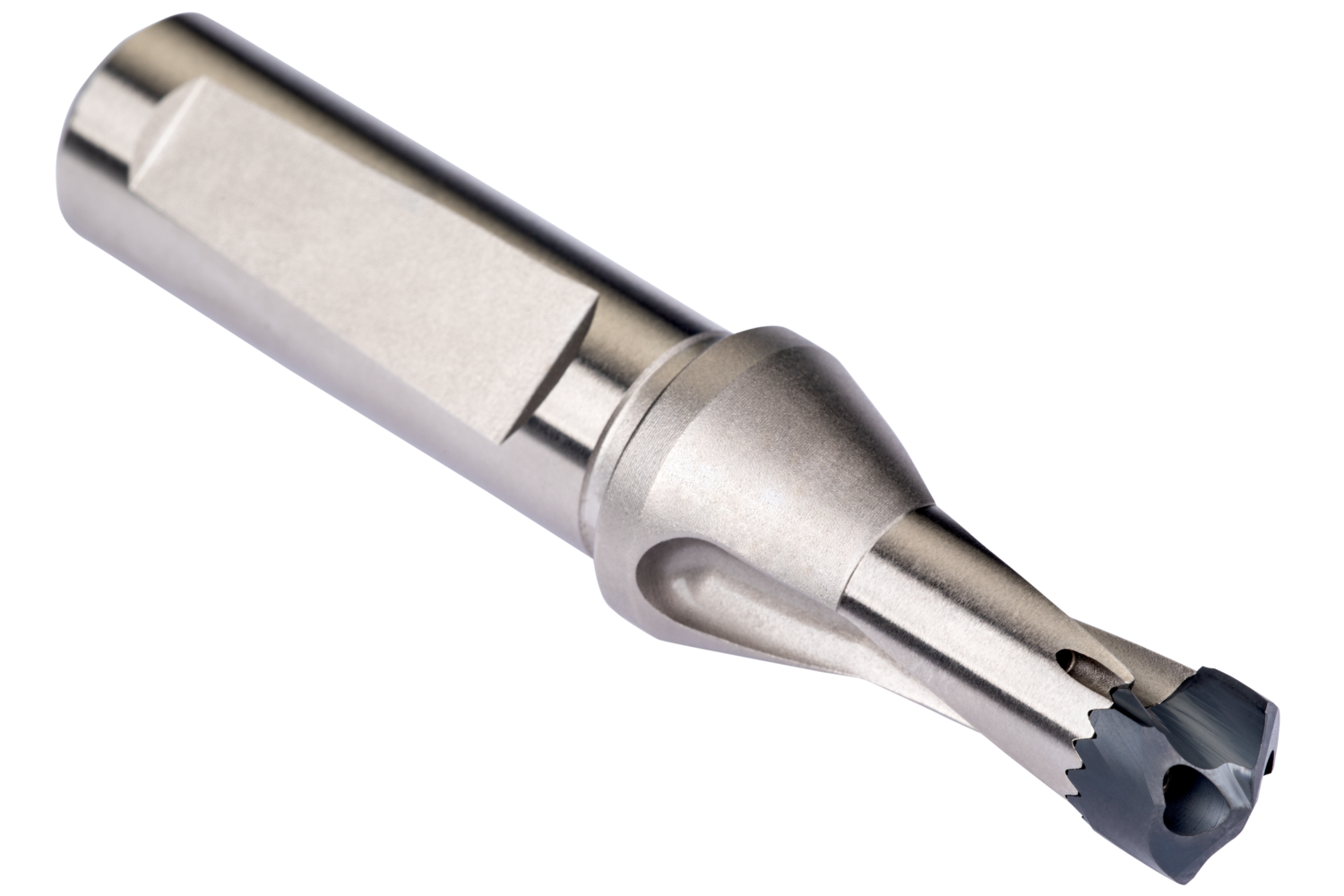

DORMER H85114.0 Hydra Body

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

DOR Replaceable head drill body HYDRA with ISO 9766 shank with flange and flat, size 14.0mm with an overall length of 93.9mm and flute length of 30.9mm according to DORMER standard for 1.5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 13.5 up to 14.5mm

Additional information

Weight 0.4950 kg
Dimensions Length 9.39cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760894606
Product number (SAP): 86036548
Ordering code ANSI: H85114.0
Product Line: HYDRA
Gross weight – grams: 198.3

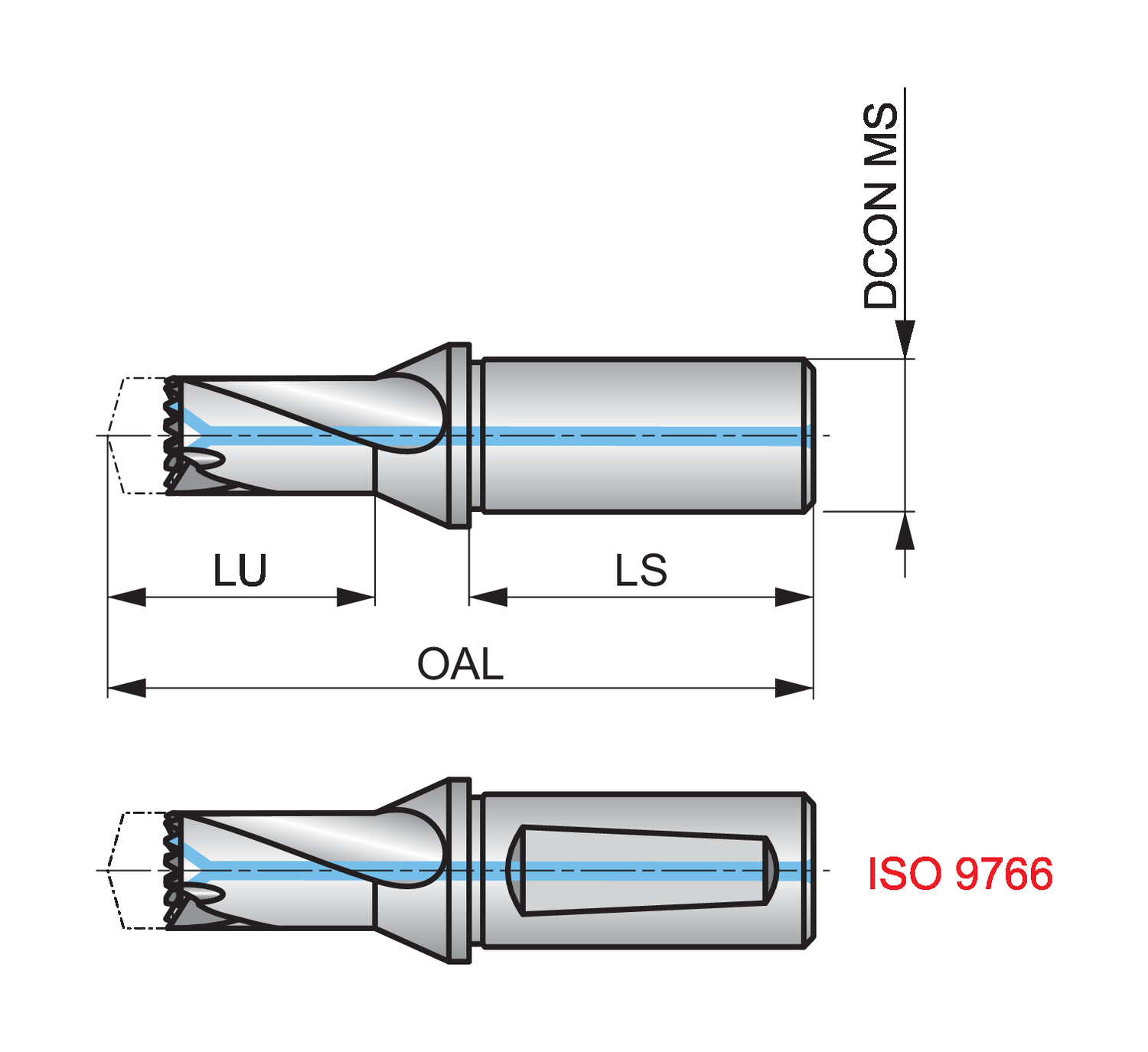

Connection diameter – millimeter (DCON MS): 16 mm
Usable Length – millimeter (LU): 30.9 mm
Overall length – millimeter (OAL): 93.9 mm
Shank length – millimeter (LS): 48 mm
Connection norm (ADINTMS): ISO 9766
ISO: H85114.0

Brand

DORMER
