DORMER H85115.0 Hydra Body

Product Code: H85115.0

$515.52$468.65 Ex. GST

Product Code: H85115.0 SKU H85115.0 Categories , ,
DORMER H85115.0 Hydra Body

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

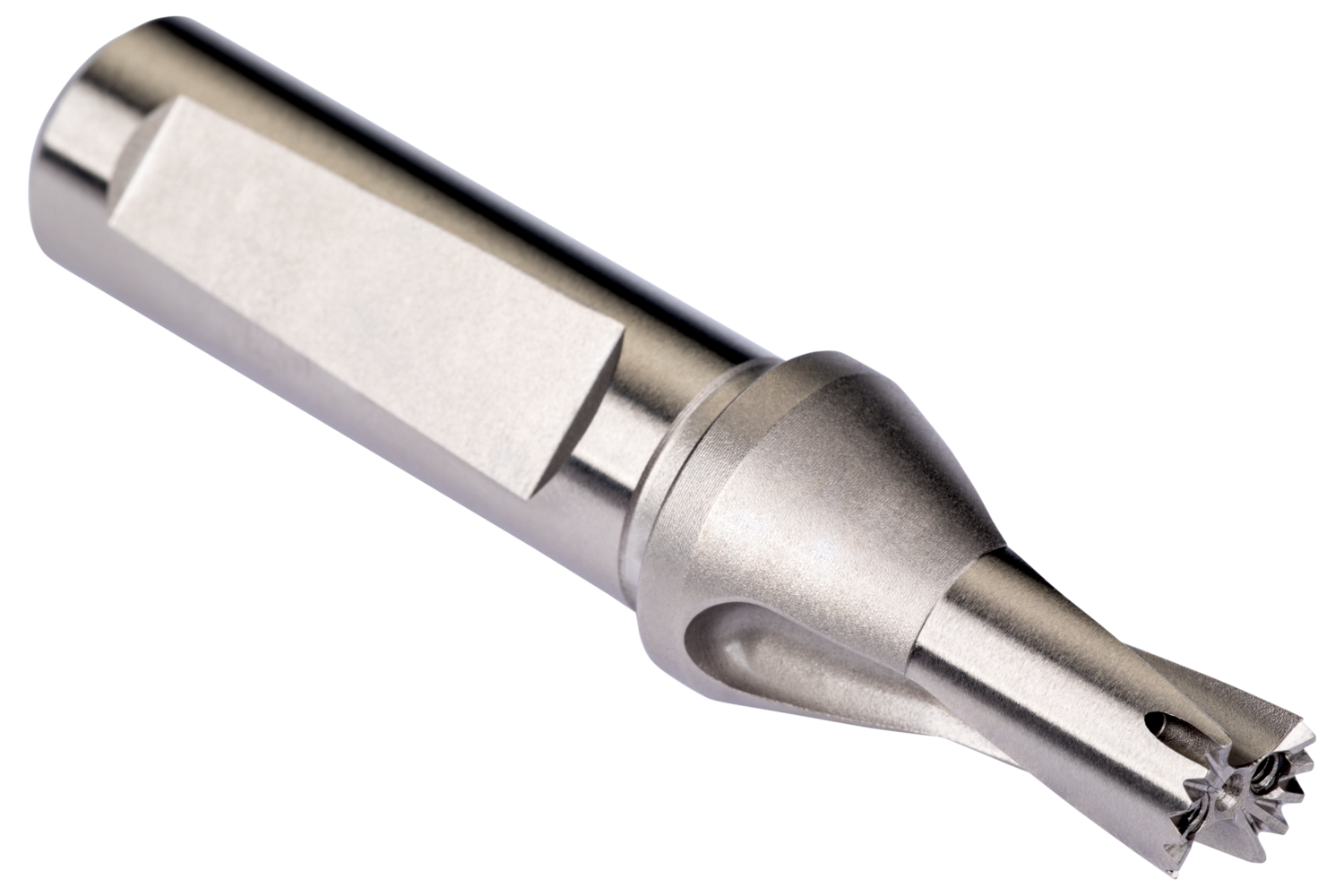

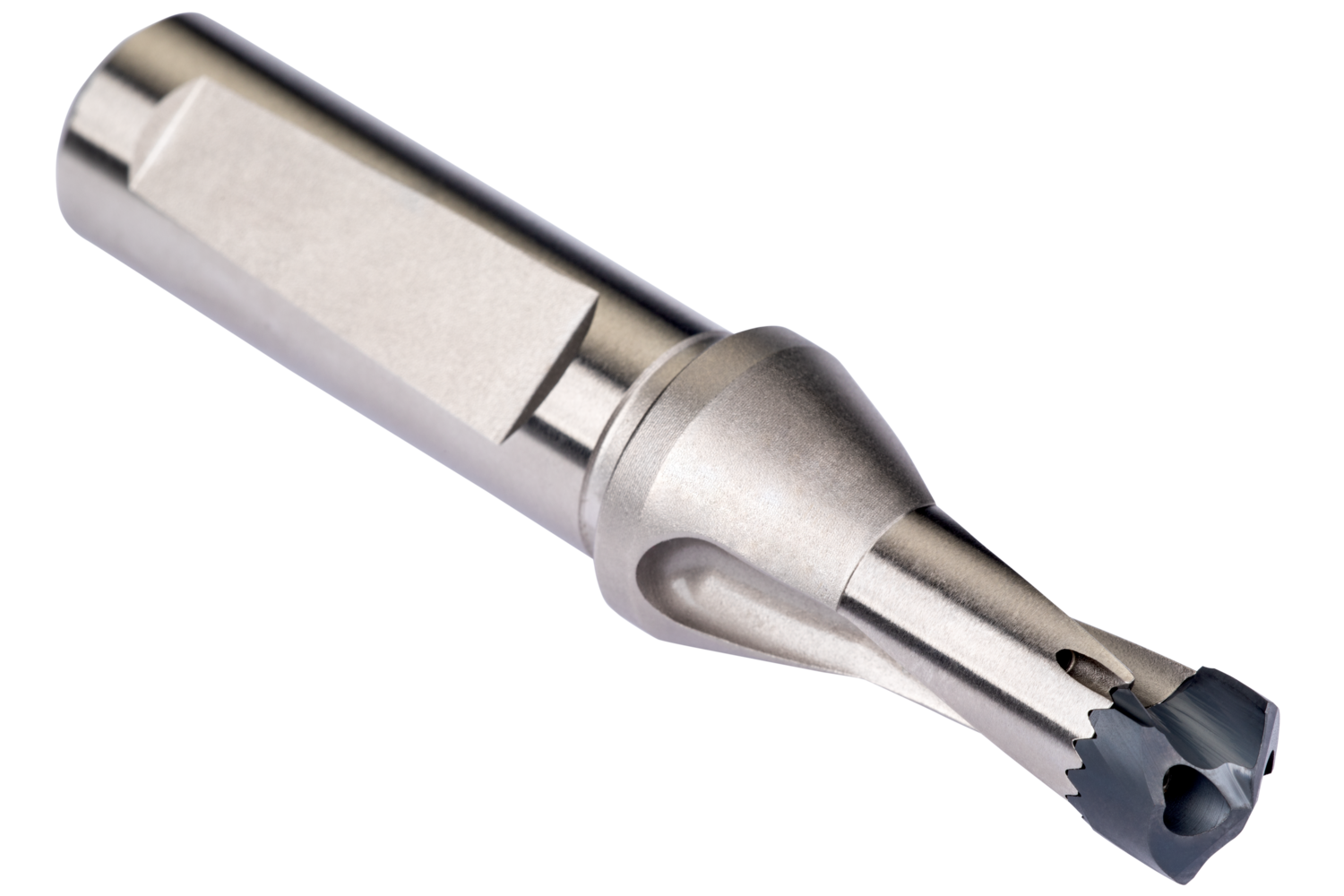

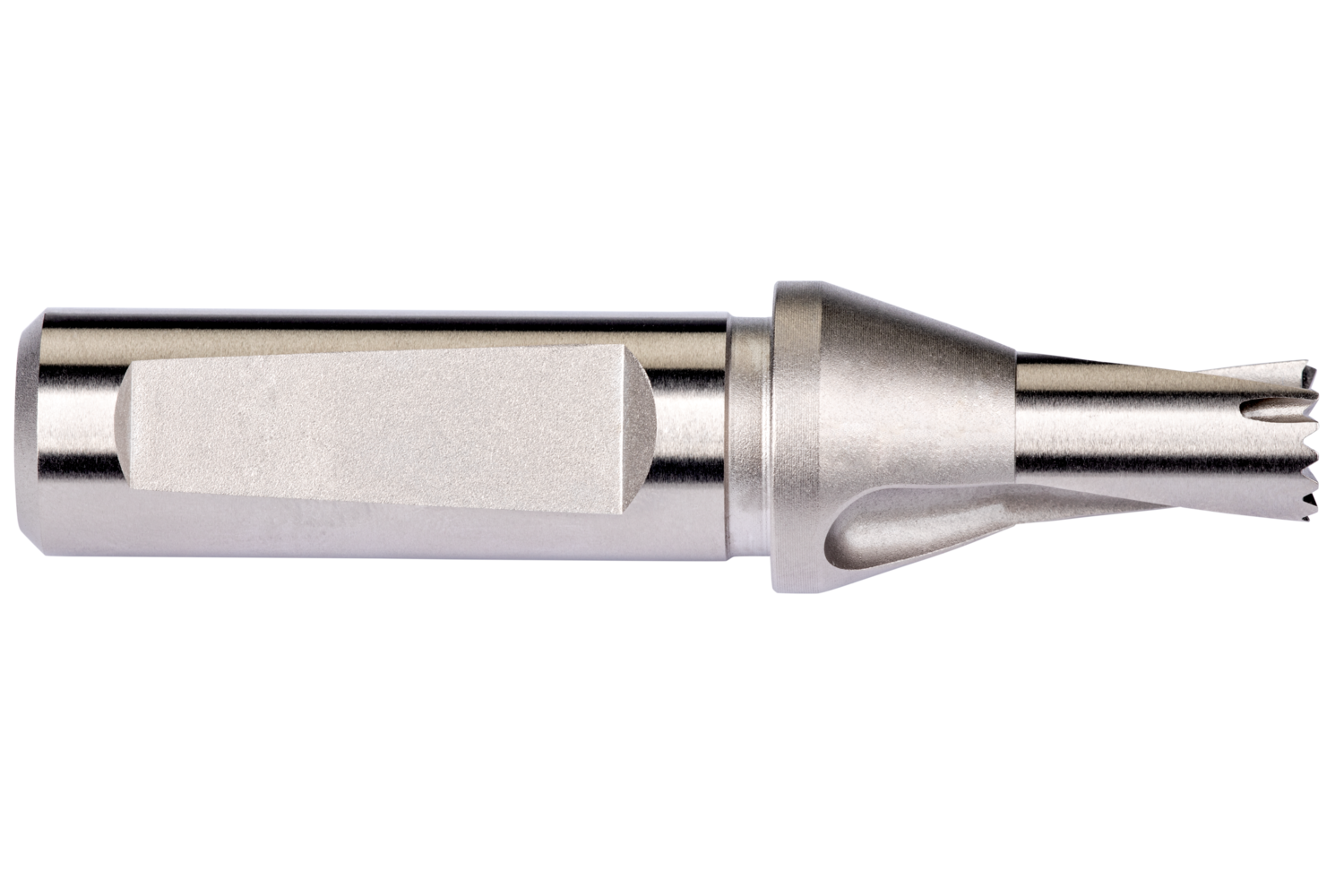

DOR Replaceable head drill body HYDRA with ISO 9766 shank with flange and flat, size 15.0mm with an overall length of 97.3mm and flute length of 32.3mm according to DORMER standard for 1.5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 14.6 up to 15.5mm

Additional information

Weight 0.5005 kg
Dimensions Length 9.73cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760894668
Product number (SAP): 86036554
Ordering code ANSI: H85115.0
Product Line: HYDRA
Gross weight – grams: 267.8

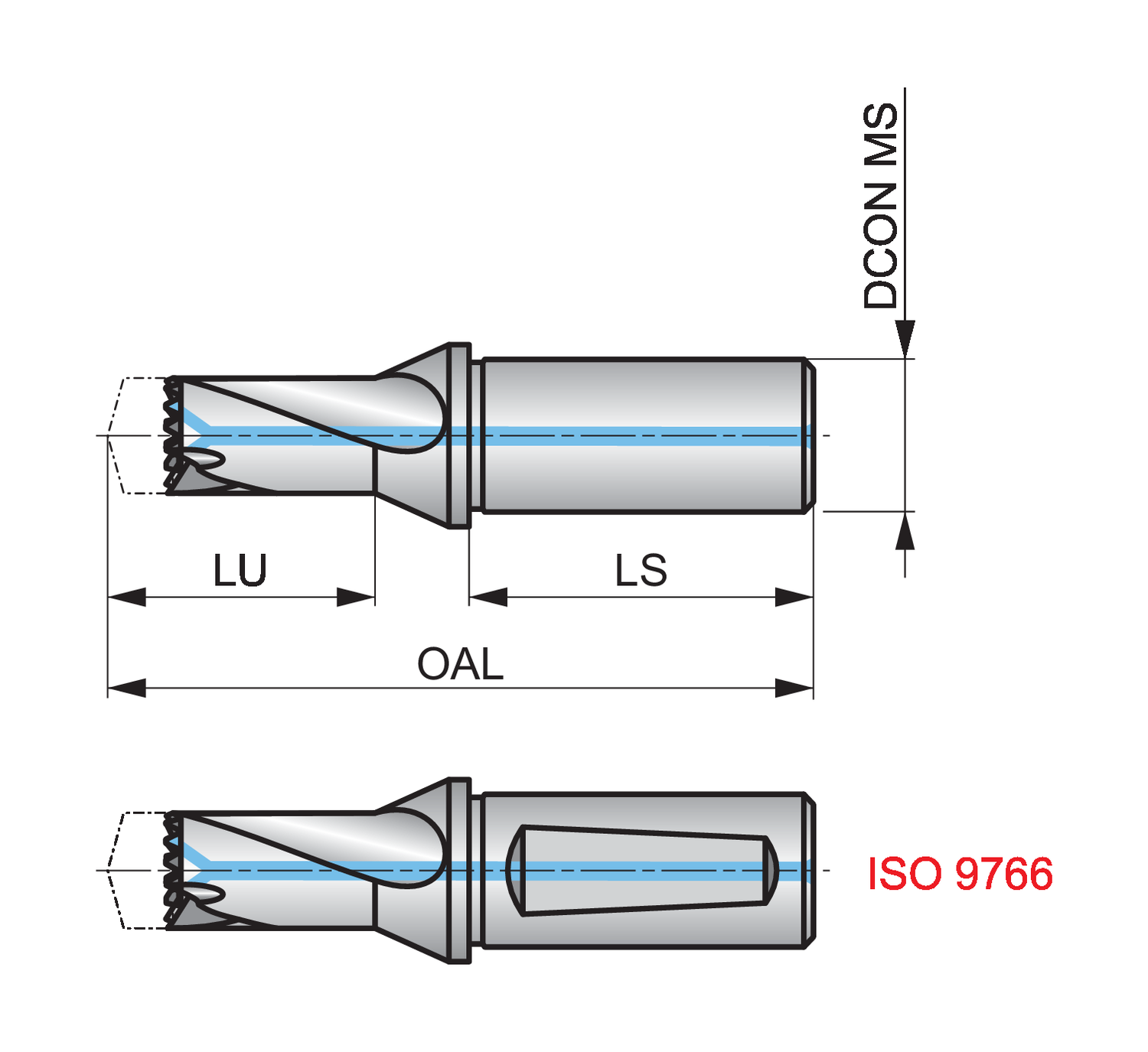

Connection diameter – millimeter (DCON MS): 20 mm
Usable Length – millimeter (LU): 32.3 mm
Overall length – millimeter (OAL): 97.3 mm
Shank length – millimeter (LS): 50 mm
Connection norm (ADINTMS): ISO 9766
ISO: H85115.0

Brand

DORMER
