DORMER H85118.0 Hydra Body

Product Code: H85118.0

$515.52$468.65 Ex. GST

Product Code: H85118.0 SKU H85118.0 Categories , ,
DORMER H85118.0 Hydra Body

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

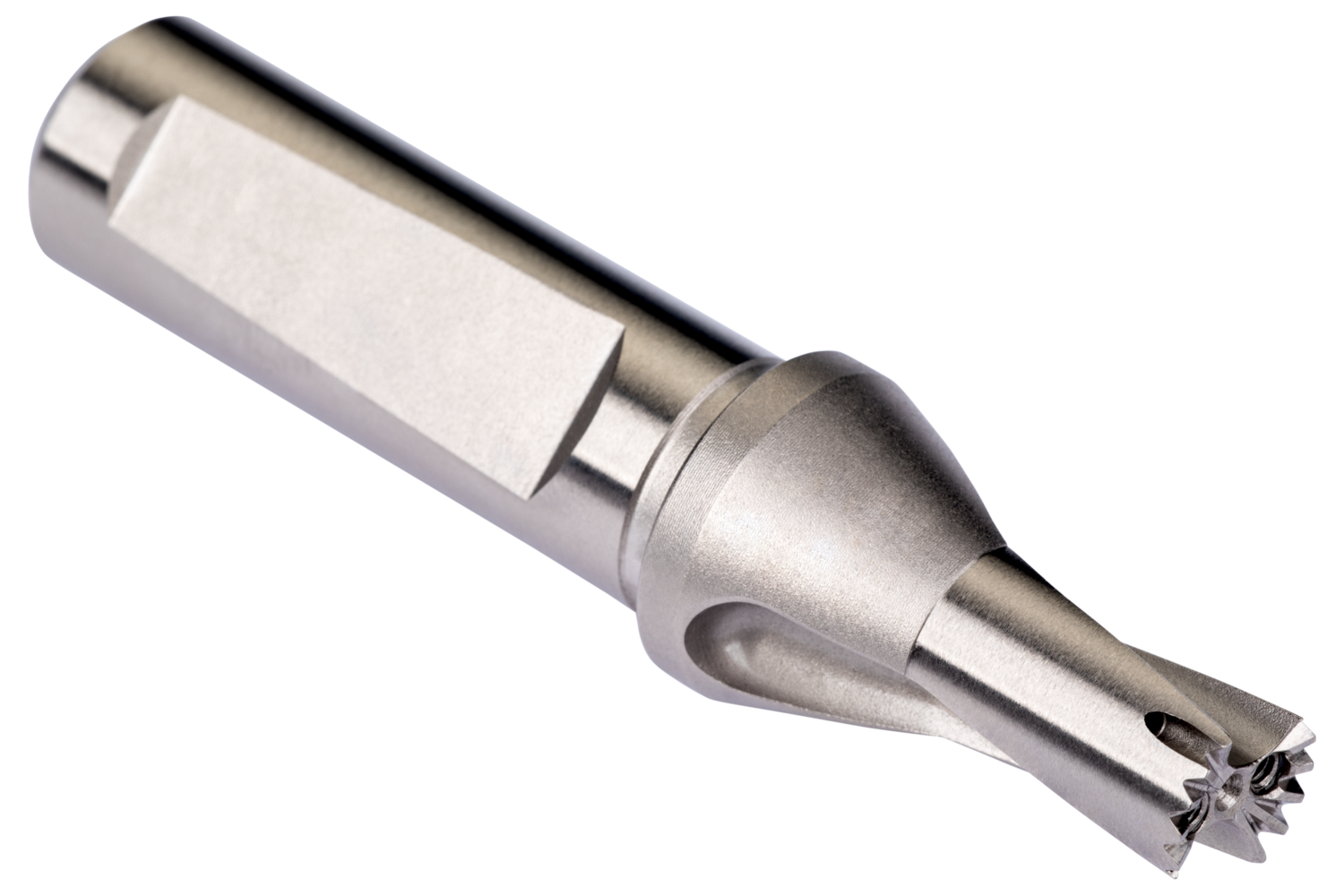

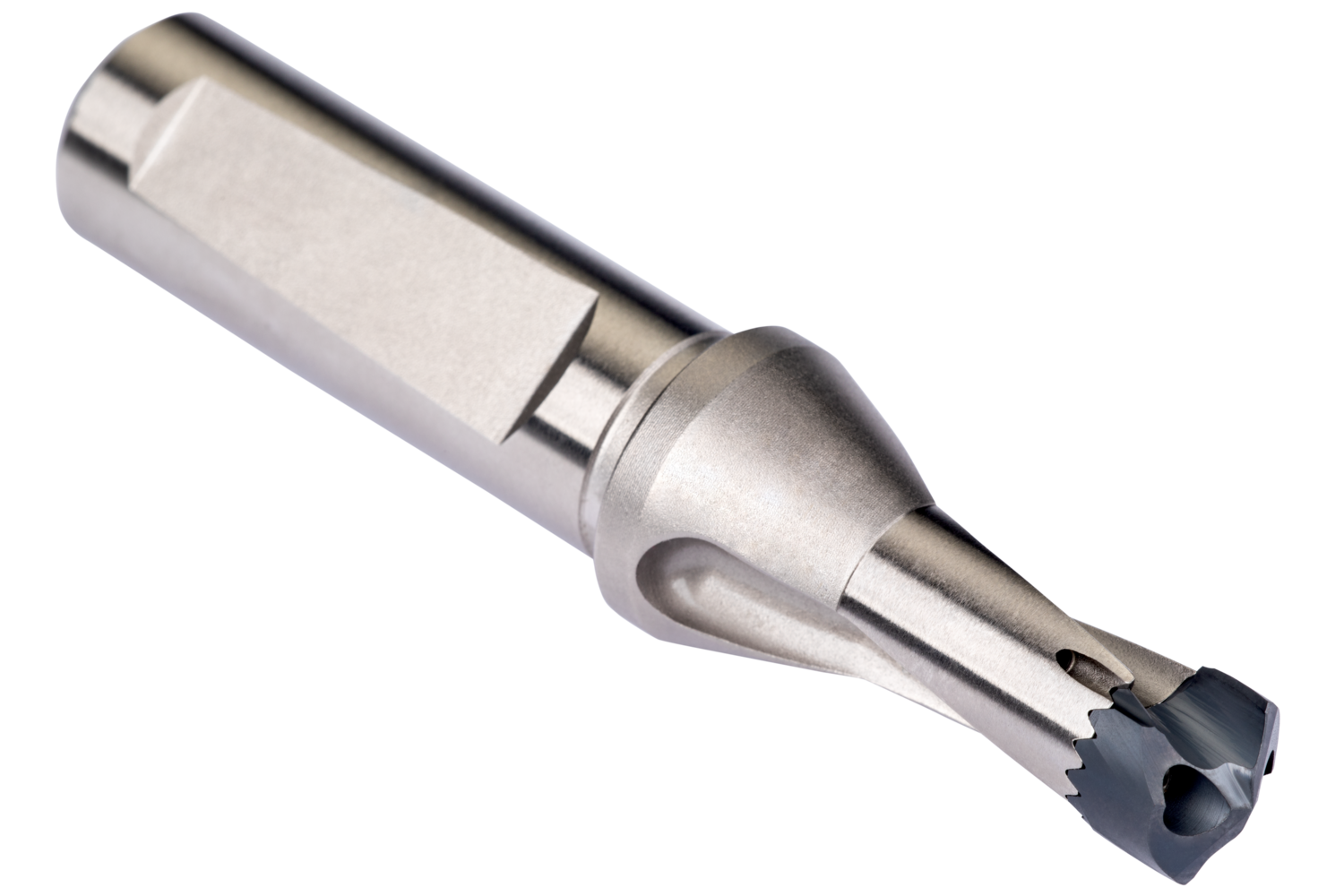

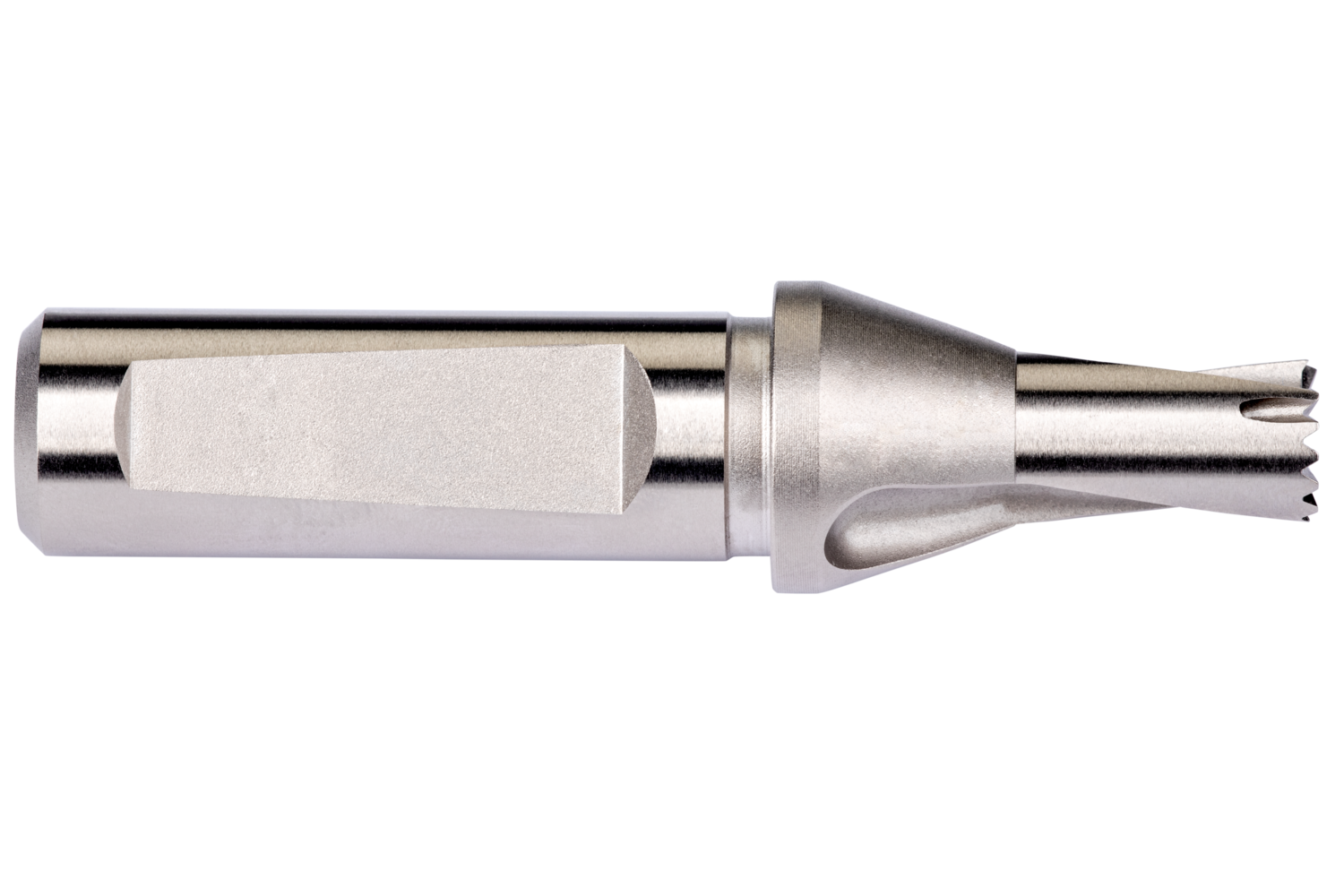

DOR Replaceable head drill body HYDRA with ISO 9766 shank with flange and flat, size 18.0mm with an overall length of 104mm and flute length of 39mm according to DORMER standard for 1.5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 17.6 up to 18.5mm

Additional information

Weight 0.5005 kg
Dimensions Length 10.4cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760894699
Product number (SAP): 86036557
Ordering code ANSI: H85118.0
Product Line: HYDRA
Gross weight – grams: 301.1

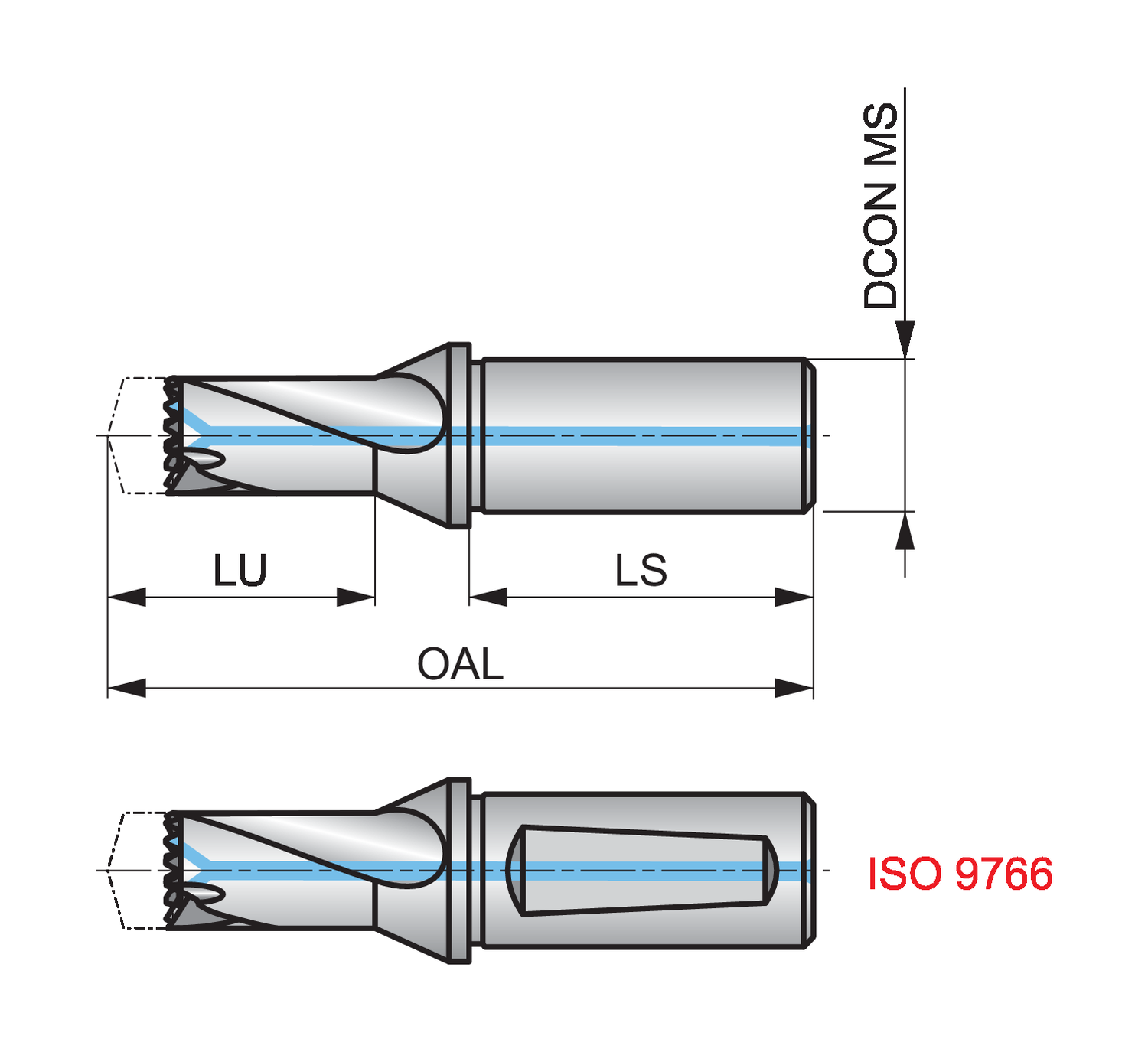

Connection diameter – millimeter (DCON MS): 20 mm
Usable Length – millimeter (LU): 39 mm
Overall length – millimeter (OAL): 104 mm
Shank length – millimeter (LS): 50 mm
Connection norm (ADINTMS): ISO 9766
ISO: H85118.0

Brand

DORMER
