DORMER H85121.0 Hydra Body

Product Code: H85121.0

$556.30$505.73 Ex. GST

Product Code: H85121.0 SKU H85121.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

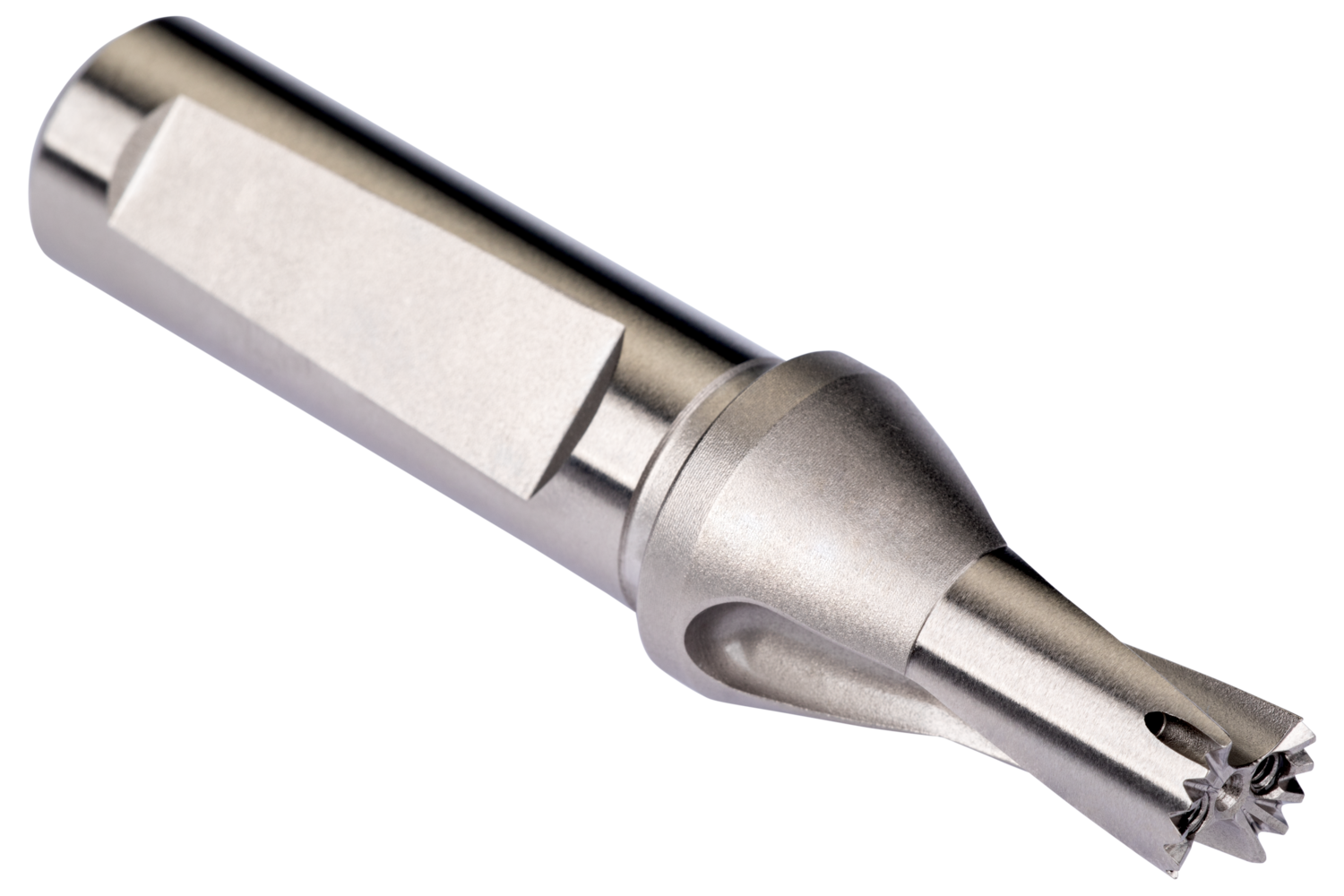

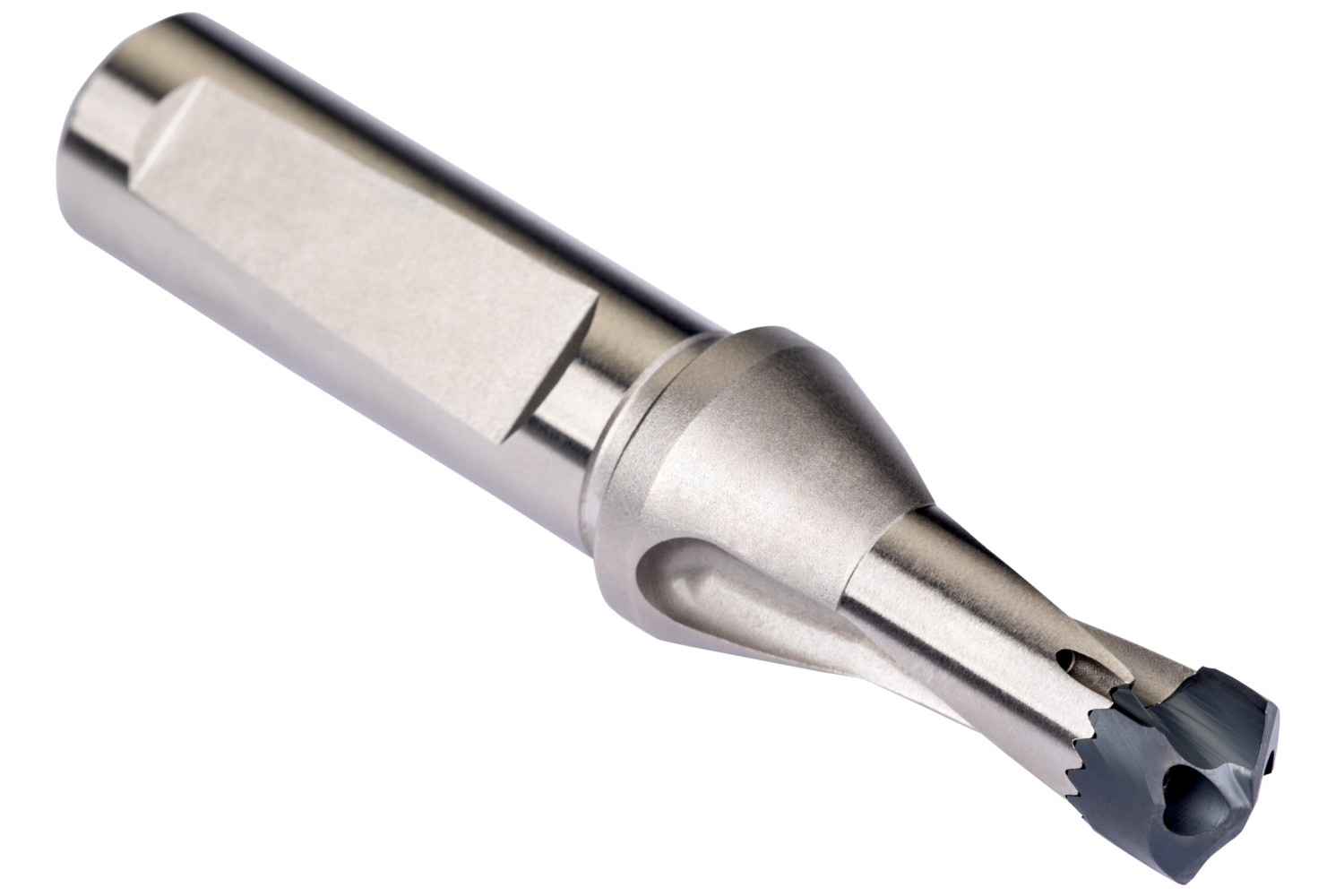

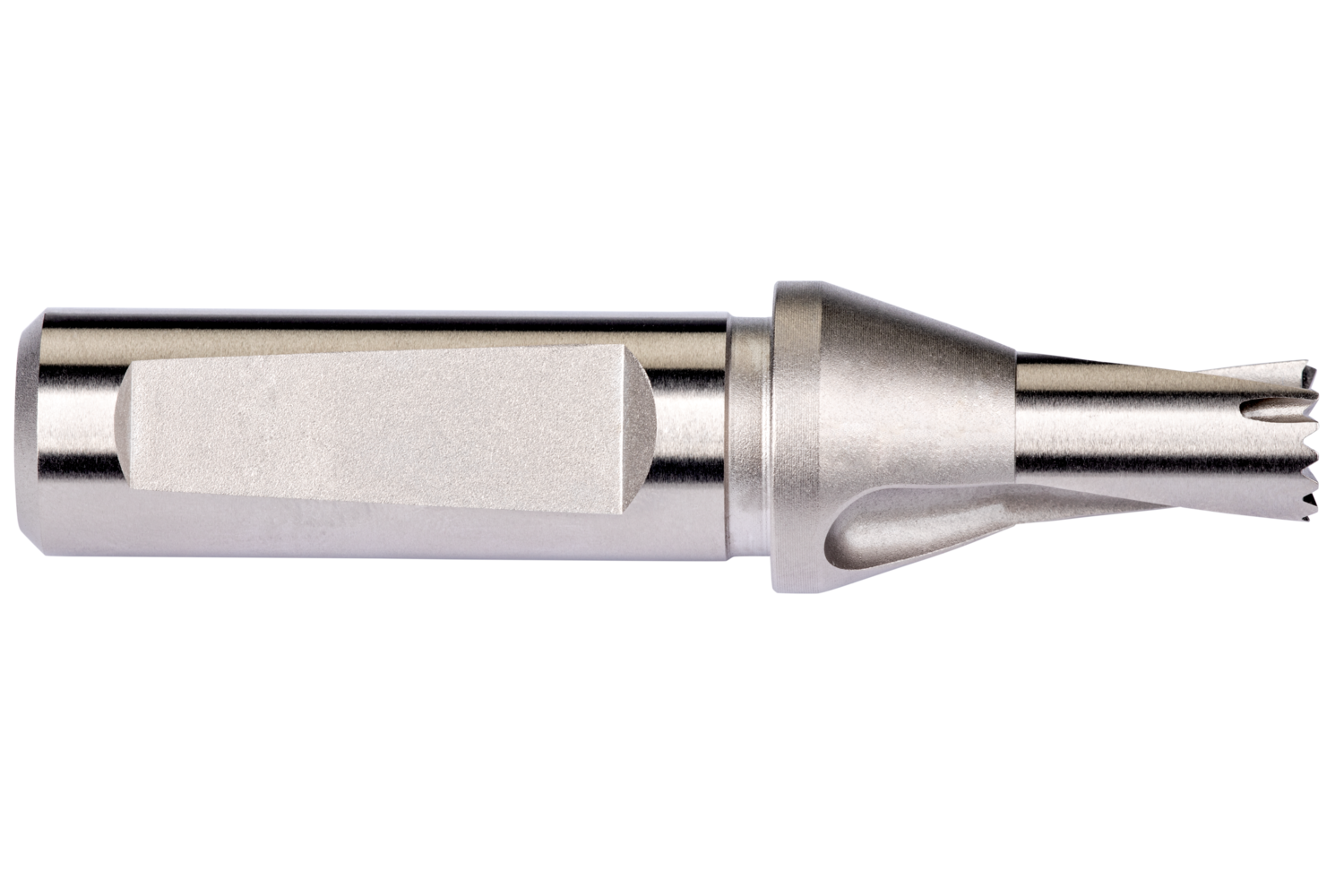

DOR Replaceable head drill body HYDRA with ISO 9766 shank with flange and flat, size 21.0mm with an overall length of 115.5mm and flute length of 44.5mm according to DORMER standard for 1.5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 20.64 up to 21.5mm

Additional information

Weight 0.5401 kg
Dimensions Length 11.55cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760894729
Product number (SAP): 86036560
Ordering code ANSI: H85121.0
Product Line: HYDRA
Gross weight – grams: 440.2

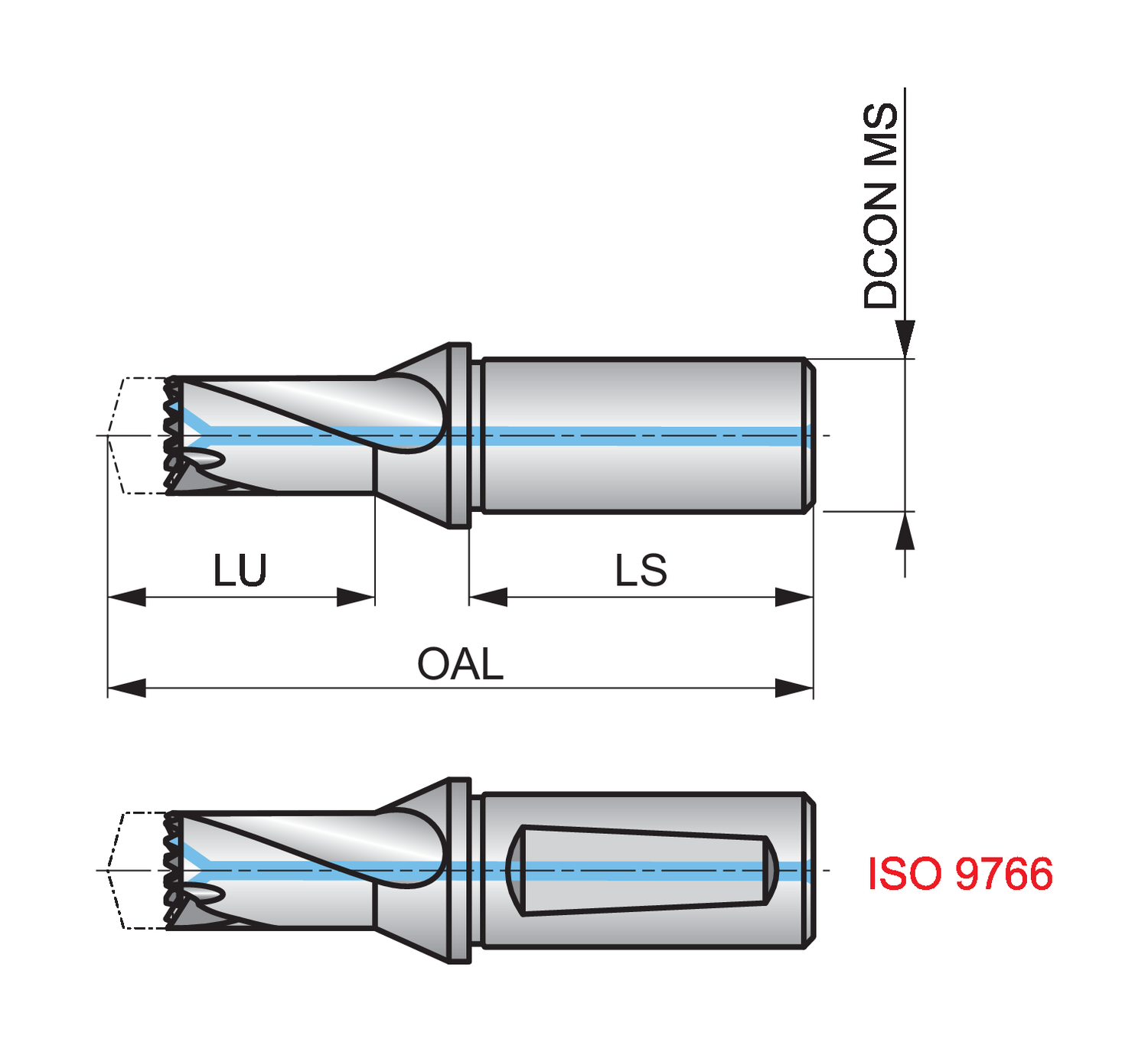

Connection diameter – millimeter (DCON MS): 25 mm
Usable Length – millimeter (LU): 44.5 mm
Overall length – millimeter (OAL): 115.5 mm
Shank length – millimeter (LS): 56 mm
Connection norm (ADINTMS): ISO 9766
ISO: H85121.0

Brand

DORMER
