DORMER H851214.0 Hydra Body

Product Code: H851214.0

$1,858.12$1,689.20 Ex. GST

Product Code: H851214.0 SKU H851214.0 Categories , ,
DORMER H851214.0 Hydra Body

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

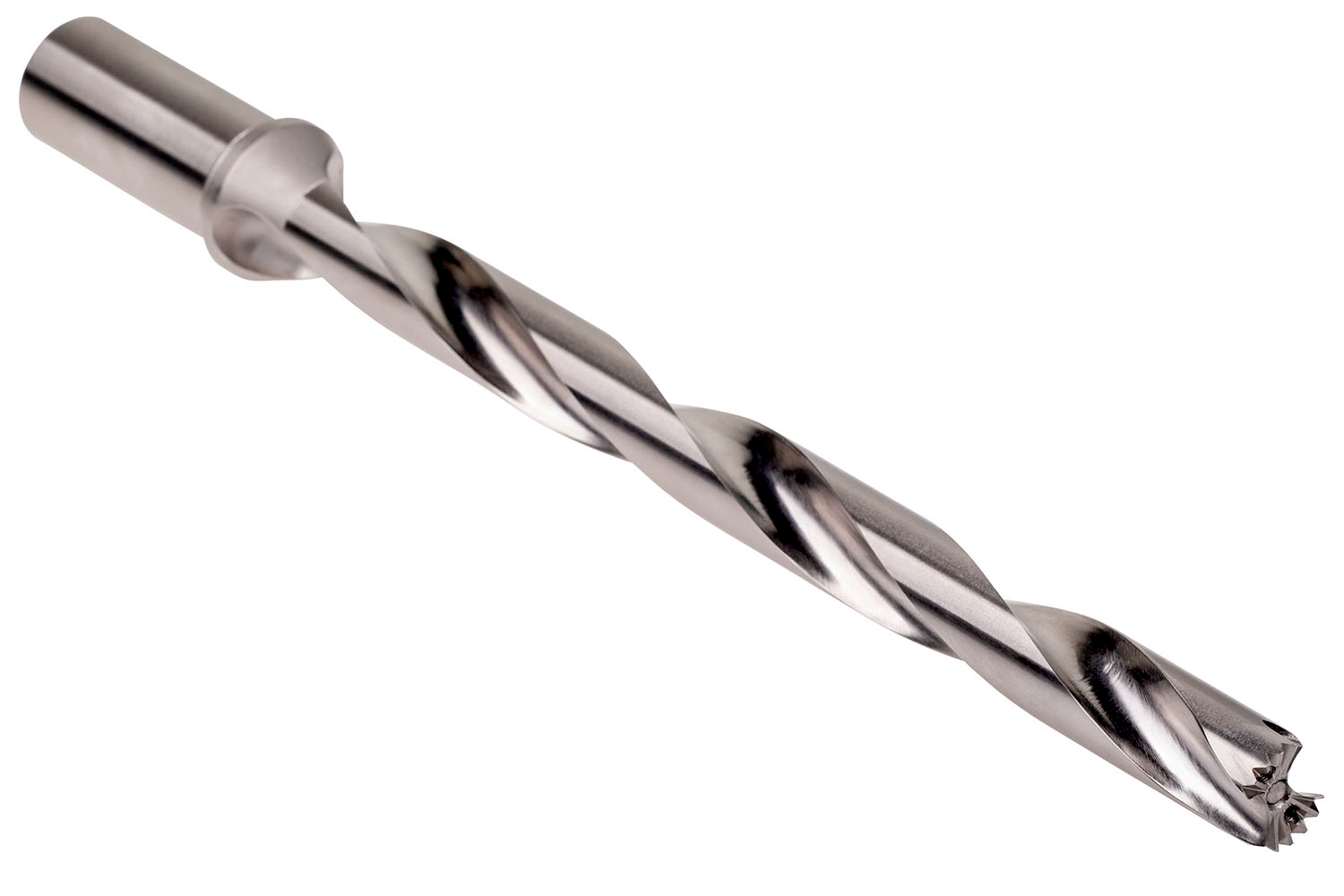

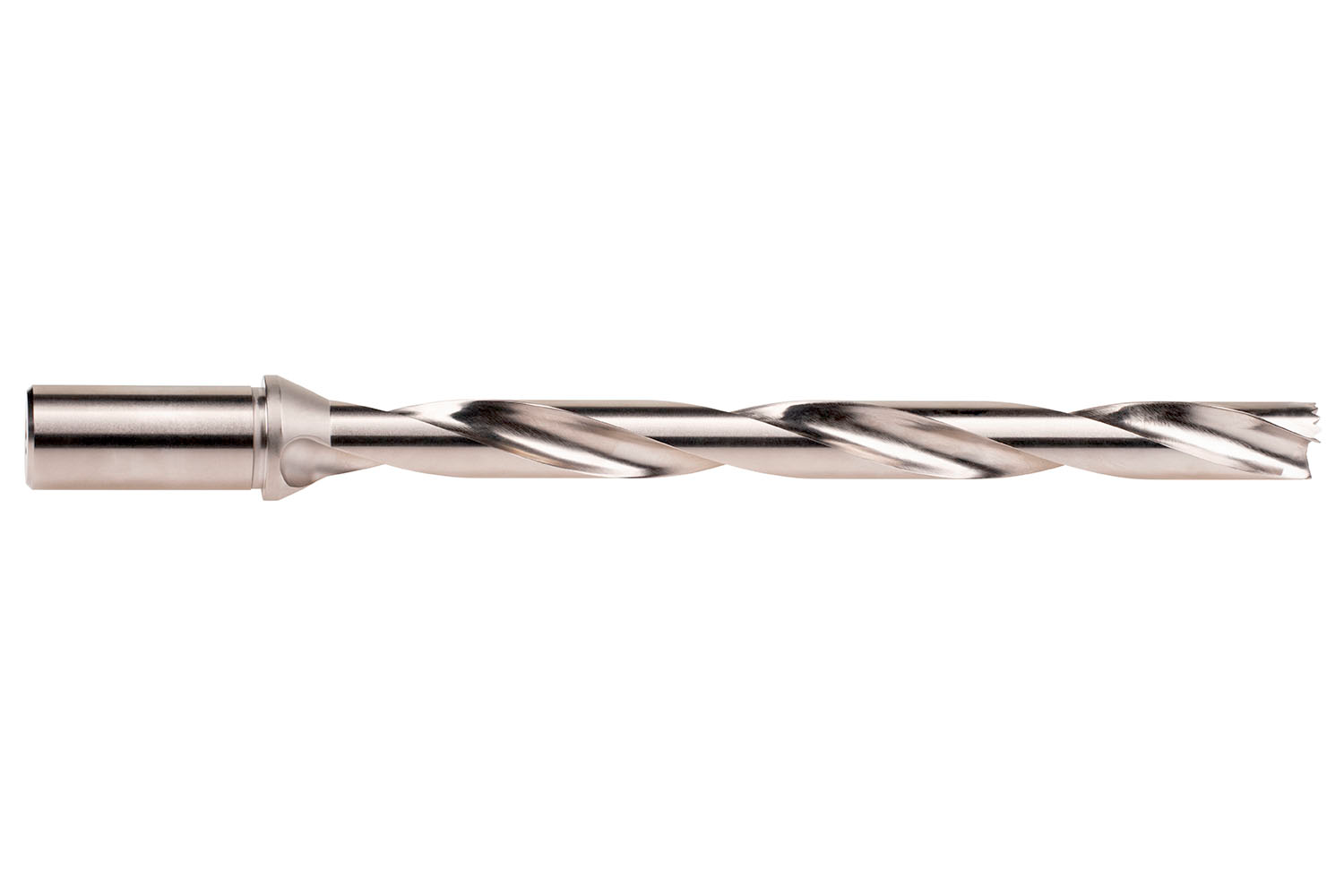

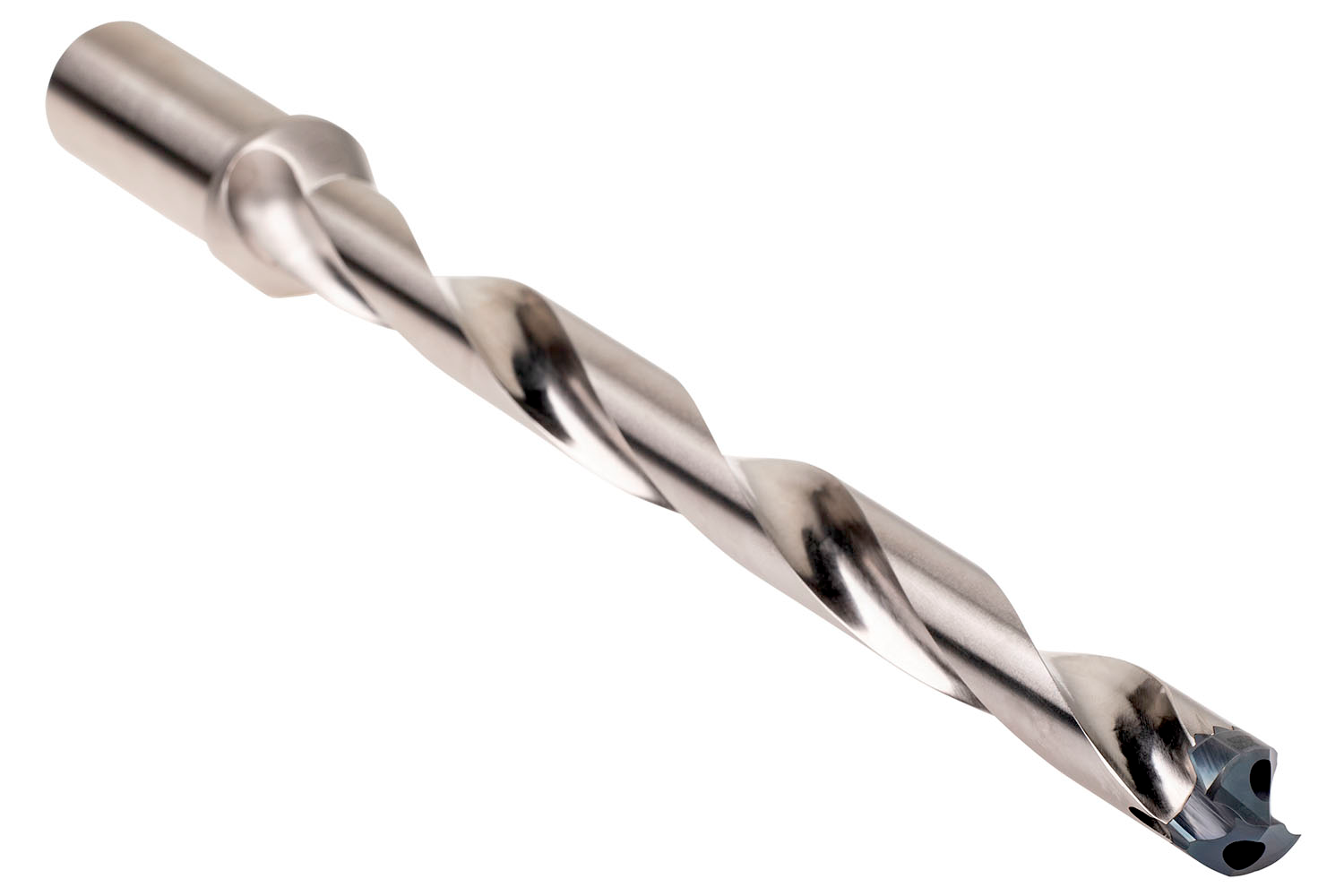

DOR Replaceable head drill body HYDRA with cylindrical shank with flange, size 14.0mm with an overall length of 236mm and flute length of 168mm according to DORMER standard for 12xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 13.5 up to 14.5mm

Additional information

Weight 1.8040 kg
Dimensions Length 23.6cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760894941
Product number (SAP): 86036582
Ordering code ANSI: H851214.0
Product Line: HYDRA
Gross weight – grams: 276.5

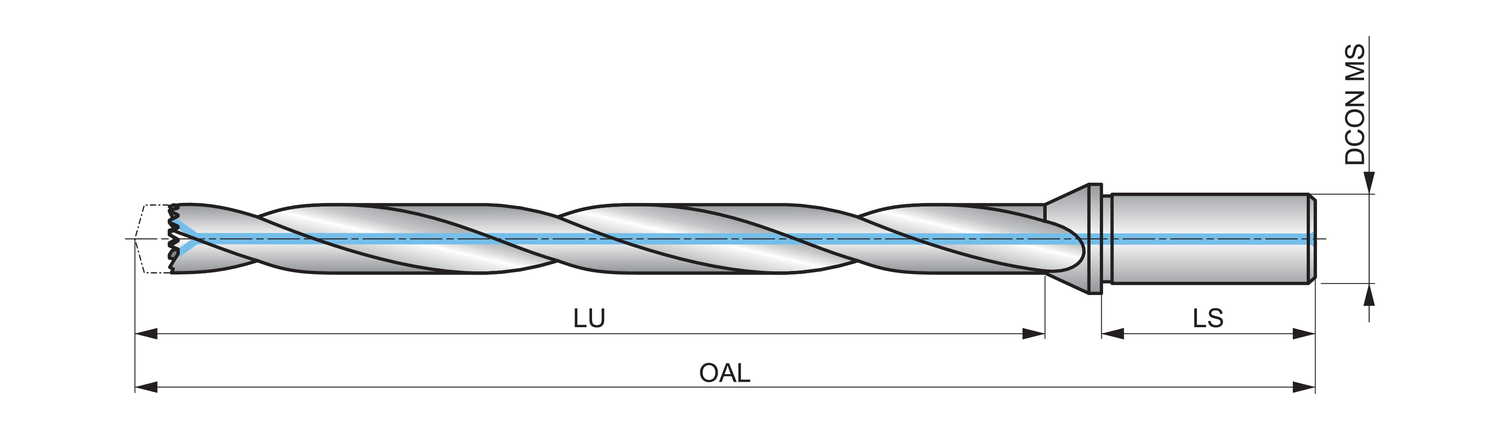

Connection diameter – millimeter (DCON MS): 16 mm
Usable Length – millimeter (LU): 168 mm
Overall length – millimeter (OAL): 236 mm
Shank length – millimeter (LS): 48 mm
ISO: H851214.0

Brand

DORMER
