DORMER H851216.0 Hydra Body

Product Code: H851216.0

$1,858.12$1,689.20 Ex. GST

Product Code: H851216.0 SKU H851216.0 Categories , ,
DORMER H851216.0 Hydra Body

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

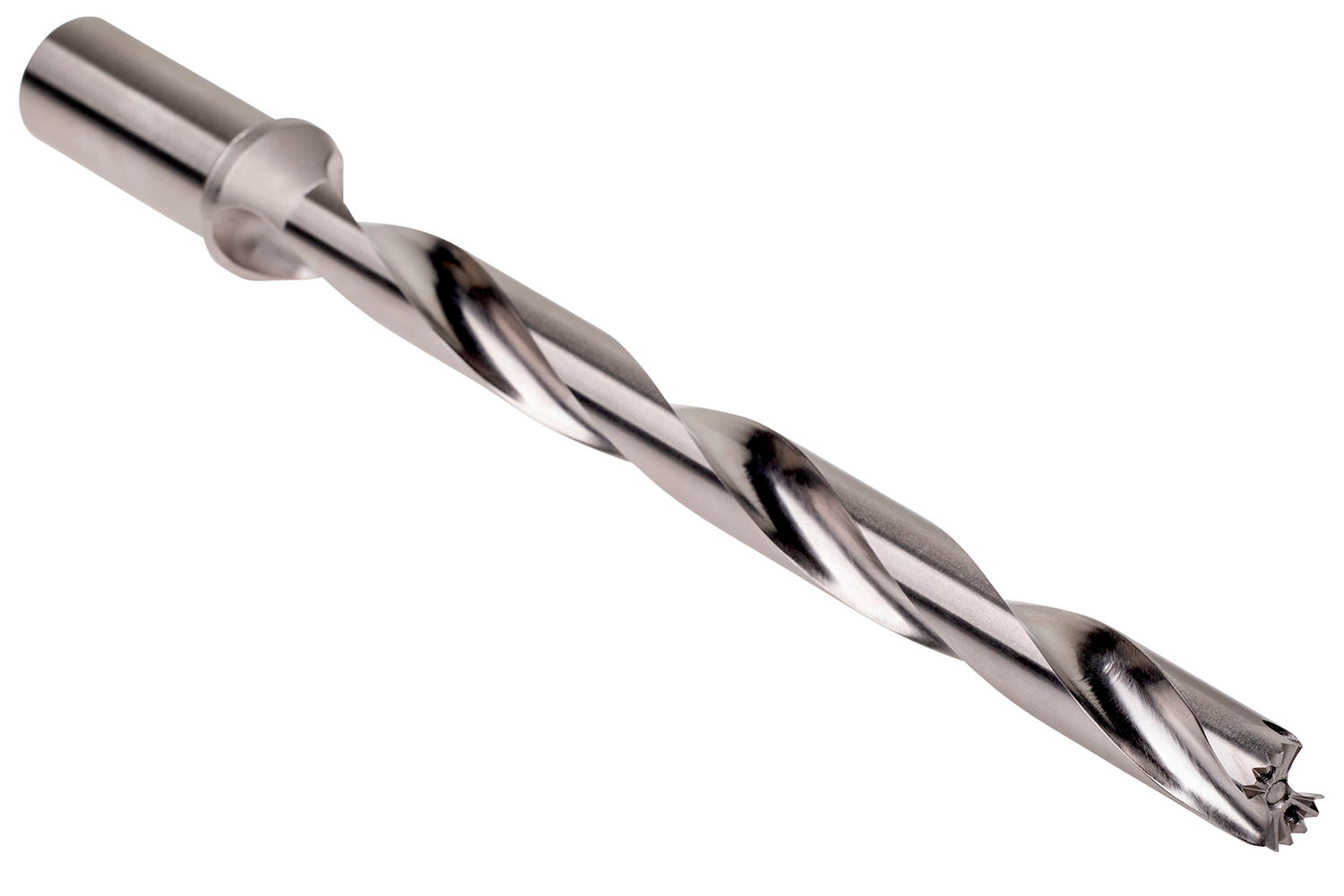

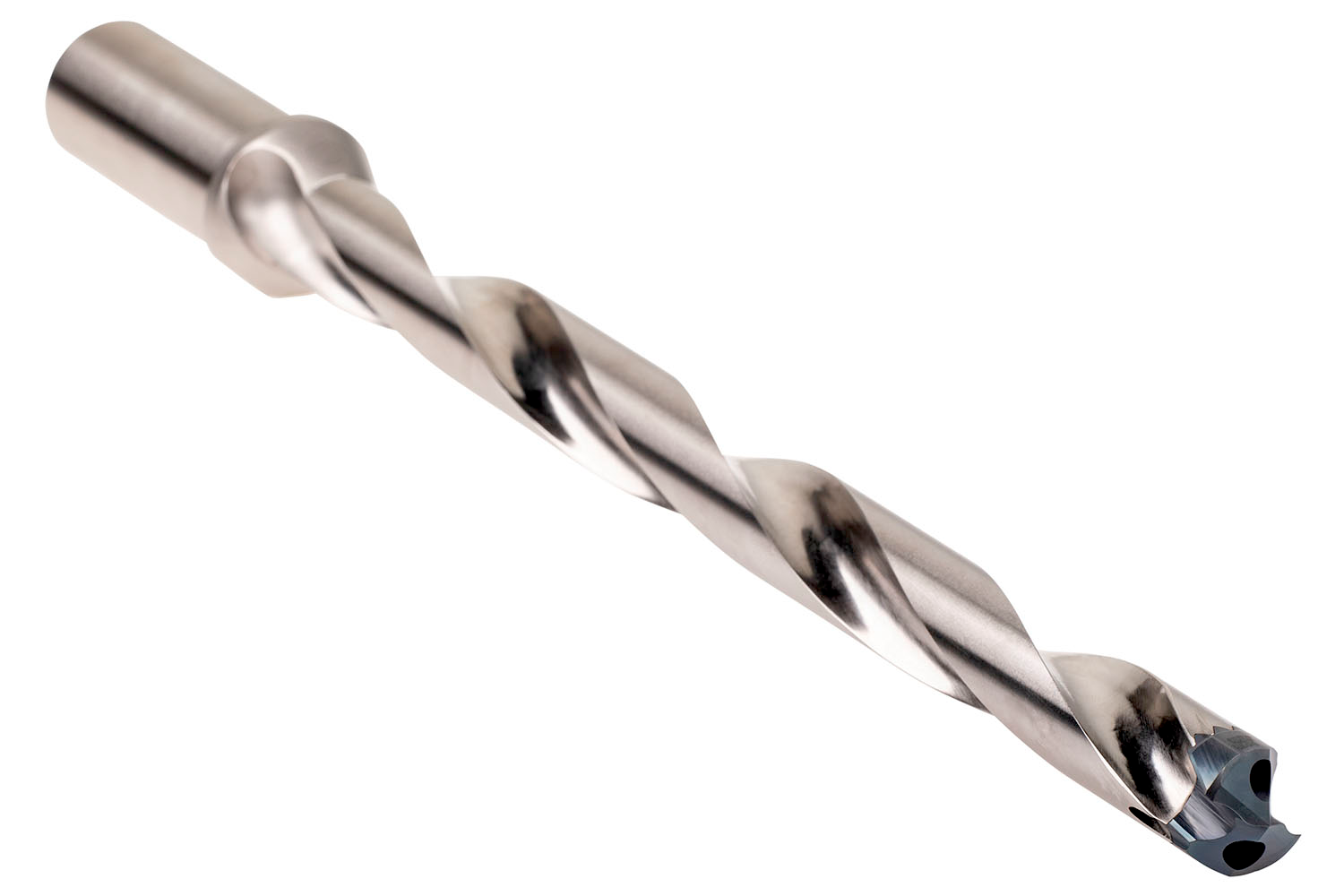

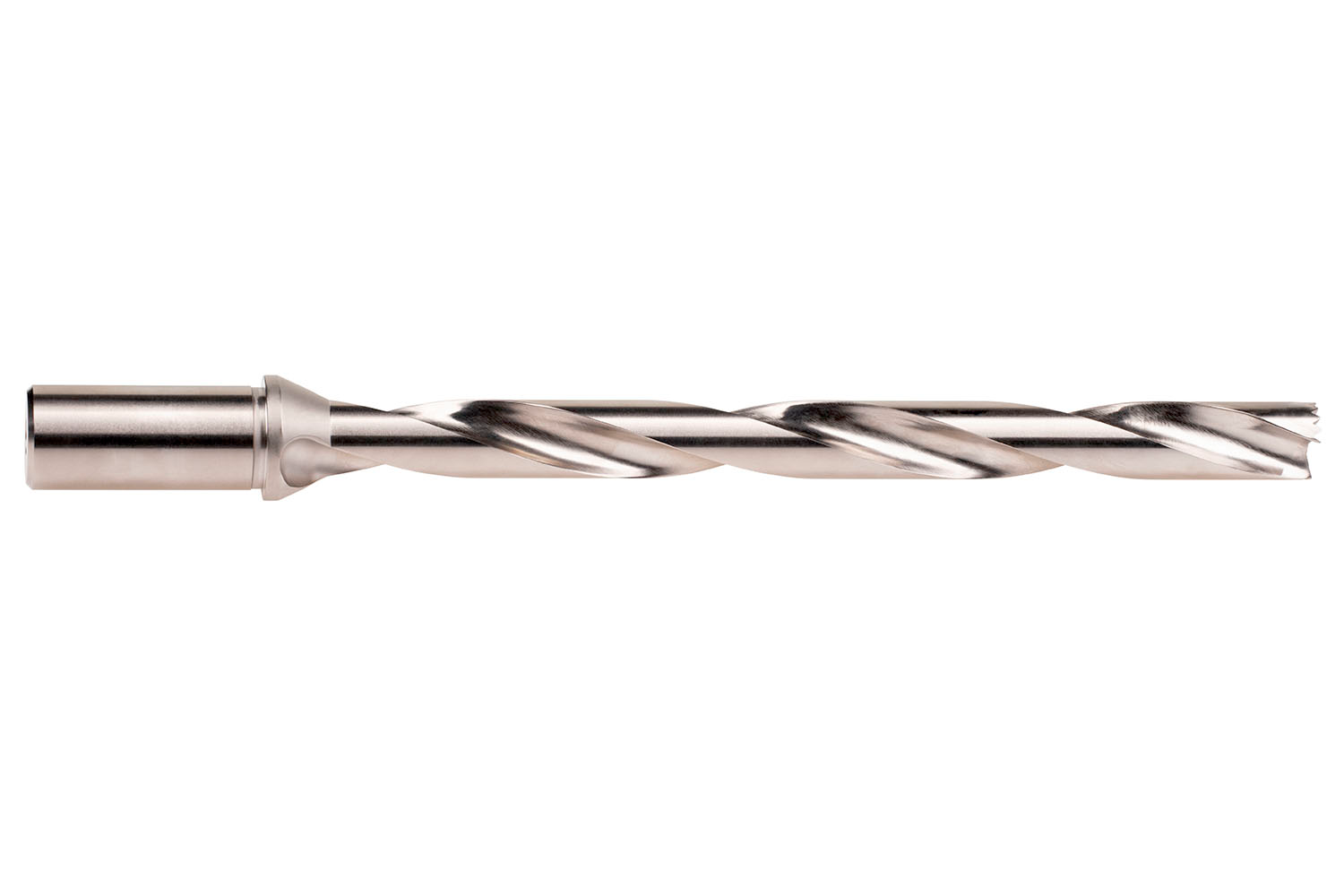

DOR Replaceable head drill body HYDRA with cylindrical shank with flange, size 16.0mm with an overall length of 262.6mm and flute length of 192mm according to DORMER standard for 12xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 15.6 up to 16.5mm

Additional information

Weight 1.8040 kg
Dimensions Length 26.26cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760894965
Product number (SAP): 86036584
Ordering code ANSI: H851216.0
Product Line: HYDRA
Gross weight – grams: 415.2

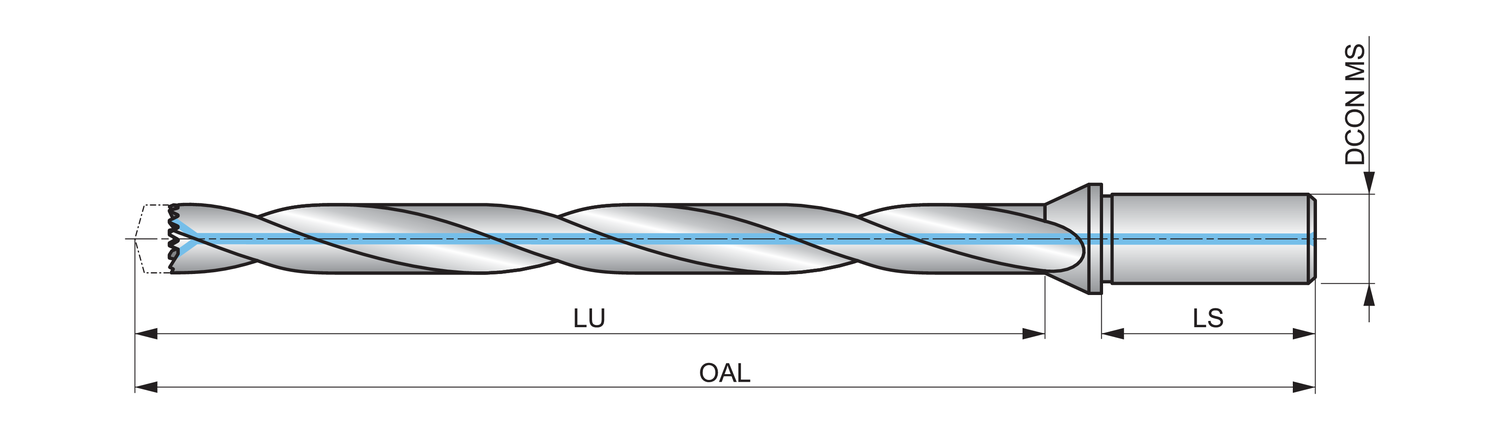

Connection diameter – millimeter (DCON MS): 20 mm
Usable Length – millimeter (LU): 192 mm
Overall length – millimeter (OAL): 262.6 mm
Shank length – millimeter (LS): 50 mm
ISO: H851216.0

Brand

DORMER
