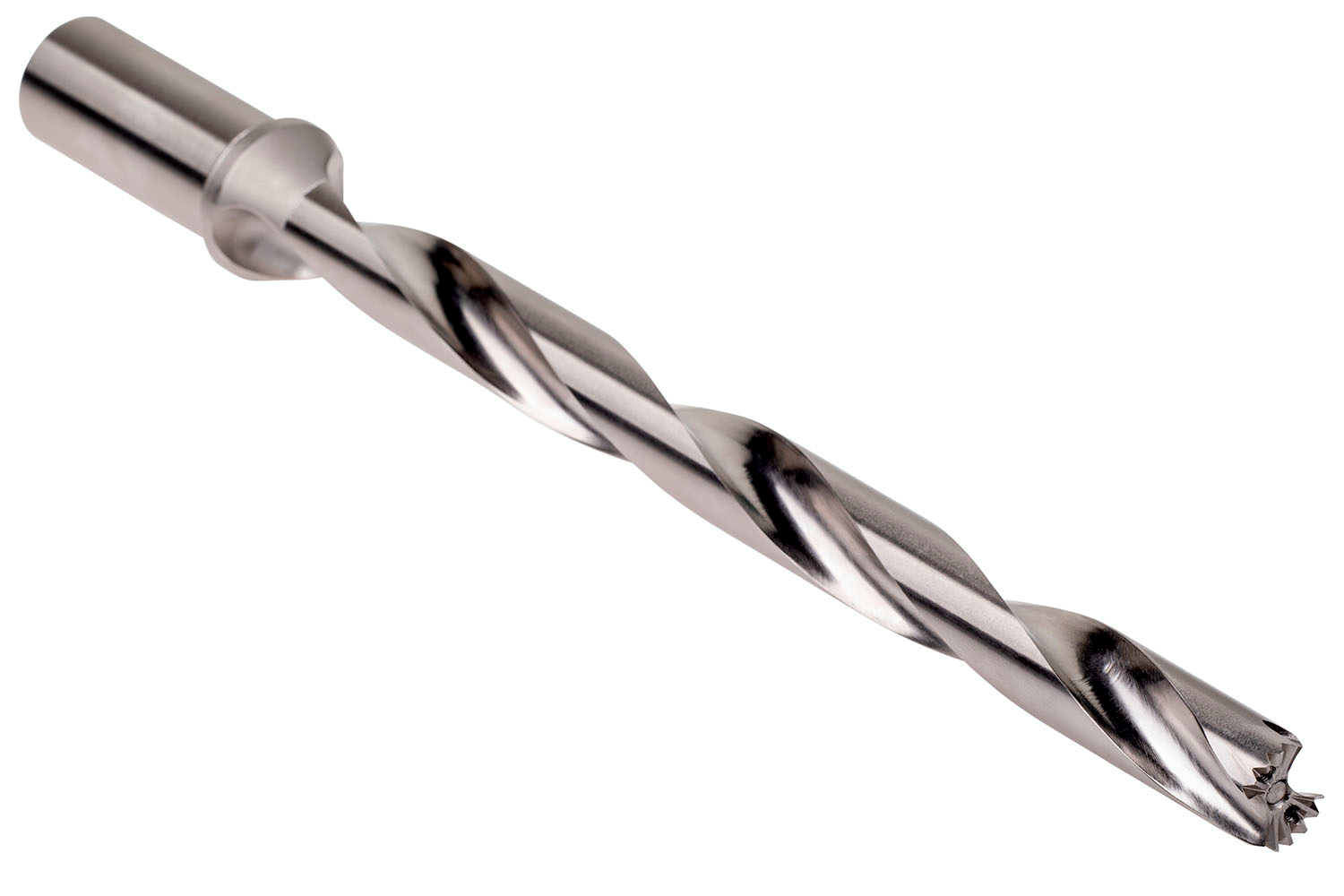

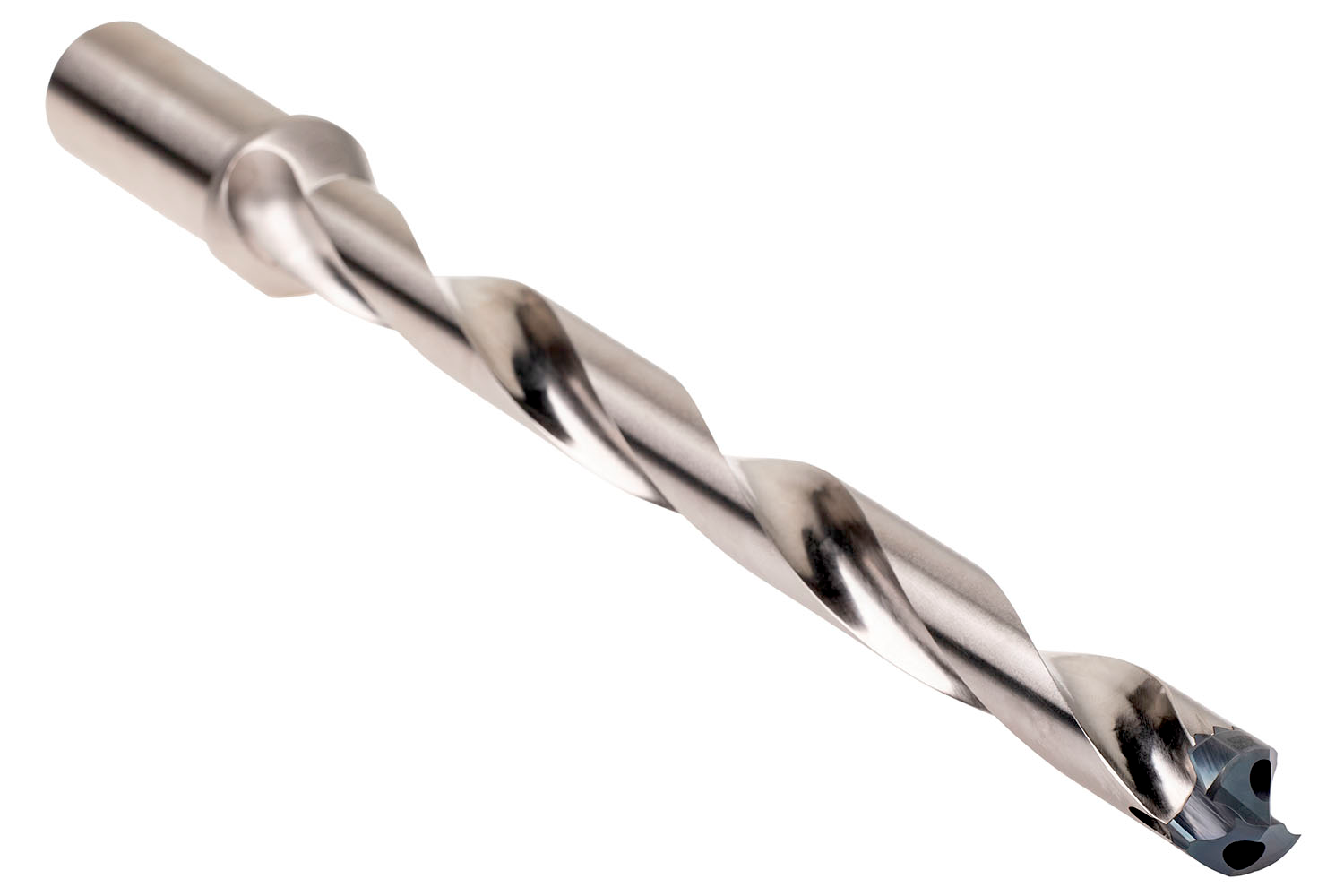

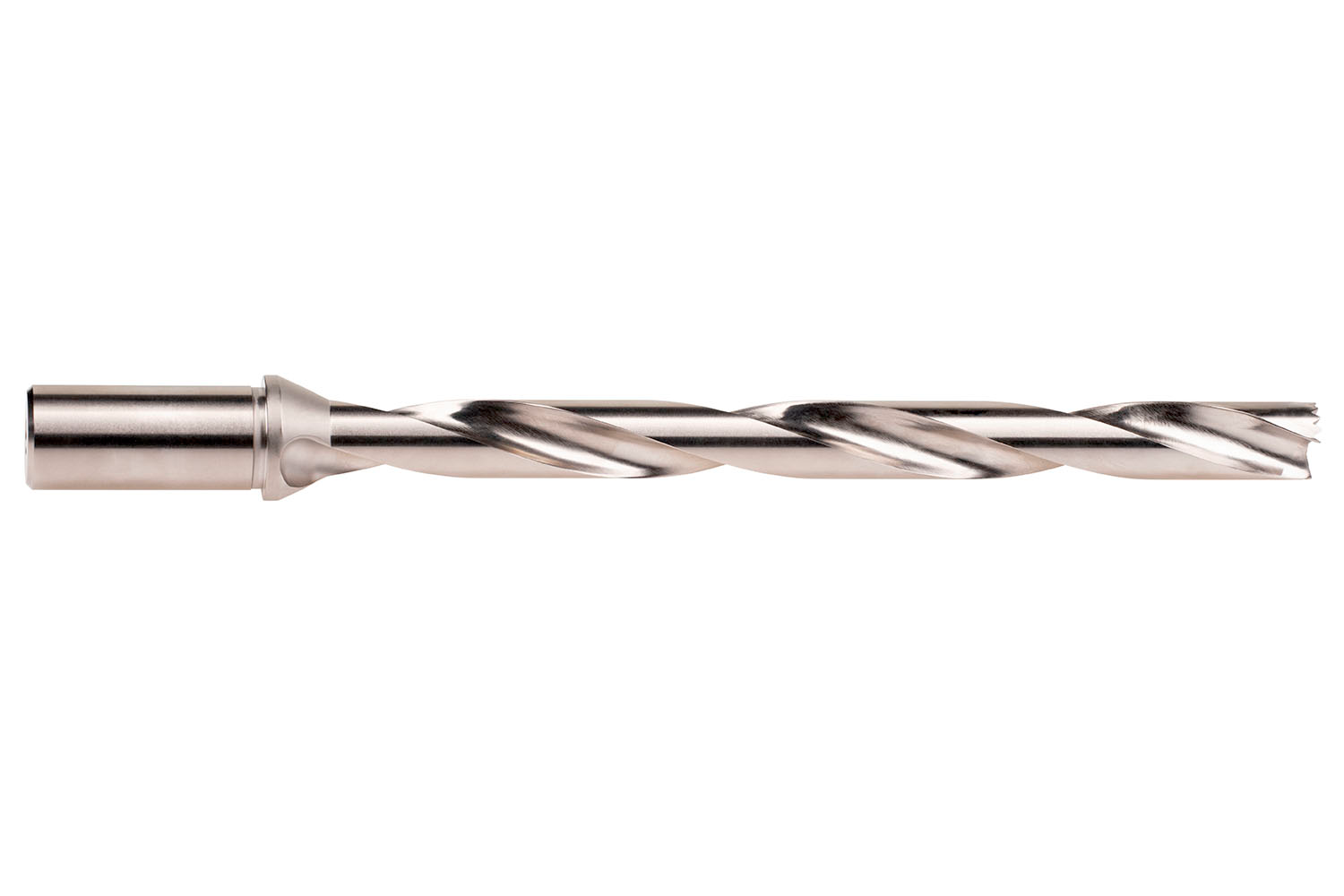

DORMER H851219.0 Hydra Body

Product Code: H851219.0

$2,113.05$1,920.95 Ex. GST

Product Code: H851219.0 SKU H851219.0 Categories , ,
DORMER H851219.0 Hydra Body

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

DOR Replaceable head drill body HYDRA with cylindrical shank with flange, size 19.0mm with an overall length of 305.6mm and flute length of 228mm according to DORMER standard for 12xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 18.6 up to 19.5mm

Additional information

Weight 2.0515 kg
Dimensions Length 30.56cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760894996
Product number (SAP): 86036587
Ordering code ANSI: H851219.0
Product Line: HYDRA
Gross weight – grams: 715

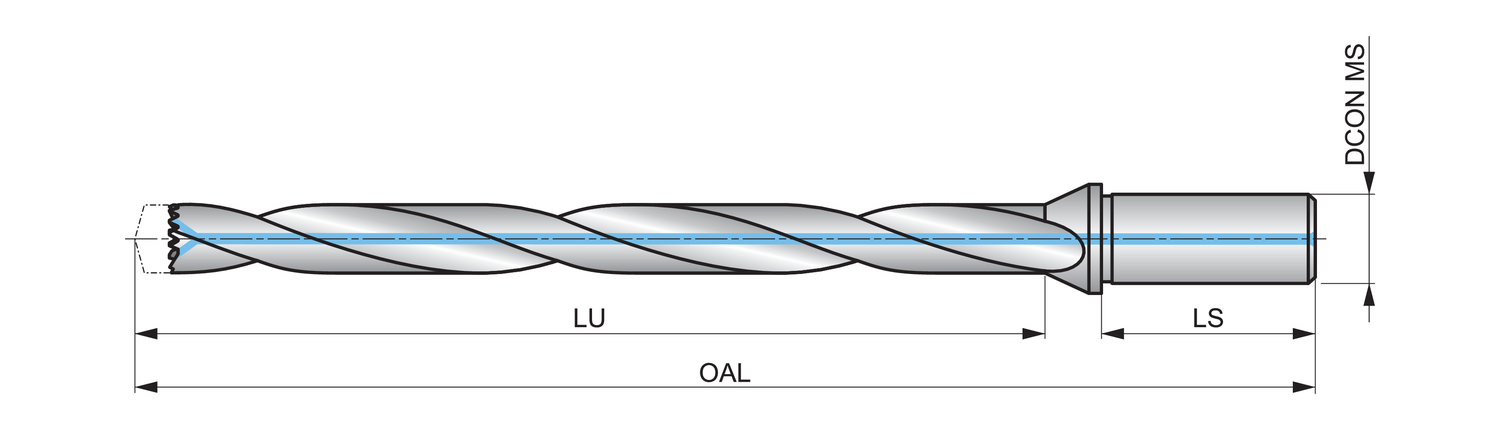

Connection diameter – millimeter (DCON MS): 25 mm
Usable Length – millimeter (LU): 228 mm
Overall length – millimeter (OAL): 305.6 mm
Shank length – millimeter (LS): 56 mm
ISO: H851219.0

Brand

DORMER
